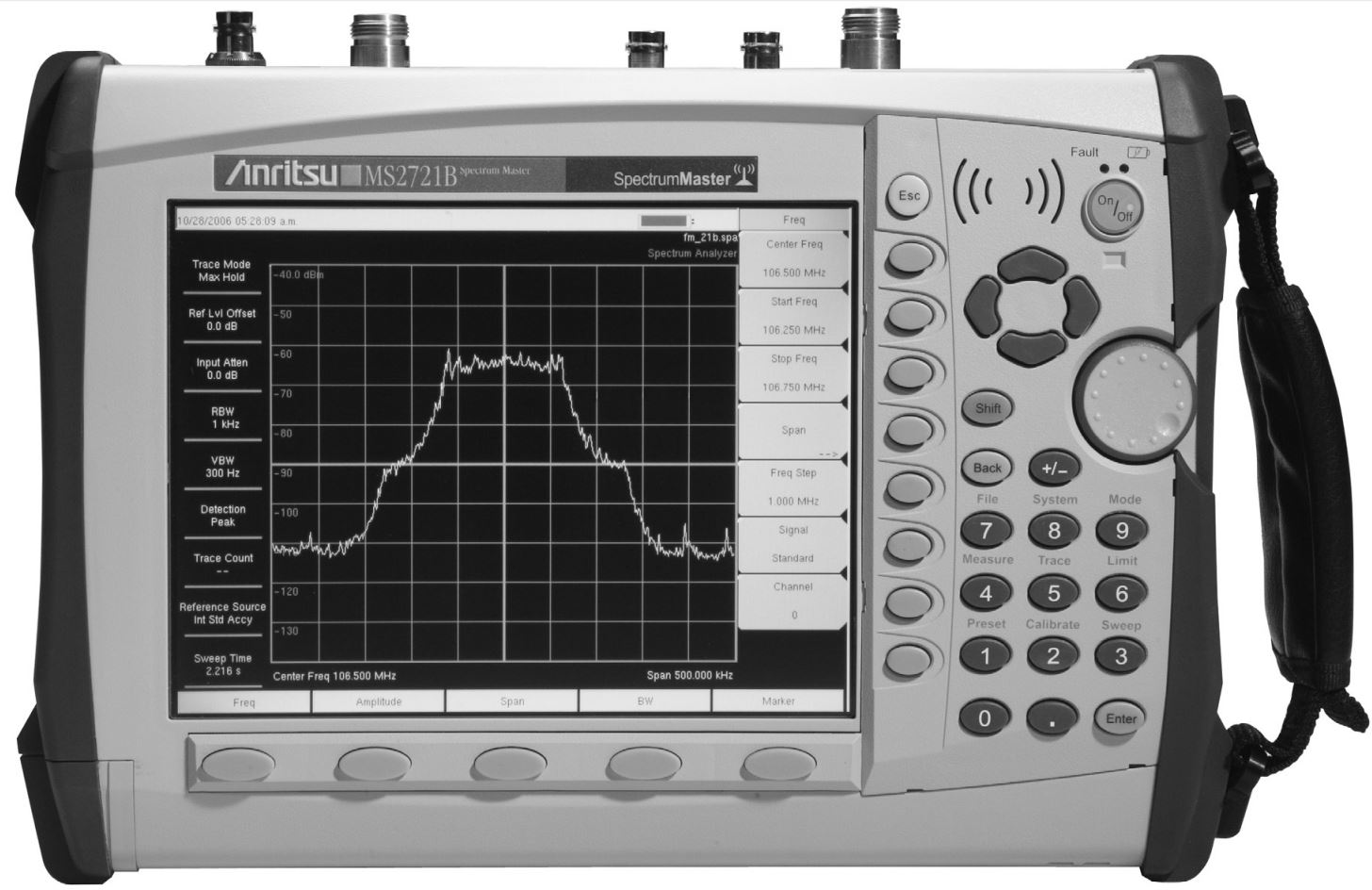

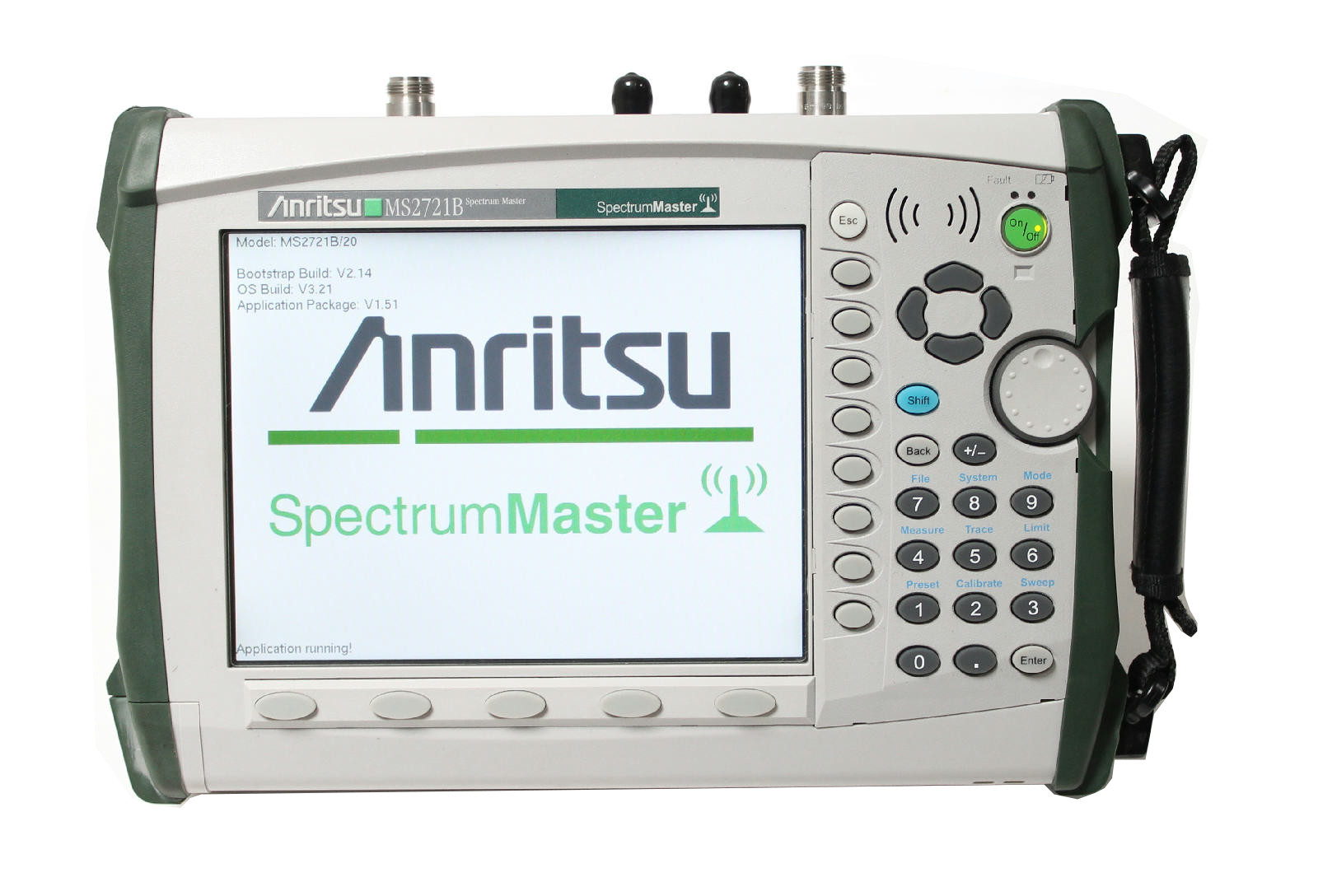

Anritsu Handheld Spectrum Analyzer MS2721A
The Anritsu Spectrum Master MS2721A was the first compact, fully-functional and handheld spectrum analyzer designed to conduct precise analysis on cellular signals and wireless LAN. This model`s most noticeable testing areas include: 802.11a, ultra-wideband, 3G, WiMAX, and Wireless Medical Patient Monitoring Networks. The MS2721A has a frequency range encompassing 100 kHz to 7.1 GHz.
With ≤–153 dBm Displayed Average Noise Level Typical @ 1 GHz, the kind of sensitivity this instrument offers is unprecedented in handheld spectrum analyzers that operate on batteries. Its higher sensitivity enables it to measure extremely low level and weak signals. The MS2721A comes with a broad range of resolution bandwidth options, thus you can configure your instrument to meet your specific measurement needs.
The Anritsu MS2721A is a suitable instrument for applications like RF and microwave signal measurements, cellular signal measurements, Wi-Fi / WiFi5 installation, and general spectrum monitoring. Its built-in demodulator for AM/FM/SSB can help you quickly catch interfering signals. The four sweep triggers it offers are: Free run, Single, Video, and External.
The MS2721A Handheld Spectrum Analyzer weighs approximately 6 lbs., therefore the user can easily take it everywhere including up to a tower. With remote tools, you will be able to control a MS2721A while sitting at your desk miles away from the device and see what is shown on the instrument`s screen. The model features eight languages, including Japanese and French. Two custom-defined languages can also be uploaded with the help of the software tools supplied.
| Model | MS2721A |
|---|---|
| Manufacturer | Anritsu |
| Series | Anritsu Spectrum Master |
| Type | Handheld Spectrum Analyzer |
| Frequency | 100 kHz to 7.1 GHz |
| Sweep speed | 100 ms |
| Display | 8 inch daylight viewable touchscreen |
| Battery Life | 3 hours max |
| MS2721A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for MS2721A:
MS2721A Anritsu Handheld Spectrum Analyzer- FAQ:
Question:
What are the dimensions of the MS2721A?
Answer:
It is 12 x 8 x 3 inches.
Question:
What is the memory capacity for the MS2721A?
Answer:
The memory capacity is greater than 1000 traces and 1000 setups with a 64MB card, but additional storage can be obtained with a larger compact flash card.
Question:
Can I order a rechargeable battery for my MS2721A?
Answer:
Yes, a rechargeable battery is available for this model. It is part number 663-44.
Question:
How many markers can be displayed on the screen of the MS2721A at once?
Answer:
Six markers can be shown at one time.
