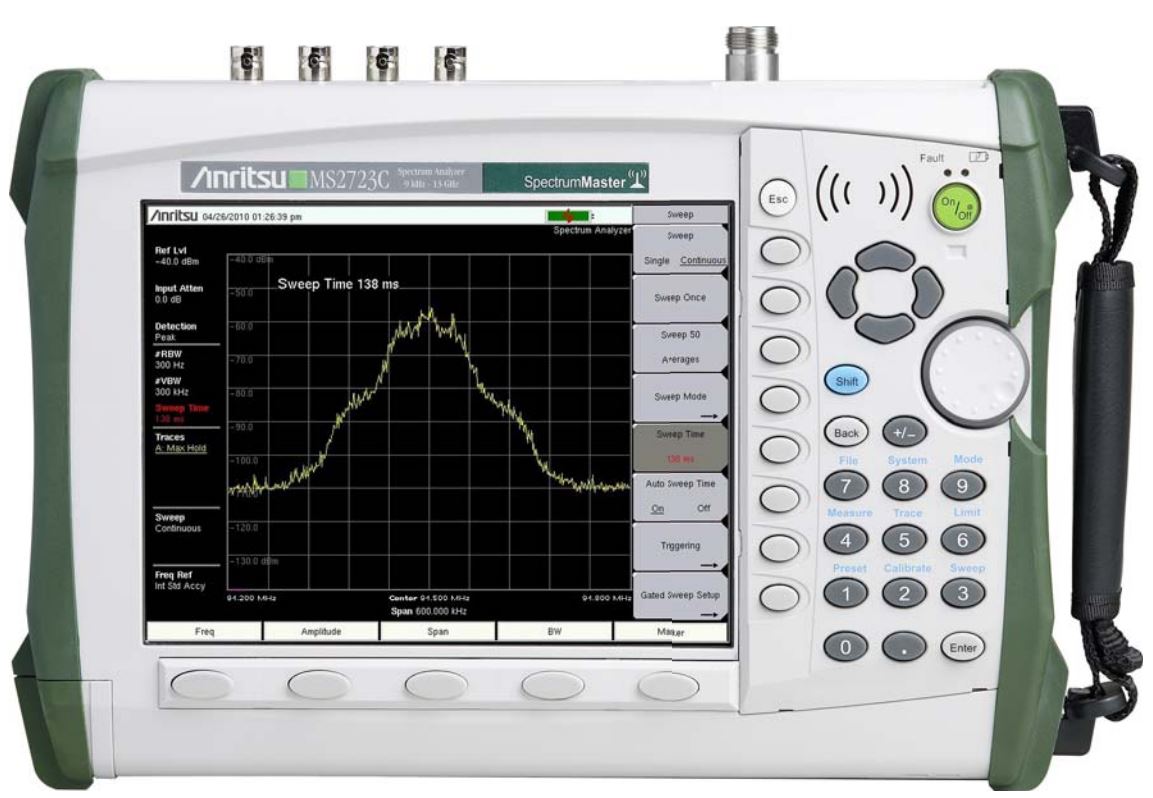

Anritsu Spectrum Master MS2723C
With Low/High-end frequency limits of 9.0 kHz to 13.0 GHz respectively, the Spectrum Master MS2723C is a powerful spectrum analyzer that comes with a functionality of more than 30 analyzers in one. Thus, the model is capable enough to assist network engineers with their many measurement needs. Continuous frequency coverage in (9 kHz to 13 GHz range) gives the user the power necessary for the most demanding and complicated measurements. Some of the best features of the MS2723C are: the 3 Sweep Modes, innovative triggering choices, such as hold-off, hysteresis, and delay, on-screen mapping of Interference, enhanced GUI with an optional large market display, 1 Hz to 10 MHz Resolution Bandwidths, and a maximum of 20 MHz LTE Measurements.
The Spectrum Master MS2723C is equipped with an 8" color LCD easily readable in the daylight and set at 800 x 600 resolution. It weighs around 3.8 kg only, while its Li-Ion battery can keep the unit running for 3 hours approximately. This model comes with an improved internal storage, capable of holding more than 13,000 traces for future assessment. The unit is designed for automatic stamping of time and date - a great feature indeed that can lead the user to more productive post measurement analysis.
The MS2723C is a powerful instrument undoubtedly - however for further functionality, and testing needs, the user can opt for several optional testing modules available, like a GPS Receiver, CDMA2000 1X/1xEV-DO, or Mobile WiMAX.
For more information and/or technical guidance, please visit https://www.apexwaves.com.
| Model | MS2723C |
|---|---|
| Manufacturer | Anritsu |
| Series | Anritsu Spectrum Master |
| Type | Handheld Spectrum Analyzer |
| Frequency | 9 kHz to 13 GHz |
| Display | LCD display, viewable in daylight |
| Memory | 256 MB |
| Battery | Up to 2.5 hours |
| MS2723C Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for MS2723C:
MS2723C Anritsu Spectrum Master- FAQ:
Question:
How do I use the tilt bail stand for my MS2723C Spectrum Master?
Answer:
Simply pull the bottom of the tilt bail away from the back of the model. To return it, push the bottom of the bail towards the back of the model and clock the bail into the clip located on the back of the model.
Question:
Is there an option for secure data on the MS2723C?
Answer:
Secure data is Option 7 on the MS2723C. This will enable the model to save information to an external USB flash drive and will disable the ability to save to the internal memory.
Question:
How do I delete the user files stored in the internal memory on the MS2723C?
Answer:
To do this, turn on the model and press the Shift button, followed by the System (8) button. Press System Options, then Reset, and next Master Reset. After this, press Enter to finish the process. The MS2723C will reboot and the reset will be done.
Question:
What is the bandwidth of the MS2723C?
Answer:
The bandwidth is 1 Hz to 10 MHz.
