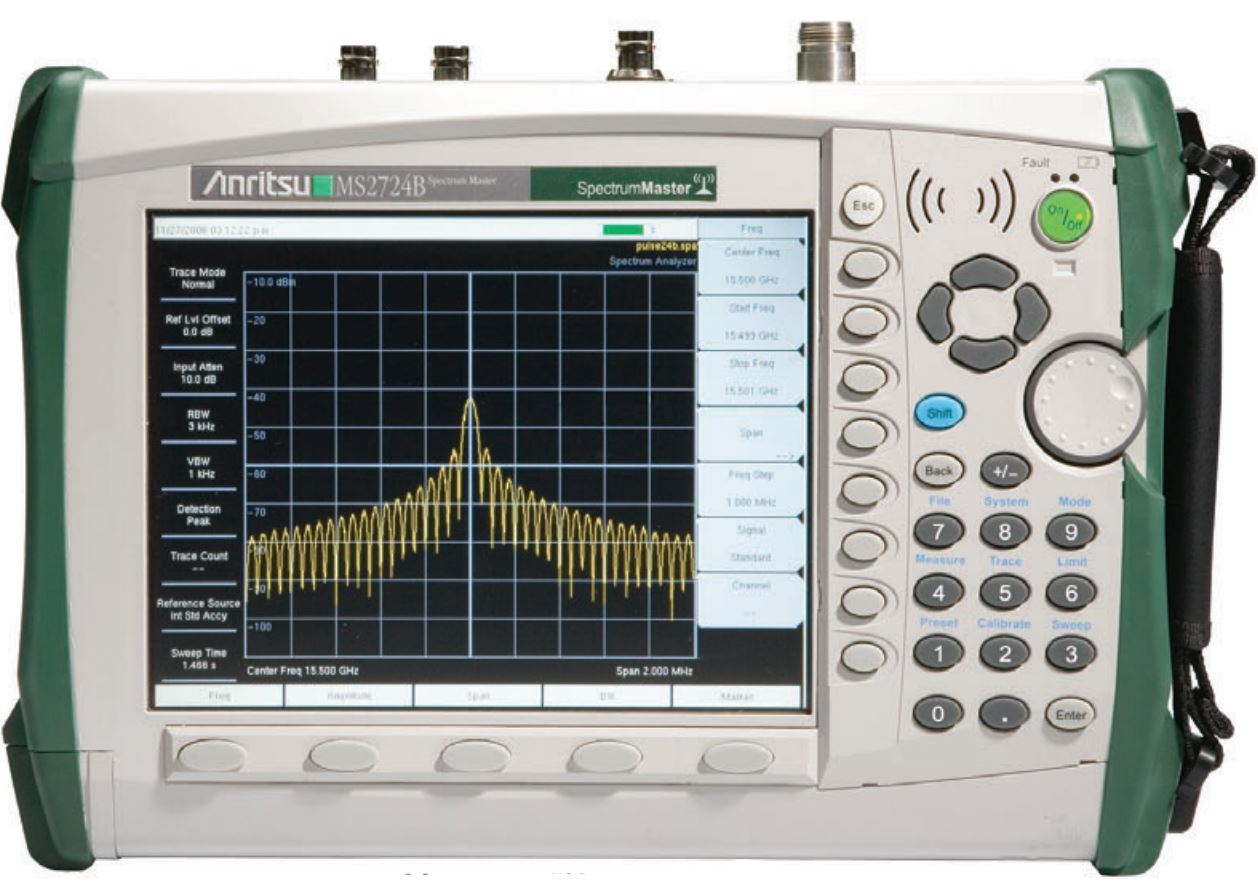

Anritsu Spectrum Master MS2724B
With continuous frequency coverage from 9 kHz to 20GHz, the MS2724B is there to assist the user with the most demanding measurements in difficult physical and RF environments. Whether you are looking for Cellular, RF and Microwave signal measurements or Wi-Fi and WiFi5 installation - this instrument is the tool to make your work more productive and simpler.
In today’s world, where more 802.11 access points have installed, the challenges related to the interference in 2.4 GHz and 5.8 GHz bands occupied by these and other devices are growing increasingly. With its incredible measurement abilities, the MS2724B makes the entire process to determine the level of interference an easy one for an access point installer. The broad frequency coverage offered by this instrument can provide you with the due assistance needed to install and manage wireless networks including 802.11a, 802.11b, and 802.11g
The Spectrum Master MS2724B is designed to choose the fastest possible sweep automatically for precise measurements, while sweep speed can be set from 10 microseconds to 600 s in zero spans. This flexibility and speed is better than most of the portable spectrum analyzers available on the market, and it is something that can simplify the process of capturing the intermittent interfering signals. The highlights of the MS2724B are: the Quasi-peak Detector, CISPR Bandwidths, a port available for an optional GPS Receiver, an Integrated Preamplifier, and Low Phase Noise i.e. at 2 GHz; –104 dBc/Hz (typical) @ 10 kHz offset.
For the MS2724B datasheet, manual or price-related information, please visit apexwaves.com.
| Model | MS2724B |
|---|---|
| Manufacturer | Anritsu |
| Series | Anritsu Spectrum Master |
| Type | Handheld Spectrum Analyzer |
| Frequency | 9 kHz to 20 GHz |
| Display | 8.5 inch LCD display |
| Memory | 256 MB |
| Maximum Safe Input Level | Up to 30 dBm |
| MS2724B Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for MS2724B:
MS2724B Anritsu Spectrum Master- FAQ:
Question:
What types of limit lines does the MS2724B include? What are they used for?
Answer:
The MS2724B has lower and upper limit lines, which can be a visual reference or pass/fail criteria if limit alarms are enabled.
Question:
How long can the MS2724B save data?
Answer:
Data can be saved on the spectrogram for a maximum of 72 hours.
Question:
What are some of the optional accessories available for the MS2724B?
Answer:
A few of the optional accessories are: a high accuracy power sensor, a USB power sensor, a 256 MB compact flash memory module, a 2 GB USB flash drive, and various precision adapters and test port cables.
Question:
What is the advantage of the wide dynamic range of the MS2724B?
Answer:
A wide dynamic range allows for the accurate measurement of extremely small signals next to signals that are much bigger.
