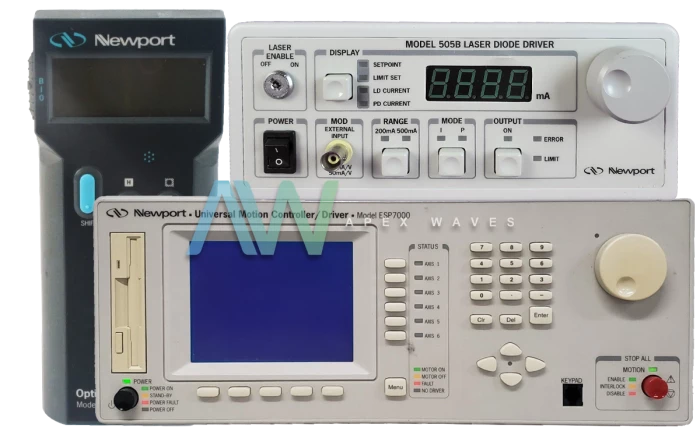

Newport Corporation - Optical Meters - Q2000-P

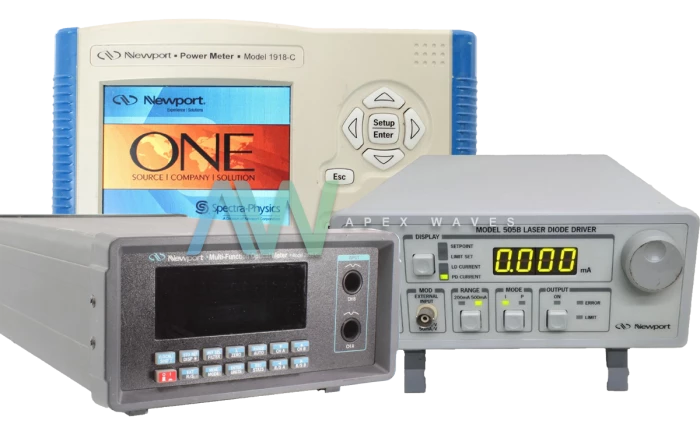

Newport Corporation - Optical Meters - Q2000-P - Wiring
Q2000-P New
Q2000-P Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Get Price & Availability for the Q2000-P

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
Check Availability Get Current Lead Time

Newport Q2000-P Digital Panel Meter

The Newport Q2000-P Digital Panel Meter provides accurate measurement capabilities using a stable power architecture and controlled signal handling. The unit supports AC inputs of 24V, 120V and 240V with a tolerance of +10/-15% across 47–63Hz frequency. The meter maintains a tested common mode voltage of 1500Vp which ensures safe operation under electrical conditions. The Q2000-P panel meter also supports 5V DC input sources with a ±5% margin and stable signal reference. Its 9V to 32V DC voltage capability includes 300V isolation between the supply return and the signal low. The unit operates with a source impedance rating of 3 Ohms for stable signal conditioning.

The design limits ripple to a 250mV maximum which protects the conversion cycle from distortion. Overall power consumption for the Q2000-P panel remains within 5W which supports efficient system integration. The meter provides functioning with multiple DC current and DC voltage ranges including -1mA to +1mA and -50mA to +50mA. The panel meter features a clear display system that allows reliable viewing in controlled domains. The LED version uses a 14.2 mm seven-segment indicator with a red lens designed for readability. The LCD version uses a 12.7 mm seven-segment indicator with a clear lens optimized for ambient lighting.

The measurement range spans from 0 to ±1999 for flexible application requirements without scale modification. Overload indication in the panel is managed by blanking the three least significant digits while presenting “1” or “-1”. The Newport Q2000-P panel meter uses an auto-zero dual-slope conversion technique which increases reading consistency and reduces integration error. The signal integration period is 100 ms nominal which stabilizes readings under variable loads. The reading rate is 2.5 readings per second nominal which supports real-time monitoring without oversampling.

The operating temperature limits for the Q2000-P span from 0°C to 60°C which supports broad enclosure applications. The unit requires storage temperature that ranges from -40°C to 85°C for safe long-term equipment placement during transport. The mechanical design of the panel meter uses a UL-rated 94V-0 polycarbonate case which provides flame retardance and structural stability. The meter follows an ALPHA 3-1/2 display classification which confirms its numerical resolution and digit structure.

ModelQ2000-P
ManufacturerNewport
Part TypeDigital Panel Meter
AC Power Input24/120/240 V AC, +10%/−15%, 47–63 Hz
Common Mode Voltage1500 Vp test (354 Vp per IEC spacing)
DC Power Input5 V DC ±5% (5 V return common to signal LO)
Source Impedance3 Ω
Maximum Ripple250 mV
Power Consumption5 W maximum
Operating Temperature0 °C to 60 °C
