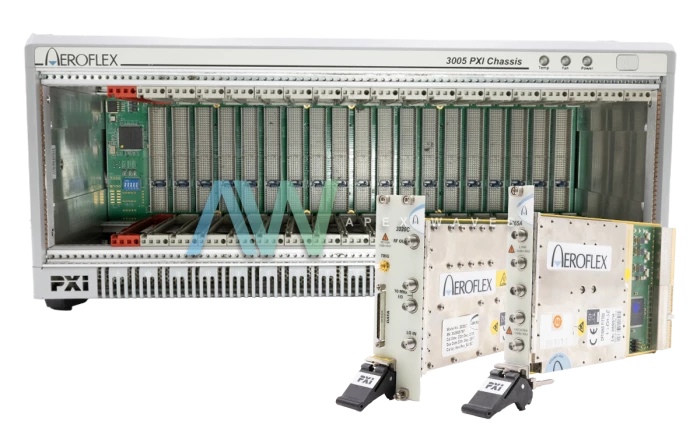

Aeroflex 3035C RF Digitizer Module
Aeroflex’s 3035C is an advanced PXI RF Digitizer Module that is used to perform high-quality Wide Band Signal Analysis for Automated Test Systems (ATS). The Aeroflex 3035C is a key component for engineers and manufacturers who are involved in designing and developing complex RF communications. The module converts analog RF signals to digital I and Q data, while the digitizer has an extremely broad operating frequency range of 250 KHz to 6 GHz with a 90 MHz bandwidth at the digitizer input. In addition, the 3035C Digitizer has a 13-bit Analog-to-Digital Converter (ADC), allowing for a maximum sampling rate of 250 MSa/s, thereby giving the engineer sufficient bandwidth to accurately measure the high fidelity of all modern wireless protocols.
The Aeroflex 3035C is used in the most demanding and extreme applications for both Research & Development (R&D) and High Volume Production Environments. The Digitizer Module is specifically suited for testing and validating components and systems to many standard technologies, including WLAN, WiMAX, and 2G through 4G cellular technologies, as well as satellite communications and military communications. The Aeroflex 3035C has an outstanding dynamic range, having a typical intermod-free dynamic range of 75 dB, and has an exceptional level accuracy, being typically ±0.3 dB. Therefore, this makes the Aeroflex 3035C an ideal device for making precise measurements of Adjacent Channel Leakage Ratio (ACLR) and Spectral Mask Compliance for regulatory purposes.
The Aeroflex 3035C Digitizer Module can be integrated into a full system environment by pairing it with the Aeroflex 3010 series of RF Synthesizer Modules and using the comprehensive PXI Studio Application Software to control both modules. PXI Studio allows users to easily access vector signal analysis tools such as spectrum and time-domain measurements. The Aeroflex 3035C also supports advanced features, such as List Mode, which enables pre-programmed sequences of frequency and level settings to enable ultra-fast switching of test sequences, which greatly reduces test times in automated manufacturing. With its flexibility of data output options, including real-time streaming of samples via a front panel LVDS interface and a large onboard sample memory of 512 MB, the Aeroflex 3035C offers a very powerful and scalable solution for creating efficient, high-speed RF test systems.
| Model | Aeroflex 3035C |
|---|---|
| Part Type | PXI RF Digitizer Module |
| Frequency Range | 250 kHz – 6 GHz |
| Bandwidth (-1 dB) | Up to 90 MHz |
| ADC Resolution | 13 bits |
| Sample Rate | Up to 250 MSa/s |
| Dynamic Range | 75 dB typical |
| Max Input Power | +30 dBm |
| Level Accuracy | ±0.3 dB typical |
| Amplitude Flatness | ±0.25 dB (over 67 MHz) |
