SMA-2164
Modular Systems > National Instruments > Accessories
| Description: | SMA-2164, 16 DIO and 6 Control I/O Channels, LVDS Prototyping Accessory |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

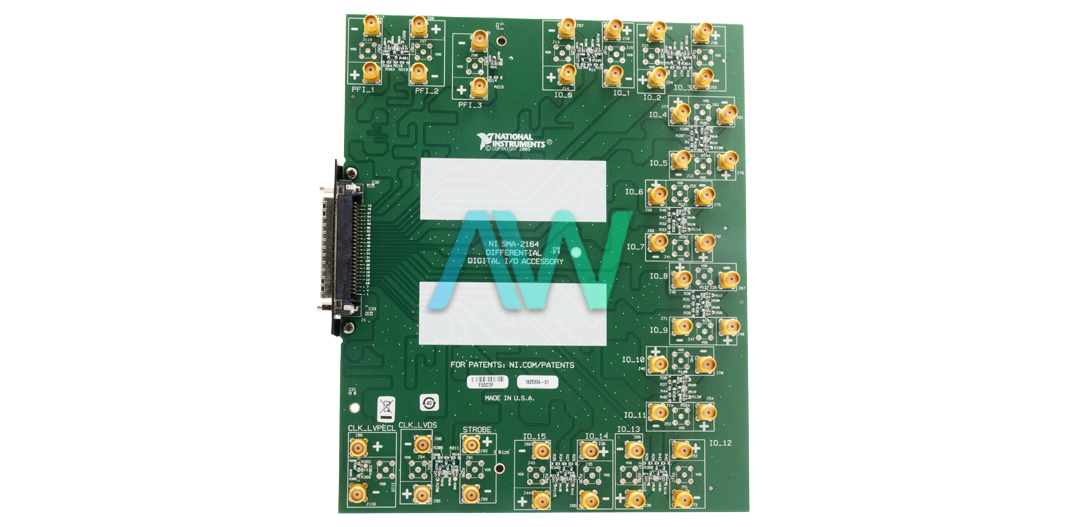

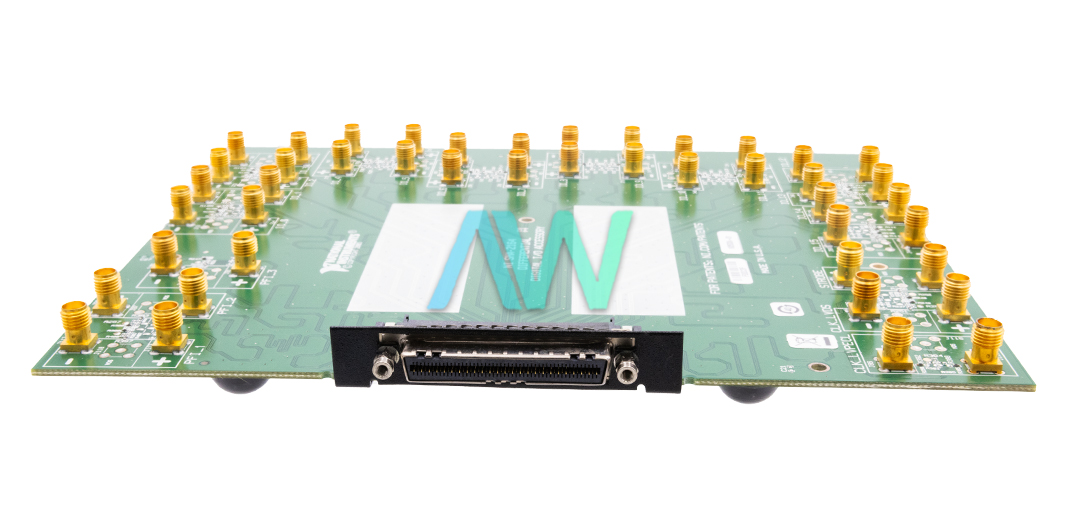

National Instruments SMA-2164 LVDS Prototyping Accessory
Featured with 16 independently controlled channels, the SMA-2164 (Part Number: 779323-01) is a prototyping accessory. This accessory is designed to be used with digital waveform analyzers and generators from the NI-65XX Series. The NI SMA-2164 offers easy access to control and data signals through SMA connectors. Thus, you can easily connect this device with other devices for testing or prototyping. This accessory can also be used with the adapter modules from the NI FlexRIO Series and arbitrary waveform generators.
The NI SMA-2164 can be used with devices that come with an Infiniband connector, including the NI-6561/6562, NI-6583, and NI-6587. This breakout box or prototyping accessory comes with a 73-pin Infiniband connector. The SMA-2164 is designed to operate at 5 V maximum. This LVDS Prototyping Accessory has 44 resistors. You can use this accessory for the termination of 16 differential I/O channels and 6 differential control I/O channels.
| Model | SMA-2164 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779323-01 |
| Type | LVDS Prototyping Accessory |
| Compatible Models | NI-6561/6562, NI-6583, and NI-6587 |
| DIO Channels | 16, differential |
| Control I/O Channels | 6, differential |
| Number of Resistors | 44 |
| Maximum Voltage | 5 V |
| I/O Connectors | One 73-pin Infiniband connector or one 68-pin VHDCI connector, and 44 SMA connectors |
| Dimensions | 6.91 x 0.816 x 8 in. |
| Weight | 1 lb. |
| Warranty | 2-3 Year Warranty |
| SMA-2164 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for the SMA-2164:
192533A-01, 192533B-01L, 779323-01
SMA-2164 PDF Manuals
NI 6583R USER GUIDE AND SPECIFICATIONS.PDF
NI 6587 GETTING STARTED GUIDE.PDF
NI 6589 GETTING STARTED GUIDE.PDF
NI HIGH SPEED DIGITAL WAVEFORM GENERATOR ANALYZER GETTING STARTED GUIDE.PDF
NI SMA-2164 2165 TEST FIXTURE USER GUIDE.PDF
