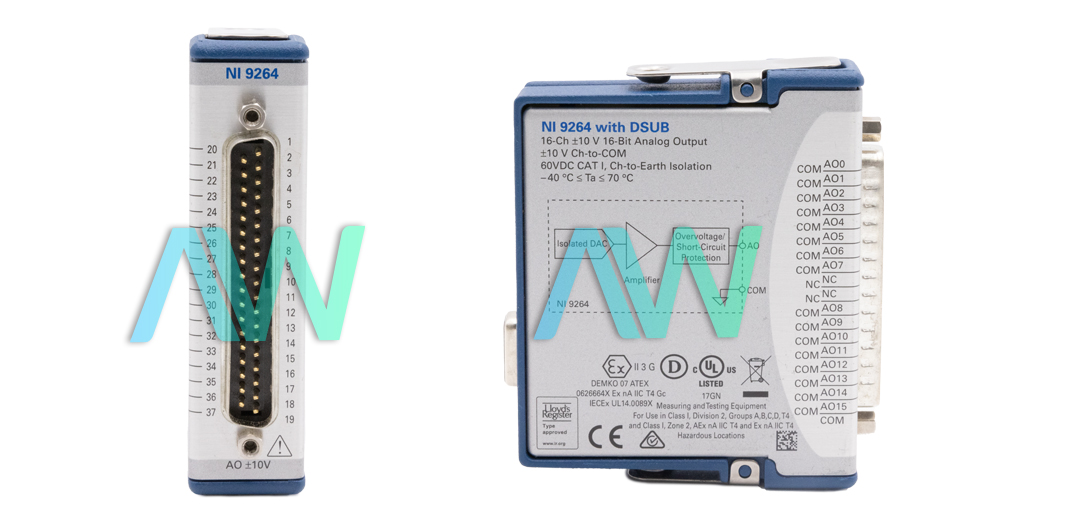

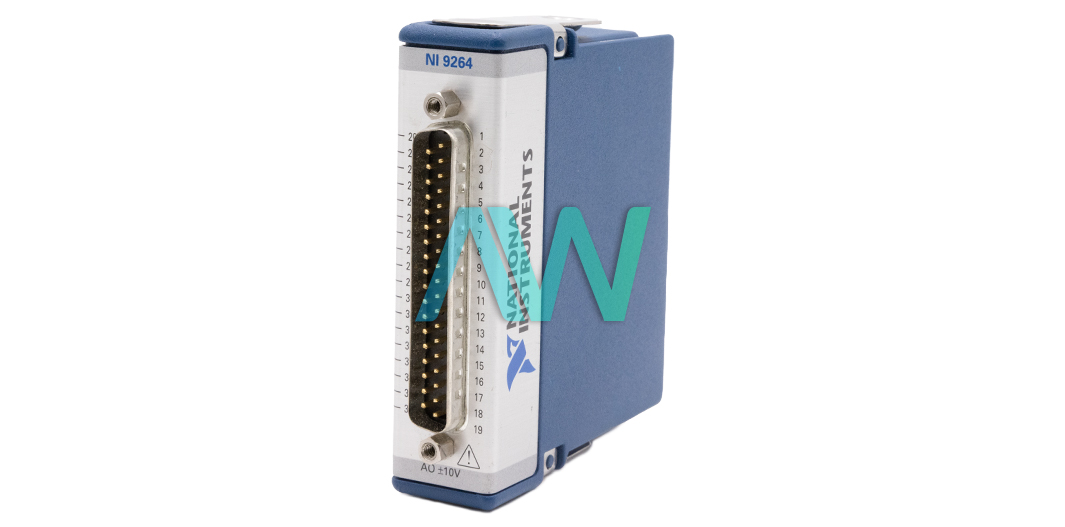

National Instruments 780927-02 Voltage Output Module
National Instruments part number 780927-02 is the version of the NI-9264 Voltage Output Module with DSUB Connectors that is conformal coated. The conformal coating of the 780927-02 offers enhanced protection by shielding the device from external environmental factors such as dust, chemicals, or moisture. As part of the C Series from National Instruments (NI), the module can be used in both CompactDAQ and CompactRIO systems. From precise measurements to seamless communication, the 16 channels and 16-bit string DAC of the 780927-02 make it an excellent choice for anyone seeking high quality performance.
Upon activation, the channels of the 780927-02 are designed to remain in an 'off' state. A safe and efficient power-up and power-down process is guaranteed with a start and end voltage level of 0 V.
When using the 780927-02, you can expect consistent and dependable performance across a wide range of outputs. It offers an impressive maximum output of ±10.65 V, as well as a minimum output of ±10.35 V. The 780927-02 module offers a versatile output range of ±10.5 V alongside a reliable and stable output impedance of 2.0 Ω. The current drive capability of the module allows each channel to handle ±4 mA typically, with the flexibility to accommodate a maximum current drive of ±16 mA when needed.
The 780927-02 is able to operate within diverse environmental conditions, even at elevations up to 2,000 meters. It has a broad operating temperature range of -40°C to 70°C (-40°F to 158°F). When the module is in storage, it has an extended storage temperature range of -40°C to 85°C (-40°F to 185°F)- allowing for peace of mind when not in use. It is engineered to operate in humidity levels that range from 10% to 90% RH (noncondensing), while storage conditions are slightly expanded- allowing a range of 5% to 95% RH noncondensing humidity.
| Model | 780927-02 |
|---|---|
| Model Name | NI-9264 |
| Part Type | Voltage Output Module |
| Compatible With | CompactDAQ and CompactRIO |
| Conformal Coated? | Yes |
| Output Range | ±10.35 V to ±10.65 V |
| DAC Resolution | 16 Bits |
| Operating Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Manufacturer | National Instruments (NI) |
