NI Vehicle Multifunction I/O Bundle Measurement & Test Hardware

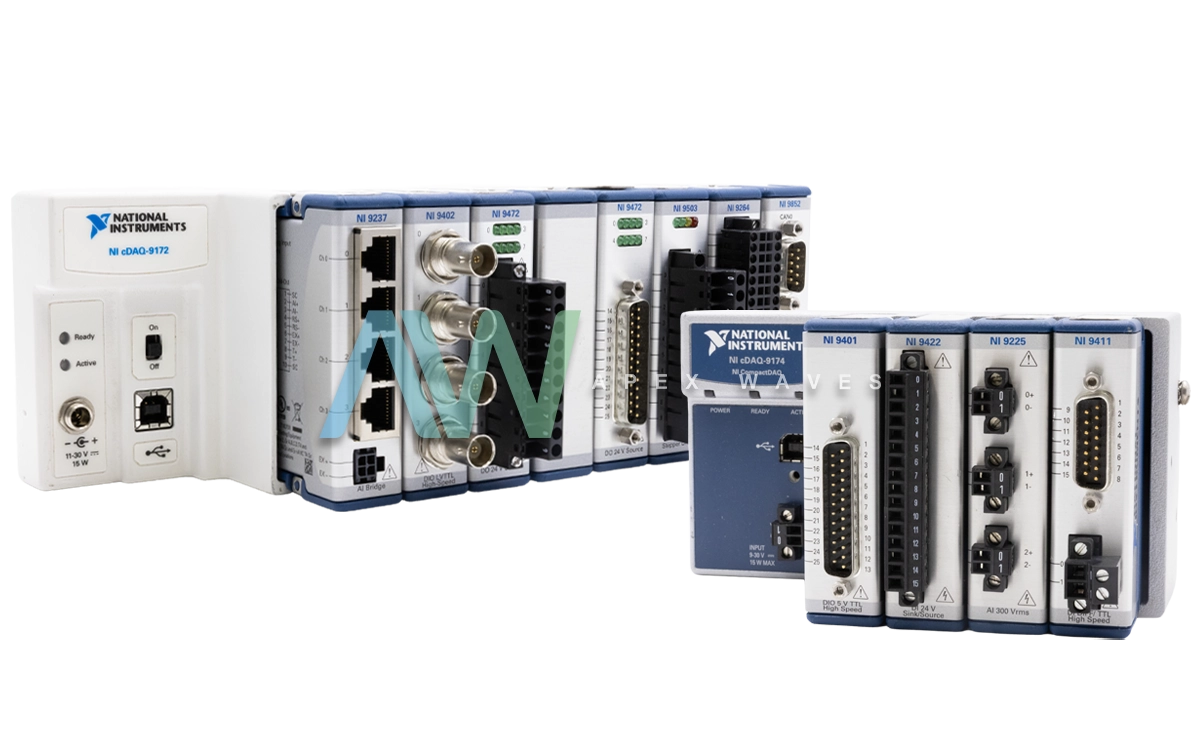

The Vehicle Multifunction I/O Bundle (part numbers: 866576-01C, 866576-01) from the manufacturer National Instruments is a multifaceted Data Acquisition System (DAQ) that was developed specifically for Automotive Testing & Validation applications. This DAQ system is a comprehensive solution that incorporates a cDAQ chassis along with specific C Series modules for processing virtually all vehicle signals. These modules include the NI-9860 Interface Module, the NI-9205 Voltage Input Module, the NI-9219 Analog Input Module, the NI-9269 Voltage Output Module, the NI-9401 Digital Module, and the NI-9229 Voltage Module.
This Vehicle Multifunction I/O Bundle is an especially useful tool for engineers who are engaging with in-vehicle test and validation applications. These applications include, but are not limited to, component and powertrain testing as well as structural/durability analysis. In addition to performing electrical signal control, the modules of this bundle work together to enable high-speed communication between electronic control units (ECUs) within the vehicle network. This is accomplished by using the supported standard automotive protocols (i.e. CAN and LIN). In this way, the Vehicle Multifunction I/O Bundle enables engineers to measure and diagnose vehicle performance based on data from temperature, pressure, and strain sensors. As a result, the Multifunction I/O Bundle is ideal for use in Hardware-in-the-Loop Simulation, Rapid Control Prototyping, and Bus Monitoring Applications.
By providing native compatibility with National Instruments software, the Vehicle Multifunction I/O Bundle creates a platform for sophisticated data acquisition and analysis. Engineers can utilize LabVIEW for developing custom application software, and DIAdem Advanced can be used for visualizing and reporting data. All together, the software and hardware components of this versatile bundle create a powerful tool set for any automotive validation workflow.
| Model | Vehicle Multifunction IO Bundle |
|---|---|
| Part Number | 866576-01C / 866576-01 |
| Part Type | Vehicle I/O Test Bundle |
| Platform | CompactDAQ System |
| Modules Included | NI-9860, NI-9219, NI-9205, NI-9401, NI-9269, NI-9229 |
| Protocols | CAN, LIN |
| Analog Input | ±60 V Max (Module Specific) |
| Digital I/O | TTL, Bidirectional |
| Voltage output | ±10 V |
| Software | LabVIEW, DIAdem |
