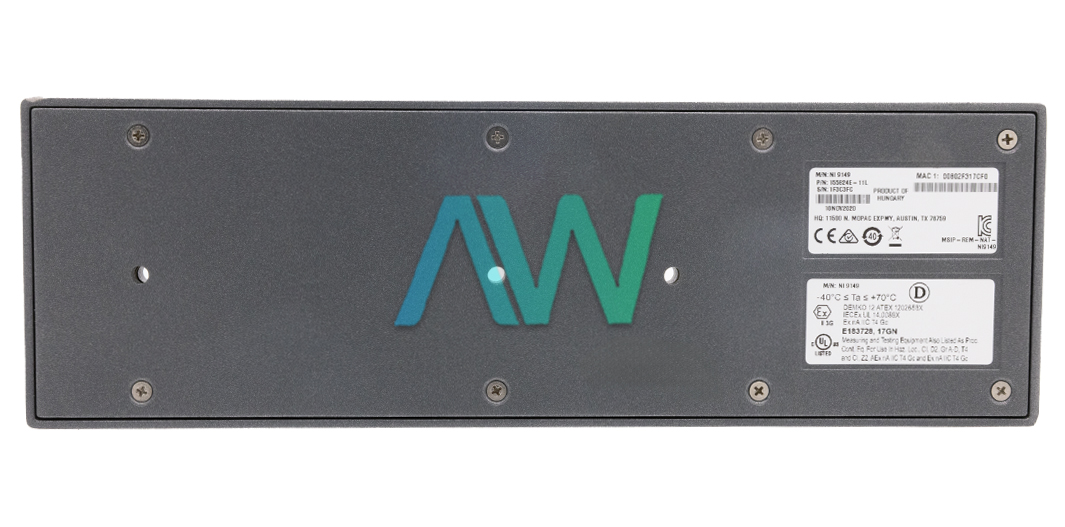

National Instruments NI-9149 Ethernet CompactRIO Chassis

The NI-9149 (Part numbers: 783376-01 and 783376-02) is an Ethernet CompactRIO Chassis manufactured by National Instruments. This model comes equipped with many useful features, including:

·        8- Slot Count Ethernet Bus Connector

·        NI Linux Real-Time (32-bit)

·        LabVIEW 2014 SP1, LabVIEW FPGA Module 2014 SP1 application software

·        Industrial specs (50 g shock, 5 g vibration)

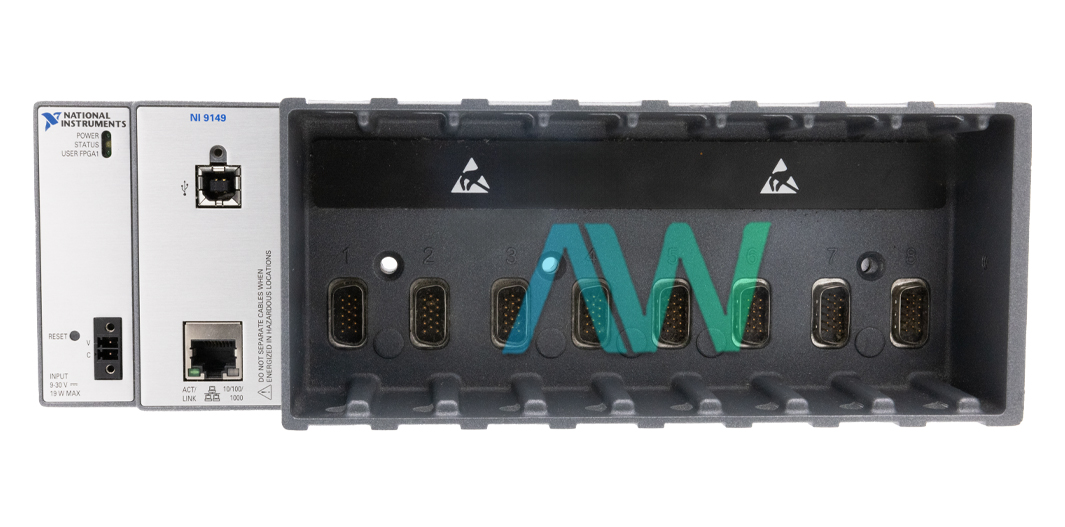

The NI 9149 is an Ethernet CompactRIO Chassis for NI C Series Modules. This Chassis is designed to connect with switches, routers, or already established Ethernet networks. The NI 9149 features 2 Ethernet ports with distinct communication pathways. The first port (Port 1) allows communication between the host computer and the real-time controller, while the second port (Port 2) is used to communicate with networks which are invisible to the host system. This model comes with NI Linux Real-Time (32-bit) operating system, LabVIEW 2014 SP1 or later, and LabVIEW FPGA Module 2014 SP1 or later application software.

The NI 9149 FPGA is a Xilinx Zynq-7000 reconfigurable FPGA. This Ethernet CompactRIO Chassis additionally is equipped with a high-speed USB 2.0 port with a maximum data rate of 480 Mpbs, as well as an Internal Real Time Clock accuracy of 5 ppm. The NI-9149 is a rugged extension Chassis designed for industrial deployment with its 5 g operating vibration and 50 g operating shock. The NI-9149 Ethernet CompactRIO Chassis’ dimensions are 10.74 in. × 3.47 in. × 2.45 in. This model weighs 36.97 oz. This model also has a gauge, which is 0.2 mm 2 to 2.1 mm2 (24 AWG to 14 AWG).
