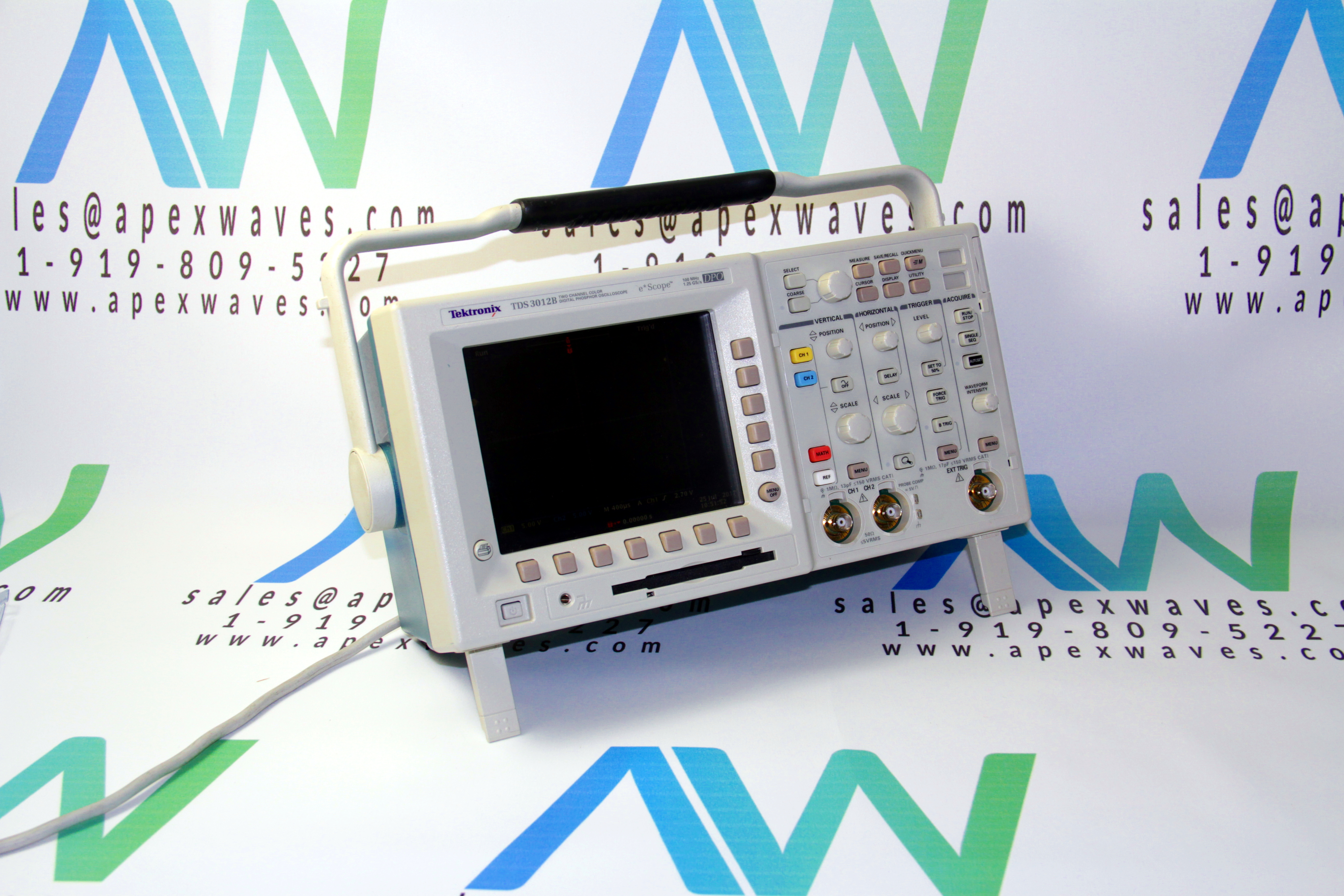

Tektronix TDS3054B Digital Phosphor Oscilloscope
The TDS3054B Digital Phosphor Oscilloscope highlights the insights about the history of a signal's movement, making it less demanding to comprehend the attributes of the waveforms the user has captured. An expansion in execution from 500 to 600 MHz data transfer capacity offers a 20% change in rise-time estimation exactness, as delineated with these estimations of a 20 ps rising edge. The lower trace is a reference waveform, demonstrating the rise-time execution of a 500 MHz oscilloscope. The upper trace demonstrates the improved execution of a 600 MHz oscilloscope.
The TDS3054B's 5 GS/s continuous sample rate and sin(x)/x interpolation guarantee exact reproduction of a 500 MHz of a sine wave. Indeed, even with 2 GS/s sample rate, which surpasses the Nyquist prerequisite of 2X oversampling, this 500 MHz oscilloscope with direct addition does not give precise reconstruction of a similar 500 MHz sine wave. The user can also search for accidental circuit noise with the TDS3054B FFT capacity.
The TDS3054B DPO with the TDS3LIM testing module is perfect for assembling test applications where quick Go/No-Go choices are required. This model also has a Peak Detect, with high recurrence and arbitrary glitch catch which catches glitches as restricted as 1 ns.
This model has a bandwidth of 500 MHz, a 20,150 MHz BW Limit, 1 ns to 10 s/div Time Base Ranger, and 5 GS/s Sample Rate on Each Channel.
If you are interested in this model and you want to learn more about its specifications and options, you can check out its manual on the ApexWaves.com website.
| Model | TDS3054B |
|---|---|
| Bandwidth | 500 MHz |
| Channels | 4 |
| Sample rate on each channel | 5 GS/s |
| Maximum record length | 10 K points on all models |
| Vertical Resolution | 9 Bits on all models |
| Vertical Sensitivity | 1 mV – 10 V on all models |
| Vertical accuracy | ±2% on all models |
| Max input voltage (1 MΩ) | 150 VRMS CAT I on all models (300 V CAT II with standard 10X probe) |
| Position range | ± 5 div on all models |
| BW limit | 20, 150 MHz |
| Input coupling | AC, DC, GND on all models |
| Input impedance selections | 1 MΩ in parallel with 13 pF or 50 Ω on all models |
| Time Base Range | 1 ns – 10 s/div |
| Time Base Accuracy | 20 ppm on all models |
| Display (VGA) | Color active matrix LCD on all models |
Associated part numbers for TDS3054B:
TDS3054B
Tektronix Digital Phosphor Oscilloscope
Application Modules & Options:
- TDS3FFT FFT application package - The FFT application package adds FFT analysis and measurement capability to your TDS3054B oscilloscope. Application packages can be installed by the user. Further information can be found in the service manual TDS3000B TDS3054B programmer manual.
- TDS3TRG Advanced Triggering application package - The advanced triggering application package adds pulse-width, slew-rate, pattern, state, runt, and edge-delay triggering capability to your TDS3054B oscilloscope. Application packages can be installed by the user. Reference the user manual for the TDS3054B.
- TDS3GM GPIB/RS-232 communication module - This communication module adds GPIB and RS-232 ports to your TDS3054B oscilloscope. You can attach a printer to these ports or use them for remote programmability. Communication modules can be installed by the user and include the TDS3000-Series oscilloscope Programmer Manual for the TDS3054B for further reference.
- TDS3AAM Advanced Analysis Module - Adds extended math capability, arbitrary math expressions, measurement statistics and additional automated measurements. TDS3054B Tektronix oscilloscope modules.
- TDS3LIM Limit Testing Module - Offers fast, accurate Go/No Go verification that tested circuits are operating within intended parameters. For use with the TDS3054B.
- TDS3TMT Telecommunications Mask Testing Module - Pass/Fail compliance of ITU-T G.703 and ANSI T1.102 standards, custom mask testing and more. This module is compatible with TDS3054B Tektronix scope.
- TDS3VID Extended Video Editing Module - Adds Video QuickMenu, autoset, holdoff, line count trigger, video picture mode, vectorscope mode*1, HDTV format triggering graticules and more. Refer to the TDS3054B user manual for more information on options and modules.
- TDS3SDI 601 Serial/Digital Video Module - Identify and analyze ITU-R BT.601 video signals, video picture mode with bright line select, vectorscope mode*1, HDTV format triggering and more. TDS3054B Tektronix Oscilloscope.
- TDS3VM VGA/RS-232 communication module - This communication module adds VGA and RS-232 ports to your TDS3054B oscilloscope. You can attach a printer to the RS-232 port or use it for remote programmability. You can attach a monitor to the VGA port to enhance viewing the screen from a distance. Communication modules can be installed by the user and include the TDS3054B TDS3000-Series oscilloscope Programmer Manual.
- TDS3EM Ethernet communication module - This communication module adds Ethernet 10baseT and RS-232 ports to your TDS3054B oscilloscope. You can attach the oscilloscope to an Ethernet network for remote printing. Communication modules can be installed by the user and include the TDS3000-Series Programmer Manual TDS3054B.
- TDS3CHG external battery charger - The battery charger recharges the oscilloscope battery pack in approximately 3 hours. For use in the TDS3054B digital phosphor oscilloscope.
- TDS3BAT rechargeable battery pack - An extra rechargeable battery pack provides a high-capacity spare battery for extended portable operation.For use in the TDS3054B digital phosphor oscilloscope.
How-to Troubleshoot the TDS3054B Tektronix TDS3000B Oscilloscope
General Troubleshooting Tips
- Verify that your factory defaults were in fact recalled before configuring your scope or taking any measurements.
- Double check the circuit configuration. An incorrect connection or missing wire could alter your results.
Function Check procedure for Tektronix Oscilloscope
- Connect your oscilloscope power cable
- Power on your oscilloscope. Confirm that self tests have passed.
- Connect your oscilloscope probe to channel 1. Connect the probe tip & reference lead to PROBE COMP connectors.
- Press the AUTOSET button. You should see a square wave in the display (approx. 5V at 1kHz).
Troubleshoot: RS-232 Communications Port
- Verify the correct cable and adapters are in use
- Verify that cables are connected to the correct ports
- Reset the RS-232 parameters to Defaults, then set the Baud Rate to match the computer or hard copy device.
- Enable the debug window to view the RS-232 status, data transmitted, data transceived, and errors.
Troubleshoot: No signals onscreen (after scaling & offsetting)
- Double check for loose wiring or connections from the probe alligator clips / grabber clips.
- Verify your black leads from the probes are grounded.
- If earth ground is present, verify black leads of the probes and earth ground are at the same potential.
Troubleshoot: Unexpected signal onscreen
- Double check the timescale, a small piece of a larger waveform might be displayed.
- Double check that probe clips are connected to the correct circuit node.
If your problem persists
- Recall factory defaults once more and try again
- Contact Tech Support for further assistance
