Part Number sbRIO-9606
Manufacturer/Brand National Instruments
Description: sbRIO-9606, Spartan-6 LX45 FPGA, CompactRIO Single-Board Controller
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

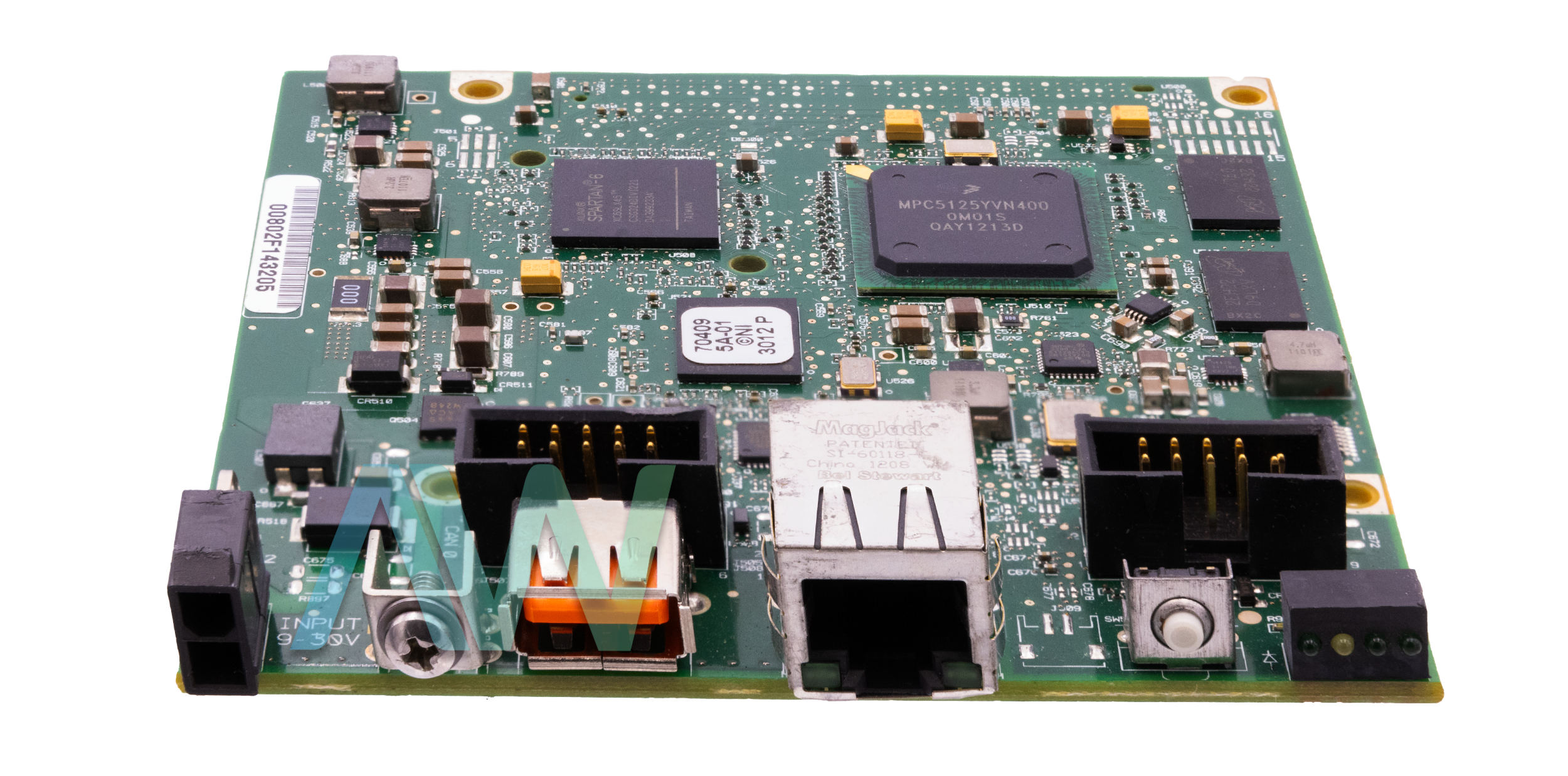

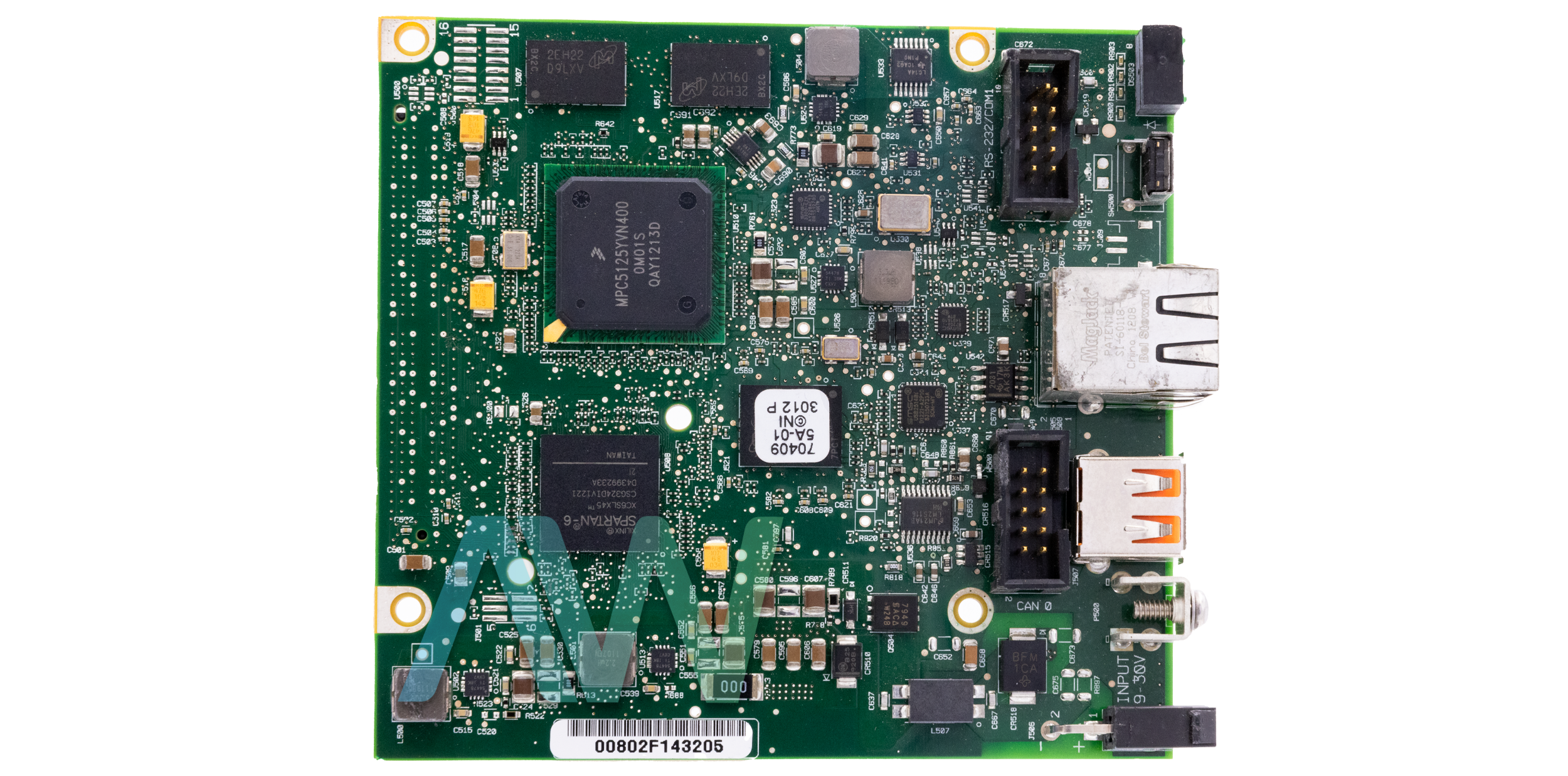

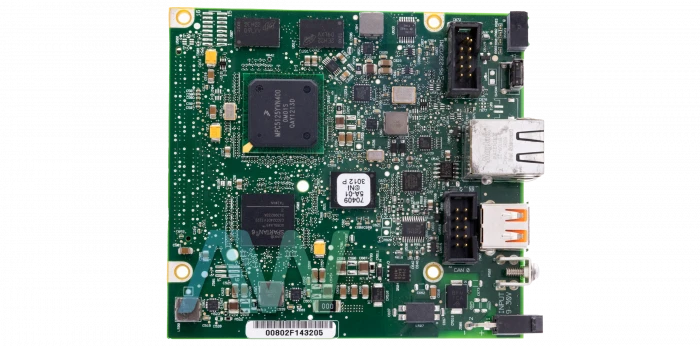

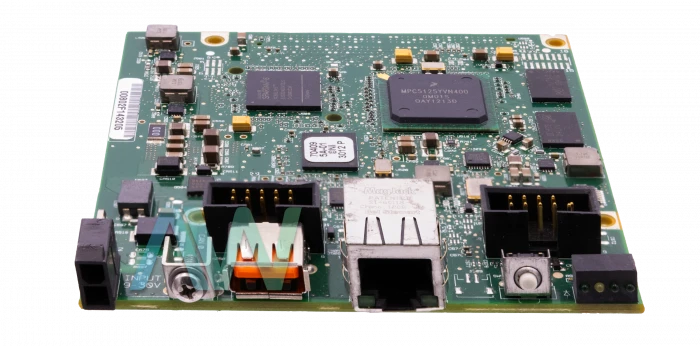

National Instruments sbRIO-9606 CompactRIO Single-Board Controller

Featured with a Xilinx Spartan-6 LX45 FPGA (Filed-Programmable Gates Array) and 512 MB of nonvolatile memory, the NI sbRIO-9606 is a CompactRIO Single-Board Controller. This Controller comes equipped with a Mezzanine Card connector as well. Thus, you can extend the functionality of this device by adding more peripherals and C Series modules. The RIO Mezzanine Card Connector (RMC) provides direct connectivity between external modules and the FPGA and integrated processor of the NI sbRIO-9606. This CompactRIO Single-Board Controller has various other ports, including CAN, USB, and Ethernet ports, which make it capable of communicating and interfacing with a wide variety of external devices.

The RIO Mezzanine Card Connector (RMC) incorporated in this embedded controller has 96 3.3 V digital I/O lines. Moreover, the RMC card comes with six power pins to provide power to the components of the attached Mezzanine Card. All the DIO channels provided on this CompactRIO Single-Board Controller can withstand 3 mA DC loads. The NI sbRIO-9606 features an RS-232 Serial IDC header. Thus, you can connect this controller with other serial communication devices to construct a customized control or data acquisition system.

The CAN IDC header incorporated in this CompactRIO Single-Board Controller has CAN_L (CAN Low) and CAN_H (CAN High) pins and offers connectivity to a CAN bus. This Controller fully supports USB mass-storage devices designed to work with USB 2.0. The NI sbRIO-9606 comes with a dedicated power connector and requires an external DC power supply to operate. This CompactRIO Controller can only be connected to Measurement Category I voltages.

sbRIO-9606 Obsolete Status has been announced by National Instruments, but the CompactRIO Single-Board Controller will still be available for purchase and repairs by Apex Waves.

ModelsbRIO-9606
ManufacturerNational Instruments
TypeCompactRIO Single-Board Controller
DRAM256 MB
Storage512 MB
FPGASpartan-6 LX45
Operating SystemReal-Time
RoHS CompliantYes
Recommended Power Supply55 W, 30 VDC max
Weight3.139 oz.
sbRIO-9606 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
