sbRIO-9651
Modular Systems > National Instruments > CompactRIO Controllers
| Description: | sbRIO-9651, 667 MHz Dual-Core CPU, CompactRIO System on Module |
(expedited shipping options available)
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

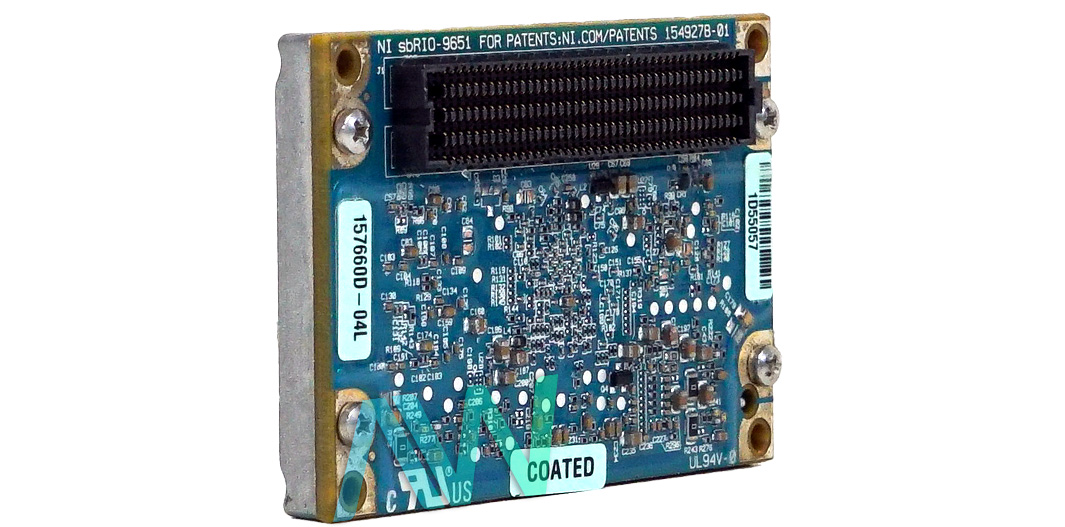

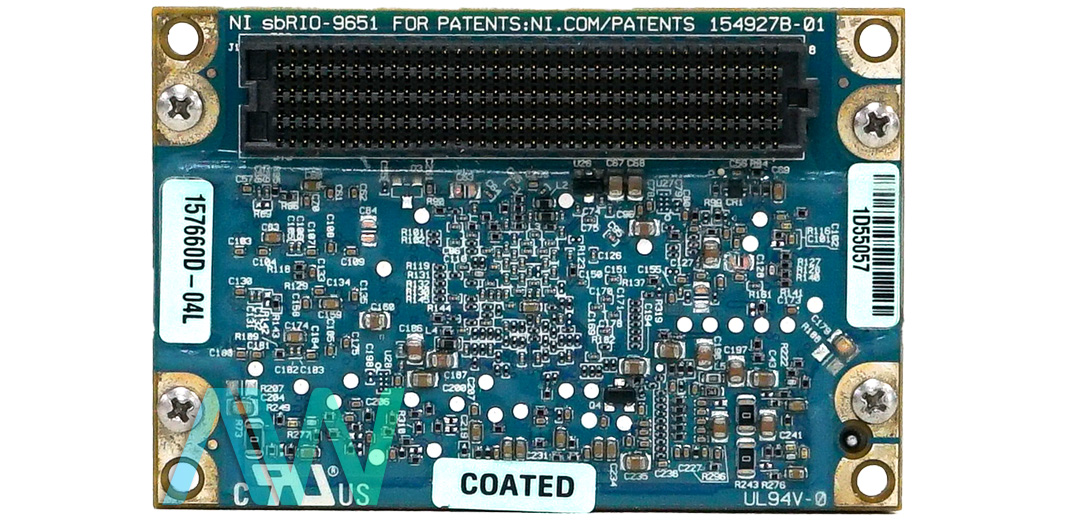

National Instruments sbRIO-9651 CompactRIO System on Module
The sbRIO-9651 (Part Numbers: 783525-01, 783525-02, 783525-03) is a CompactRIO System on Module. Part number 783525-01 is a SOM Development Kit and part number 783525-02 is an OEM Kit. Part number 783525-03 is the conformal coated version of the OEM kit. The sbRIO-9651 comes from the manufacturer National Instruments. This module works with the NI-RIO Device Drivers August 2014 or later. The sbRIO-9651 also supports LabVIEW software, including LabVIEW FPGA Module 2014 or later, LabVIEW 2014 or later, and LabVIEW Real-Time Module 2014 or later. The NI sbRIO-9651 module can be used with the AlphaNovatech, S01LZZ0E-A heat sink and several types of mating connectors. The sbRIO-9651 is designed to be used with the NI Linux Real-Time (32 bit) operating system.
The National Instruments sbRIO-9651 is equipped with a reconfigurable Xilinx Zynq-7020 FPGA. The sbRIO-9651 is designed with an ARM Cortex-A9 architecture. The NI sbRIO-9651 is built with a processor speed of 667 MHz. The sbRIO-9651 contains a dual-core processor. The sbRIO-9651 has a DRAM volatile memory of 512 MB. This module also features a non-volatile memory of 512 MB. This CompactRIO System on Module is designed, validated, and assessed for dependable and high-volume OEM applications.
The NI sbRIO-9651 is assembled with serial ports, such as USB, RS-232, and RS-485. The sbRIO-9651 has a maximum data rate of 480 MB/s for USB interfaces. This CompactRIO System on Module features CAN0 and CAN1 support as well. The NI sbRIO-9651 has Ethernet support as well.
sbRIO-9651 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
| Model | sbRIO-9651 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 783525-01, 783525-02, 783525-03 |
| Type | CompactRIO System on Module |
| CPU | 667 MHz Dual-Core |
| FPGA | Zynq-7020 |
| DRAM | 512 MB |
| Storage | 512 MB |
| Dimensions | 2.0 in. X 3.0 in. |
| Weight | 2.72 oz. |
| Warranty | Three Year Warranty |
| sbRIO-9651 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for sbRIO-9651:
140070A-01L, 154925B-01L, 154925B-99L, 154925C-01L, 154925D-01L, 154925E-01L, 154925F-01L, 154925G-01L, 156075A-01L, 156075A-99L, 156075B-01L, 156075B-99L, 156075C-01L, 156075D-01L, 156075E-01L, 157355A-02L, 157660A-01L, 157660A-02L, 157660B-01L, 157660B-02L, 157660C-01L, 157660C-02L, 157660C-03L, 157660C-04L, 157660D-01L, 157660D-02L, 157660D-03L, 157660D-04L, 157660E-01L, 157660E-02L, 157660E-03L, 157660E-04L, 157660F-01L, 157660F-02L, 157660F-03L, 157660F-04L, 157721A-01L, 538999A-85, 783525-01, 783525-02, 783525-03, 785726-01, 785738-01
