DAQCard-DIO-24

4.7/5 | 14 ratings

Modular Systems > National Instruments > DAQCards

Part Number DAQCard-DIO-24
Manufacturer/Brand National Instruments
Description: DAQCard-DIO-24, 24-bit, Parallel, Digital I/O PC Card
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

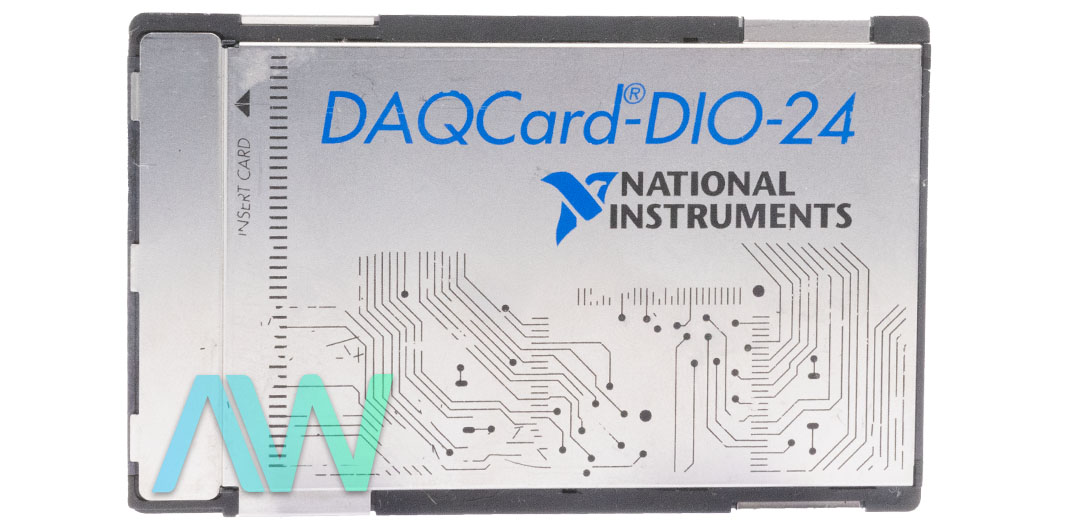

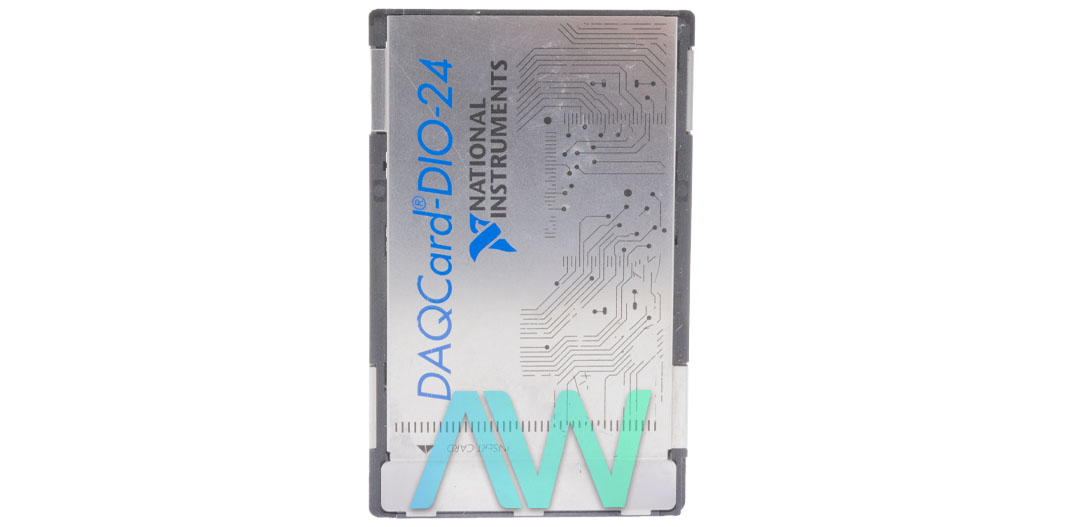

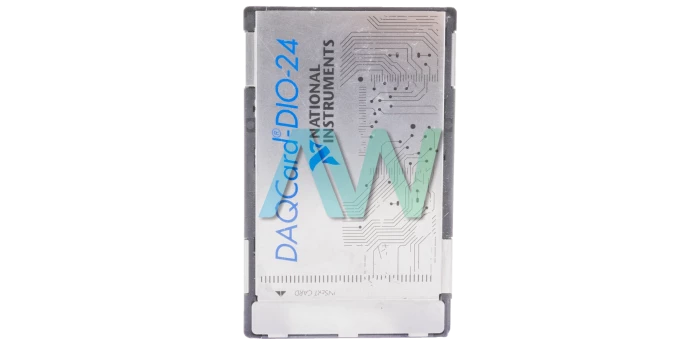

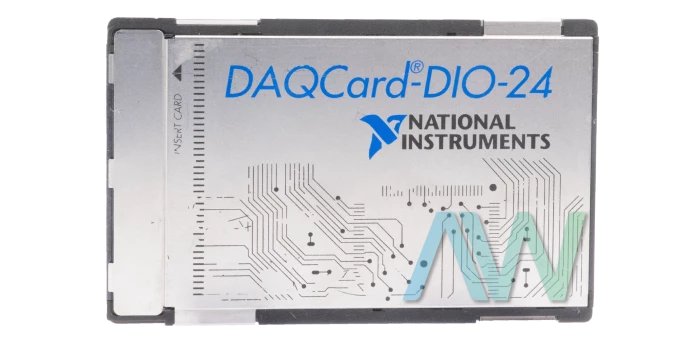

National Instruments DAQCard-DIO-24 Digital I/O PC Card

The National Instruments DAQCard-DIO-24 (Part Number: 776912-01) is an 82C55A PPI based Digital I/O PC Card. This card is designed for Macintosh and PCs equipped with a Type II PCMCIA slot. The 82C55A PPI incorporated in this card is a powerful chip and performs all the I/O functions. This Digital I/O PC Card has 24 programmable I/O pins. These pins are distributed in three 8-bit ports. The 82C55A PPI chip has three operation modes: strobed I/O, the bidirectional bus I/O, and simple I/O. The I/O channel of this device has 1 data bus, 1 address bus, multiple support, and control signals and interrupt lines. The I/O channel interface circuitry contains a card information structure, timing interface circuitry, data buffers, PC Card control registers, and an address decoder.

For digital I/O transmission, a 25-pin I/O connector is incorporated in this Digital I/O PC Card. Moreover, you can use an optional PSH27-50F-D1 cable to connect your DAQCard-DIO-24 to a 50-pin standard male connector. You can also connect this card to other National Instruments accessories and devices, such as the SC-2051 and the CB-50 with the help of an optional PSH27-50F-D1 cable. This Digital I/O PC Card can provide a +5 V power supply to external digital circuitry through a dedicated pin– Pin 25. The NI DAQCard-DIO-24 can be connected to a broad range of I/O racks, test instruments, screw terminal panels, plotters, printers, and other parallel interface equipped devices. In typical conditions, this device draws around 60 mA of current from the host PC.

DAQCard-DIO-24 Obsolete Status has been announced by National Instruments, but the PC Card will still be available for purchase and repairs by Apex Waves.

ModelDAQCard-DIO-24
ManufacturerNational Instruments
Part Number776912-01
TypeDigital I/O PC Card
Digital I/O Lines24 TTL-compatible
Absolute Max Voltage Input Rating0.5 to +5.5 V with respect to GND
Typical Power Requirement60 mA at 5 VDC (±5%)
PCMCIA TypeType II
I/O Connector25-pin female PC Card I/O connector;
50-pin female ribbon-cable connector
on optional PSH27-50F-D1 cable
Warranty2-3 Year Warranty
DAQCard-DIO-24 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the DAQCard-DIO-24:

182679-01, 182679A-01, 182679B-01, 182679C-01, 18268, 182680-01, 182680B-01, 182680D-01, 182680F-01, 182680G-01, 776912-01, 776912-02, 777057-01


Associated NSNs for the DAQCard-DIO-24:

5998-01-447-3133 (5998014473133)

  DAQCard-DIO-24 PDF Manuals

Driver Downloads for DAQCard-DIO-24






OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit

 Download Version


Why Buy From Apex Waves:

Apex Waves Youtube Video

"The business transaction was super easy and friendly."


"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"


"They were very helpful to get me the test equipment that I need."



Delivery:
UPS, FedEX and DHL – Free Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment: Authorize.net Visa Master Card American Express BB&T Better Business Bureau Dun & Bradstreet
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
Share this page: Facebook Icon Twitter Icon LinkedIn Icon
Common Typos: DZQCARD-DIO-24, DAQCAFD-DIO-24, DAQCATD-DIO-24, DAQCARS-DIO-24, DAQCARD-WIO-24

DAQCard-DIO-24



Modular Systems > National Instruments > DAQCards

DAQCard-DIO-24
4.7/5 | 14 ratings

DAQCard-DIO-24, 24-bit, Parallel, Digital I/O PC Card

In Stock | Ships Today
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Call now for best pricing
1-800-915-6216

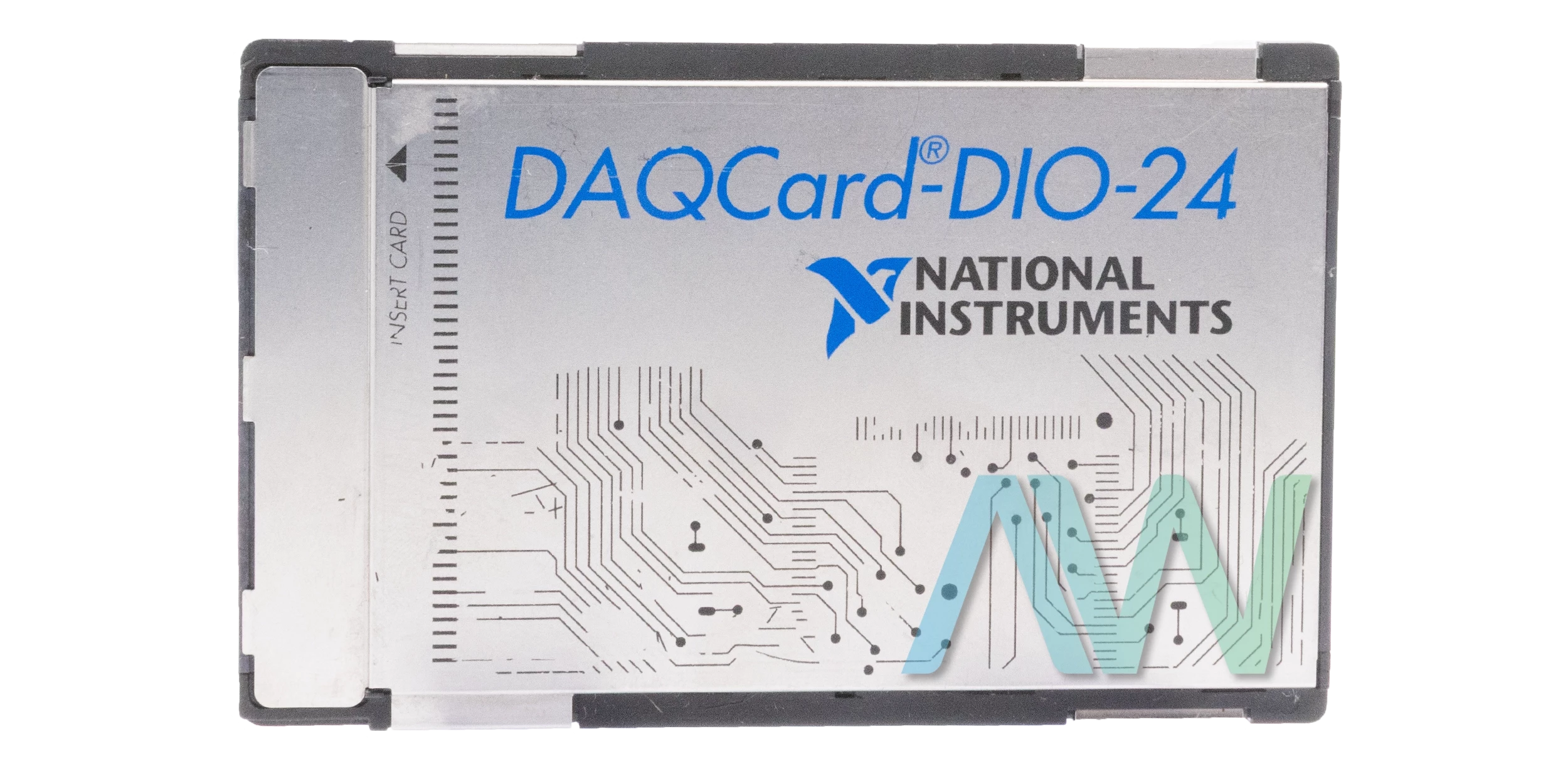

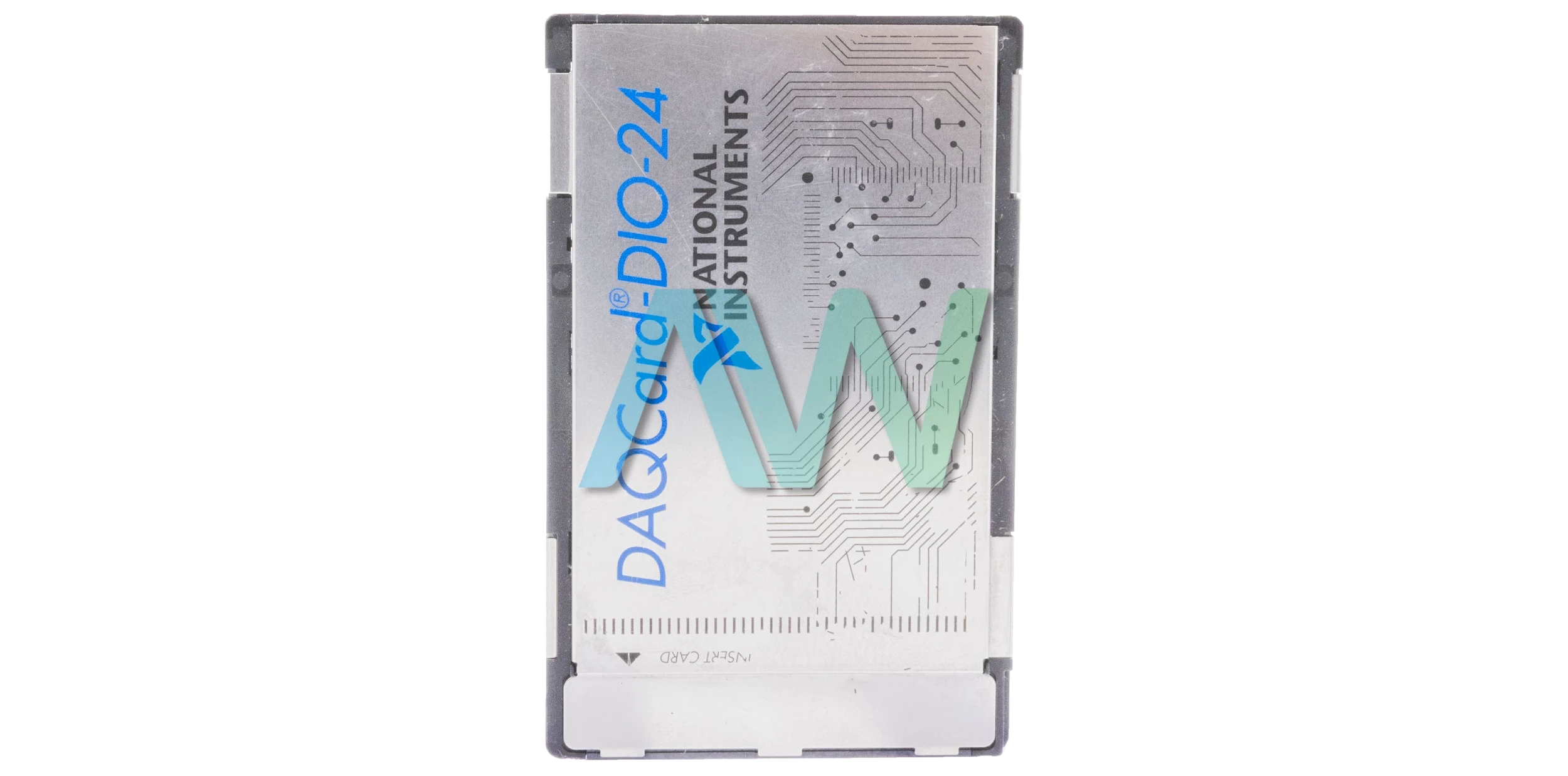

National Instruments DAQCard-DIO-24 Digital I/O PC Card
