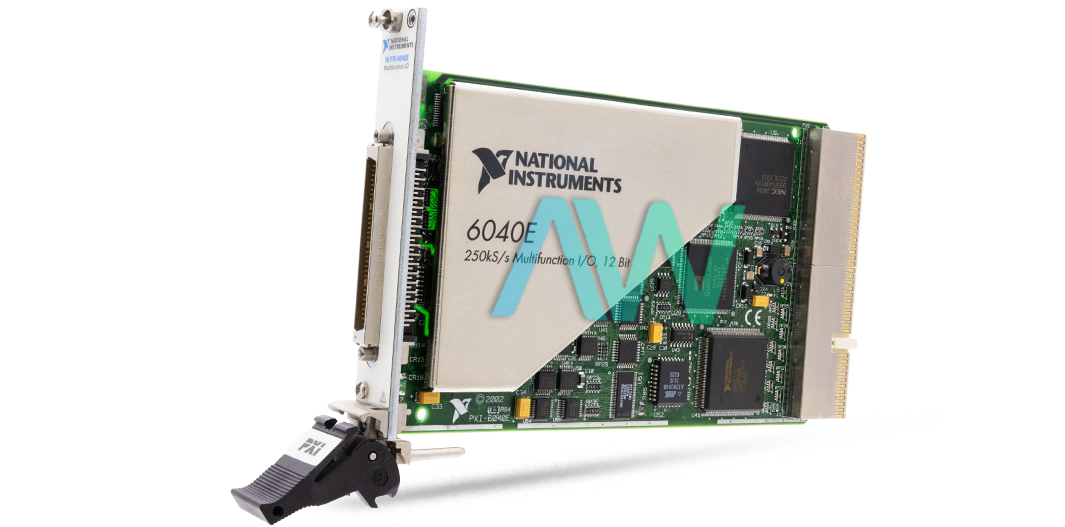

National Instruments 777484-01 I/O Terminal | Apex Waves | ImageNational Instruments 777484-01 I/O Terminal | Apex Waves | Image777484-01 New777484-01 | Legacy, Refurbished and New Surplus

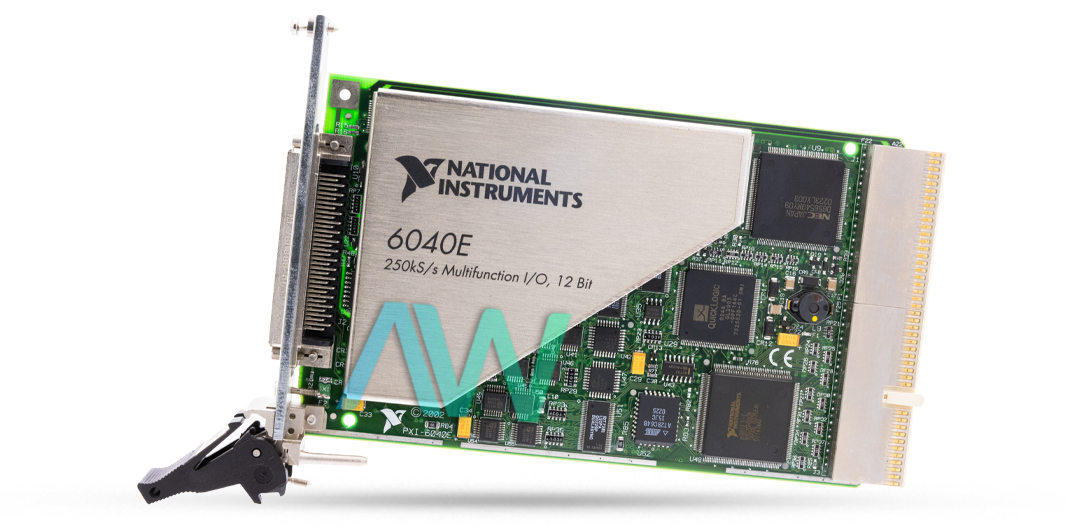

National Instruments 777484-01 I/O Terminal | Apex Waves | Image

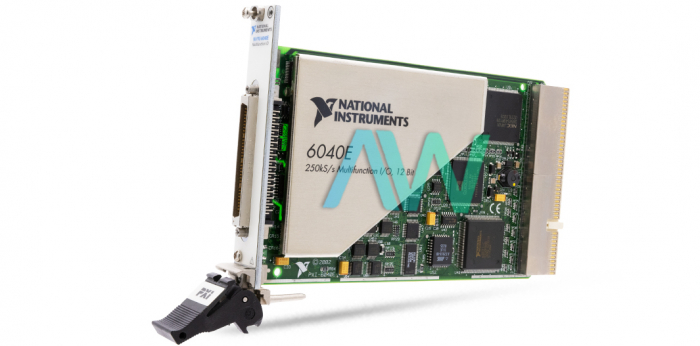

National Instruments 777484-01 I/O Terminal | Apex Waves | Image
777484-01 New
777484-01 | Legacy, Refurbished and New Surplus

777484-01

4.7/5 | 16 ratings

Modular Systems > National Instruments > E Series

Part Number 777484-01
Manufacturer/Brand National Instruments
Description: 777484-01, 8 Input/Output I/O Channels, PXI-6040E, I/O Terminal
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments 777484-01 I/O Terminal

The part number 777484-01 from National Instruments is the identifying part number for the PXI-6040E I/O Terminal. This module features 16 single-ended channels or 8 differential analog input channels. Users can individually configure each channel using NI-DAQ software. The 777484-01 I/O Terminal utilizes a successive approximation type of analog-to-digital converter (ADC). The resolution of the ADC is 12 bits, with 1 in 4,096 levels indicating the number of discrete steps the ADC can represent in converting an analog input signal into a digital value. A 12-bit resolution provides a total of 4,096 discrete levels, providing higher resolution signal conversion.

For single-channel scanning, the maximum sampling rate is 500 kS/s at which the module can sample analog input signals when scanning one channel at a time. For multiple-channel scanning, the maximum sampling rate is 250 kS/s. This rate applies when the 777484-01 I/O Terminal scans multiple channels simultaneously, dividing the total sampling rate among the active channels.

The 777484-01 I/O Terminal features 2 analog output channels. The resolution of the digital-to-analog converter (DAC) at the output is 12 bits, with 1 in 4,096 levels. This means each output channel can represent analog voltages with a granularity of 1 part in 4,096, providing fine control over the output signal. The DAC type featured in 777484-01 is double-buffered, multiplying DAC. This type of DAC typically provides fast and accurate conversion of digital values to analog voltages, and the double-buffered configuration ensures smooth transitions between output updates.

The 777484-01 I/O Terminal requires a +5 VDC power supply with a tolerance of ±5%. It draws a current of 1.0 A from this power source. The power requirement excludes power consumed through the +5 V available at the I/O connector indicating that the specified power draw does not include any additional power drawn from peripherals connected to the I/O connector.  The power available at the I/O connector ranges from +4.65 volts DC to +5.25 volts DC at 1 Ampere. This power supply option provides flexibility for peripherals or external devices connected to the I/O terminal. The terminal measures 16 cm × 10 cm (6.3 in. × 3.9 in.) and weighs 218 g (7.7 oz).

Part Number777484-01
Model NamePXI-6040E
Part TypeI/O Terminal
Number of Input Channels16 single-ended or 8 differential (software-selectable per channel)
Type of A/D converter (ADC)Successive approximation
Number of Output Channels2
FIFO Buffer Size512 samples
Number of I/O Channels8 input/output
Dimensions16 cm × 10 cm (6.3 in. × 3.9 in.)
Weight218 g (7.7 oz)

  777484-01 PDF Manuals


Why Buy From Apex Waves:

Apex Waves Youtube Video

"The business transaction was super easy and friendly."


"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"


"They were very helpful to get me the test equipment that I need."



Delivery:
UPS, FedEX and DHL – Free Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment: Authorize.net Visa Master Card American Express BB&T Better Business Bureau Dun & Bradstreet
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
Share this page: Facebook Icon Twitter Icon LinkedIn Icon
Common Typos: 77U484-01, 77I484-01, 7774O4-01, 77748T-01, 777484-0Q

777484-01



Modular Systems > National Instruments > E Series

777484-01
4.7/5 | 16 ratings

777484-01, 8 Input/Output I/O Channels, PXI-6040E, I/O Terminal

Request for Availablility
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Call now for best pricing
1-800-915-6216

National Instruments 777484-01 I/O Terminal

The part number 777484-01 from National Instruments is the identifying part number for the PXI-6040E I/O Terminal. This module features 16 single-ended channels or 8 differential analog input channels. Users can individually configure each channel using NI-DAQ software. The 777484-01 I/O Terminal utilizes a successive approximation type of analog-to-digital converter (ADC). The resolution of the ADC is 12 bits, with 1 in 4,096 levels indicating the number of discrete steps the ADC can represent in converting an analog input signal into a digital value. A 12-bit resolution provides a total of 4,096 discrete levels, providing higher resolution signal conversion.

For single-channel scanning, the maximum sampling rate is 500 kS/s at which the module can sample analog input signals when scanning one channel at a time. For multiple-channel scanning, the maximum sampling rate is 250 kS/s. This rate applies when the 777484-01 I/O Terminal scans multiple channels simultaneously, dividing the total sampling rate among the active channels.

The 777484-01 I/O Terminal features 2 analog output channels. The resolution of the digital-to-analog converter (DAC) at the output is 12 bits, with 1 in 4,096 levels. This means each output channel can represent analog voltages with a granularity of 1 part in 4,096, providing fine control over the output signal. The DAC type featured in 777484-01 is double-buffered, multiplying DAC. This type of DAC typically provides fast and accurate conversion of digital values to analog voltages, and the double-buffered configuration ensures smooth transitions between output updates.

The 777484-01 I/O Terminal requires a +5 VDC power supply with a tolerance of ±5%. It draws a current of 1.0 A from this power source. The power requirement excludes power consumed through the +5 V available at the I/O connector indicating that the specified power draw does not include any additional power drawn from peripherals connected to the I/O connector.  The power available at the I/O connector ranges from +4.65 volts DC to +5.25 volts DC at 1 Ampere. This power supply option provides flexibility for peripherals or external devices connected to the I/O terminal. The terminal measures 16 cm × 10 cm (6.3 in. × 3.9 in.) and weighs 218 g (7.7 oz).

Part Number777484-01
Model NamePXI-6040E
Part TypeI/O Terminal
Number of Input Channels16 single-ended or 8 differential (software-selectable per channel)
Type of A/D converter (ADC)Successive approximation
Number of Output Channels2
FIFO Buffer Size512 samples
Number of I/O Channels8 input/output
Dimensions16 cm × 10 cm (6.3 in. × 3.9 in.)
Weight218 g (7.7 oz)

777484-01 PDF Manuals & Diagrams

  777484-01 PDF Manuals

E SERIES USER MANUAL 28229.PDF
