DAQCard-6024E

5/5 | 15 ratings

Modular Systems > National Instruments > E Series

Part Number DAQCard-6024E
Manufacturer/Brand National Instruments
Description: DAQCard-6024E, 16 SE/8 DI, PCMCIA, Multifunction I/O Device
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments DAQCard-6024E Multifunction Device

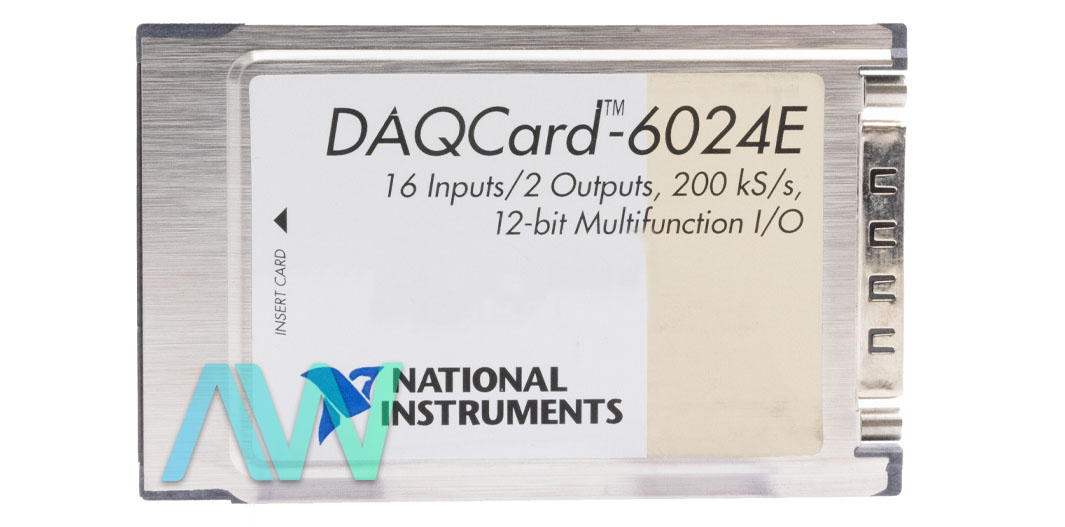

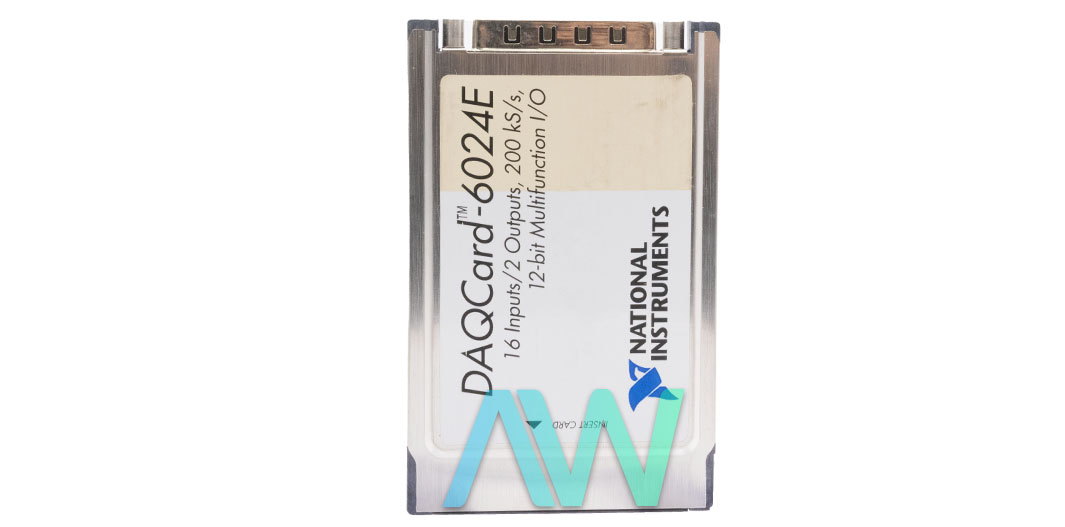

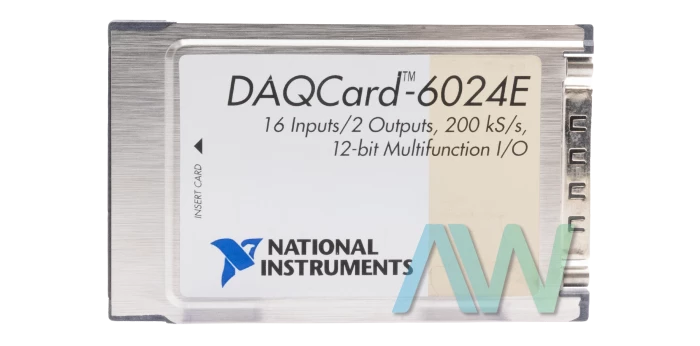

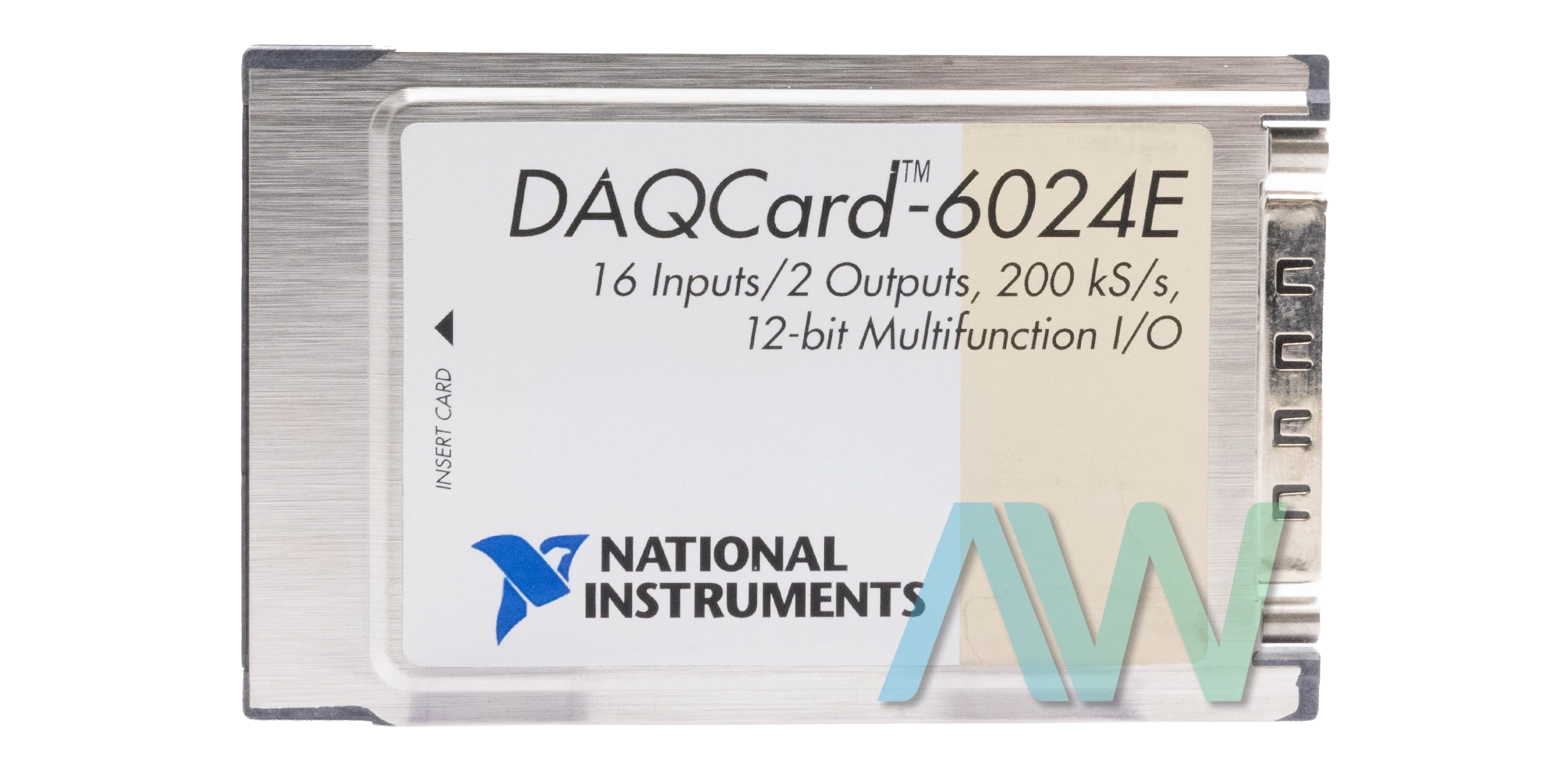

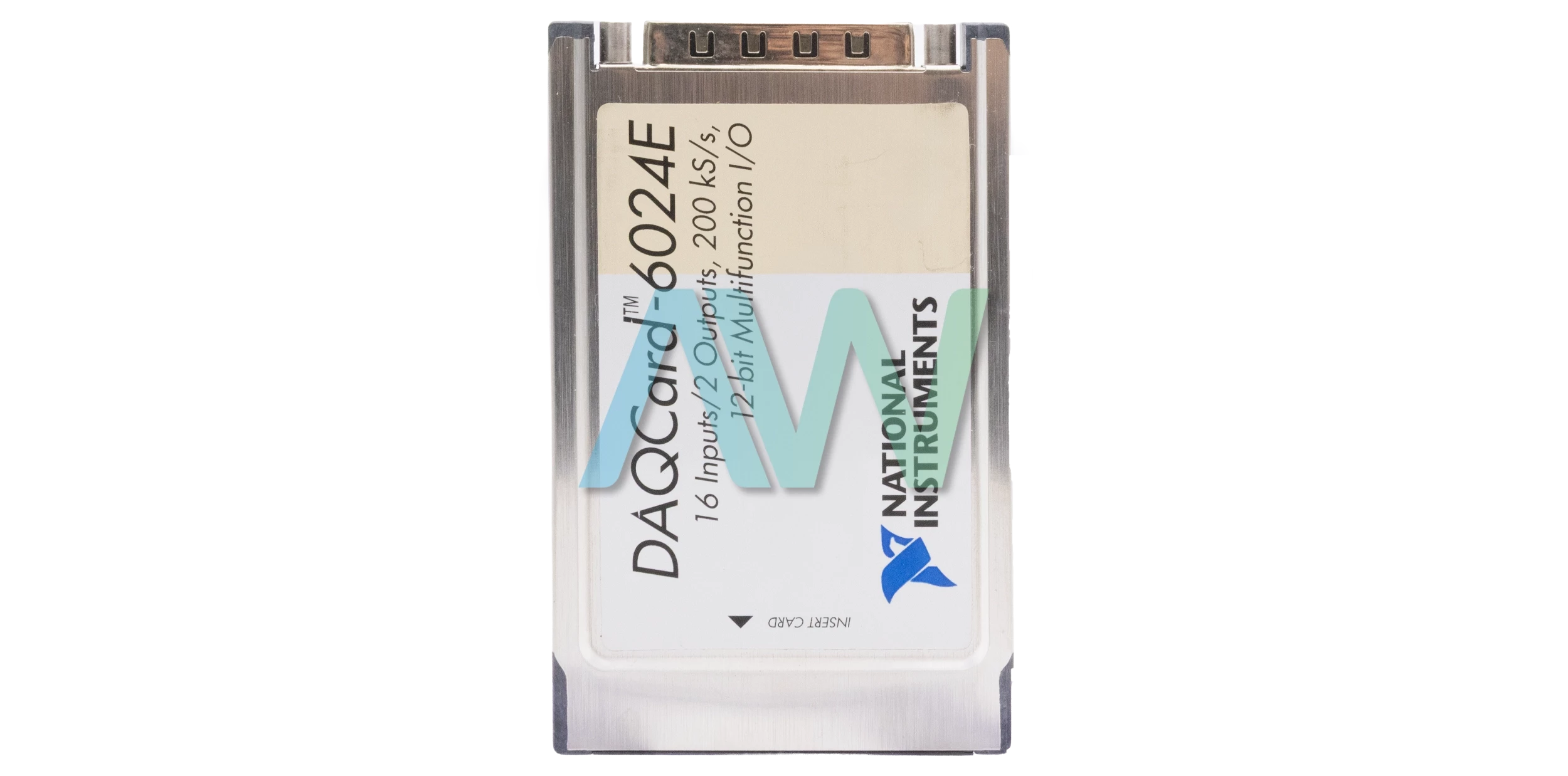

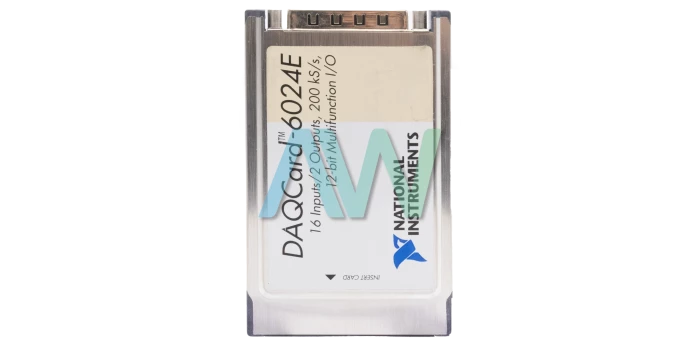

The DAQCard-6024E (Part Number: 778269-01) is a PCMCIA Multifunction I/O Device with 16 analog input channels, 2 analog output channels, and 8 DIO. This device is developed by National Instruments. The NI DAQCard-6024E is not just compatible with TTL, but also with CMOS. This Multifunction I/O Device has a configuration memory size of 512 words.

This PCMCIA device can be used for external clocking and digital triggering with an absolute accuracy of 8.127 mV at full scale reading. This can help when simplification in configuration and measurement is required by using the NI-DAQ 7 driver. The DAQCard-6024E also has the capability to deliver E Series performance to handheld instruments as well as laptops. This Multifunction I/O Device provides a maximum 200 kS/s sampling rate, provided with 12-bit analog input resolution on the analog input channels. This device also offers 12-bit analog output resolution on the 2 voltage output channels.

For transferring data, the DAQCard-6024E uses a 68-position VHDCI female connector compatible with both TTL and CMOS. This device also has an onboard self-calibration feature, which helps ensure measurement preciseness. This form of calibration is fully software controlled. To use the DAQCard-6024E with a PC, it requires NI-DAQmx version 6.9 or higher. This driver has a wide range of library functions which anybody can use from the programming environment applications. The DAQCard-6024E is compatible with different operating systems, such as Windows 2000/XP/NT. The recommended compatible types of application software are C/C++, C#, Visual Basic, Measurement Studio, LabVIEW, LabWindows/CVI, and VI logger.

ModelDAQCard-6024E
ManufacturerNational Instruments
Part Number778269-01
SeriesE Series
TypeMultifunction I/O Device
BusPCMCIA
Analog Input Channels16 SE/8 DI
Analog Input Resolution12 bits
Maximum Sampling Rate200 kS/s
Analog Output Channels2
Analog Output Resolution12 bits
Output Rate1 kS/s
DriverNI-DAQmx
Warranty2-3 Year Warranty
DAQCard-6024E ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the DAQCard-6024E:

187168-02, 187168A-02, 187168B-02, 187168C-02, 187168D-02, 778269-01


Associated NSNs for the DAQCard-6024E:

5998-01-497-7734 (5998014977734)

Driver Downloads for DAQCard-6024E






OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
