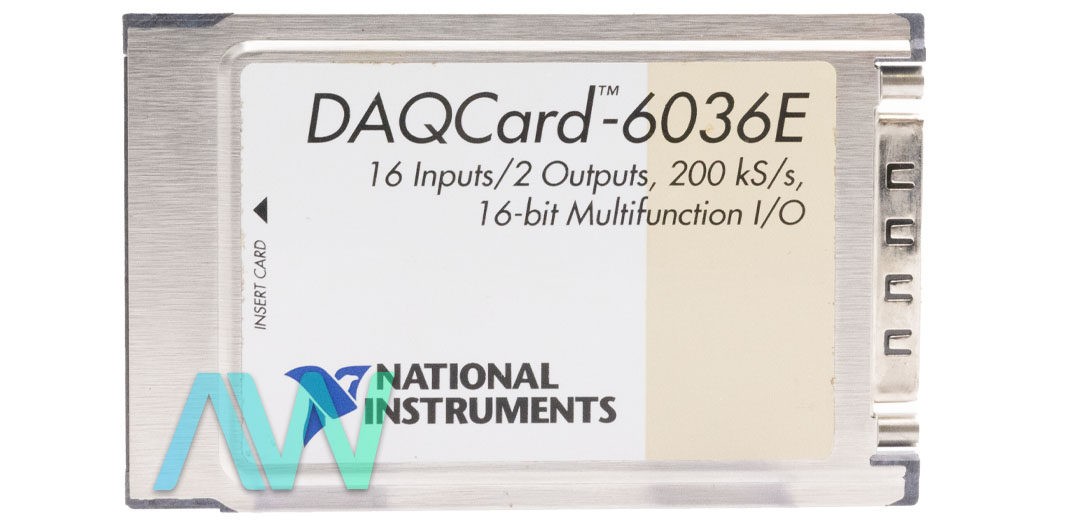

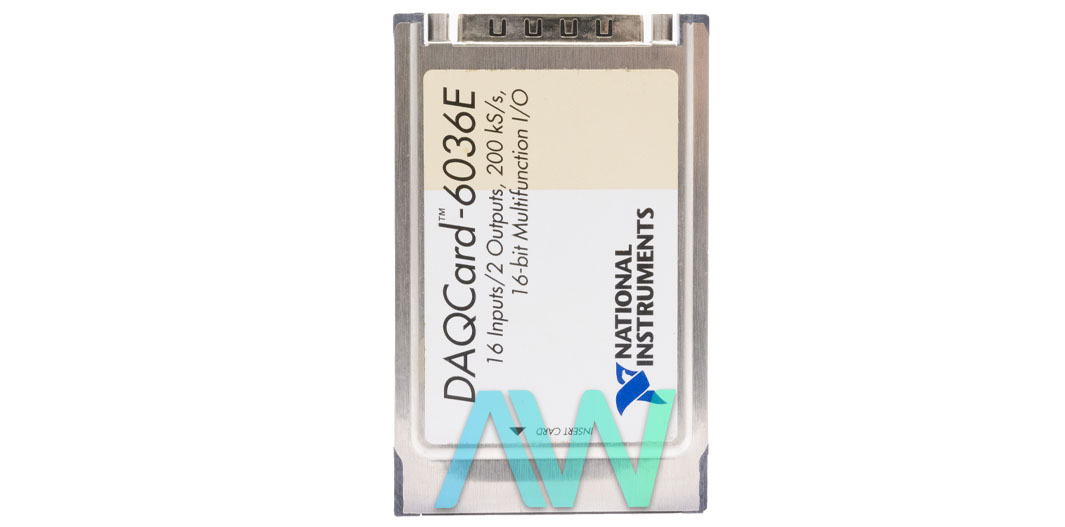

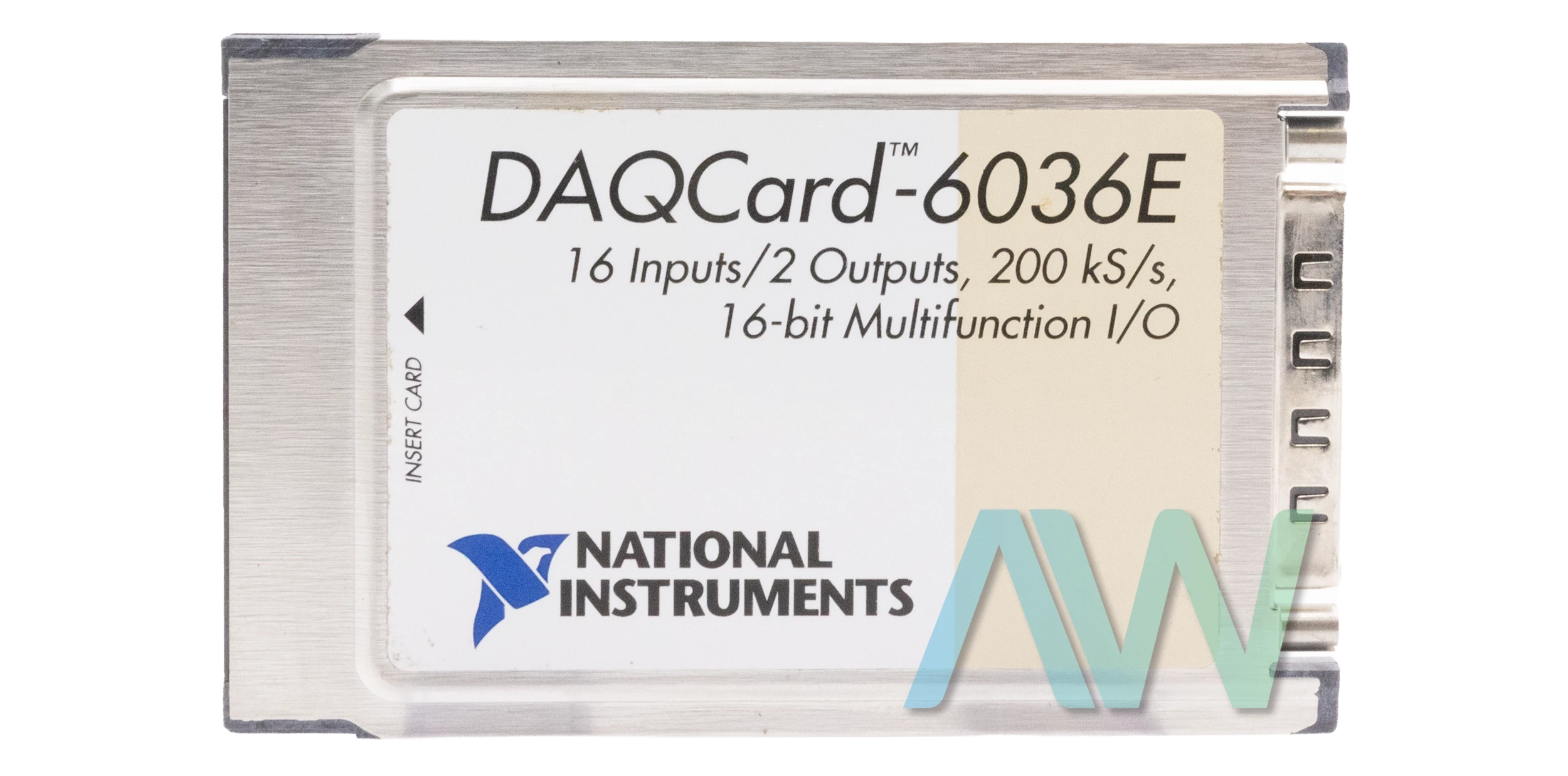

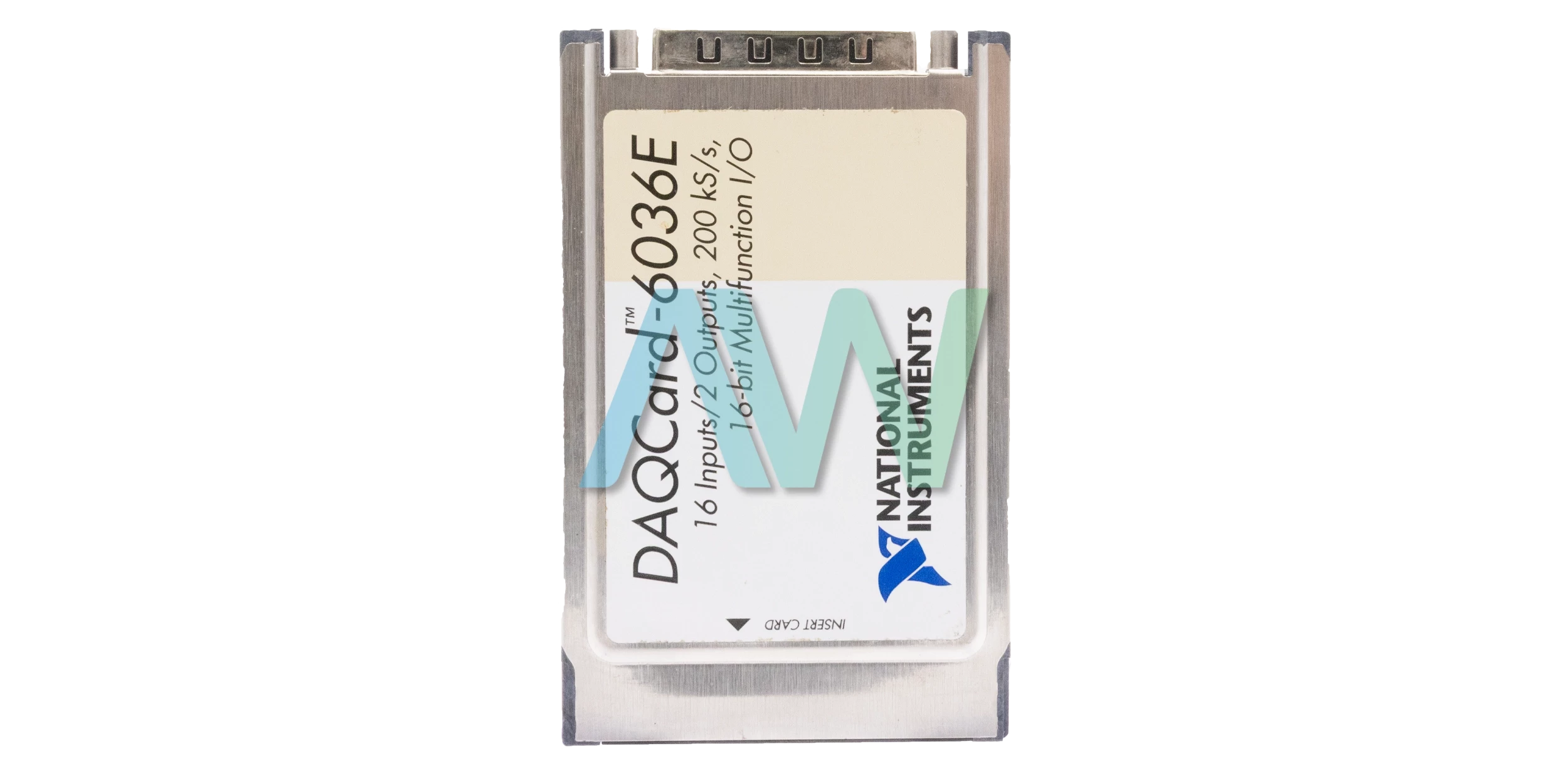

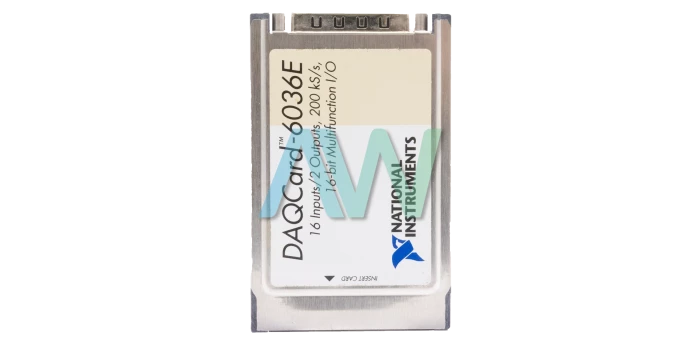

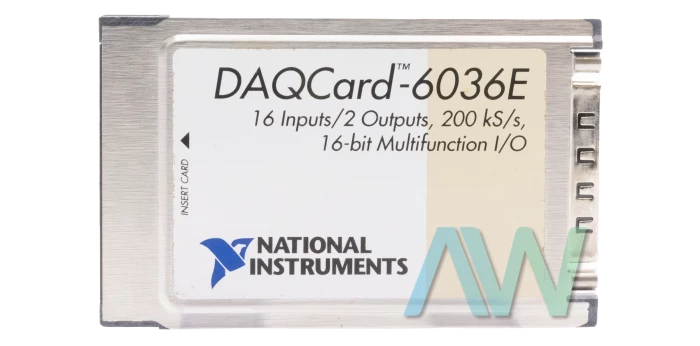

National Instruments DAQCard-6036E Multifunction I/O Device
The DAQCard-6036E is a Multifunction I/O Device by National Instruments. The NI DAQCard-6036E is available with the part number 778561-01. The DAQCard-6036E is operated with NI-DAQ 7 drivers. The DAQCard-6036E can be utilized with software packages or application development environments (ADEs) such as VI Logger, LabWindows, LabVIEW, and Measurement Studio. The DAQCard-6036E can be installed on Windows operating systems. The compatible Windows operating systems are Windows NT/XP/2000. The DAQCard-6036E is additionally compatible with C/C++ and Visual Basic software. It is equipped with a 68-position VHDCI female I/O connector.
The NI DAQCard-6036E is a part of the E Series data acquisition products produced by National Instruments. The DAQCard-6036E is a portable Multifunction I/O Device. The DAQCard-6036E is built with similar functionalities as the PCI and PXI devices in the E Series. The DAQCard-6036E is placed in type II sections of the devices. The DAQCard-6036E can be utilized in research and field service because of its compact nature. The DAQCard-6036E is designed specially to be used in PCMCIA ports. It has a power requirement of +5 VDC at 300 mA, while the power available at the I/O connector is +4.65 to +5.25 VDC at 0.75 A.
This Multifunction I/O Device is configured with 16 single-ended or 8 differential analog inputs with 16-bit resolution. The National Instruments DAQCard-6036E has a sampling rate up to 200 kS/s. The NI DAQCard-6036E has an input voltage range from ±0.05 to ±10 V. This Multifunction I/O Device also has two analog outputs with 16-bit resolution. The sampling rate for the output channels is 1 kS/s. The voltage range for the outputs is ±10 V. The DAQCard-6036E has 8 digital input/output lines with digital triggering capabilities as well. This Multifunction I/O Device is available with 2 timers/counters for the recording of time duration in the operating module. The device has a warm-up time of 30 minutes, and should be externally calibrated at least once a year. It has recommended operating and storage temperature ranges of 0 to 40 °C and -20 to 70 °C respectively, a non-condensing relative humidity range of 10 to 95%.
The DAQCard-6036E obsolete status has been announced by National Instruments, but will still be available for purchase and repair at Apex Waves.
| Model | DAQCard-6036E |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778561-01 |
| Series | E Series |
| Type | Multifunction I/O Device |
| Analog Input Channels | 16 SE/8 DI |
| Resolution | 16 bits |
| Bus | PCMCIA |
| Analog Output Channels | 2 |
| Digital I/O | 8 |
| Calibration Interval | 1 year |
| I/O Connectors | 68-position VHDCI female |
| Size | Type II PC Card |
| Warranty | Three Year Warranty |
| DAQCard-6036E Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments DAQCard-6036E Frequently Asked Questions
Question: What is the FIFO buffer size for the DAQCard-6036E?
Answer: The DAQCard-6036E has a FIFO buffer size of 1,024 samples
Question: What is the warm up time for the DAQCard-6036E?
Answer: The DAQCard-6036E has a recommended warm up time of 30 minutes.
Question: How much does the DAQCard-6036E weigh?
Answer: The DAQCard-6036E weighs 1.1 oz (32 g.)
Driver Downloads for DAQCard-6036E
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
