PXI-6070E

5/5 | 8 ratings

Modular Systems > National Instruments > E Series

Part Number PXI-6070E
Manufacturer/Brand National Instruments
Description: PXI-6070E, 12-Bit, 512 S FIFO Buffer Size, Multifunction DAQ Device
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

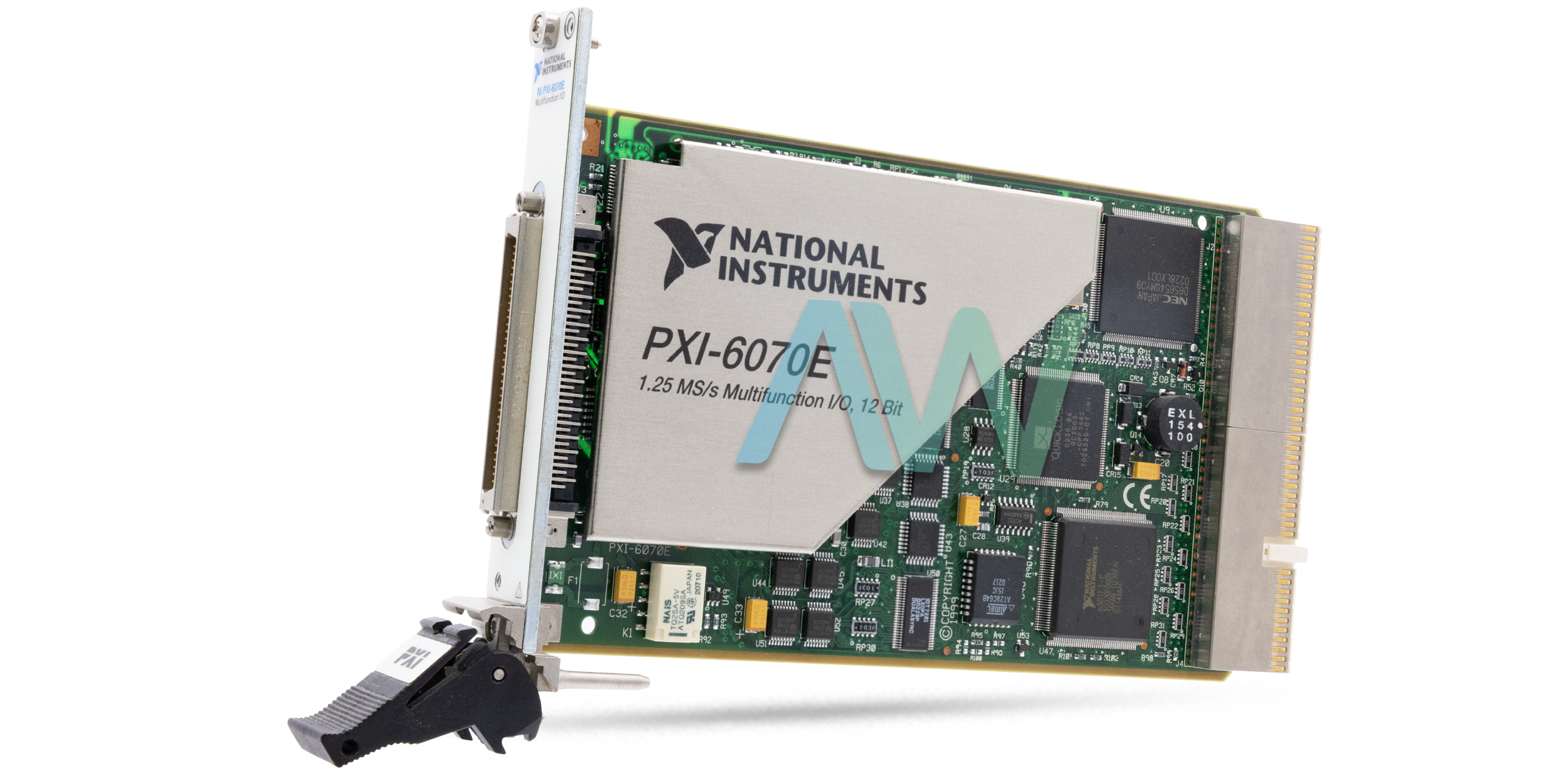

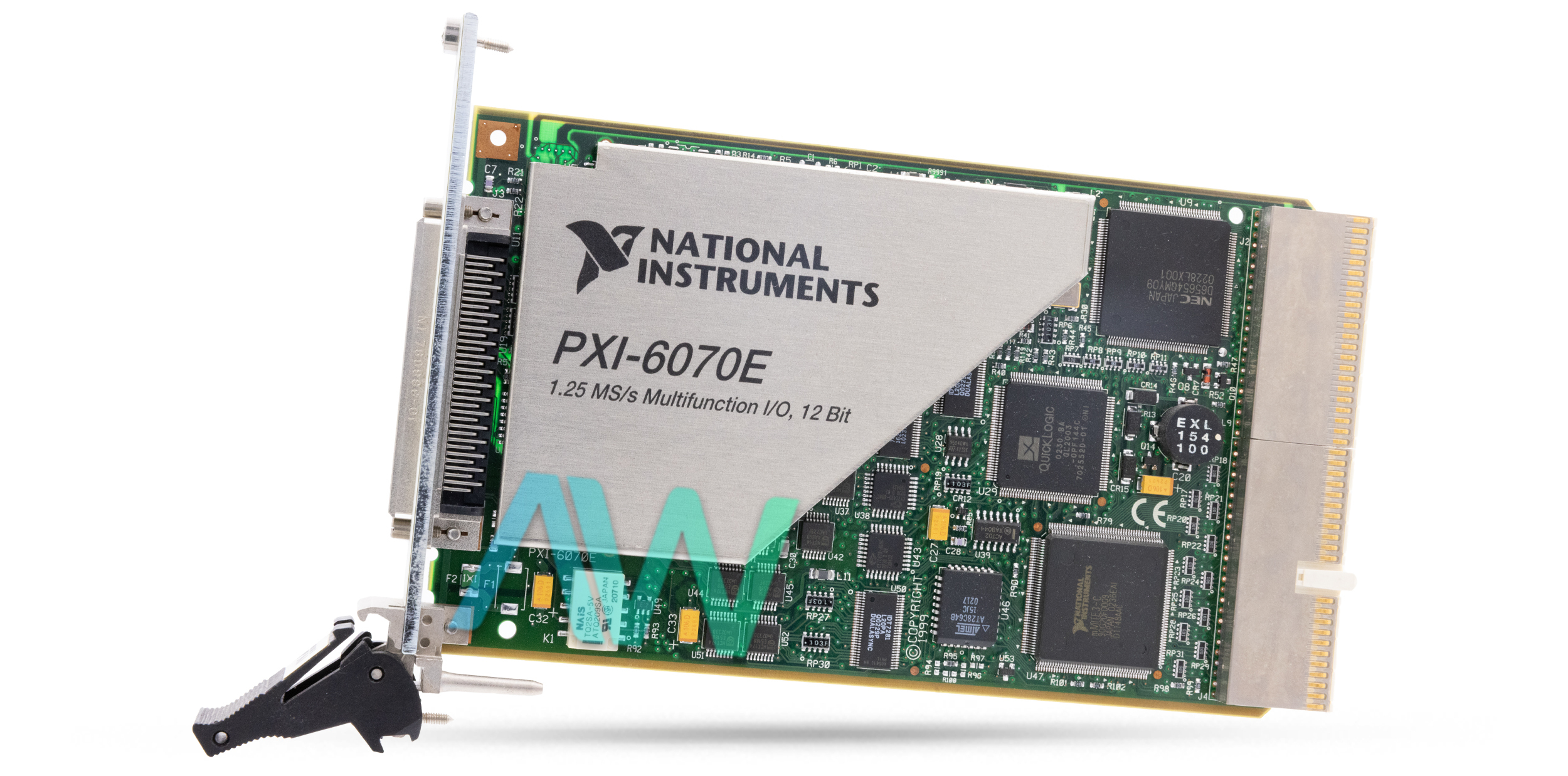

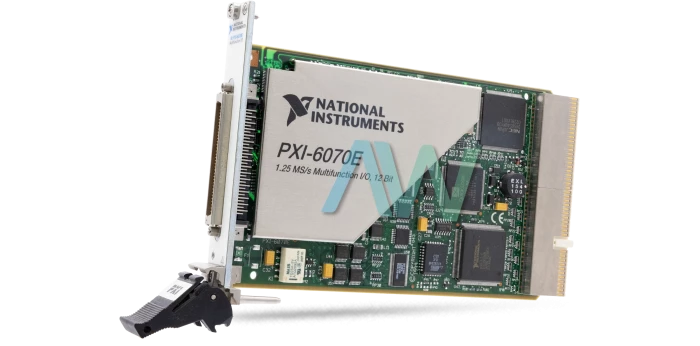

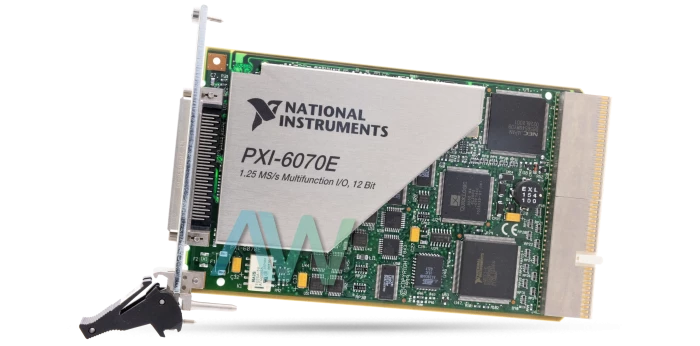

National Instruments PXI-6070E Multifunction DAQ

The NI PXI-6070E PXI Multifunction Data Acquisition Device (Part Number: 777060-01) utilizes E Series innovation to deliver elite and dependable data acquisition abilities to meet an extensive variety of necessities. The user can achieve up to 1.25 MS/s, 12-bit execution over different bus frameworks, and can choose from either 16 or 64 single-ended analog inputs. Depending on the hard drive type, the PXI-6070E can stream to a disk at rates up to 1.25 MS/s. This E Series gadget highlights both analog and digital triggering abilities, along with two 12-bit analog outputs, two 24-bit, 20 MHz counter/timers, and eight computerized I/O lines. It is equipped with a 68-pin male 0.050 D-type I/O connector.

The NI PXI-6070E incorporates the DAQPad PXI-6070E for IEEE 1394, which is accessible in two distinct arrangements. The two designs highlight 250 V of functional isolation from the PC and a low-profile package that fits under a laptop. The mass termination version highlights a 68-pin shielded connector to associate signals either from the SCC Series modular signal conditioning items or from a CA-1000 custom-network enclosure. The BNC termination version highlights shielded BNC connectors for eight differential-terminated analog inputs, two analog outputs, and five assistant lines. The user can gain access to different signals through built-in screw terminal connections. It is perfect for applications where portability and quick availability are required, such as in-vehicle car testing or research center estimations.

The PXI-6070E is run using the NIDAQmx driver software which is compatible with software packages or application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio. It has a recommended warm-up time of 15 minutes, and should be calibrated at least once a year.

The NI device weighs 7.1 oz, measures 6.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, a storage temperature range of –20 to 70 °C, and a non-condensing relative humidity range of 10 to 90%. The multifunction DAQ is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, among others.

PXI-6070E End of Life Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

ModelPXI-6070E (777060-01)
ManufacturerNational Instruments
SeriesLegacy E Series
TypeMultifunction DAQ
Analog Input Channels16
Analog Input Resolution12 bit
Maximum Sample Rate1.25 MS/s
Dimensions6.3 x 3.9 in.
WarrantyThree Year Warranty
PXI-6070E ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-6070E:

1837.46, 18374.6, 183746-01, 183746B-01, 183746C-01, 183746C-02, 183746D-01, 183746D-02, 183746F-01, 183746F-02, 183746G-01, 183746G-02, 183746H-01, 183746H-02, 183746J-01, 183746K-01, 183746L-01, 183746M-01, 183746N-01, 183746P-01L, 183748B-01, 183995B-05, 184065A-01, 191447A-01, 777060-01


Associated NSNs for the PXI-6070E:

5998-01-497-0946 (5998014970946)

National Instruments PXI-6070E Frequently Asked Questions



Question: What type of I/O connector does the NI PXI-6070E have?



Answer: The NI PXI-6070E has a 68-pin male 0.050 D-type I/O connector.



Question: What is the bandwidth of the PXI-6070E?



Answer: The PXI-6070E has a bandwidth (-3 dB) of 1 MHz.



Question: What type of triggers does the PXI-6070E have?



Answer: The PXI-6070E has both analog and digital triggers.



Question: Which software is suggested for use with the PXI-6070E?



Answer: Recommended software for the PXI-6070E includes: VI Logger, LabVIEW, Measurement Studio, and LabWindows/CVI.
