FP-2010
Modular Systems > National Instruments > FieldPoint
| Description: | FP-2010, 64 MB nonvolatile memory, 32 MB DRAM, LabVIEW Real-Time Controller Interface |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

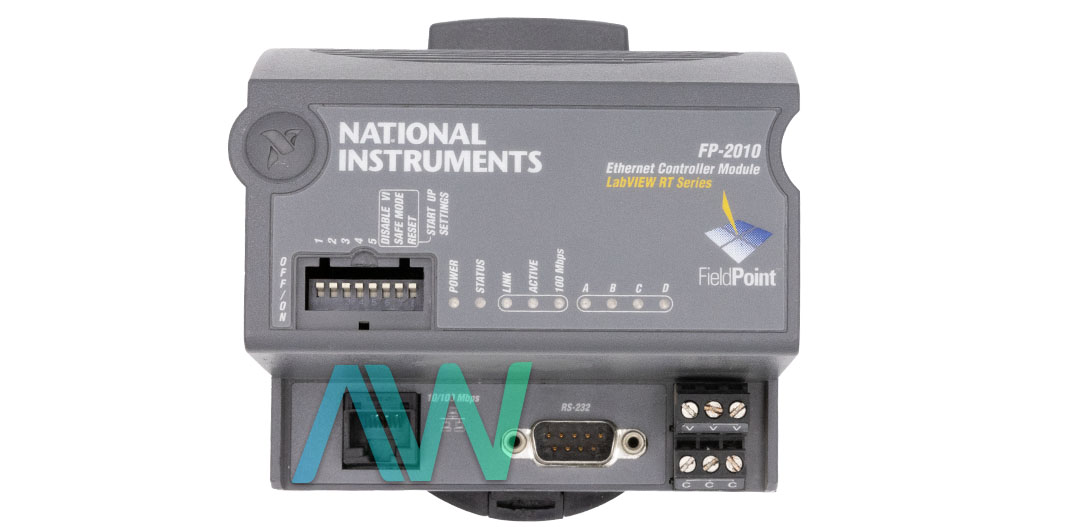

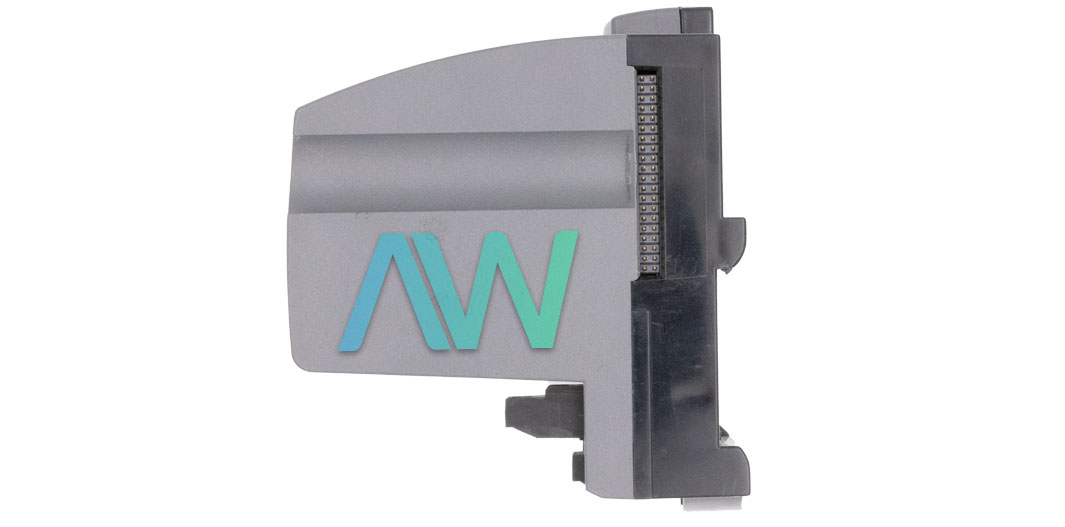

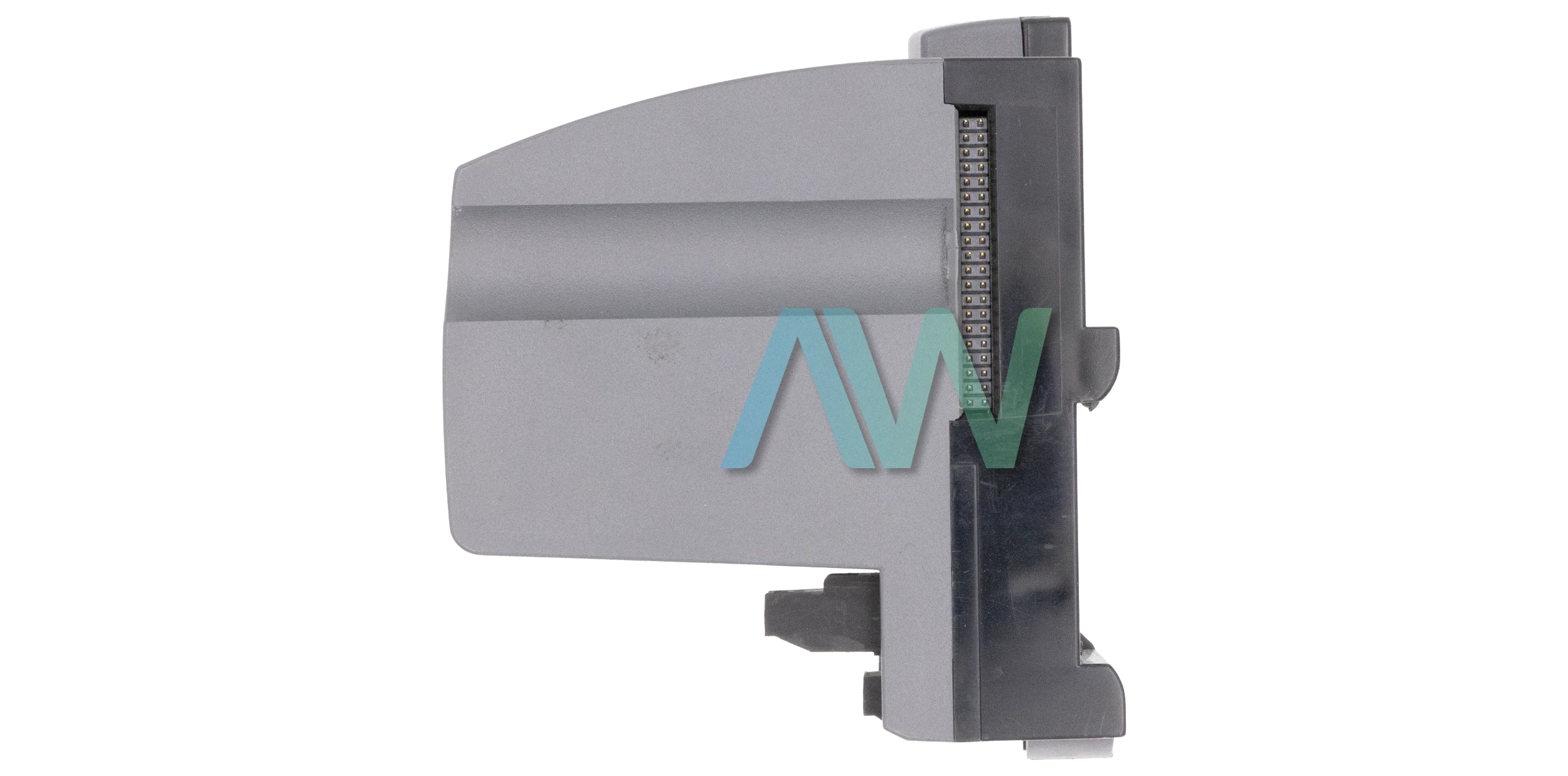

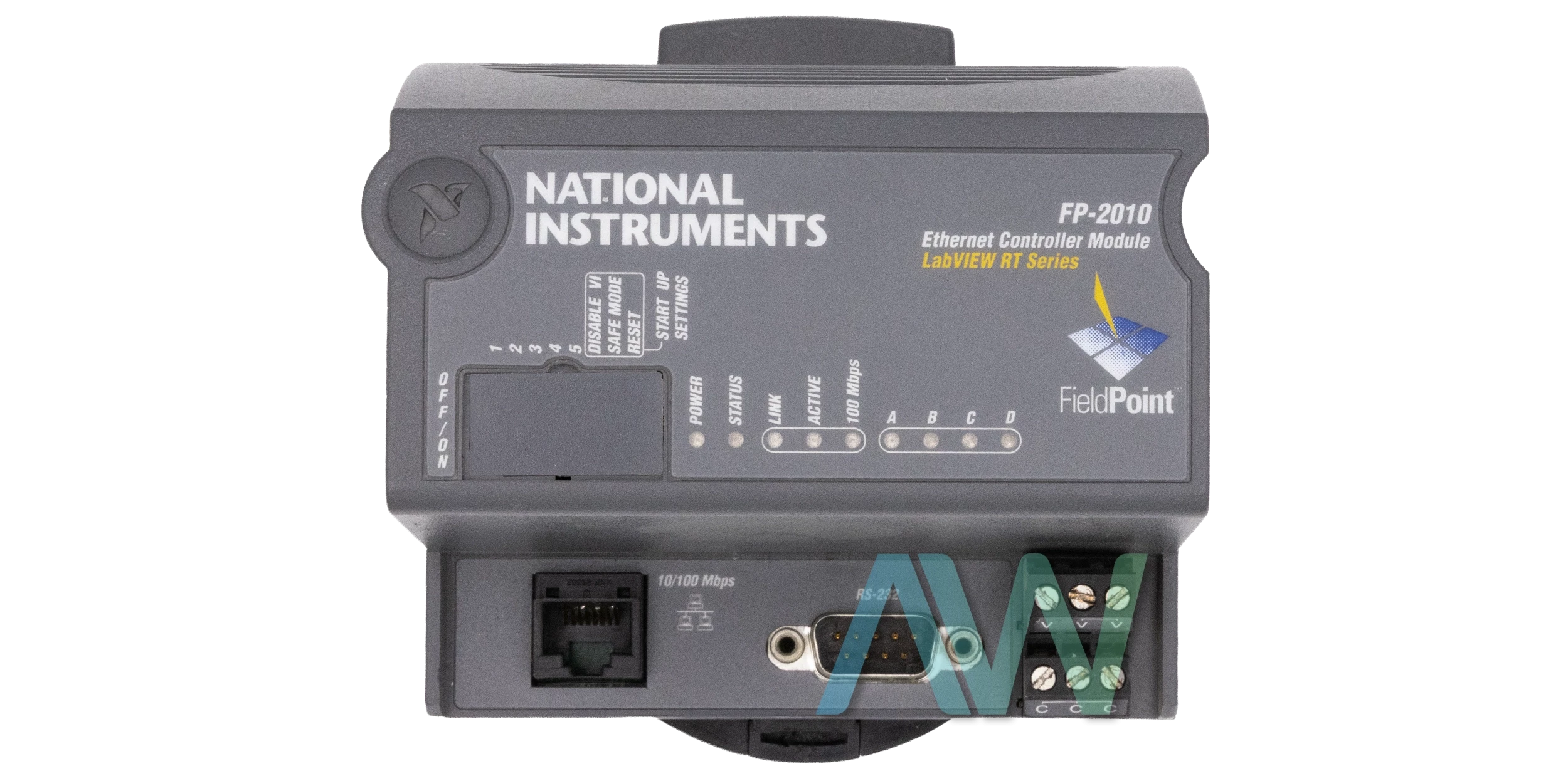

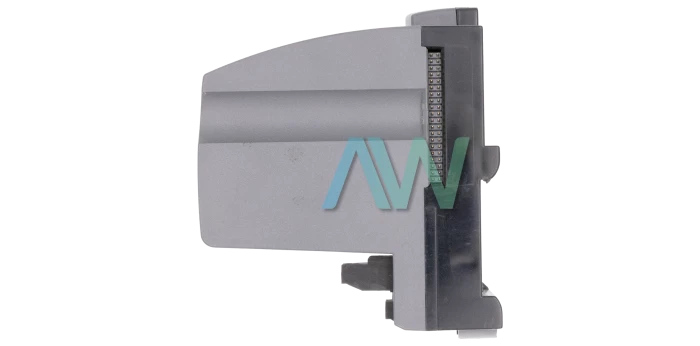

National Instruments FP-2010 LabVIEW Real-Time Controller Interface
The FP-2010 (Part Number: 777792-21) supplies 9 W of capacity to the I/O modules. Utilizing certain I/O modules that expend in excess of 1 W may lessen the aggregate number of I/O modules permitted in the bank to under nine. This demonstrates the FP-2010 is prepared to be arranged and the user can continue to introduce the FieldPoint programming. The user can constrain have access to the FP-2010 by setting access authorizations for various host machines. The default setting permits Read/Write access to all host machines. After the user designs the FP-2010, they can secure the settings made with Remote System Explorer with a secret phrase to keep others on the system from changing the arrangement. Also, a host PC on the system cannot target LabVIEW RT to the FP-2010 without a secret phrase except if the host is in the RT Target: Access list.
The FP-2010 LabVIEW Real-Time Controller Interface coordinates effortlessly with National Instruments Lookout 4.0 and later. The user can get to the module a similar way they would get to another PC running Lookout. It is possible to access the channel information, ranges, traits, and directions from Lookout, and a few control factors, for example, Reset and Snapshot.
This model offers a stand-alone implanted ongoing controller or Ethernet interface for PC-based dispersed I/O, 32 MB DRAM memory for cutting edge applications (commonly 24 MB client open), 64 MB nonvolatile memory (normally 56 MB client available), support for LabVIEW Real-Time Module 8.5.1 and prior, and support for Windows Vista and prior.
FP-2010 Obsolete Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | FP-2010 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777792-21 |
| Type | LabVIEW Real-Time Controller Interface |
| Ethernet Ports | 1 |
| Serial Ports | 1 |
| DRAM Memory | 32 MB |
| Nonvolatile Storage | 64 MB |
| Weight | 9.8 oz. |
| Warranty | 2-3 Year Warranty |
| FP-2010 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the FP-2010:
1876.85, 187685A-02, 187685B-02, 187685C-02, 187685D-02, 187685F-02, 187685G-02, 187685H-02, 188157C-02, 777792-21
National Instruments FP-2010 Frequently Asked Questions
Question: What does it mean when the STATUS LED is red on the FP-2010?
Answer: On the FP-2010, when the STATUS LED is red it means there is a failure condition.
Question: Which software is compatible with the NI FP-2010?
Answer: The following software is compatible with the NI FP-2010 and suggested for use with the Controller: LabVIEW, the LabVIEW Real-Time Module, and the LabVIEW Datalogging and Supervisory Control Module. Other compatible software includes LabWindows/CVI, VI Logger, Lookout, and Measurement Studio.
Question: What type of screw terminal wiring does the FP-2010 have?
Answer: The FP-2010 has 16–26 AWG copper conductor wire with 7 mm (0.28 in.) of insulation stripped from the end for screw-terminal wiring.
FP-2010 PDF Manuals
ARCHIVED FIELDPOINT FP 20XX QUICK START GUIDE.PDF
ARCHIVED FP 2000 2010 2015 USER MANUAL.PDF
ARCHIVED FP 20XX FIELDPOINT QUICK START GUIDE.PDF
ARCHIVED LOOKOUT RELEASE NOTES.PDF
