Modular Systems > National Instruments > FieldPoint

FP-DI-300

In Stock | Ships in 5-10 Days

FP-DI-300, 8 Input Channels, Digital Input Module

Rated 4.8/5  |  5 ratings

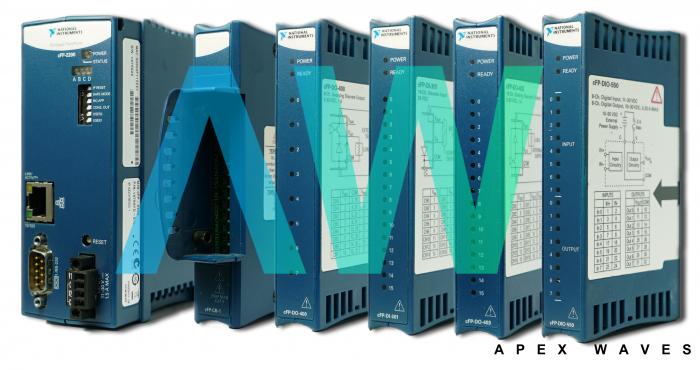

FP-DI-300 National Instruments Digital Input Module | Apex Waves | Image
❮ ❯

Actual item may vary if no part number is provided on quote request.

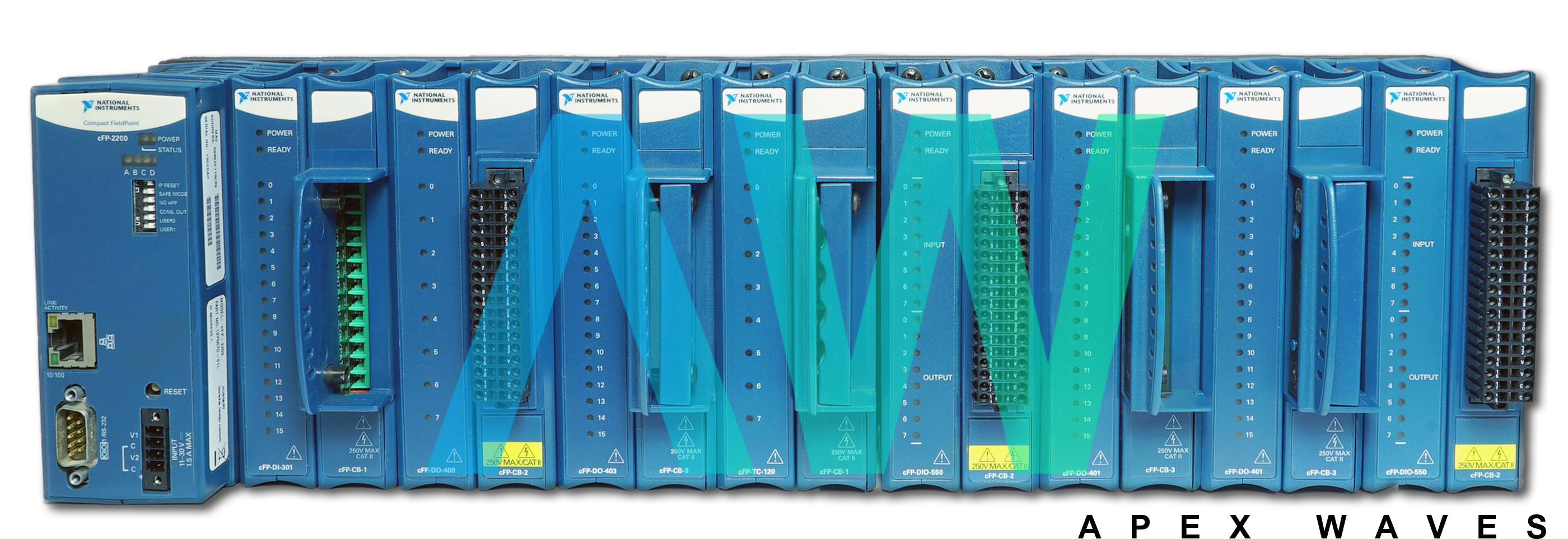

FP-DI-300 National Instruments Digital Input Module | Apex Waves | Image
FP-DI-300 National Instruments Digital Input Module | Apex Waves | Image
FP-DI-300 New
FP-DI-300 Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Get Price & Availability for the FP-DI-300

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
In Stock Ships in 5-10 Days

National Instruments FP-DI-300 Digital Input Module

The National Instruments FP-DI-300 (Part Number: 777518-300) is a flexible Digital Input Module for FieldPoint that can be utilized to screen advanced signals from low voltage levels up to 250 V. The FP-DI-300 can be introduced onto a fueled terminal base without exasperating the activity of different modules or terminal bases. The FP-DI-300 gets working force from the terminal base. The terminal base has associations for each of the eight information channels and an outside supply to control field gadgets. Each channel can be wired for use with a sourcing yield gadget. Due to V and C terminals of the terminal base, it is possible to make an association of an outside supply control field.

The contributions of the FP-DI-300 are comprised of optical isolators with current-restricting resistors. Each channel has one flag input, Vin, which is referenced to the normal, COM. This instrument comes with sinking inputs, which implies that the information sources sink current from the Vin terminal to the regular COM terminal. In this model, it is possible to drive the current from a positive supply voltage to normal by means of the data sources, which are perfect with sourcing output gadgets that are also fit for sourcing. Subsequent to accepting this data, the READY marker lights up and the National Instruments FP-DI-300 is in its ordinary working mode. Notwithstanding the green POWER and READY pointers, each channel has a numbered green status marker that lights when the divert is in the ON state.

Model FP-DI-300
Manufacturer National Instruments
Part Number 777518-300
Type Digital Input Module
Digital Input Channels 8
Input Type 24 VDC sinking inputs
Input Impedance 5 kΩ
Power from Network Module 225 mW
Weight 4.93 oz.
FP-DI-300 Manual User Manual and Maintenance Manual Available for Download
Price Contact a sales representative for a quote.

Associated part numbers for FP-DI-300:

National Instruments FP-DI-300 Frequently Asked Questions



Question: How many indicators are on the National Instruments FP-DI-300?



Answer: The National Instruments FP-DI-300 has green POWER and READY indicators and eight green input state indicators.



Question: What is the reverse voltage protection for the NI FP-DI-300?



Answer: The NI FP-DI-300 has a reverse voltage protection of -30 VDC.



Question: What is the input range of the FP-DI-300?



Answer: The input range of the FP-DI-300 is 18 to 30 VDC.



Question: What is the update rate for all channels on the National Instruments FP-DI-300?



Answer: The update rate for all channels on the National Instruments FP-DI-300 is 1 kHz.
