FP-PG-522
Modular Systems > National Instruments > FieldPoint
| Description: | FP-PG-522, 8 Output Channels, Pulse Generation Output Module |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

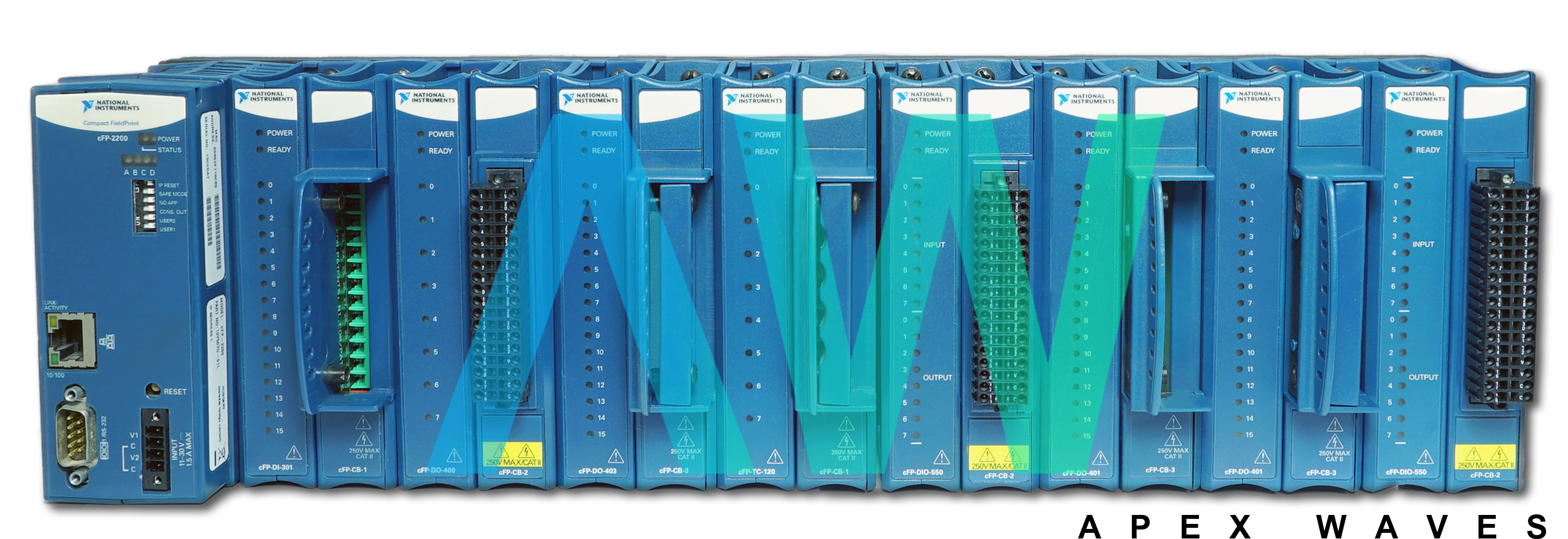

National Instruments FP-PG-522 Pulse Generator Module
The NI FP-PG-522 (Part Number: 777518-522) produces pulses comprising of a predefined on time pursued by a predetermined off time. In FieldPoint programming, the user can design each check input channel to work with various qualities. In the Channel Configuration discourse box, the user can select properties for each channel from the Attributes menu. The Pulse Mode attribute for a channel can be either Finite or Continuous. In Finite mode, a channel reacts to directions that begin a limited pulse train of a predefined number of pulse or stop generation of a running pulse train. A channel set to Continuous mode must be changed to Finite mode with the end goal to stop beat age. When it is changed to Finite mode from Continuous mode, a channel wraps up the current pulse and stops. The On Time property for a channel controls the span of the beats the channel creates. On Time can be any number from 1 to 65,535. Design the Resolution for the channel to set the units for On Time and Off Time. The Resolution property decides the units for On Time and Off Time. Conceivable Resolution esteems are 1 s, 10 ms, and 100 µs.
The different Resolution settings empower the user to produce short, high-accuracy pulses on a few channels and long pulses on others. If a channel is effectively creating pulses in either Continuous or Finite mode, changes to On Time, Off Time, and Resolution settings produce results after the current heartbeat is done.
| Model | FP-PG-522 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777518-522 |
| Type | Pulse Generator Module |
| Pulse Output Channels | 8 |
| Output Type | 5–30 VDC, sinking |
| Supply Voltage | 5–30 VDC, user-provided |
| Power from Network Module | 600 mW |
| Weight | 4.6 oz. |
| Warranty | 2-3 Year Warranty |
| FP-PG-522 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the FP-PG-522:
186516A-01, 186516B-01, 777518-522, 778062-01
National Instruments FP-PG-522 Frequently Asked Questions
Question: What is the maximum output current for the FP-PG-522?
Answer: The maximum output current for the FP-PG-522 is 2 A for each channel and 16 A squared for all channels.
Question: What is the output impedance of the NI FP-PG-522 module?
Answer: The output impedance of the NI FP-PG-522 module is 0.12 Ω.
Question: Does the FP-PG-522 have channel-to-channel isolation?
Answer: No, the FP-PG-522 does not have channel-to-channel isolation.
Question: Which types of indicators are on the NI FP-PG-522?
Answer: The NI FP-PG-522 has green POWER and READY indicators and eight green output state indicators.
FP-PG-522 PDF Manuals
ARCHIVED FP-PG-522 AND CFP-PG-522 OPERATING INSTRUCTIONS.PDF
ARCHIVED UPDATING YOUR FIRMWARE AND SOFTWARE FOR USE WITH THE FP-PG-522.PDF
