FP-PS-4, 24 VDC Output, Power Supply
Need an Official Quote?

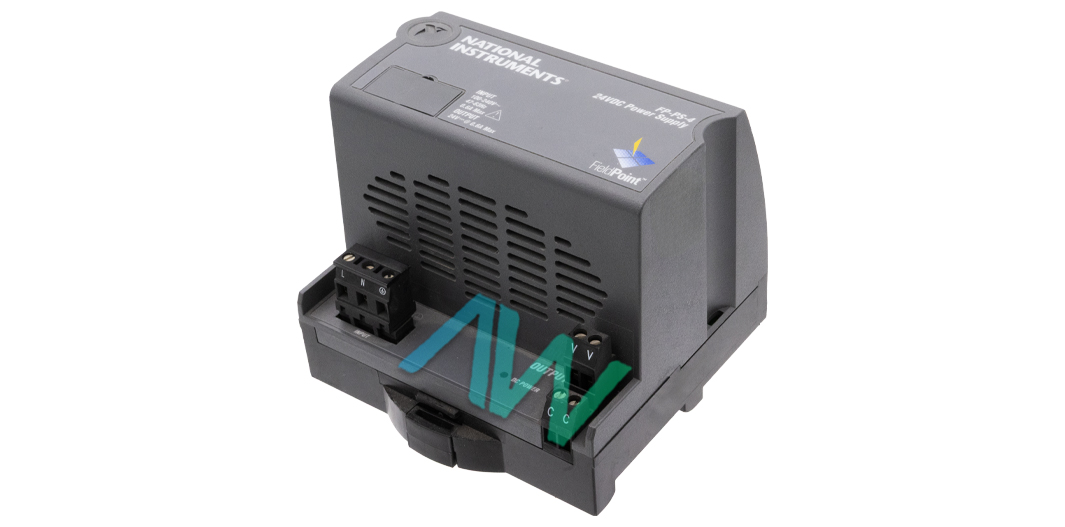

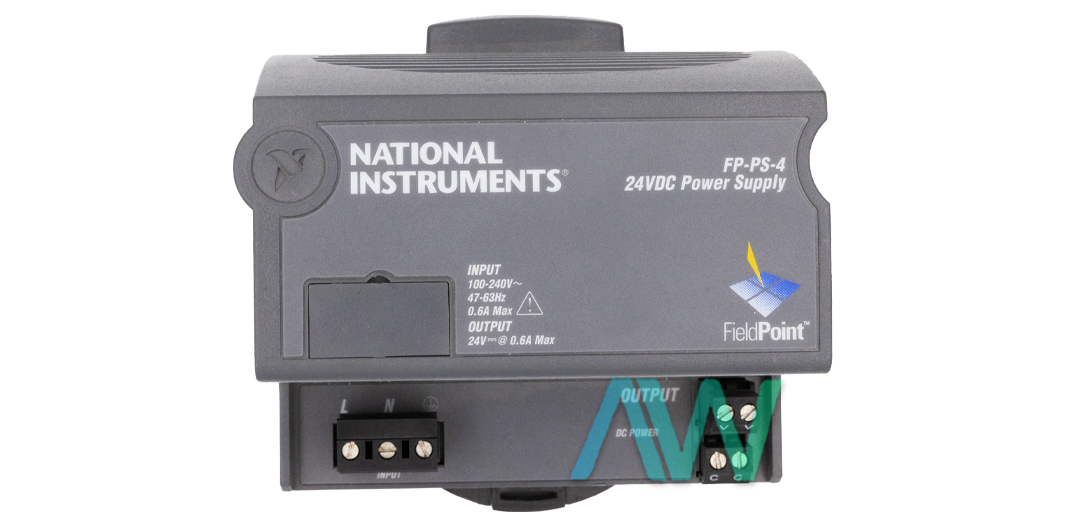

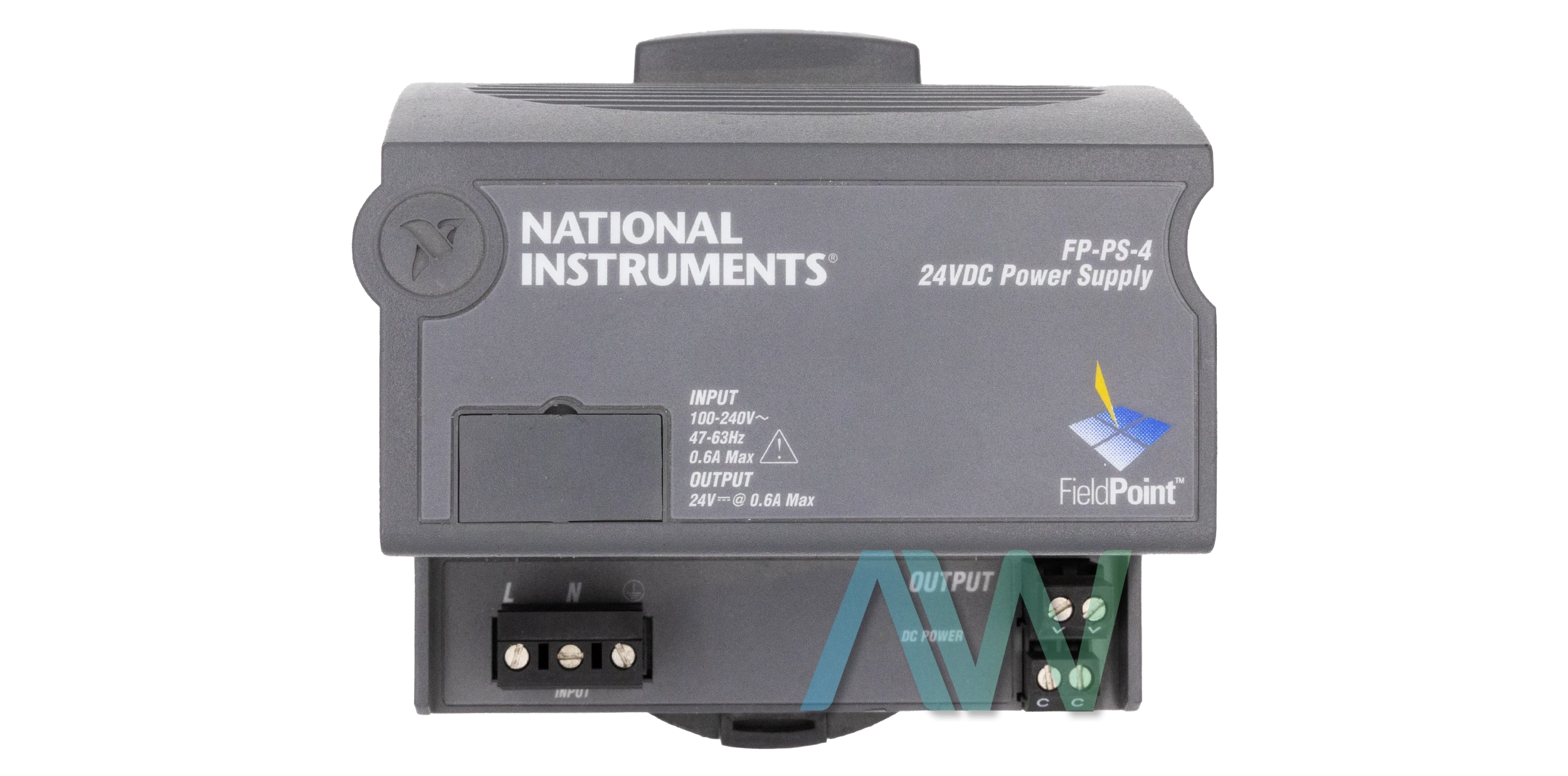

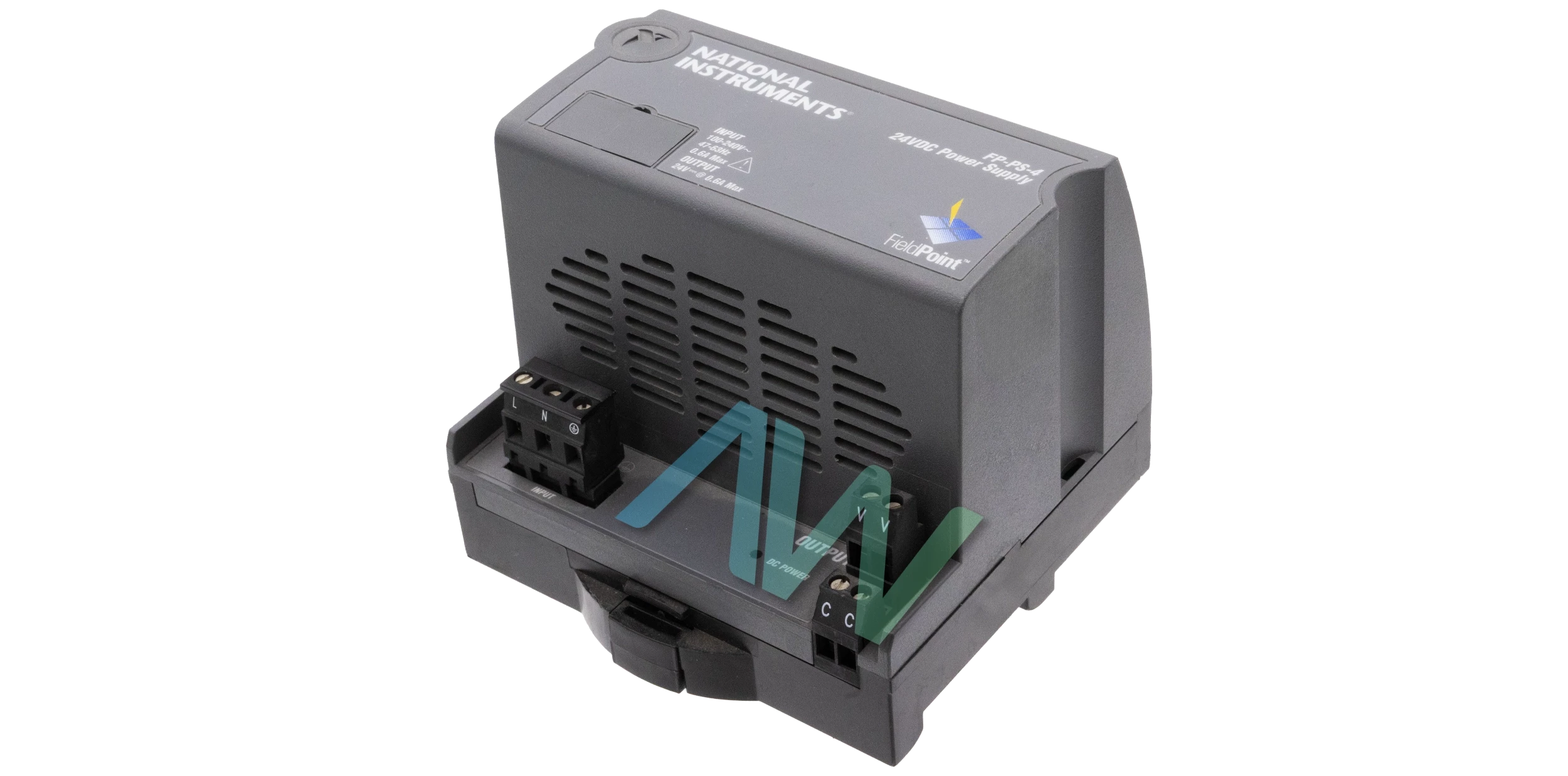

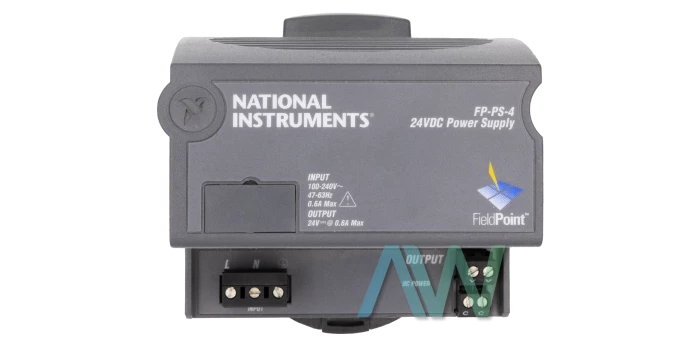

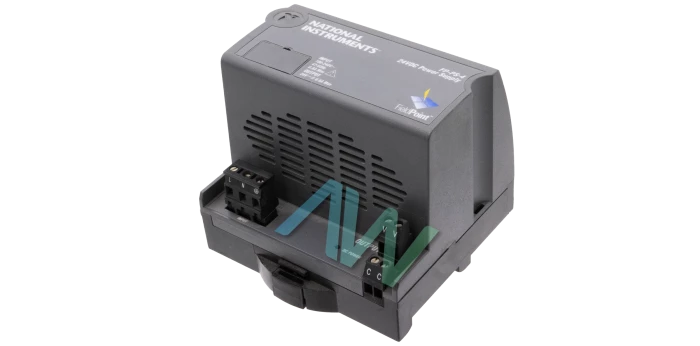

National Instruments FP-PS-4 FieldPoint Power Supply Module
The NI FP-PS-4 (Part Number: 778586-90) is a Power Supply Module by National Instruments. National Instruments offers five DC Power Supplies for FieldPoint frameworks. The user can interface the power supply output to the FP-PS-4, which directs, channels, and conveys capacity to the bank of as many as eight I/O modules that it controls. The NI FP-PS-4 Power Supply Module has a basic rail cut for dependable mounting onto a standard 35 mm DIN rail. Pursue these means to mount the module on a DIN rail. The FP-PS-4 gives a 24 VDC output. The user chooses the quantity of National Instruments FP-PS-4 Power Supplies they need in their bank, dependent on the power and segregation necessities. The aggregate intensity of the majority of the FieldPoint modules and different gadgets associated with a FP-PS-4 cannot surpass the predetermined output for the temperature run at which the user is utilizing the FP-PS-4 module.
The NI FP-PS-4 can store one pending direction for each channel. The Control: Stop Immediately makes impact when the direction is received. The Control: Stop After Current Pulse activity and the Generate Pulses direction are conceded until the finish of the current heartbeat if a heartbeat train is being produced. When a direction is pending and a second order is received, the pending order is disposed of and the new order is executed. Utilize a 16 to 26 AWG stranded wire to interface the National Instruments FP-PS-4 to a FieldPoint module or I/O module. Interface the positive wire to the V terminal and the negative wire to the C terminal of the FP-PS-4.
Model | FP-PS-4 |
---|---|
Manufacturer | National Instruments |
Part Number | 778586-90 |
Type | Power Supply Module |
Input Voltage | 90–264 VAC |
Output Voltage | 24 VDC, nonadjusting |
Input Frequency | 47–63 Hz, single phase |
Maximum Current Consumption | 0.6 A at 120 VAC, 60 Hz |
Weight | 10.5 oz. |
Warranty | 2-3 Year Warranty |
FP-PS-4 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated NSNs for the FP-PS-4:
6120-01-546-2536 (6120015462536)
National Instruments FP-PS-4 Frequently Asked Questions
Question: What is the input protection for the FP-PS-4?
Answer: The input protection for the FP-PS-4 is a nonreplaceable internal AC fuse.
Question: How many LED indicators are on the National Instruments FP-PS-4?
Answer: There is one green DC POWER LED on the National Instruments FP-PS-4.
Question: What is the overload protection for the NI FP-PS-4?
Answer: The NI FP-PS-4 is protected from short circuits and output overload.
Question: What is the part number for the panel mount accessory for the FP-PS-4?
Answer: The part number for the panel mount accessory for the FP-PS-4 is 777609-01.
