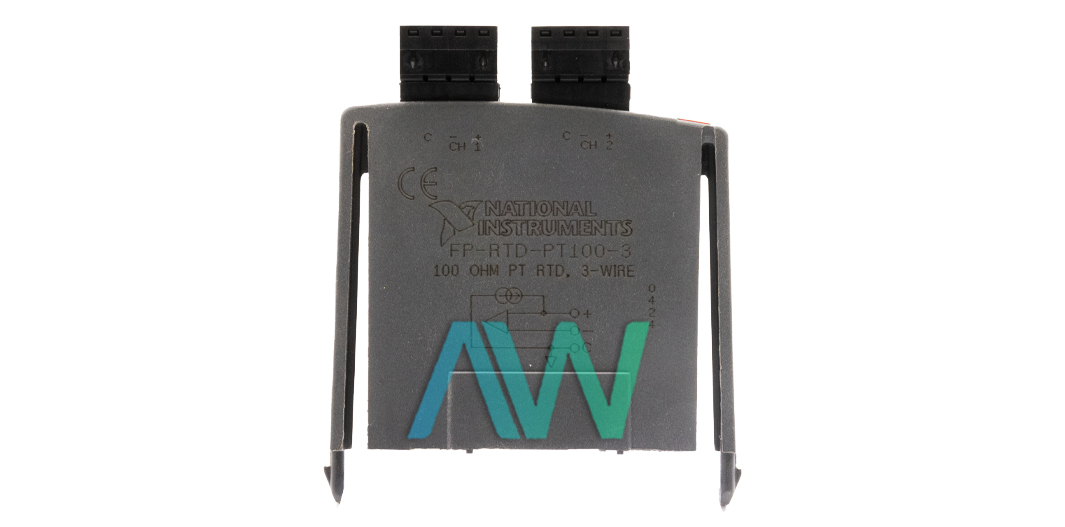

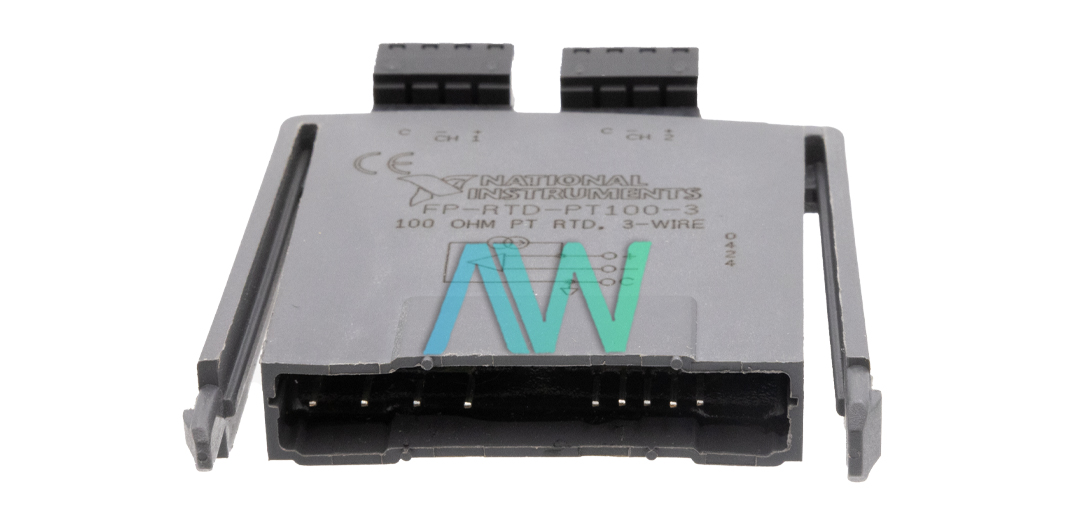

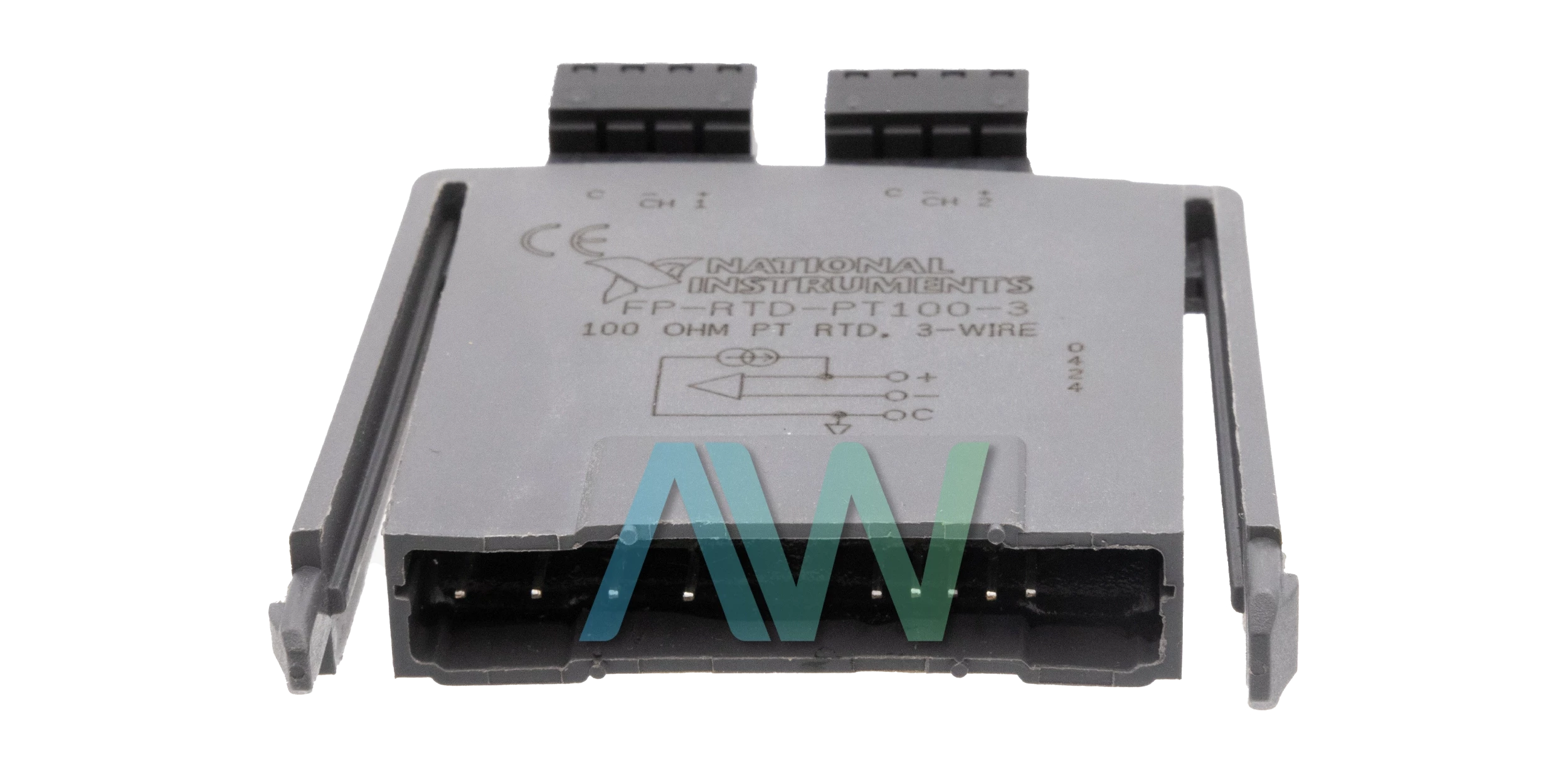

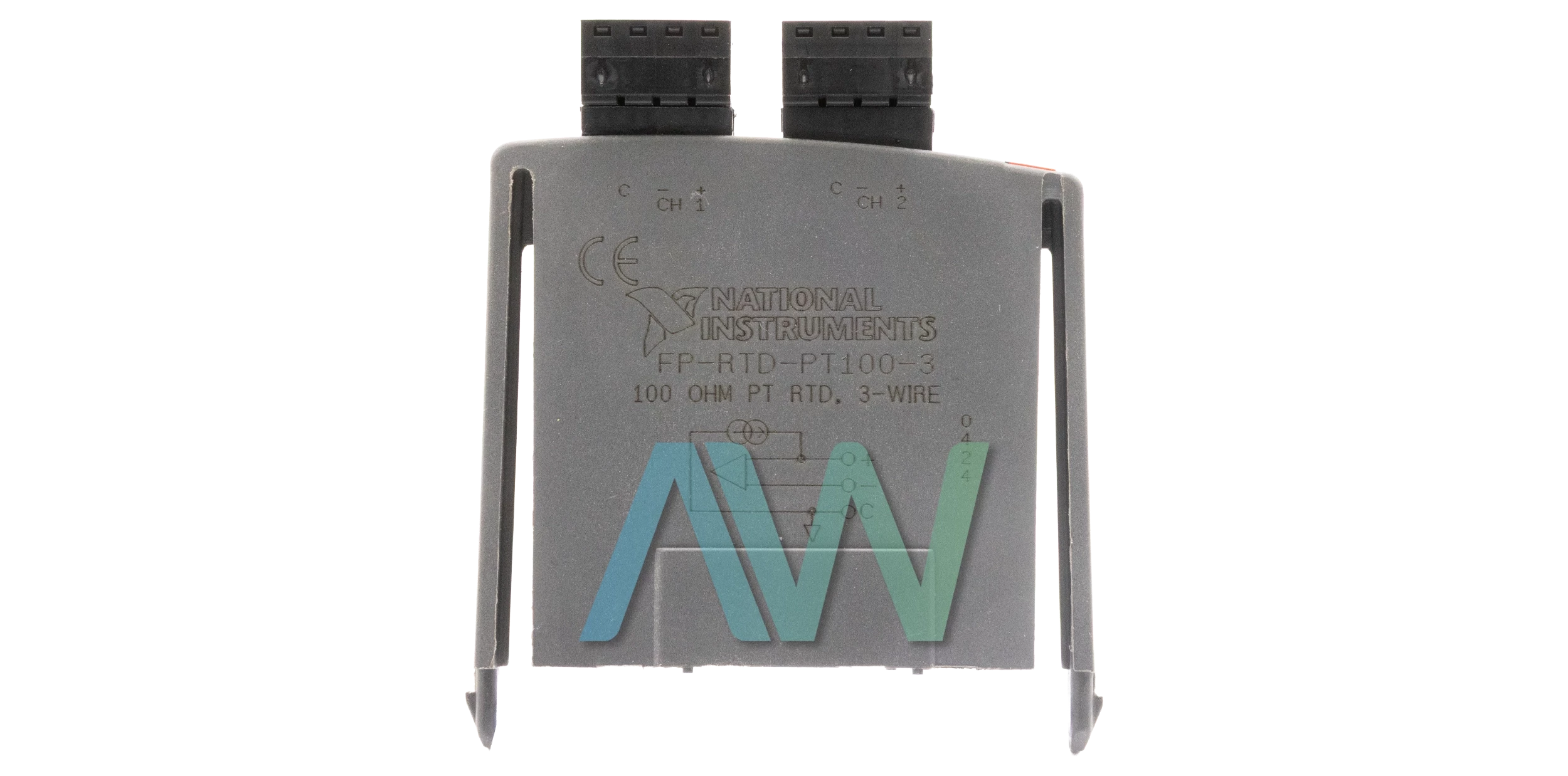

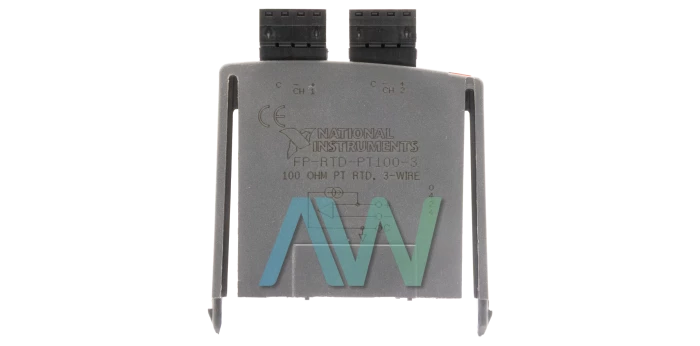

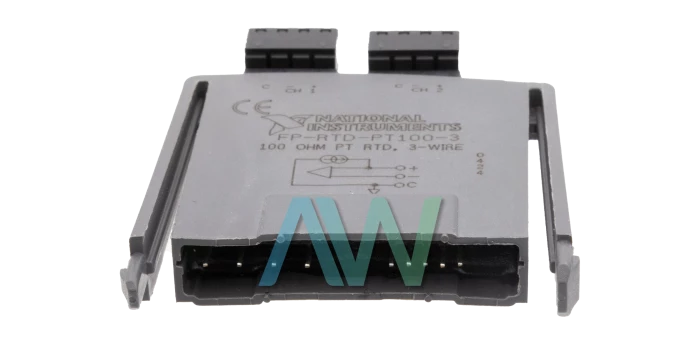

FP-RTD-PT100-3 National Instruments RTD Analog Input Module | Apex Waves | Image
❮ ❯

Actual item may vary if no part number is provided on quote request.

FP-RTD-PT100-3 National Instruments RTD Analog Input Module | Apex Waves | Image
FP-RTD-PT100-3 National Instruments RTD Analog Input Module | Apex Waves | Image
FP-RTD-PT100-3 New
FP-RTD-PT100-3 Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Get Price & Availability for the FP-RTD-PT100-3

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
In Stock Ships Today

National Instruments FP-RTD-PT100-3 RTD Analog Input Module

The FP-RTD-PT100-3 is a product from the FieldPoint RTD modules family. The NI FP-RTD-PT100-3 is manufactured by National Instruments. This module is developed with the part number 778069-32. The FP-RTD-PT100-3 is built with platinum metal. The FP-RTD-PT100-3 is designed with three-wire connections and contains two analog input channels.

The NI FP-RTD-PT100-3 module provides a channel resolution of 12-bits for measurements. The FP-RTD-PT100-3 functions with an input impedance of 100 Ω. This module is fabricated with the linearization curves with the DIN 43760 standard RTD, which is α = 0.00385. Each channel on this RTD Analog Input Module can be programmed for the °F or °C scale. The FP-RTD-PT100-3 has two sets of screw terminals on top and does not connect to the screw terminals on the FP-TB-10 Terminal Base. This module can handle only one channel from each instrument when being used for channel-to-channel applications.

This RTD Analog Input Module is built with a measurement bandwidth of 15 Hz. The FP-RTD-PT100-3 has ±6 V input protection. The National Instruments FP-RTD-PT100-3 has an input range of -50 to 350 °C. The NI FP-RTD-PT100-3 operates within the temperature range of -40 to 70 °C. This module is capable of a 42 ms step response time for RTD inputs. This RTD Analog Input Module is compatible with storage temperatures in the range between -50 to 85 °C. The FP-RTD-PT100-3 has a power requirement of 375 mW maximum. This module functions with an excitation current of 100 μs. The NI FP-RTD-PT100-3 is EMC certified.

Model FP-RTD-PT100-3
Manufacturer National Instruments
Part Number 778069-32
Type RTD Analog Input Module
Resolution 12 bits
Input Channels 2
Measurement Bandwidth 15 Hz
Excitation Current 100 µA
Wire Configuration 3-wire
Power Requirements 375 mW maximum
FP-RTD-PT100-3 Manual User Manual and Maintenance Manual Available for Download
Price Contact a sales representative for a quote.

Associated part numbers for FP-RTD-PT100-3:

FP-RTD-PT100-3 PDF Manuals

FP-TB-10-OPERATING-INSTRUCTIONS.PDF
