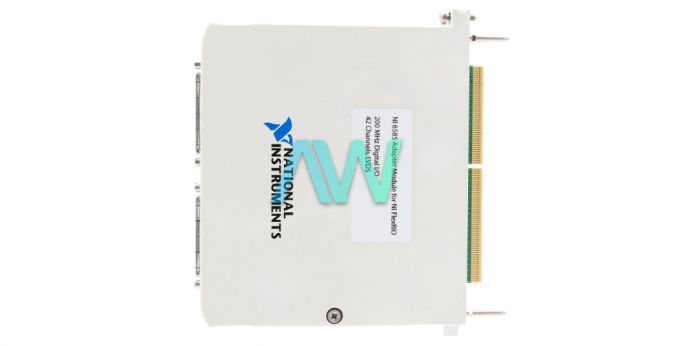

NI-6585 National Instruments Digital I/O Adapter Module for FlexRIO | Apex Waves | Image
NI-6585 National Instruments Digital I/O Adapter Module for FlexRIO | Apex Waves | Image
NI-6585 New
NI-6585 | Legacy, Refurbished and New Surplus

NI-6585

4.7/5 | 17 ratings

Modular Systems > National Instruments > FlexRIO

Part Number NI-6585
Manufacturer/Brand National Instruments
Description: NI-6585, 32 LVDS-Channel, Digital I/O Adapter Module for FlexRIO
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

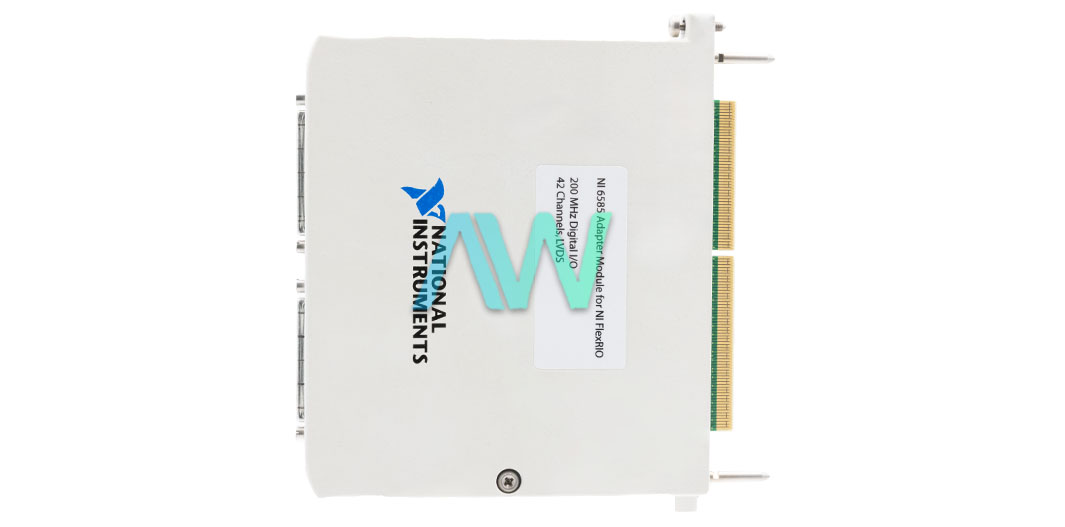

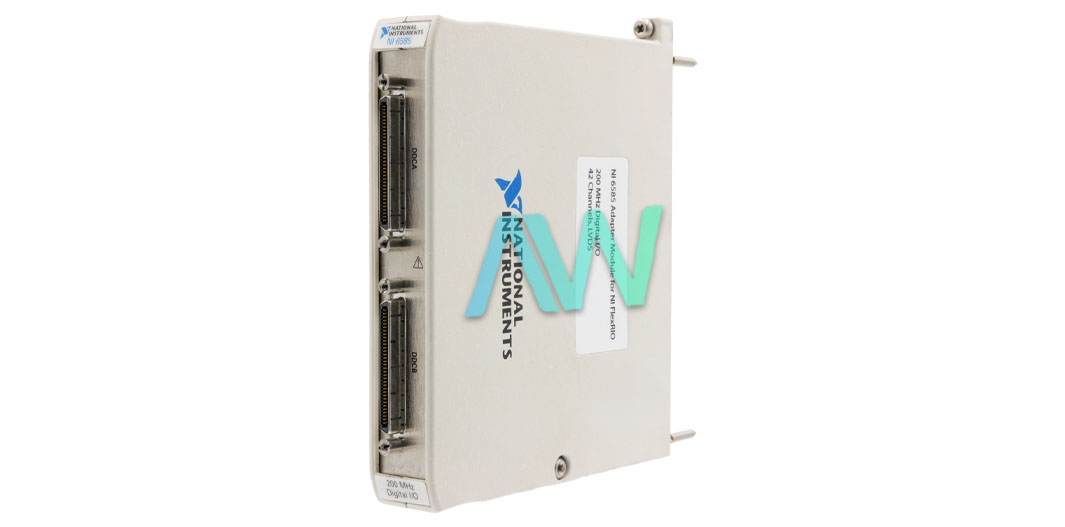

National Instruments NI-6585 Digital I/O Adapter Module for FlexRIO

The National Instruments NI-6585 (Part Number: 781071-01) Digital I/O Adapter Module for FlexRIO comes with Pinouts/Front Panel Connections. The Connector Pin Assignments have caution connections that surpass any of the greatest evaluations of input or output signals on the NI 6585 that can harm the gadget and the chassis. This module’s outside power connector ground association references an outer power supply to the PXI framework. The outer power connector does not give any methods for confinement. Users should be careful when interfacing with a non-isolated supply to the outside power connector. Utilizing a grounded control supply as the outer power source may cause ground loops that expands noise on the power rails. NI prescribes that users utilize a floating source that is ground reference to the PXI chassis utilizing the ground association given by the outside power ground connector on the NI-6585.

By using this model, users will be able to utilize Measurement and Automation Explorer (MAX) to arrange their National Instruments equipment. MAX reports different projects about which gadgets stay in the framework and how they are arranged. MAX is usually installed with NI FlexRIO Support.

This type of Digital I/O Adapter Module for FlexRIO includes a frequency range from 200 MHz to 4.4 GHz, with up to 200 MHz of immediate data transmission. When the NI 6585 is combined with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO, users can program the FPGA utilizing LabVIEW to execute custom signal processing, including adjustment and demodulation, channel copying, spectral examination, and closed-loop control.

ModelNI-6585
ManufacturerNational Instruments
Part Number781071-01
TypeDigital I/O Adapter Module for FlexRIO
Bidirectional Digital Channels32
Maximum Clock Rate200 MHz
Maximum Data Rate300 Mbits/s
Dimensions5.1 x 0.8 x 4.7 in.
Weight10 oz.
WarrantyOne Year Warranty
NI-6585 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments NI-6585 Frequently Asked Questions



Question: How many digital I/O channels does the NI-6585 have?



Answer: The NI-6585 has 42 digital I/O channels.



Question: What is the maximum length of I/O cables that can be used with the NI 6585?



Answer: The maximum length of I/O cables that can be used with the NI 6585 is 100 ft.



Question: What is the maximum clock rate to/from the NI-6585?



Answer: The maximum clock rate to/from the NI-6585 is 200 MHz.



Question: What are the logic levels for the NI 6585?



Answer: The NI 6585 has LVDS logic levels.
