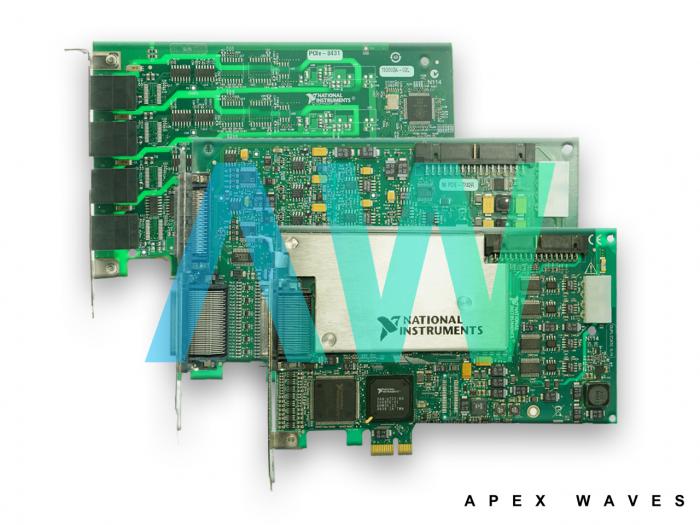

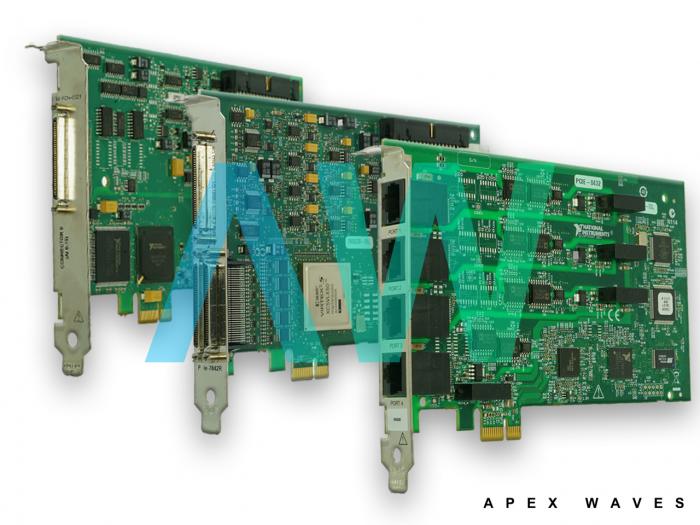

National Instruments PCIe-5775 FlexRIO Digitizer Device
The National Instruments PCIe-5775 (Part Numbers: 785593-01, 785594-01, and 785595-01) is a FlexRIO Digitizer Device with 2 channels, 12 bits resolution, and 6.4 GS/s maximum sample rate. The National Instruments PCIe-5775 has an analog bandwidth of 6 GHz (AC coupled). The National Instruments PCIe-5775 FlexRIO Digitizer Device can be operated by the end user at the rate of 3.2 GS/s in dual channel mode. However, the user can also operate the device in single channel mode at the rate of 6.4 GS/s. The NI PCIe-5775 has a pass band starting with 6 MHz to greater than 6 GHz. The different variations of the device feature different reconfigurable FPGAs- either KU035 (part number 785593-01), KU040 (part number 785594-01), or KU060 (part number 785595-01).
The National Instruments PCIe-5775 FlexRIO Digitizer Device is perfectly suitable for frequency domain applications that also require higher bandwidth. These applications include radar and communication related applications. Finite acquisition is offered by the drivers of this FlexRIO Digitizer Device. The end user can also deploy real time signal processing and customized algorithms on the National Instruments PCIe-5775 using the LabVIEW ultra-scale FPGA.
The NI PCIe-5775 fulfills the conditions and limitations of EMC (electromagnetic compatibility) mentioned in the product specifications. If the National Instruments PCIe-5775 is operated in an electromagnetic environment, the stated requirements offer sufficient safety for unsafe interferences. The NI PCIe-5775 FlexRIO Digitizer Device can be used in a harsh industrial environment. However, there is still a chance for unsafe interferences to occur if the proper precautions are not taken. The National Instruments PCIe-5775 FlexRIO Digitizer Device is designed to fulfill the standards of electrical equipment safety, including UL 61010-1, CSA C22.2 No. 61010-1 and IEC 61010-1, EN 61010-1.
| Model | PCIe-5775 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 785593-01, 785594-01, 785595-01 |
| Type | FlexRIO Digitizer Device |
| Voltage Input Channels | 2 |
| Dynamic RAM | 0 to 4 GB |
| Analog Input Resolution | 12 bits |
| Maximum Sample Rate | 6.4 GS/s |
| Dimensions | 5.0 in. × 10.4 in. × 1.6 in. |
| Weight | 35 oz. |
| PCIe-5775 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCIe-5775:
National Instruments PCIe-5775 Frequently Asked Questions
Question: How are the part numbers for the PCIe-5775 different?
Answer: The part numbers of the PCIe-5775 vary by FPGA type. The reconfigurable options include a KU035 FPGA (part number 785593-01), KU040 FPGA (part number 785594-01), and KU060 FPGA (part number 785595-01).
Question: What is the operating temperature of the PCIe-5775?
Answer: The PCIe-5775 is able to operate when used within a temperature range of 0 °C to 45 °C.
Question: What is the slot compatibility of the PCIe-5775?
Answer: The device is compatible with both x8 and x16 PCIe slots.
| Part Number | FPGA |
| 785593-01 | KU035 |
| 785594-01 | KU040 |
| 785595-01 | KU060 |
