PXIe-5785
Modular Systems > National Instruments > FlexRIO
| Description: | PXIe-5785, 2-Channel, 12-Bit, PXI FlexRIO IF Transceiver |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

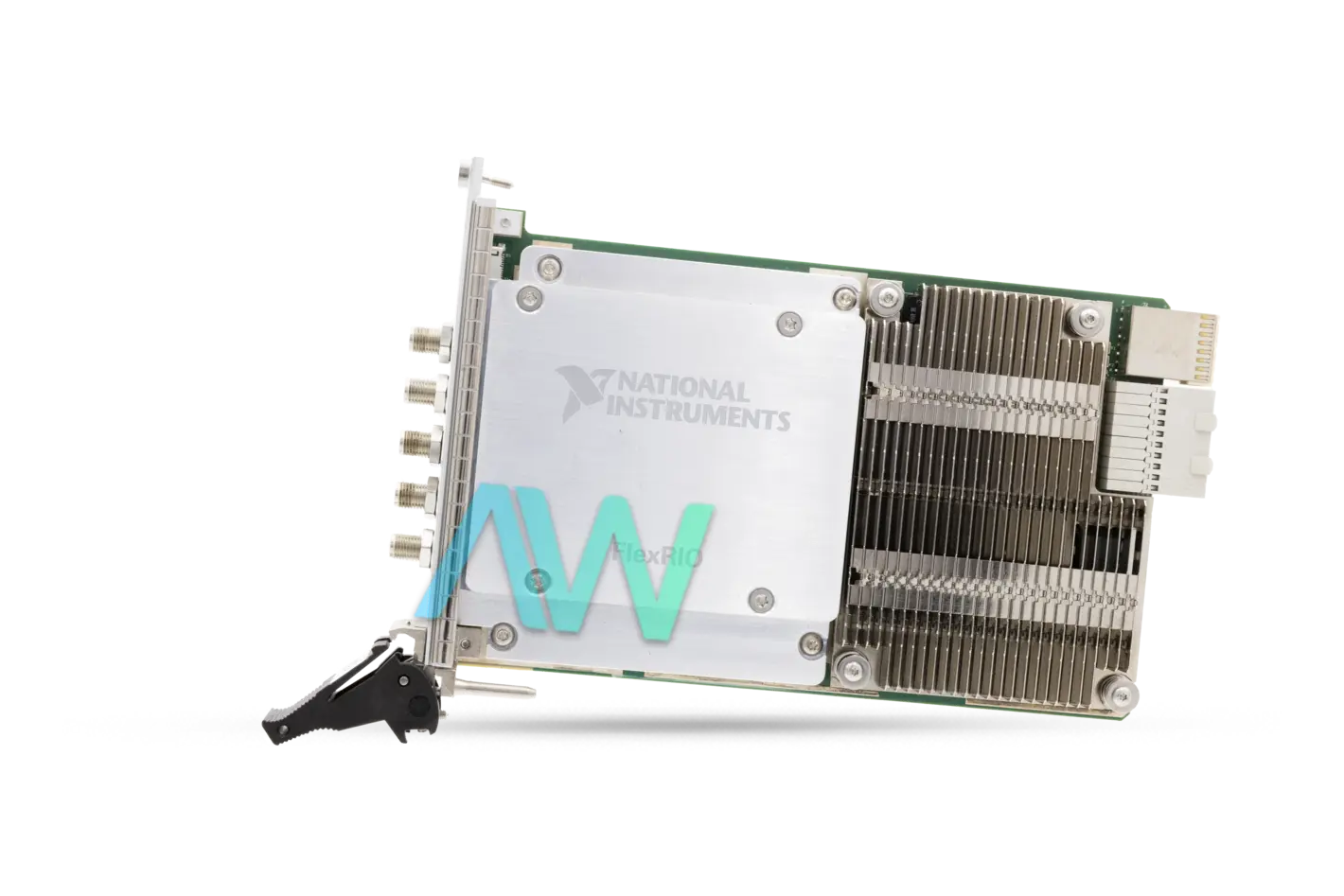

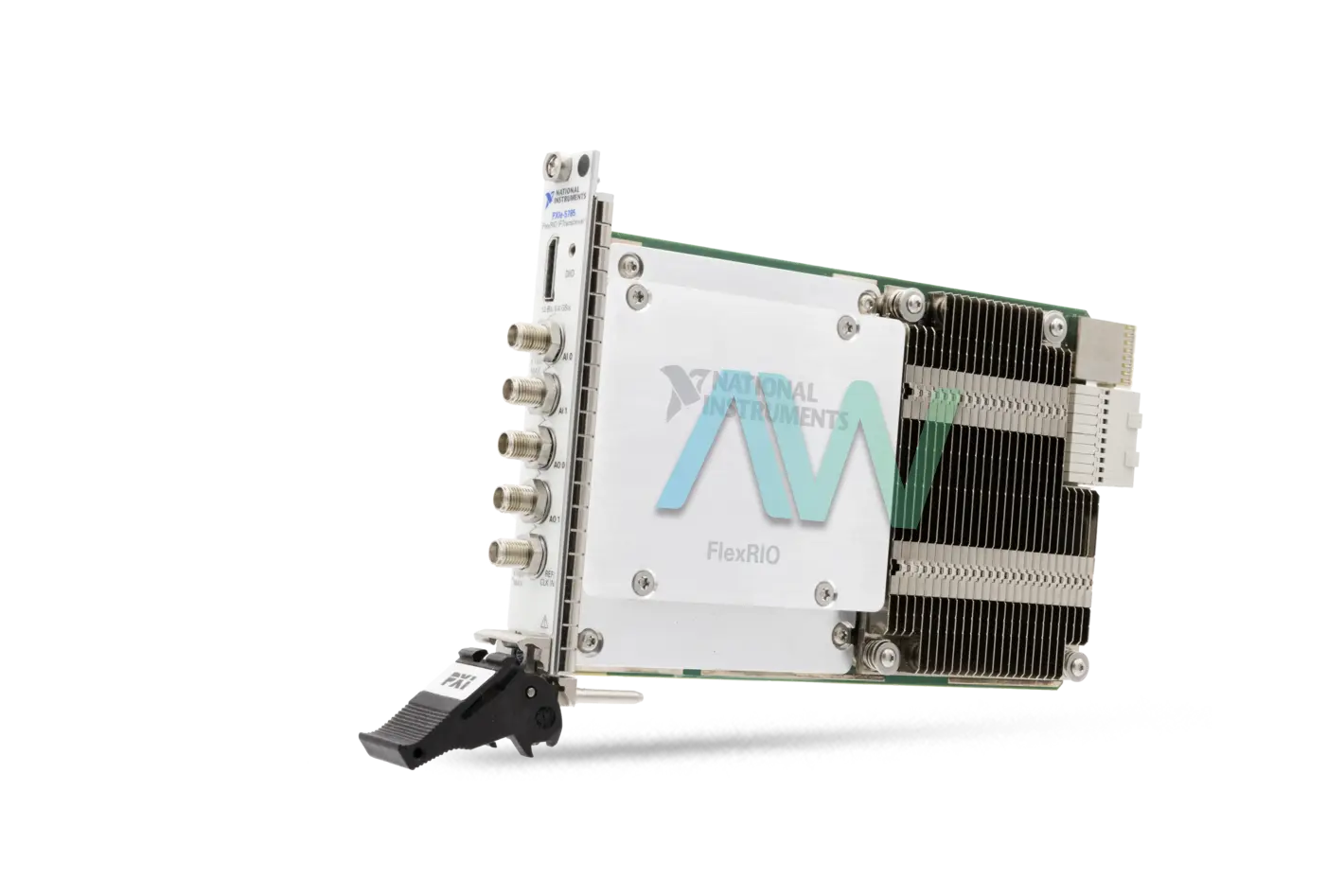

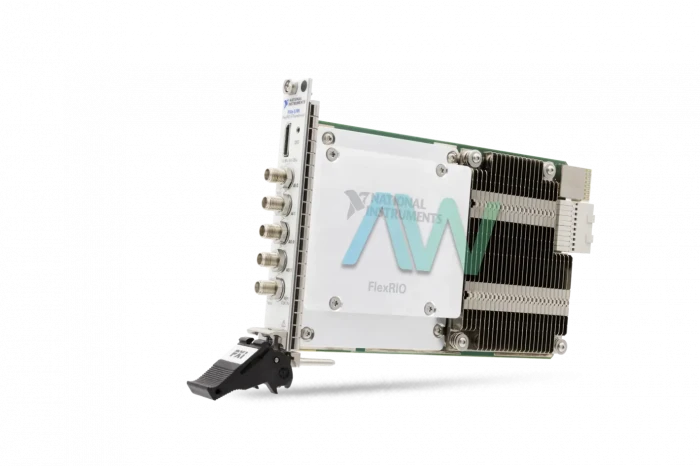

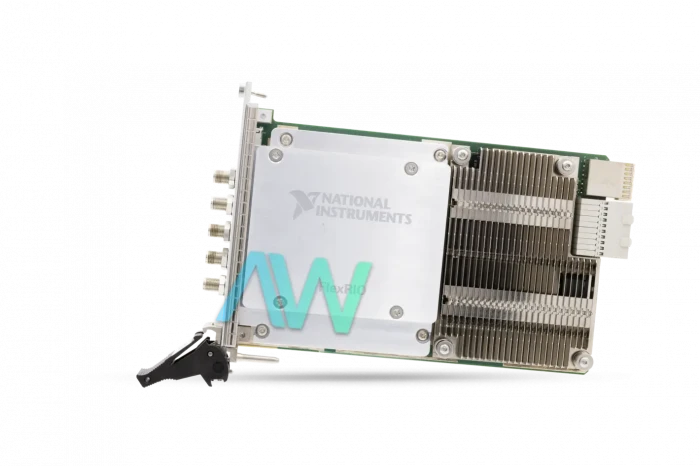

National Instruments PXIe-5785 PXI FlexRIO IF Transceiver
The National Instruments PXIe-5785 (Part Numbers: 785584-01, 785584-02, 785585-02, 785585-01, 785586-02, 785586-01) FlexRIO FPGA-Enabled Transceiver expects to shorten the structure cycle for cutting edge radar applications in aviation and resistance. The PXIe-5785 FlexRIO Transceiver gives engineers access to the most recent direct RF converters in a versatile model to enable them to minimize the development process. This FlexRIO Transceiver conveys an elite, high-channel-tally IF solution for precise synchronization and baseband examination.
Rising chipsets have been consolidated into the NI PXIe-5785, including rapid converters that sample up to 6.4 GS/s with 12-bit resolution. These rapid converters are basic for present day radar frameworks, in which expanded RF transfer speed likens to better spatial goals, prompts less false discoveries, and empowers advanced electronic security strategies. The PXIe-5785 FlexRIO Transceiver can likewise test specifically at RF, which disentangles and brings down the expense of high-channel-count frameworks. This is particularly critical when building frameworks, such as completely dynamic staged exhibit radars, in which pillars are shaped utilizing hundreds or even many radio wire components. Also, on the grounds that FlexRIO modules depend on the PXI stage, clients can coordinate frameworks and synchronize modules more effectively when contrasted with hand crafts or elective shape factors like VPX.
The NI PXIe-5785 PXI FlexRIO IF Transceiver has eight digital I/O single-ended channels with direction control for each channel, two single-ended analog input channels, and a full-scale input range of 1.25 V pk-pk (5.92 dBm) at 10 MHz. The FPGA options of the PXIe-5785 include a Kintex UltraScale KU035 (part numbers 785584-01 and 785584-02 (w/ filter)), a KU040 FPGA (part numbers 785585-01 and 785585-02 (w/ filter), or a KU060 FPGA (part numbers 785586-01 and 785586-02 (w. filter)).
| Model | PXIe-5785 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 785584-01, 785584-02, 785585-02, 785585-01, 785586-02, 785586-01 |
| Type | PXI FlexRIO IF Transceiver |
| Digital I/O Channels | 8 |
| Analog Input Channels | 2 |
| Dimensions | 7.4 in. × 5.1 in. |
| Weight | 6.7 oz. |
| Warranty | 2-3 Year Warranty |
| PXIe-5785 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-5785:
146636B-02L, 144554B-01L, 146636B-03L, 144554B-04L, 146636B-04L, 144554C-01L, 144554C-04L, 146636B-05L, 144554D-01L, 146636B-06L, 144554D-02L, 200462A-01, 144554D-03L, 200476A-01, 144554D-04L, 785584-01, 144554D-05L, 785584-02, 146636A-01L, 785585-01, 146636A-02L, 785585-02, 146636A-03L, 785586-01, 146636A-04L, 785586-02, 146636A-05L, 146636A-06L, 146636B-01L
National Instruments PXIe-5785 Frequently Asked Questions
Question: Why does the NI PXIe-5785 have six part numbers? What are the differences?
Answer: The NI PXIe-5785 has varying specifications available, based on the part number. For example, part number 785584-01 has 2.9 GHz analog output bandwidth, a Kintex UltraScale KU035 FPGA, 0 GB DRAM, and does not have a reconstruction filter. The next part number, 785584-02, has 2.4 GHz analog output bandwidth, a Kintex UltraScale KU035 FPGA, 0 GB DRAM, and has a reconstruction filter. Part number 785585-02 has 2.4 GHz analog output bandwidth, a Kintex UltraScale KU040 FPGA, 4 GB DRAM, and has a reconstruction filter. Part number 785585-01 has 2.9 GHz analog output bandwidth, a Kintex UltraScale KU040 FPGA, 4 GB DRAM, and does not have a reconstruction filter. Part number 785586-02 has 2.4 GHz analog output bandwidth, a Kintex UltraScale KU060 FPGA, 4 GB DRAM, and has a reconstruction filter. The last part number, 785586-01, has 2.9 GHz analog output bandwidth, a Kintex UltraScale KU060 FPGA, 4 GB DRAM, and does not have a reconstruction filter.
Question: What is the sample rate of the analog input channels on the PXIe-5785 FlexRIO Transceiver?
Answer: The analog input channels on the PXIe-5785 FlexRIO Transceiver have a single channel mode sample rate of 6.4 GS/s and a dual channel mode sample rate of 3.2 GS/s per channel.
Question: What type of analog output channels does the NI PXIe-5785 have?
Answer: The NI PXIe-5785 has two single-ended, simultaneously updated analog output channels.
Question: What are the maximum power requirements of the PXIe-5785?
Answer: The maximum power requirements of the PXIe-5785 are +3.3 V, 3 A; +12 V, 4 A; and a maximum total power of 58 W.
| Part Number | FPGA | Sample Clock | Bandwidth |
| 785584-01 | KU035 | 500kHz to 6GHz | 2.9GHz (No Reconstruction Filter) |
| 785585-01 | KU040 | 500kHz to 6GHz | 2.9GHz (No Reconstruction Filter) |
| 785586-01 | KU060 | 2.8GHz to 3.2GHz | 2.9GHz (No Reconstruction Filter) |
| 785584-02 | KU035 | 2.8GHz to 3.2GHz | 2.4GHz (With Reconstruction Filter) |
| 785585-02 | KU040 | 2.8GHz to 3.2GHz | 2.4GHz (With Reconstruction Filter) |
| 785586-02 | KU060 | 500kHz to 6GHz | 2.4GHz (With AReconstruction Filter) |
PXIe-5785 PDF Manuals
FLEXRIO INTEGRATED FEATURES.PDF
PXIE 5785 DECLARATION OF CONFORMITY.PDF
PXIE 5785 DIMENSIONAL DRAWINGS.PDF
PXIE 5785 GETTING STARTED GUIDE.PDF
PXIE 5785 LETTER OF VOLATILITY.PDF
PXIE 5785 SAFETY AND ENVIRONMENTAL INFORMATION.PDF
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXIe-5785
Modular Systems > National Instruments > FlexRIO
PXIe-5785, 2-Channel, 12-Bit, PXI FlexRIO IF Transceiver
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Part Variations
- Manuals & PDFs
National Instruments PXIe-5785 PXI FlexRIO IF Transceiver
