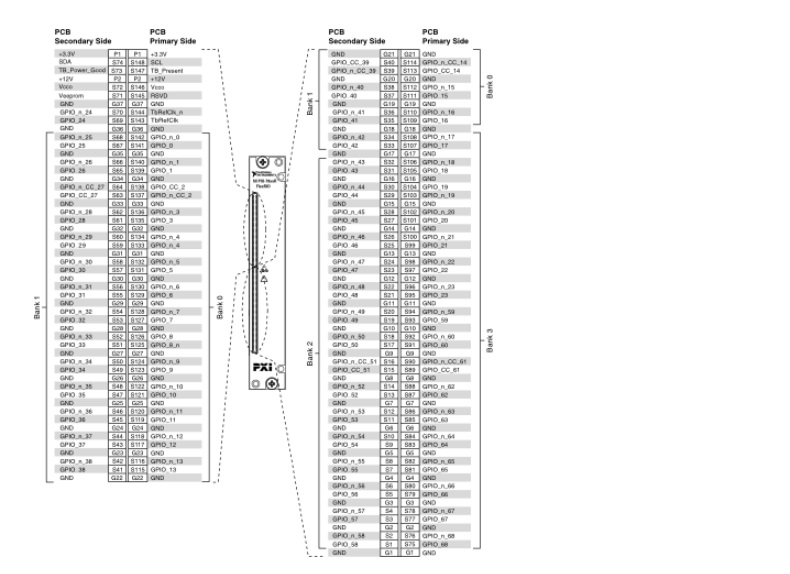

PXIe-7975 National Instruments PXI FPGA Module for FlexRIO | Apex Waves - Wiring Diagram Image
PXIe-7975 New
PXIe-7975 | Legacy, Refurbished and New Surplus

PXIe-7975

4.8/5 | 10 ratings

Modular Systems > National Instruments > FlexRIO

Part Number PXIe-7975
Manufacturer/Brand National Instruments
Description: PXIe-7975, 2 GB DRAM, PXI FPGA Module for FlexRIO
In Stock | Ships in 5-10 Days
(expedited shipping options available)
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments PXIe-7975 PXI FPGA Module for FlexRIO

The 1.7 GB/s, 2 GB DRAM, PXIe-7975 (Part Number: 782955-01) PXI FPGA Module for FlexRIO ,includes a Kintex-7 410T FPGA with digital signal processing (DSP) and 2 GB/s of coordinated DDR3 DRAM. This FPGA mixes 1,540 DSP segments, which can be used to actualize computerized channels, custom signal processing, and Fast Fourier Transform logic (FFT), which are all ordinarily found in analog instruments in view of FPGA. In addition, the incorporated DRAM hypothetical 10.2 GB/s execution is required while working in expansive datasets with the highest execution.

Point-to-point transmission is another NI innovation incorporated in this model that permits integrate information transmission between different FPGA modules, or between certain PXI Express separated instruments and FPGA modules, without sending information back to the host processor. The new NI PXIe-7975 FlexRIO PXI FPGA Module architecture gives this point-to-point information transmission at paces of up to 1.6 GB/s. With this great element, the user can add FPGA capacities to NI elite digitizers with NIST traceable adjustment or grow their FPGA algorithms over numerous FPGAs for applications that request computing.

Data compression without loss is a class of data compression algorithms that enables the exact original data to be remade from the compressed data. Lossless compression is utilized when It is vital that the original and decompressed data are indistinguishable, or when they are not accepted It should be possible on whether a specific deviation is not basic. Average applications incorporate information storage and transmission.

ModelPXIe-7975
Part Number782955-01
ManufacturerNational Instruments
TypePXI FPGA Module for FlexRIO
FPGAKintex-7 410T
FPGA Slices63550
Block RAM (BRAM)28620 kbit
Dimensions7.4 x 5.1 in.
Weight6.7 oz.
Warranty2-3 Year Warranty
PXIe-7975 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-7975:

153956A-05L, 153956B-05L, 153956C-05L, 153956D-05L, 153956D-06L, 153956E-05L, 153956E-06L, 153956F-05L, 153956G-05L, 153956H-05L, 153956J-05L, 153956K-05L, 153956L-05L, 200263A-01, 200661A-01, 782955-01

National Instruments PXIe-7975 Frequently Asked Questions



Question: How many DSP slices are available on the PXIe-7975 module?



Answer: There are 1540 DSP slices available on the PXIe-7975 module.



Question: What is the maximum theoretical data rate for the NI PXIe-7975?



Answer: The maximum theoretical data rate for the NI PXIe-7975 is 10.5 GB/s.



Question: What are the maximum power requirements for the PXIe-7975?



Answer: The maximum power requirements for the PXIe-7975 are 3 A at +3.3 VDC (±5%) and 3 A at +12 V.



Question: What is the default timebase for the NI PXIe-7975?



Answer: The default timebase for the NI PXIe-7975 is 40 MHz.
