PCI-1426
Modular Systems > National Instruments > Frame Grabbers
| Description: | PCI-1426, 0 to 5 V, 2 Channels, Camera Link Image Acquisition Device |
(expedited shipping options available)
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

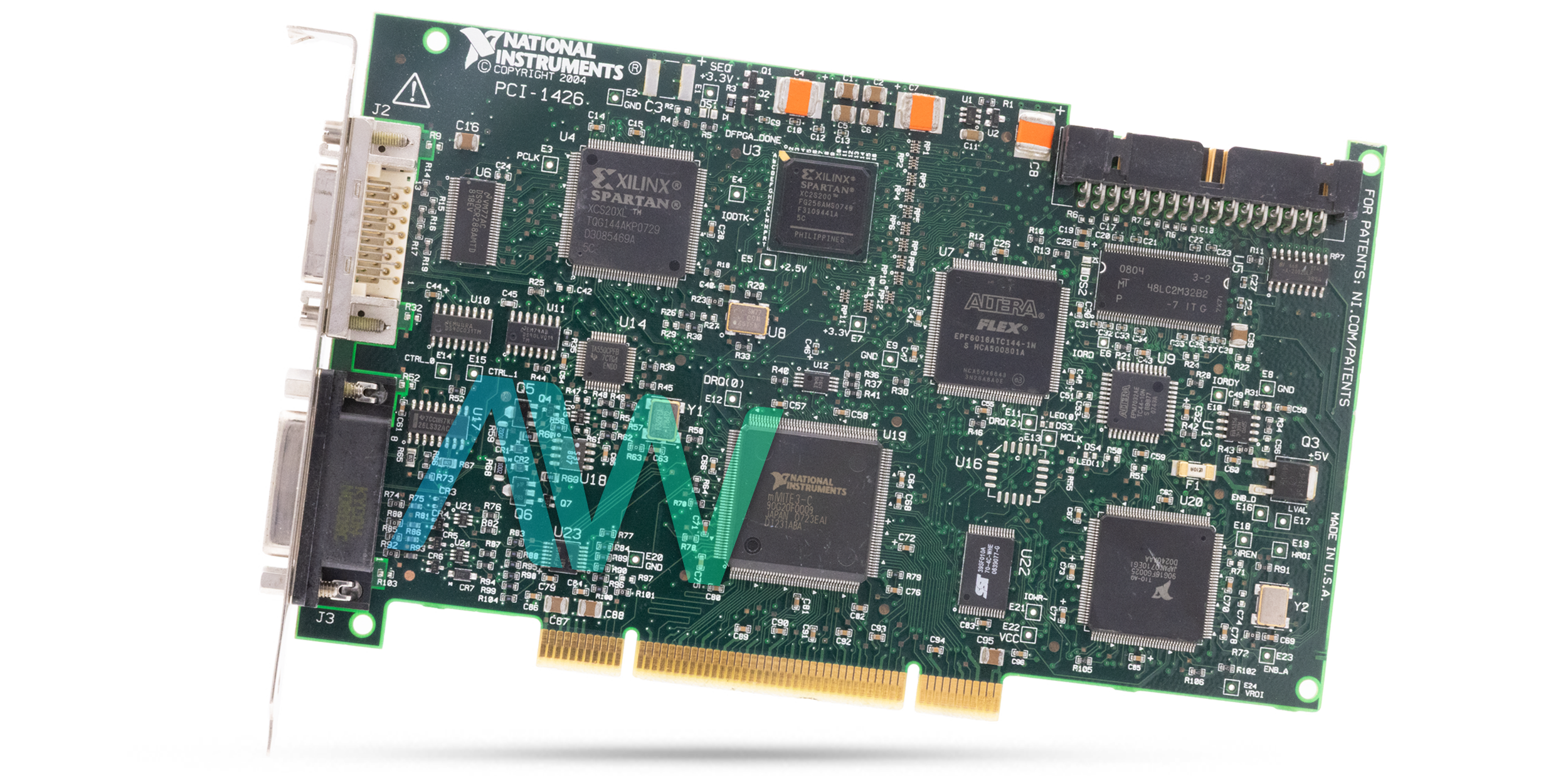

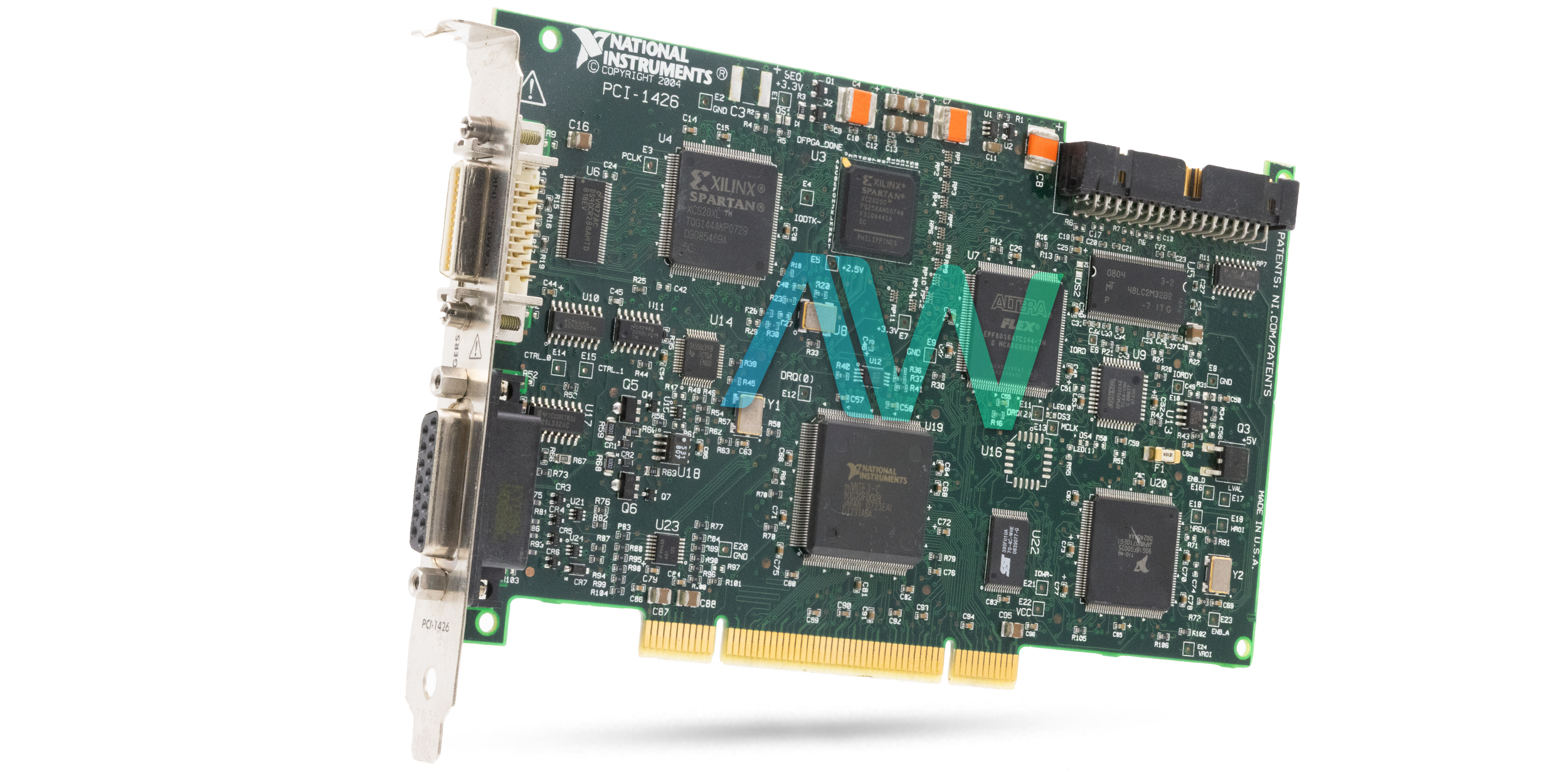

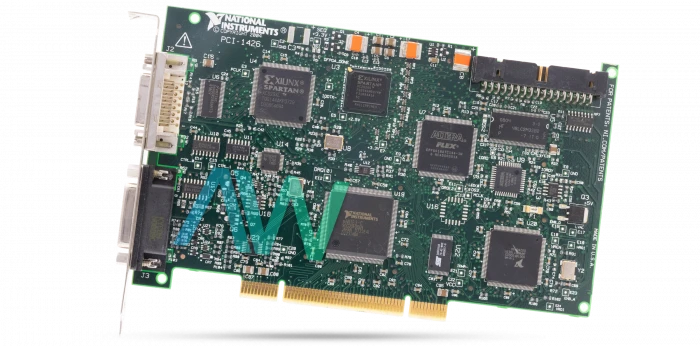

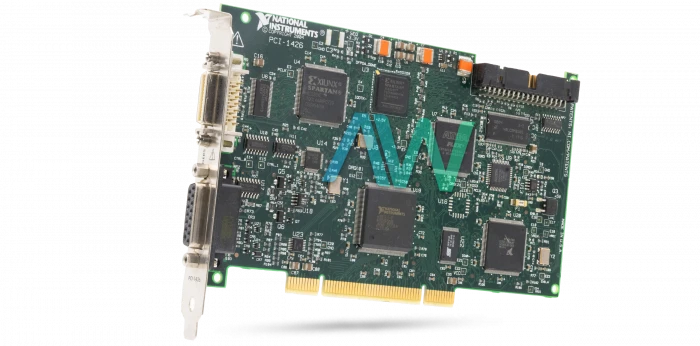

National Instruments PCI-1426 Camera Link Image Acquisition Device
The NI PCI-1426 (Part number: 779210-02) is a low cost yet effective Camera Link Image Acquisition Device, which fully supports the Camera Link Standard. It is designed for machine vision and complicated, scientific imaging applications where high-resolution digital imaging is required with simple cabling. This model supports a broad range of Camera Link-compatible imaging devices. It acquires digital images on a real-time basis. The user can choose to store images on the onboard memory or transfer them to system memory directly. The NI PCI-1426 features a high-speed and flexible data path, optimized for accepting and formatting video data from cameras.
The NI PCI-1426 comes with a 15-pin D-SUB connector. This connector has four external TTL I/O (input/output) lines, which can be used as high-speed digital I/O lines or as triggers. The same D-SUB connector also allows access to two separate, optically isolated inputs and two RS-422 inputs. The user can have either one of these inputs selected with the help of the software. In addition, the NI 1426 and NI-IMAQ driver software can be used for more advanced analog or digital system triggering or for the triggering of digital I/O lines. The device can be programmed using application development environments (ADEs) such as LabVIEW, LabWIndows/CVI, or Measurement Studio.
The NI PCI-1426 features an MDR 26-Pin Connector to achieve high-frequency rates of transfer between the acquisition devices and the camera. This connector can be accessed utilizing a 3M Camera Link cable. This model also accepts differential line driver inputs (RS-422). It can start acquisition in different modes, such as Software Control Mode, Delayed Acquisition Mode, Trigger Control Mode, etc.
The NI device weighs 4.48 oz, and measures 4.2 x 6.9 in.in physical dimensions. It has recommended operating and storage temperature ranges of 0 °C to 55 °C and –20 °C to 70 °C respectively, and a non-condensing relative humidity range of 5% to 90%. The camera link image acquisition device is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, and CAN/CSA-C22.2 No. 61010-1.
PCI-1426 End of Life Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-1426 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779210-02 |
| Series | Frame Grabbers |
| Type | Camera Link Image Acquisition Device |
| Trigger Input Voltage Range | 0 to 5 V (TTL) |
| External TTL I/O Lines | 4 |
| Optically Isolated Input Channels | 2 |
| Dimensions | 4.2 in. × 6.9 in. |
| Weight | 4.48 oz. |
| Warranty | Three Year Warranty |
| PCI-1426 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-1426:
191336-01, 191336A-01, 191336A-02, 191336B-01, 191336B-02, 779210-01, 779210-02
National Instruments PCI-1426 Frequently Asked Questions
Question: What type of camera does the PCI 1426 work with?
Answer: The PCI 1426 works with any base-configuration Camera Link camera.
Question: Does the NI PCI-1426 have image binarization available?
Answer: The NI PCI-1426 features image binarization, as well as onboard programmable region of interest and isolated digital I/O.
Question: What type of synchronization is available on the PCI-1426?
Answer: The PCI-1426 features RTSI bus synchronization with data acquisition.
Question: How many external triggers does the NI PCI-1426 have?
Answer: The NI PCI-1426 has 4 external triggers.
PCI-1426 PDF Manuals
ARCHIVED VISION 7.1.1 DEVELOPMENT MODULE RELEASE NOTES.PDF
GETTING STARTED WITH THE NI PCI-1426.PDF
IMAQ PCI-1426 SPECIFICATIONS.PDF
NI FRAME GRABBERS PRODUCT FLYER.PDF
NI PCI-1426 LETTER OF VOLATILITY.PDF
NI PCI-1426 SPECIFICATIONS.PDF
