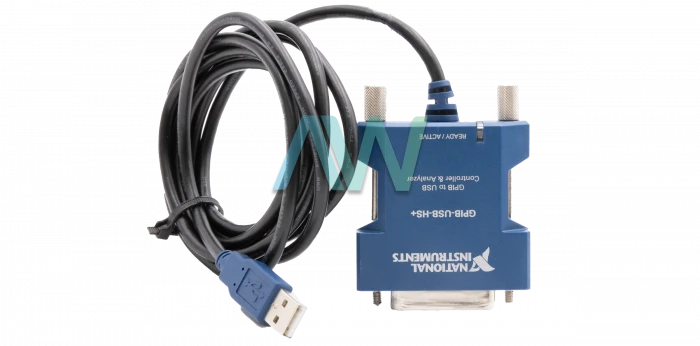

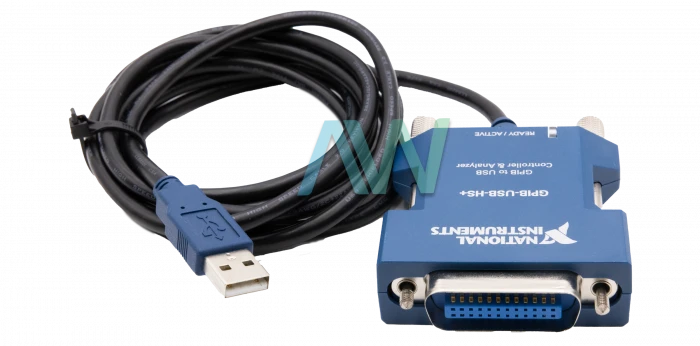

National Instruments GPIB-USB-HS+ GPIB Instrument Control Device

The NI GPIB-USB-HS+ (Part Numbers: 783368-01 and 783370-01) in an IEEE 488 Device from National Instruments. This model can be utilized as a portable analyzer device for computers with Universal Serial Bus (USB) capabilities. This model permits the user to integrate a variety of instruments into their system through GPIB. The National Instruments GPIB-USB-HS+ offers maximum IEEE 488.2 performance because it allows users to control as many as 14 programmable devices by capitalizing the Hi-Speed USB port without requiring a GPIB cable.

This GPIB Instrument Control Device reduces the overhead and offers better turnaround times in the user’s application. The device is fully compatible with NI-488.2 driver software. Thus, it provides maximum reliability for interfacing with GPIB enabled third-party instruments. The unique form factor of the GPIB-USB-HS+ makes it an ideal product for portable applications in which laptop computers or computers with limited or no internal I/O slots are used. Since it is a fully plug-and-play compatible device, the NI GPIB-USB-HS+ can easily be installed, configured, and used because there are not any external DIP switches to adjust.

The addition of this IEEE 488 controller does not require restarting the user’s computer. The GPIB-USB-HS+ supports 3-wire and HS488 signaling and offers up to 1830 Kbytes/s and 7920 Kbytes/s while operating in 3-wire and HS488 modes respectively. In addition, this device comes equipped with a standard GPIB I/O connector (IEEE 488 24-pin) and a standard type A USB plug. While operating in typical conditions, this model consumes 80 mA power.

GPIB-USB-HS+ Obsolete Status has been announced by National Instruments, but the device will still be available for purchase and repairs at Apex Waves.

ModelGPIB-USB-HS+
ManufacturerNational Instruments
Part Number783368-01 and 783370-01
TypeGPIB Instrument Control Device
Ports1
GPIB Standard CompatibilityIEEE 488
DriverNI-488.2
Dimensions8 x 6.1 x 2 cm.
Weight153 grams
WarrantyOne Year Warranty
GPIB-USB-HS+ ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments GPIB-USB-HS+ Frequently Asked Questions



Question: Which type of I/O connector does the GPIB USB HS+ have?



Answer: The GPIB USB HS+ has a 24-pin IEEE 488 I/O connector.



Question: Which accessories can be used with the NI GPIB-USB-HS+?



Answer: The NI GPIB-USB-HS+ can be used with the XA GPIB Cable Adapter (Part Number: 181638-01), the GPIB-120B Bus Isolator/Expander U.S. 120 VAC (Part Number: 779651-01), and the USB/PCMCIA Cable Strain Relief for Laptop (Part Number: 777550-01).



Question: Which operating system is compatible with the GPIB-USB-HS+?



Answer: The GPIB-USB-HS+ can be used with Windows operating systems.



Question: What is the maximum baud rate of the GPIB-USB-HS+ National Instruments?



Answer: The maximum baud rate of the GPIB-USB-HS+ National Instruments is 1830 kB/s for IEEE 488.1 and 7920 kB/s for HS488.
