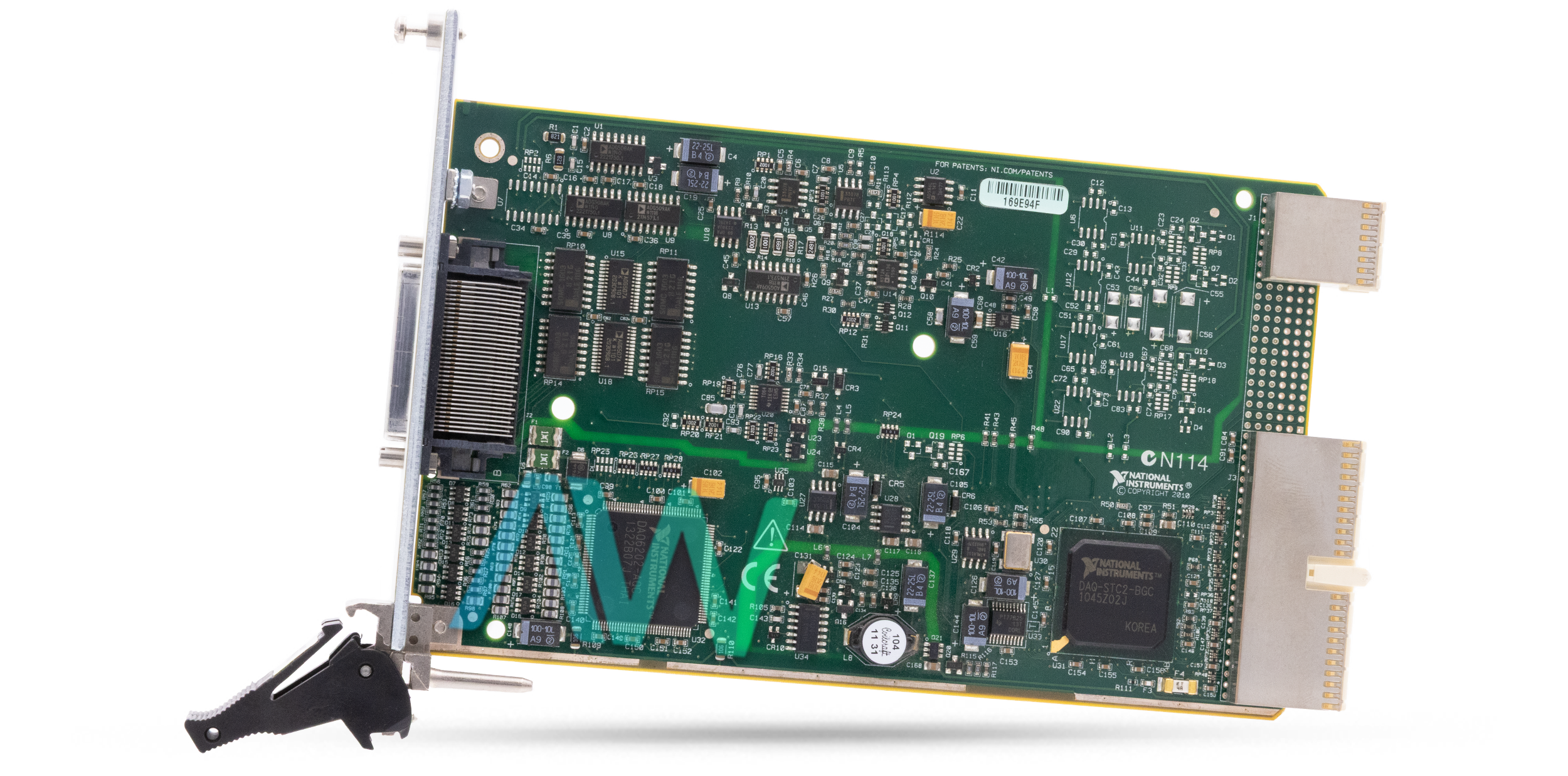

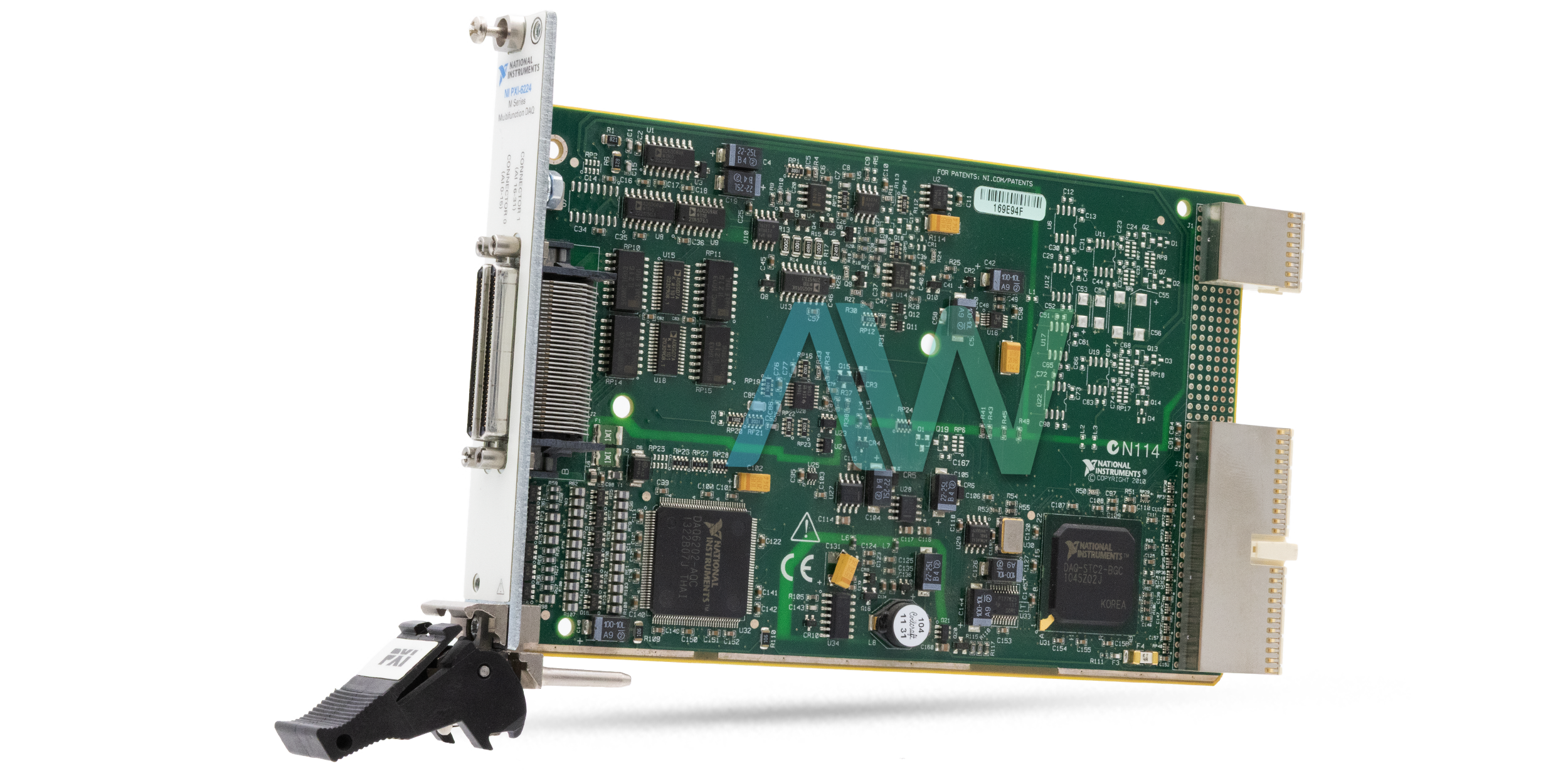

PXI-6224 National Instruments Multifunction I/O Module | Apex Waves | Image PXI-6224 National Instruments Multifunction I/O Module | Apex Waves | ImagePXI-6224PXI-6224 | Legacy, Refurbished and New Surplus

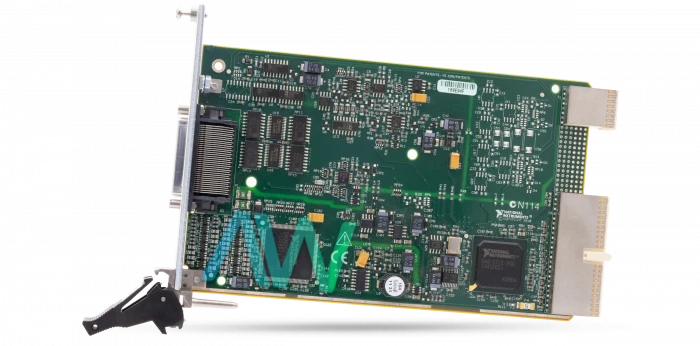

PXI-6224 National Instruments Multifunction I/O Module | Apex Waves | Image

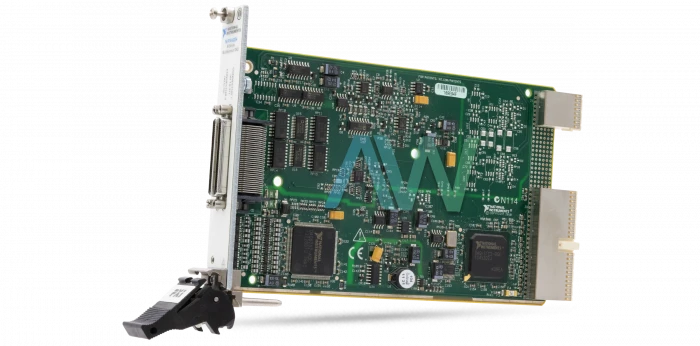

PXI-6224 National Instruments Multifunction I/O Module | Apex Waves | Image
PXI-6224 New
PXI-6224 | Legacy, Refurbished and New Surplus

PXI-6224

4.8/5 | 13 ratings

Modular Systems > National Instruments > M Series

Part Number PXI-6224
Manufacturer/Brand National Instruments
Description: PXI-6224, 250 kS/s, Multifunction I/O Module
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PXI-6224 Multifunction I/O Module

The PXI-6224 (Part number: 779114-01) Multifunction I/O Module belongs to the M Series by National Instruments. This module contains DAQ-STC2 and DAQ-6202, which has many important features, including: a PXI interface, PLL for clock synchronization, static DIO signals, true 5 V high current drive DO, digital waveform acquisition and generation, numerous triggering modes, versatile AI and AO sample and convert timing, and more. Along with the other devices in the M Series, the PXI-6224’s analog inputs and outputs have calibration circuitry to fix gain and offset mistakes. The module can be calibrated to reduce AI and AO mistakes from time and temperature drift at run time. External circuitry is not required because an internal reference guarantees the utmost preciseness and steadiness, even during time and temperature alterations.

The National Instruments PXI-6224 has the following specifications: 16 differential or 32 single ended analog input channels, two general-purpose counters/timers, one frequency generator channel, 16 bits resolution, 250 kS/s maximum sample rate, and 50 ns timing resolution.

The front-end signal conditioning system for the PXI-6224 Multifunction I/O Module is SCC, which contains a shielded carrier that can hold as many as 20 single- or dual-channel SCC modules. SCC systems provide the most complete and versatile signal connectivity options. Several of the system features are: a versatile architecture, high bandwidth, easy portability, and small-channel systems. The measurement technology can be selected individually for each channel. A maximum of 16 analog input channels and eight digital I/O lines can be conditioned. Lastly, signals can be obtained at rates as fast as 1.25 MHz.

PXI-6224 Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-6224 (779114-01)
ManufacturerNational Instruments
SeriesM Series
TypeMultifunction I/O Module
Analog Input Channels32 single-ended and 16 differential
Sampling Rate250 kS/s
Analog Input Resolution16 bits
WarrantyOne Year Warranty
PXI-6224 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-6224 Frequently Asked Questions



Question: Does the PXI 6224 have correlated DIO?



Answer: Yes, the PXI 6224 has correlated DIO, 32 clocked lines.



Question: Can the NI PXI-6224 be used to measure and verify prototype designs?



Answer: Yes, the NI PXI-6224 has a wide range of I/O from 80 analog inputs to 48 digital lines, which can be utilized to measure and verify prototype designs.



Question: Can sensor and high-voltage measurements be performed with the NI PXI 6224?



Answer: Yes, you can add sensor and high-voltage measurements to your NI PXI 6224 with SCC or SCXI signal conditioning modules.
