DB9M-PIGTAIL
Modular Systems > National Instruments > NI Cables
| Description: | DB9M-PIGTAIL, 9-pin male DSUB, Cable Assembly |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com
National Instruments DB9M-PIGTAIL Cable Assembly

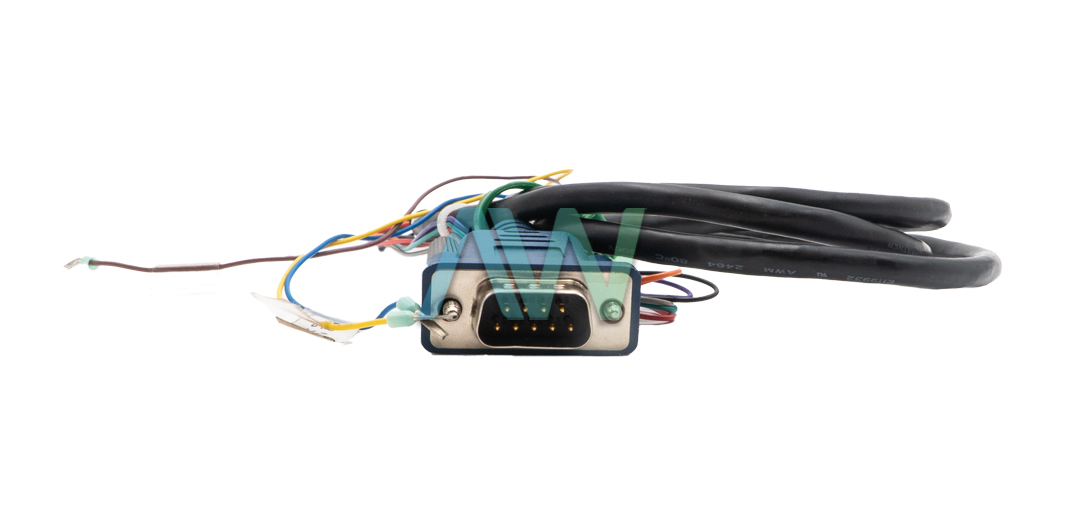

The National Instruments DB9M-PIGTAIL (Part Number: 190913A-04) is a cable assembly. This cable comes with a DB-9 connector at its one end and 15 x un-terminated cables at the other end. The naked or un-terminated cables can be used to carry signals from other devices as required. The DB9M-PIGTAIL cable is widely used in applications where third-party devices, switches, or drives are used. With this cable, you can connect your 9-pin National Instruments hardware with other devices that allow signal transmission through directly connected cables.
Similarly, the DB9M-PIGTAIL Cable Assembly can also be used with 9-pin accessories that come with screw-terminals. With this cable, you will be able to connect external sensors or switches with the NI UMI-7772 and NI UMI-7774, since these devices come with 9-pin D-SUB ports. It is important to understand that the DB9M-PIGTAIL is an unshielded cable and is not suitable for electrically noisy environments.
| Model | DB9M-PIGTAIL |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 190913A-04 |
| Type | Cable Assembly |
| Cable Length | 4 m |
| Connectors | 9-pin male DSUB |
| Warranty | 2-3 Year Warranty |
| DB9M-PIGTAIL Manual | User Manual and Maintenance Manual Available for Download |
