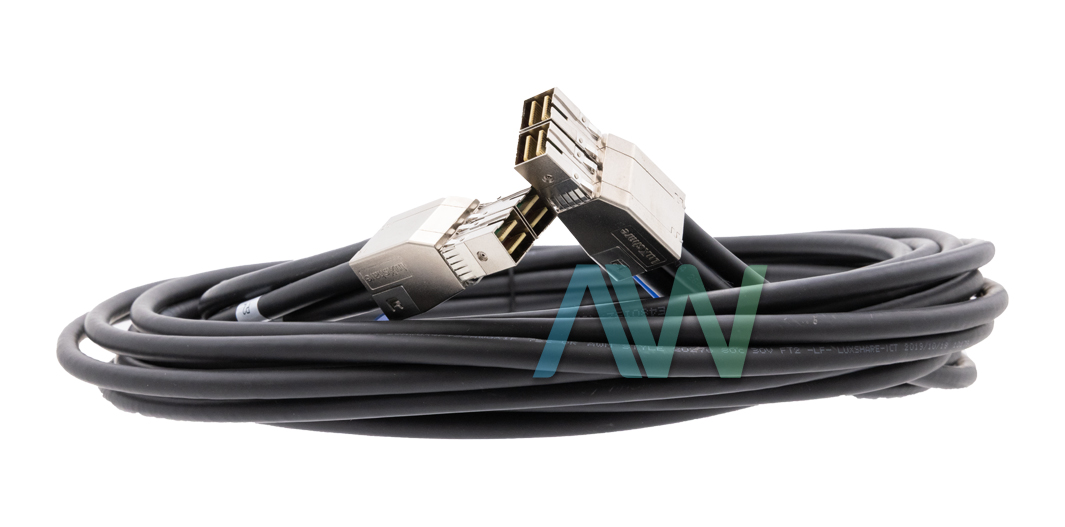

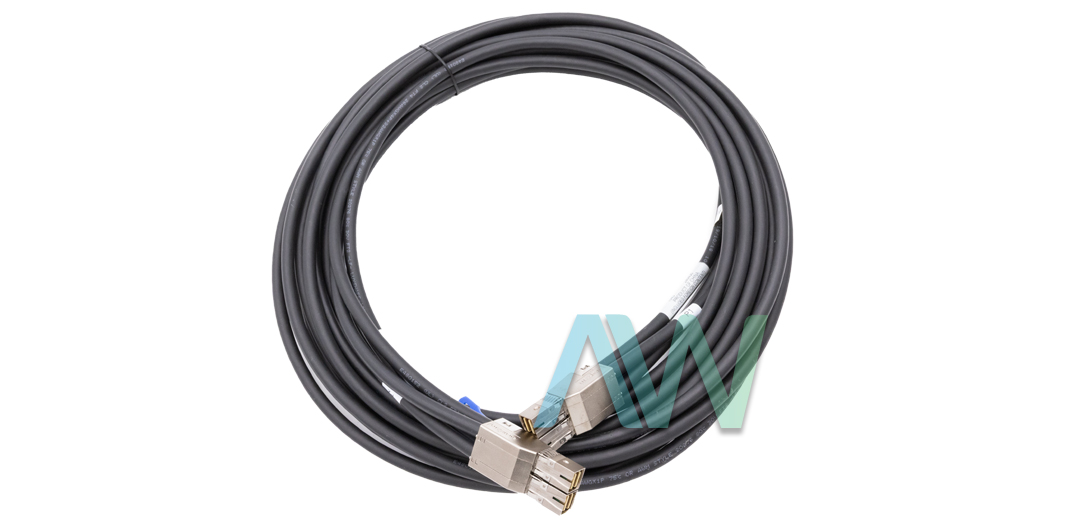

National Instruments MXI-Express Cable, Gen 2 x8
The copper-based National Instruments MXI-Express Cable, Gen 2 x8 (part numbers: 782317-03, 782317-05), is made to fit into industrial automation systems seamlessly. This cable is an important component of applications that need fast data transfer and reliable performance because it is designed to enable sustained read and write speeds of up to 3.6 GB/s. With compatibility for RAID-0, RAID-1, RAID-10, RAID-5, and RAID-6, among others, it offers data storage solutions flexibility and dependability. To ensure effective management of data resources, the MXI-Express Cable also provides programmable control and monitoring of hard drives and RAID partitions.
Support for hot switching hard drives is one of the MXI-Express Cable's standout features. This feature guarantees continuous operation and less downtime by enabling drive replacements without requiring the system to be shut down. The cable is perfect for applications that need continuous data logging and storing because it also enables an unlimited record mode. Because of its sturdy construction, the MXI-Express Cable is appropriate for harsh industrial environments because it can tolerate up to 25g of operating shock and 0.31g of operational vibration, especially in its SSD edition.
The PCI Express Specification, Versions 1.0a, 1.1, and 2.0 are completely compatible with the MXI-Express Cable, Gen 2 x 8. Due to its broad compatibility, the cable may be integrated into existing systems with simplicity and offers adaptability with a variety of PCI Express devices. The cable is designed to provide control of a PXI Express or CompactPCI Express chassis from a PC with an available PCI Express slot, or from a PXI Express chassis with an available PXI Express slot. It is based on PCI Express technology and employs PCI Express switches. Because this switch architecture is transparent to device drivers, PXI Express devices in connected chassis can be supported at the CompactPCI Express level without the need for extra software.
| Model Name | MXI-Express Cable, Gen 2 x8 |
|---|---|
| Part Type | Chassis Remote Control Cable |
| Manufacturer | National Instruments |
| Sustained Read/Write Speeds | Up to 3.6 GB/s |
| RAID Support | RAID-0, RAID-1, RAID-10, RAID-5, RAID-6 |
| Endless Record Mode | Enabled |
| Operational Shock (SSD variant) | 25g |
| Operational Vibration (SSD variant) | 0.31g |
| PCI Express Compatibility | Revision 1.0a, 1.1, and 2.0 |
| Connection Type | PCI Express Switches |
Associated part numbers for GEN 2 X8 MXI-Express Cable:
