SH96F-96M-5, 96-Pin, Female DIN to 96-Pin, Male DIN, Sensor Cable

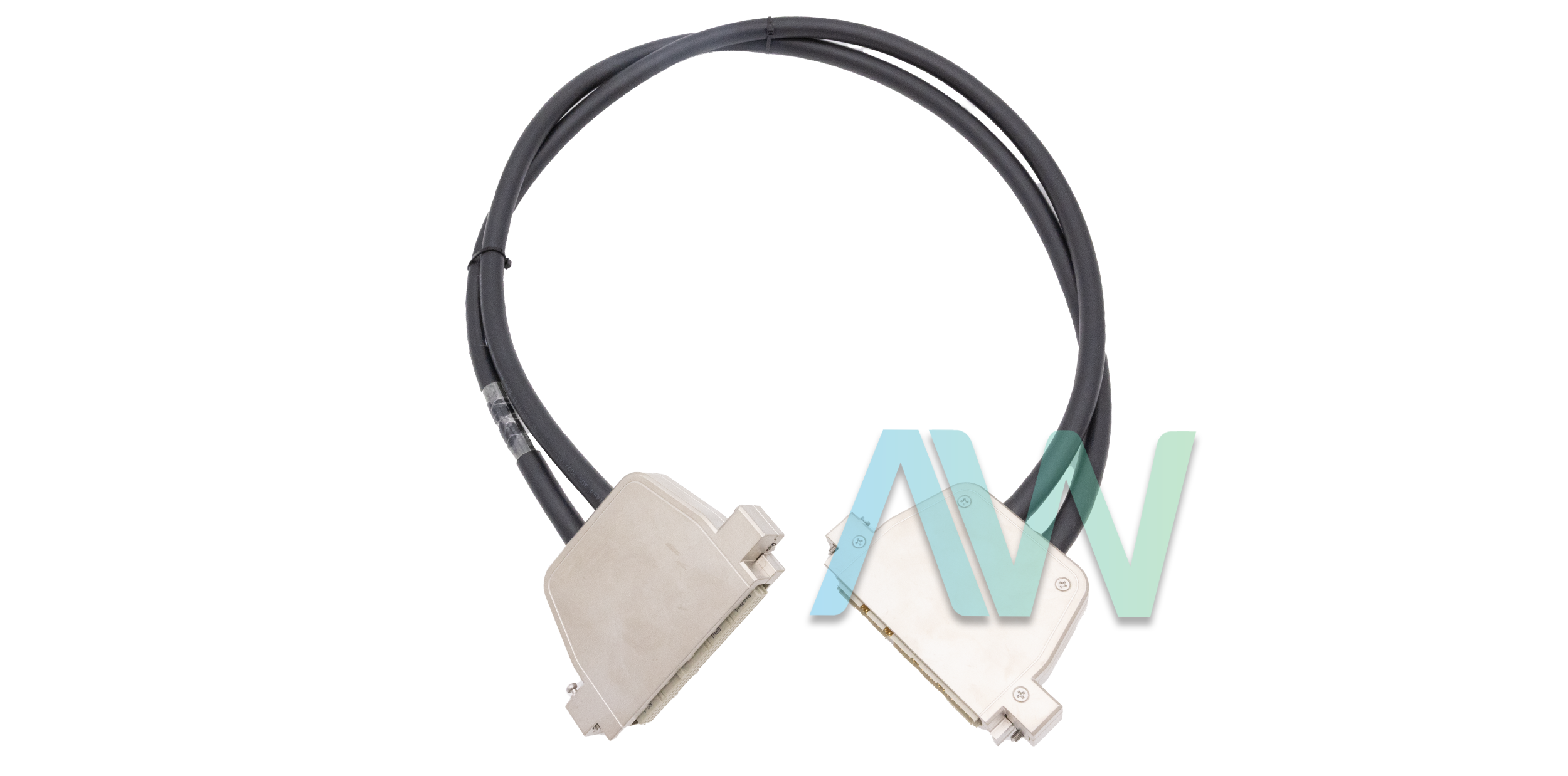

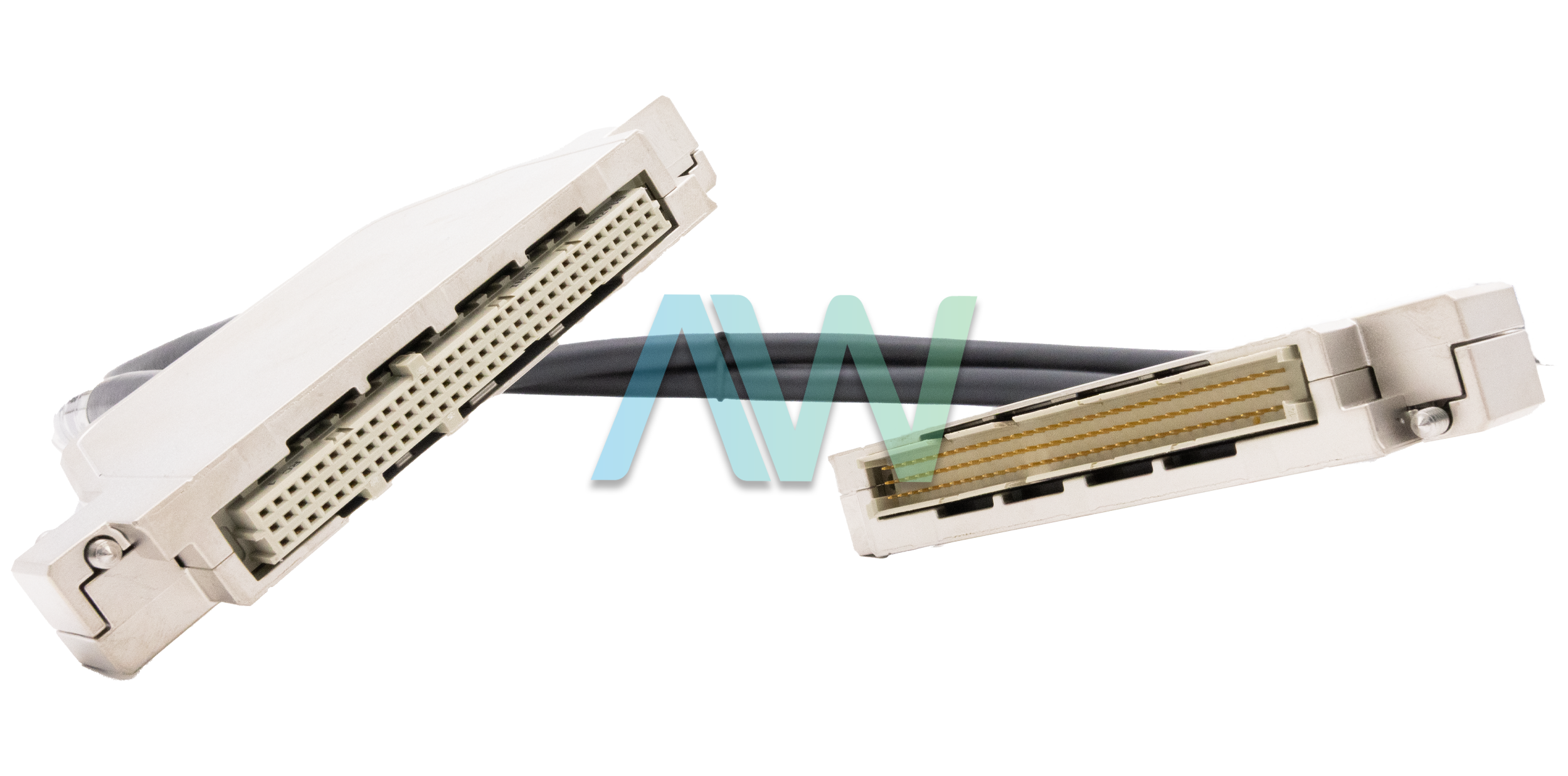

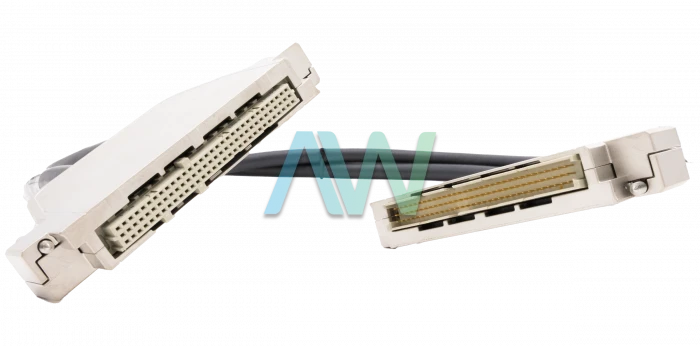

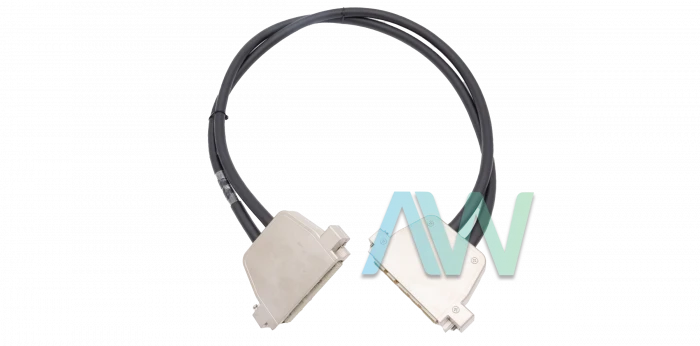

National Instruments SH96F-96M-5 Sensor Cable
The National Instruments SH96F-96M-5 (Part Numbers: 786341-01, 786341-03, and 786341-05) is a Sensor Cable used to connect various 96-pin accessories and devices. This cable can be deployed in systems where the maximum working voltage remains under 60 VDC. The NI SH96F-96M-5 is available in 1 meter, 3 meters, and 5 meters. This Sensor Cable has a 96-Pin, Female DIN Back End Connection and a 96-Pin, Male DIN Front End Connection.
The SH96F-96M-5 has internal TEDS. You can use this cable for applications where the maximum ambient temperature remains within the range of 0 °C to 55 °C. The NI SH96F-96M-5 Sensor Cable is often used with the RM-24999, a rack-mount terminal block from National Instruments. One cable is required to connect a PXI module and a terminal block. The National Instruments SH96F-96M-5 Sensor Cable can be used with the PXIe-4331 and PXIe-4330 modules as well.
| Model | SH96F-96M-5 |
|---|---|
| Part Numbers | 786341-01, 786341-03, and 786341-05 |
| Manufacturer | National Instruments |
| Type | Sensor Cable |
| Cable Length | 1 m, 3 m, or 5 m |
| Back-End Connection | 96-Pin, Female DIN |
| Front-End Connection | 96-Pin, Male DIN |
| TEDS | Internal |
| Warranty | 2-3 Year Warranty |
| SH96F-96M-5 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
