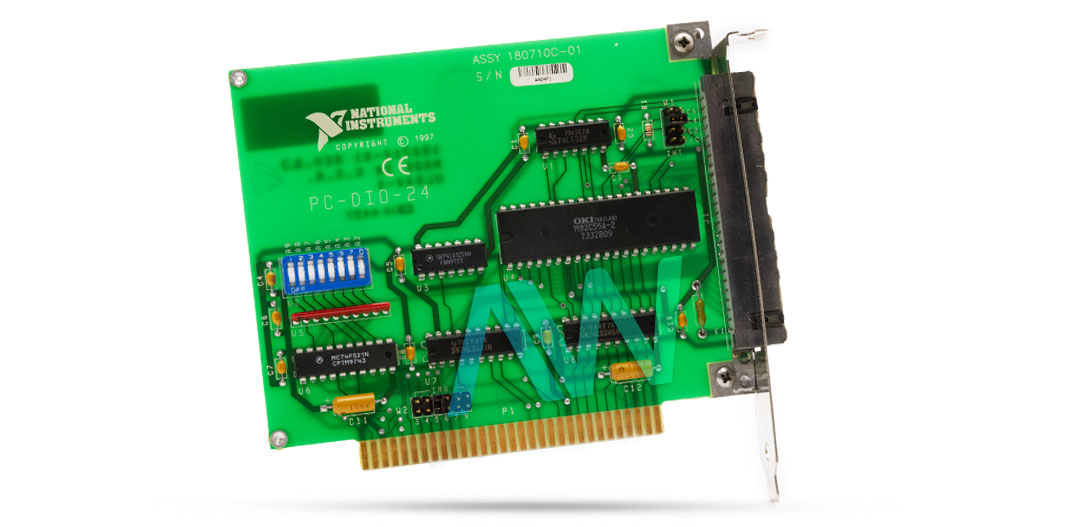

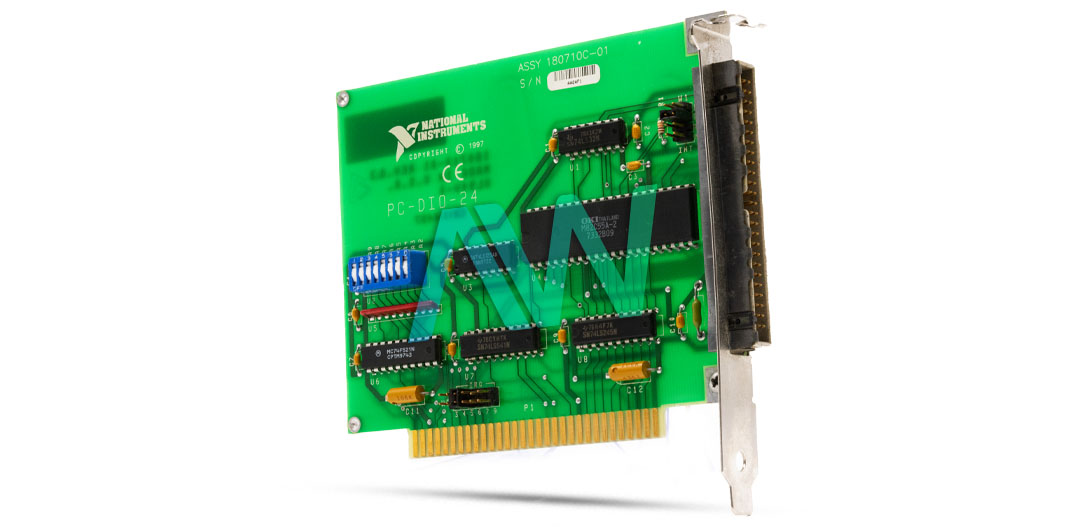

National Instruments 777368-01 Digital I/O Board
National Instruments part number 777368-01 is an identifying part number for the PC-DIO-24 a Digital I/O Board. The NI 777368-01 is a cost-effective digital I/O interface board designed for ISA computers, offering 24-bit parallel connectivity. This board supports both TTL and CMOS compatibility for versatile digital input and output operations. The connection for the 24 channels of digital signals is managed by dedicated 24-bit PPI chips integrated into the 777368-01 board. This digital board operates as a plug-and-play board, simplifying configuration without the need for an external card manager. This feature ensures compatibility across multiple operating systems, facilitating the development of diverse applications like DACs, ADCs, and keyboards.
A key advantage of the 777368-01 Digital Board is its versatility, allowing integration with any microprocessor through programming. This digital I/O board supports both uni-directional and bi-directional modes of operation. Communication for input and output functions is facilitated through a standard 50-pin male ribbon-cable connector, supporting 24 channels for various I/O applications.
Transfer rates for the NI 777368 Digital Board depend on how quickly your program reads from or writes to the board, influenced by several factors: computer system performance, programming environment (such as register-level programming or NI-DAQ), programming language efficiency, and execution mode (foreground or background, with background using interrupts). Other factors include concurrent operations and the specific application being run. For instance, applications like handshaking or data transfer may achieve higher transfer rates, which fluctuate, compared to tasks like pattern generation or waveform generation that require a sustained, consistent rate of data transfer.
| Model | 777368-01 |
|---|---|
| Model Range | PC-DIO-24 |
| Part Type | Digital I/O Board |
| Digital I/O Channels | 24 I/O |
| I/O Connector | 50-pin male ribbon-cable connector |
| Power Requirements | +5 VDC (±10%): 0.45 A typical, 1 A maximum |
| Handshaking | Requires one port |
| Absolute Max Voltage Input Rating | –0.5 to +5.5 V with respect to GND |
| Transfer Rates Max with NI-DAQ Software | 50 kbytes/s |
| Constant Sustainable Transfer Rate | 1 to 10 kbytes/s |
