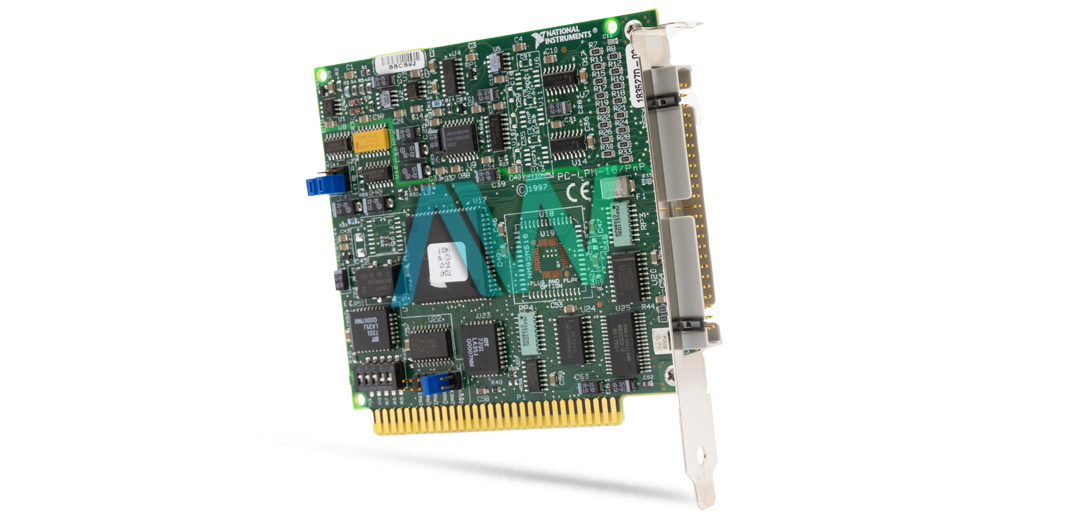

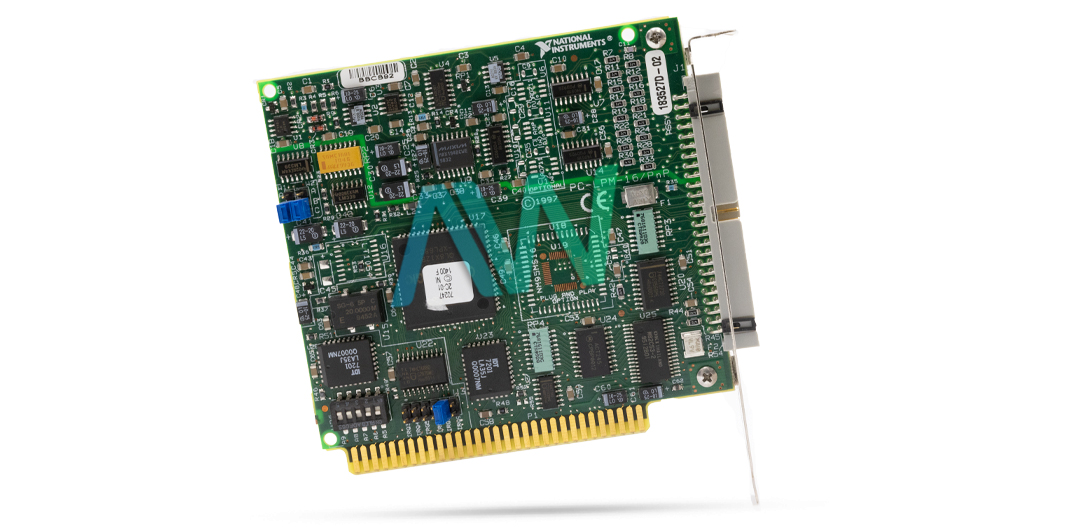

National Instruments PC-LPM-16/PnP Multifunction I/O Board
The PC-LPM-16/PnP is a Plug-and-Play Multifunction I/O Board. The NI PC-LPM-16/PnP is designed and manufactured by National Instruments. The assembly number to identify the PC-LPM-16/PnP board is 183527X-01. As the name depicts, this board can perform multiple functions. The basic functions of the PC-LPM-16PnP are Analog Input, Timing Input/Output, and Digital Input/Output. The NI PC-LPM-16/PnP is specifically designed to be a low power consumption device. Therefore, this Multifunction I/O Board is a small sized, affordable board when compared to other I/O boards of similar capabilities. These features make the PC-LPM-16/PnP suitable for use in laboratory equipment and laptop computers.
This Multifunction I/O Board incorporates 16 analog inputs channels. The resolution of the input channels is 12-bit. With timing circuitry, this board can automatically time numerous A/D conversions. The National Instruments PC-LPM-16/PnP also features 8 digital lines for input signals and 8 digital lines for output signals. The digital input channels of the board are only TTL-compatible and do not feature CMOS compatibility. Moreover, the NI PC-LPM-16/PnP board also contains 2 timers/counters with 16-bit resolution.
The compatible driver software for this Multifunction I/O Board is NI-DAQ. Other supported software for the PC-LPM-16/PnP includes LabVIEW and LabWindows/CVI. The National Instruments PC-LPM-16/PnP finds its use in various applications. Different functions of the PC-LPM-16/PnP make it ideal for different type of applications. The ADC is ideal for use in voltage/temperature measurements and chromatography. Applications requiring switching devices will utilize the digital I/O channels of the NI PC-LPM-16/PnP board. The timers/counters are ideal for signal generation, frequency/time measurements, and synchronizing applications.
PC-LPM-16/PNP Obsolete Status has been announced by National Instruments, but the board will still be available for purchase and repairs by Apex Waves.
| Model | PC-LPM-16/PnP |
|---|---|
| Manufacturer | National Instruments |
| Assembly Number | 183527X-01 |
| Type | Multifunction I/O Board |
| I/O Space Required | 16 bytes |
| I/O Base Address Selection | Plug and Play compatible |
| Analog Input Channels | 16 |
| I/O Connector | 50-pin D male ribbon cable connector |
| Dimensions | 4.4 by 3.9 in. |
| Warranty | 2-3 Year Warranty |
| PC-LPM-16/PnP Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
