Part Number 778988-01
Manufacturer/Brand National Instruments
Description: 778988-01, 5.0V, 3.3V, 2.5V, or 1.8V, PCI-6541, Digital Waveform Device
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

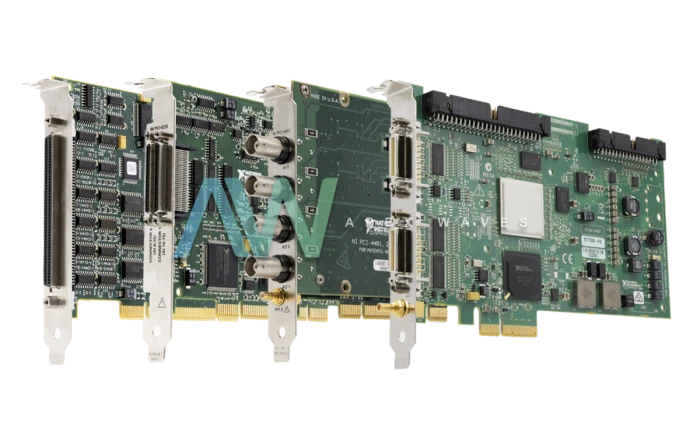

National Instruments 778988-01 Digital Waveform Device

Designed specifically for digital electronics interface, the National Instruments 778988-01 digital waveform device is a flexible digital waveform generator and analyzer that is part of the PCI-6541 Model series. It is intended to sample digital waveforms at rates up to 50 MHz, supporting common transistor-to-transistor logic (TTL) voltage levels. It has 32 single-ended digital ports.

Along with deep onboard memory, triggering, and pattern sequencing features, this device has excellent synchronization capabilities. Logical levels between 5.0 and 1.8 V can be easily interfaced with by users using the NI-HSDIO driver. Further improving user freedom and control is the NI Digital Waveform Editor software, which makes it easier to create and modify digital waveforms.

The 778988-01 allows for accurate manipulation and analysis of digital data thanks to its 32 channels, each of which has per-channel direction control. Timing configurations are made flexible by the device's support for several clock sources, such as an external CLK IN, an inbuilt clock, and STROBE. The sample clock frequencies span 48 Hz to 50 MHz to accommodate a variety of application requirements.

With a resolution of 0.4 percent of the clock period, the 778988-01 provides features such data delay capabilities reaching 25 MHz for high-performance testing. Accurate and synchronous signal generation and acquisition are ensured by its internal or external sample or reference clock sources and ±600 ps channel-to-channel skew.

This device can also be used to expand the channel or achieve tight synchronization with other SMC-based modular instruments because it allows multidevice synchronization. For digital waveform creation and analysis, the 778988-01 offers a complete solution with its clock terminals, acquisition and generation channels, and Programmable Function Interface (PFI).

Waveforms and instructions can efficiently share onboard memory thanks to the utilization of Synchronization and Memory Core (SMC) technology in memory architecture. By adjusting factors like the maximum number of waveforms in memory, the number of script instructions, and the amount of waveform storage available, users can customize the device to meet the needs of certain applications.

Part Number778988-01
Model NamePCI-6541 Model Series
Part TypeDigital Waveform Device
Sampling FrequencyUp to 50 MHz
Number of Channels32
Logic Voltage Levels5.0V, 3.3V, 2.5V, or 1.8V
Memory SizeFlexible options: 1 Mbit/channel to 64 Mbit/channel
Channel-to-Channel Skew±600 ps
Trigger SourcesPFI, RTSI, pattern match, software
Clock SourcesOnboard clock, CLK IN, STROBE
