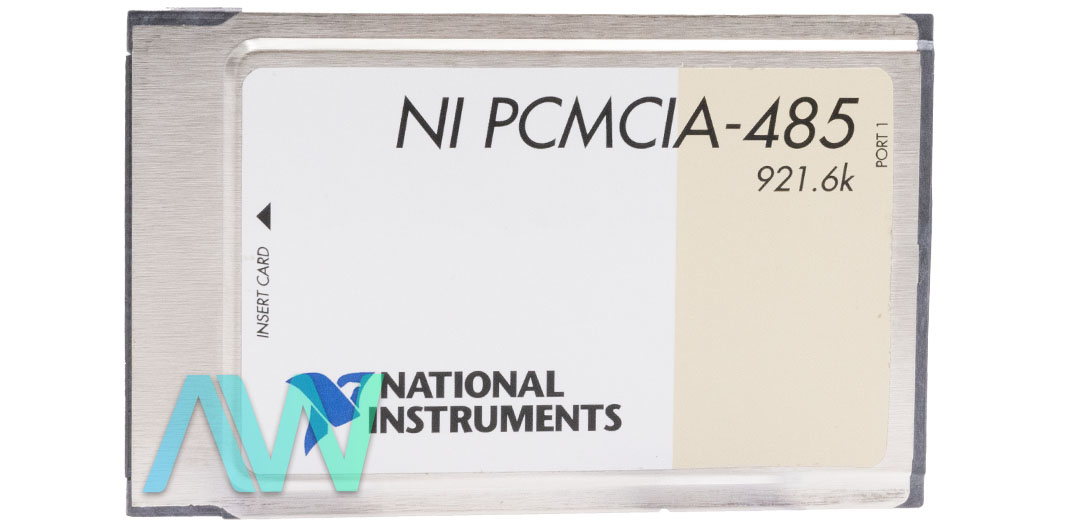

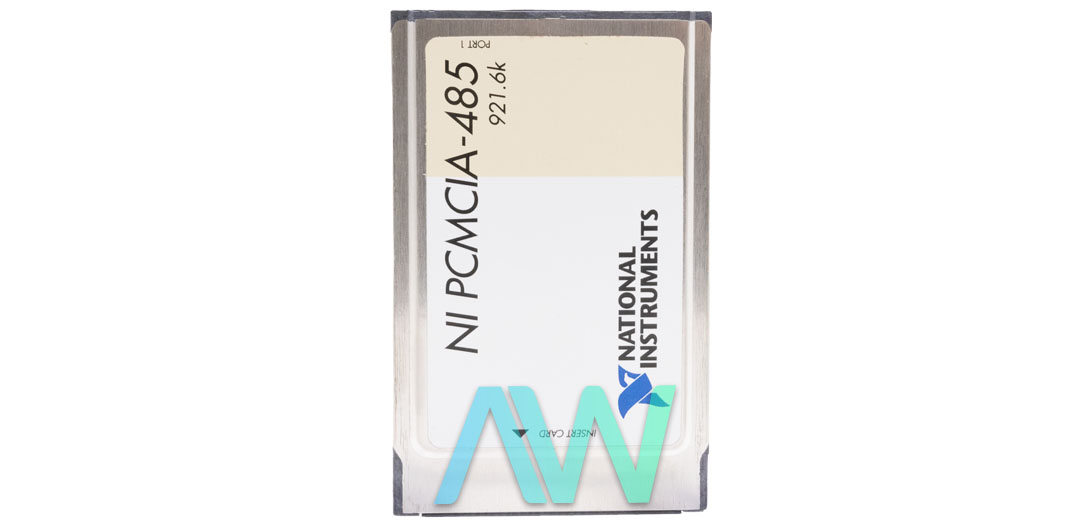

National Instruments PCMCIA-485 Serial Interface Device
The National Instruments PCMCIA-485 (Part Number: 777378-01) is a Single Port Serial Interface Device for RS-485 and RS-482 protocols. With this device, you can connect up to 32 devices using a maximum of 4000 ft. serial cables. Thus, the NI PCMCIA-485 is a powerful option available for applications where relatively larger link distances are required. This device comes with a cable that terminates in a standard DB-9 type connector. For reliable communication, the PCMCIA-485 supports as many as four transceiver control modes with four-wire and two-wire devices. Users can enable and disable the transmitter and receiver through hardware flow control to work on different topologies.
For most full-duplex systems, the NI PCMCIA-485 can be operated in four-wire mode. In this mode, the receiver and transmitter remain enabled all the time. The four-wire mode is the factory default mode. This Serial Interface Device comes with differential types of transmission lines and can offer up to 10 Mbytes/s data rates. The device has a power requirement of 100 mA typical at +5 VDC. The NI PCMCIA-485 is delivered with serial driver software and you can install it as a standard serial port from NI-VISA oriented applications or from your existing applications. The device can be programmed using application development environments (ADEs) such as LabVIEW or LabWindows/CVI.
This device is a Type II PC Card. Thus, it can be used with almost every notebook computer or laptop. The NI PCMCIA-485 device requires around 110 amperes of current to operate in typical conditions. This device takes the required power from PCMCIA and thus does not need any additional or external power supplies. National Instruments offers other types of cables for this device that can be acquired separately.
The NI device measures 3.370 x 2.126 x 0.197 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 to 70° C and –40 to 120° C respectively, non-condensing operating and storage humidity ranges of 10 to 90% RH and 5 to 90% RH respectively.
PCMCIA-485 Obsolete Status has been announced by National Instruments, but the device will still be available for purchase and repairs by Apex Waves.
| Model | PCMCIA-485 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777378-01 |
| Type | Serial Interface Device |
| Ports | 1 |
| Serial Port | RS-485/422 |
| FIFO Size | 16 B |
| Maximum Transfer Rate | 115.2 kb/s |
| I/O Connectors | DB-9 male |
| Size | Type II PC Card |
| PCMCIA-485 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCMCIA-485:
National Instruments PCMCIA-485 Frequently Asked Questions
Question: What is the maximum baud of the PCMCIA-485?
Answer: The max baud of the PCMCIA-485 is 921.6 kbaud.
Question: Does the PCMCIA-485 have adjustable FIFO settings?
Answer: Yes, the PCMCIA-485 allows for adjustable FIFO settings.
Question: What is the power requirement for the PCMCIA-485?
Answer: The power requirement for the PCMCIA-485 is +5 VDC with 110 mA typical and 225 mA maximum.
PCMCIA-485 PDF Manuals
ARCHIVED--GETTING-STARTED-WITH-YOUR-PCMCIA-SERIAL-HARDWARE-AND-SOFTWARE-FOR-WINDOWS-2000.PDF
ARCHIVED--GETTING-STARTED-WITH-YOUR-PCMCIA-SERIAL-HARDWARE-AND-SOFTWARE-FOR-WINDOWS-95.PDF
ARCHIVED--GETTING-STARTED-WITH-YOUR-PCMCIA-SERIAL-HARDWARE-AND-SOFTWARE-FOR-WINDOWS-98-95.PDF
ARCHIVED--GETTING-STARTED-WITH-YOUR-PCMCIA-SERIAL-HARDWARE-AND-SOFTWARE-FOR-WINDOWS-ME-9X.PDF
ARCHIVED--GETTING-STARTED-WITH-YOUR-PCMCIA-SERIAL-HARDWARE-AND-SOFTWARE-FOR-WINDOWS-NT.PDF
ARCHIVED--GETTING-STARTED-WITH-YOUR-SERIAL-HARDWARE-AND-SOFTWARE-FOR-WINDOWS-NT.PDF
ARCHIVED--NI-SERIAL-HARDWARE-SPECIFICATIONS-AND-FEATURES-GUIDE.PDF
ARCHIVED--NI-SERIAL-HARDWARE-SPECIFICATIONS-GUIDE.PDF
ARCHIVED--USING-PCMCIA-SERIAL-FOUR-PORT-WITH-LINUX.PDF
ARCHIVED--USING-PCMCIA-SERIAL-WITH-LINUX.PDF
