PCMCIA-CAN
Modular Systems > National Instruments > PCMCIA Series
| Description: | PCMCIA-CAN, 1-port, High-speed, CAN Interface Device |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

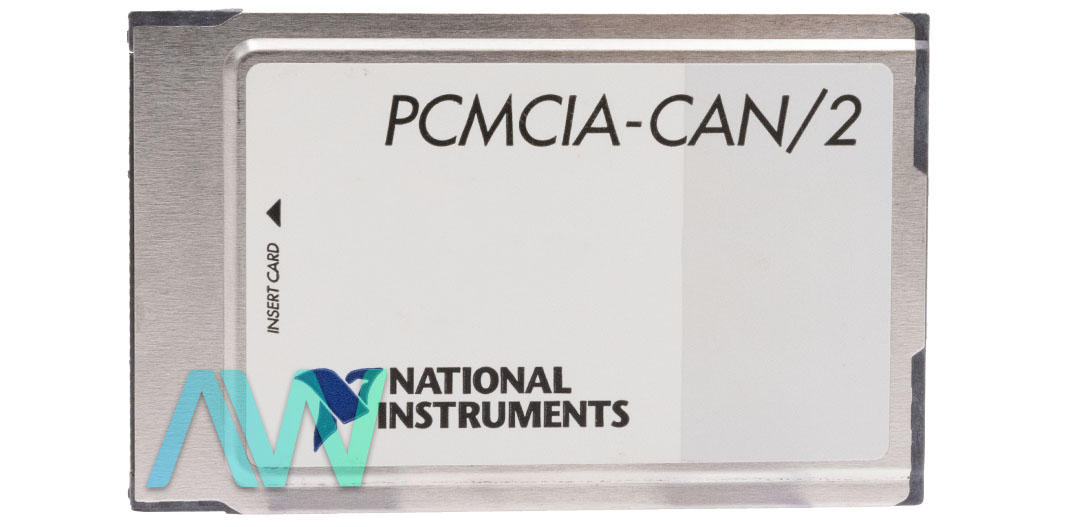

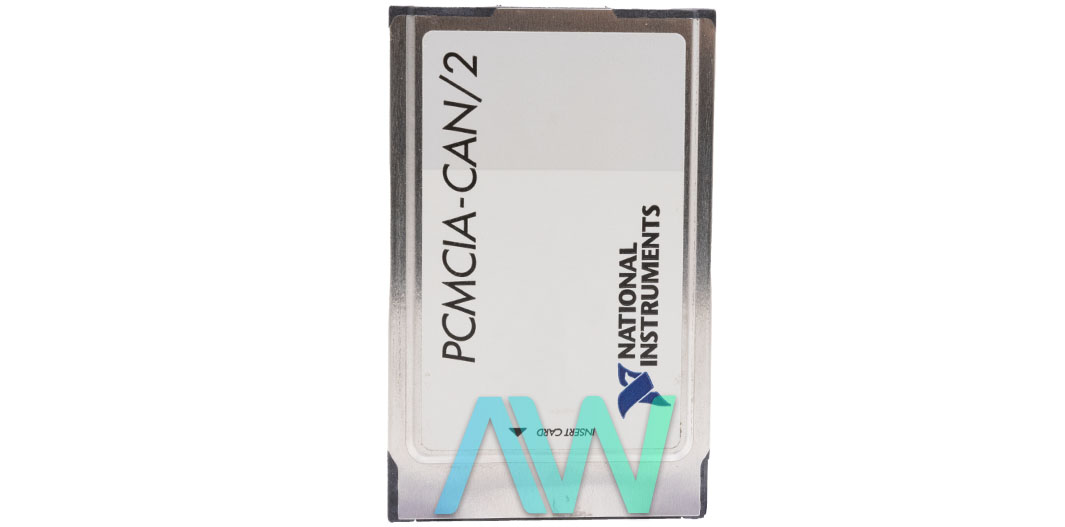

National Instruments PCMCIA-CAN CAN Interface Device
The PCMCIA-CAN is a Controller Area Network (CAN) Interface Device. The PCMCIA-CAN is a product by National Instruments. The NI PCMCIA-CAN is manufactured with the part number 777499-01. This CAN Interface Device is constructed with a TJA1041 transceiver and can be utilized with the NI-CAN driver software. The PCMCIA-CAN can also be utilized with the bus monitor utility application software. The NI PCMCIA-CAN is compatible with other application tools, such as LabVIEW, Visual Basic 6, C/C++, and LabWindows. This CAN Interface Device can be operated on several operating systems, including Windows 2000/NT/XP/Me/98 and LabVIEW Real-Time.
The NI PCMCIA-CAN is a high-speed CAN Device for computers with PCMCIA bus slots. The PCMCIA-CAN is built with only one port to configure network devices. The PCMCIA-CAN provides a maximum transfer rate of 1000 kb/s. This device is useful for multiple control applications since it can be used with notebooks, laptops, and industrial PCs.
This CAN Interface Device is fabricated with a physical layer inside the cable. This cable is powered internally or externally. The internal power involves an onboard DC converter from the host computer, while the external power indicates a voltage regulator from the CAN bus. The NI PCMCIA-CAN device cables are manufactured with a 9-pin male D-Sub connector. The PCMCIA-CAN cables also contain a Combicon-style removable screw terminal connector to interface for each port.
PCMCIA-CAN Obsolete Status has been announced by National Instruments, but the device will still be available for purchase and repairs by Apex Waves.
| Model | PCMCIA-CAN |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777499-01 |
| Type | CAN Interface Device |
| Version | High-speed |
| Transceiver | TJA1041 |
| Ports | 1 |
| Maximum Transfer Rate | 1000 kb/s |
| I/O Connectors | DB9 male and Combicon-style pluggable screw terminals |
| Warranty | 2-3 Year Warranty |
| PCMCIA-CAN Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PCMCIA-CAN:
1842.72, 18427.2, 184272-01, 184272-02, 184272A-01, 184272A-02, 184272B-01, 184272B-02, 184272C-01, 184272C-02, 184272D-01, 184272D-02, 184272F-01, 184272F-02, 188520-01, 188520-02, 188520A-01, 188520A-02, 188520B-01, 188520B-02, 188520C-01, 188520C-02, 188520D-01, 188520D-02, 191006-01, 191007-01, 191008-01, 191009-01, 191010-01, 191011-01, 191012-01, 777498-01, 777498-02, 777498-11, 777498-12, 777499-01, 777499-02, 777499-11, 777499-12, 778054-01, 778054-02, 778054-11, 778054-12, 778266-01, 778266-11
Associated NSNs for the PCMCIA-CAN:
5998-01-527-0920 (5998015270920)
PCMCIA-CAN PDF Manuals
ARCHIVED GETTING STARTED WITH YOUR CAN HARDWARE AND THE NI CAN SOFTWARE FOR WINDOWS 98 95.PDF
ARCHIVED GETTING STARTED WITH YOUR CAN HARDWARE AND THE NI CAN SOFTWARE FOR WINDOWS NT.PDF
ARCHIVED GETTING STARTED WITH YOUR PXI 8461 OR PXI 8460 AND THE NI CAN SOFTWARE FOR WINDOWS NT.PDF
ARCHIVED NI CAN SOFTWARE AND HARDWARE INSTALLATION GUIDE MULTILINGUAL .PDF
ARCHIVED NI CAN USER MANUAL FOR WINDOWS 95 AND WINDOWS NT.PDF
ARCHIVED NI CAN USER MANUAL.PDF
NI CAN HARDWARE AND SOFTWARE MANUAL.PDF
NI DNET HARDWARE AND SOFTWARE FOR WINDOWS INSTALLATION GUIDE.PDF
NI DNET PROGRAMMER REFERENCE MANUAL.PDF
NI DNET USER MANUAL AND SPECIFICATIONS.PDF
Driver Downloads for PCMCIA-CAN
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
