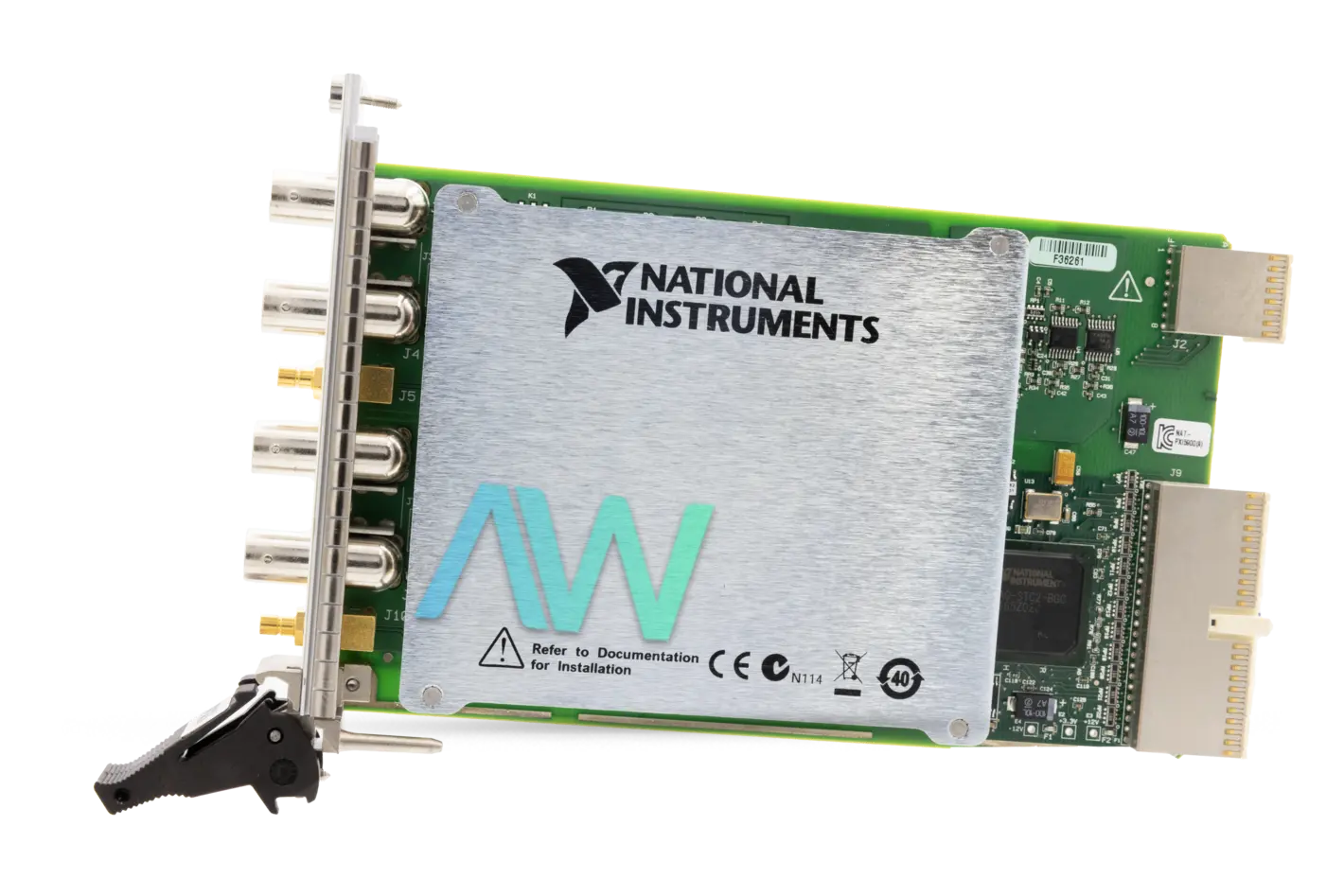

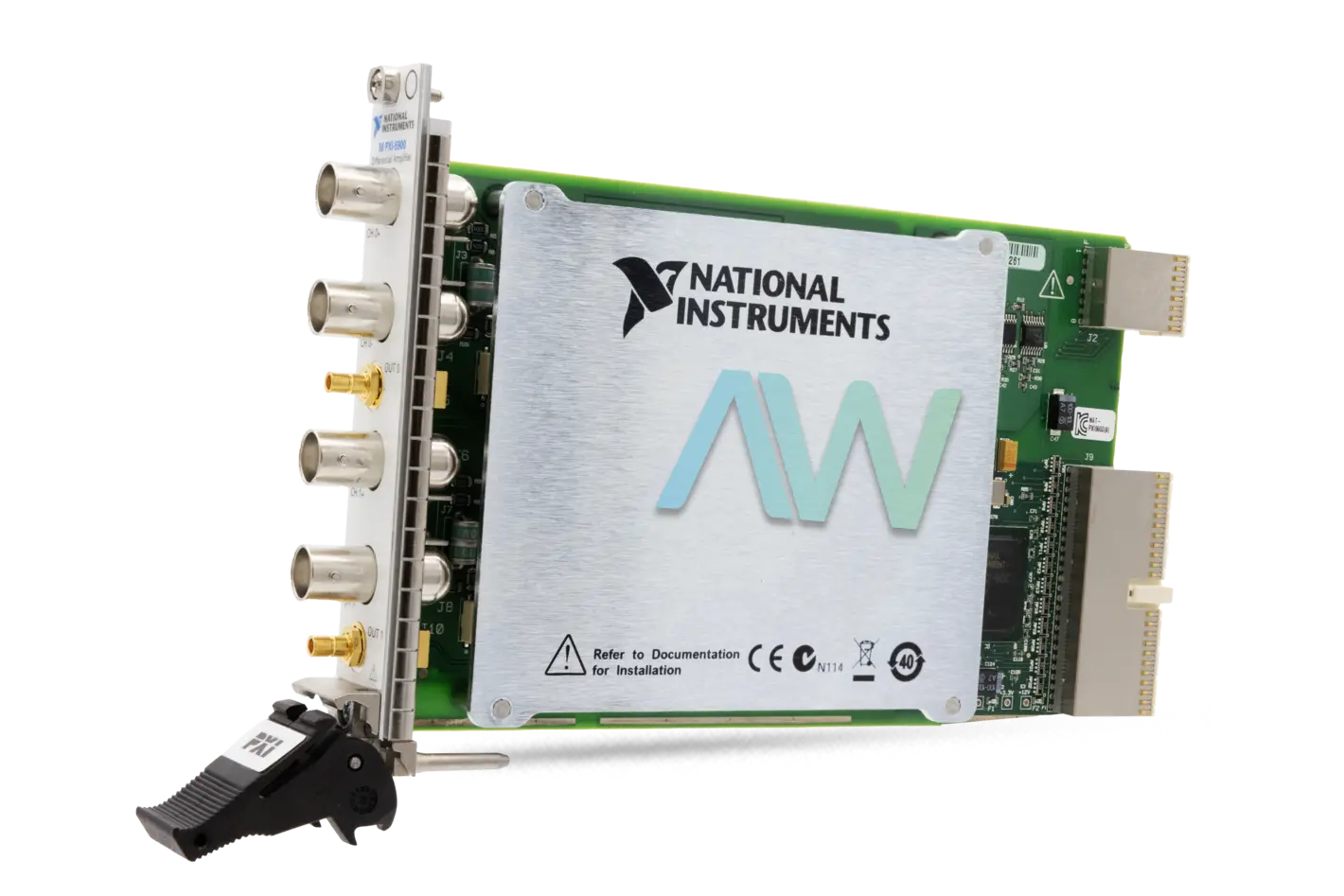

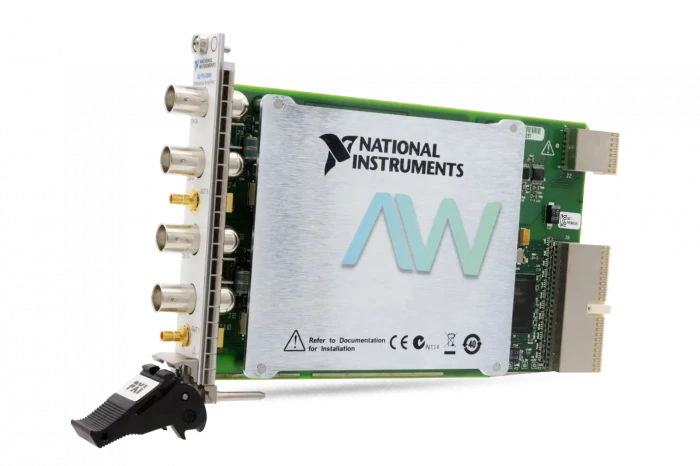

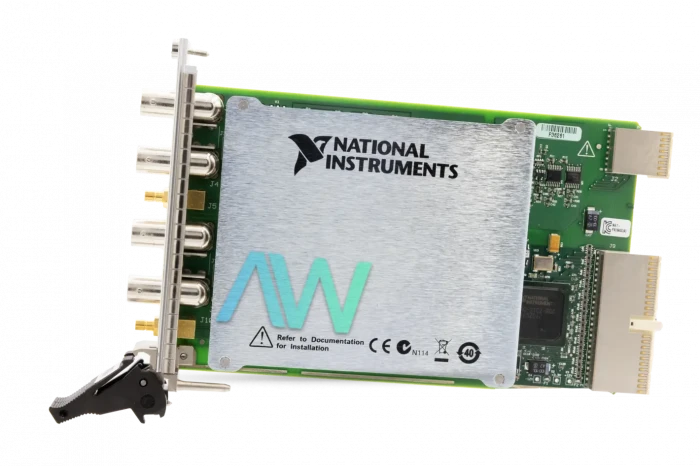

National Instruments PXI-5900 PXI Differential Amplifier

The National Instruments PXI-5900 (Part Number: 780166-01) is a differential PXI Amplifier designed to be utilized with PXI Oscilloscope modules, such as the PXI-5922. This model offers two input channels with GND, AC, and DC input coupling and 50 Ω ±2%, software-selectable input impedance. The NI PXI-5900 comes equipped with BNC input connectors and SMB output connectors. This PXI Differential Amplifier can receive analog input at 0.25 ±0.2% vertical gain, 500 μV zero input offset error, 1 dB passband flatness, 70 dB at 60 Hz common-mode rejection ratio and 100 V/μs slew rate (referred to balanced differential input).

The National Instruments PXI-5900 is compatible with the NI-SCOPE 3.5.1 - an IVI-compliant driver that enables the user to control, configure, and calibrate the PXI-5900. In addition, the NI Measurement & Automation Explorer (MAX) offers interactive and user-friendly test and configuration tools. This software program comes included on the NI-SCOPE DVD. The NI PXI-5900 Amplifier weighs around 173 grams and is a 3U, one slot PXI module with 21.6 cm × 2.0 cm × 13.0 cm physical dimensions.

While operating in conjunction with the NI PXI-5922, this model offers ±20 V (40 Vpk-pk) differential input voltage range, ±5 V (10 Vpk-pk) single-ended, output voltage, and ±10 V common-mode input voltage range. The input protection settings for 1 MΩ and 50 Ω impedance are ±120 V and 14 Vrms with peaks <20 V respectively. The National Instruments PXI-5900 requires approximately 15 minutes for a complete warm-up.

ModelPXI-5900 (780166-01)
ManufacturerNational Instruments
TypePXI Differential Amplifier
Differential Channels2
Input CouplingAC, DC, and GND
ConnectorsBNC input and SMB output
Dimensions8.5 x 0.8 x 5.1 in.
Weight6.1 oz.
WarrantyOne Year Warranty
PXI-5900 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-5900 Frequently Asked Questions



Question: How often should the NI PXI-5900 be calibrated?



Answer: The NI PXI-5900 should be calibrated every two years.



Question: Which driver software should be used with the PXI-5900?



Answer: NI-SCOPE can be used with the PXI-5900.



Question: Which module can the PXI-5900 Amplifier be used with?



Answer: The PXI-5900 Amplifier is meant for use with the PXI-5922 Digitizer.



Question: What is the slew rate of the PXI-5900?



Answer: The PXI-5900 has a slew rate of 100 V/μs referred to balanced differential input, typical.
