778932-01

4.6/5 | 15 ratings

Modular Systems > National Instruments > PXI Chassis

Part Number 778932-01
Manufacturer/Brand National Instruments
Description: 778932-01, 4 Slots, Universal AC Input, 100 to 240 VAC, PXI-1031 PXI Chassis
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

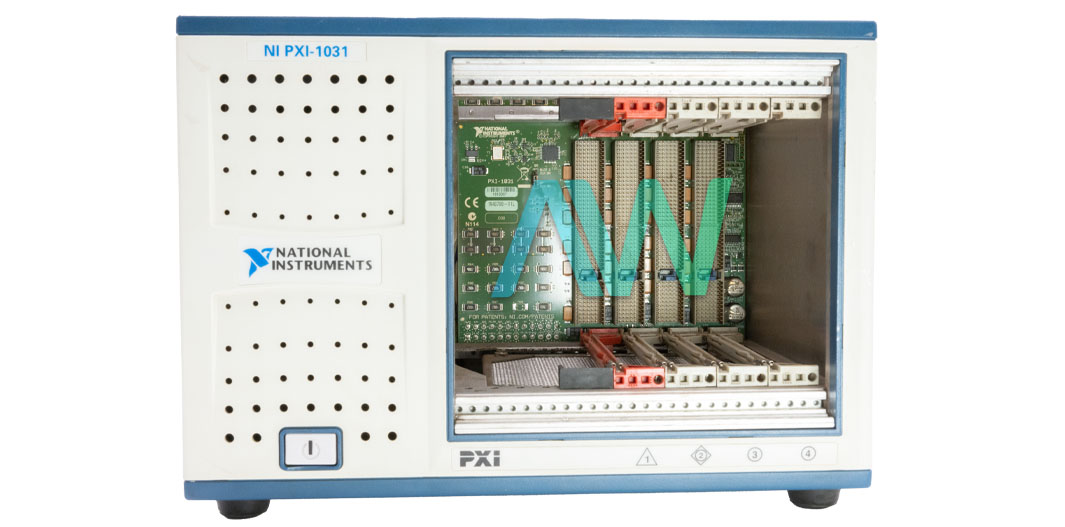

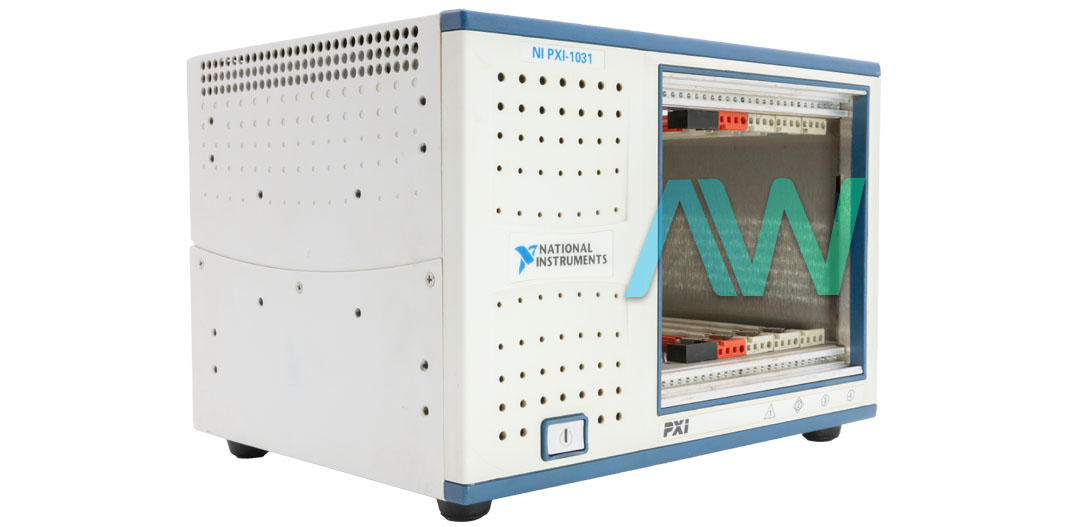

National Instruments 778932-01 PXI Chassis

Specifically developed for engineers and scientists seeking lower acoustic noise emissions in office, laboratory, and educational settings, the National Instruments 778932-01 is a 4-slot, universal AC PXI Chassis. As a member of the PXI-1031 Model family, this chassis is renowned for its adaptability and utility in a range of settings.

With a voltage range of 100 to 240 VAC and working frequencies between 47 and 63 Hz, this chassis includes a universal AC input. With an auto/high temperature-controlled fan speed, the 778932-01 has an improved cooling system that significantly reduces noise levels while preserving ideal temperature conditions for the mounted modules. With a 25 W cooling capacity, every slot guarantees effective performance even in high-demand situations.

An On/Off (Standby) power switch on the front panel of the 778932-01 provides even more convenience by making power controls easily accessible. Additionally, for applications that need mobility, the chassis features the option of a carrying handle, improving portability. Furthermore, it may be easily integrated into current setups or equipment racks because it is rack-mountable.

This chassis's capacity to support both regular CompactPCI products and 5 V and universal PXI-compatible products is one of its important features. Because of its adaptability, a large range of components are guaranteed to be compatible, removing the possibility of compatibility problems in intricate PXI systems.

The 778932-01 chassis's power supply cooling system utilizes forced air circulation through an integrated fan, with intake located at the front side of the chassis and exhaust at the rear side. Forced air circulation from the module's bottom to its top allows for effective heat dissipation and facilitates module cooling.

Part Number778932-01
Model NamePXI-1031
Part TypeUniversal AC PXI Chassis
AC Input Voltage Range100–240 VAC
Operating Voltage Range90–264 VAC
Input Frequency50/60 Hz
Operating Frequency Range47–63 Hz
Input Current Rating4–2 A
Cooling Capacity per Slot25 W
Compatibility3U PXI and CompactPCI modules
ManufacturerNational Instruments

  778932-01 PDF Manuals
