National Instruments PXIe-1073 PXI Chassis

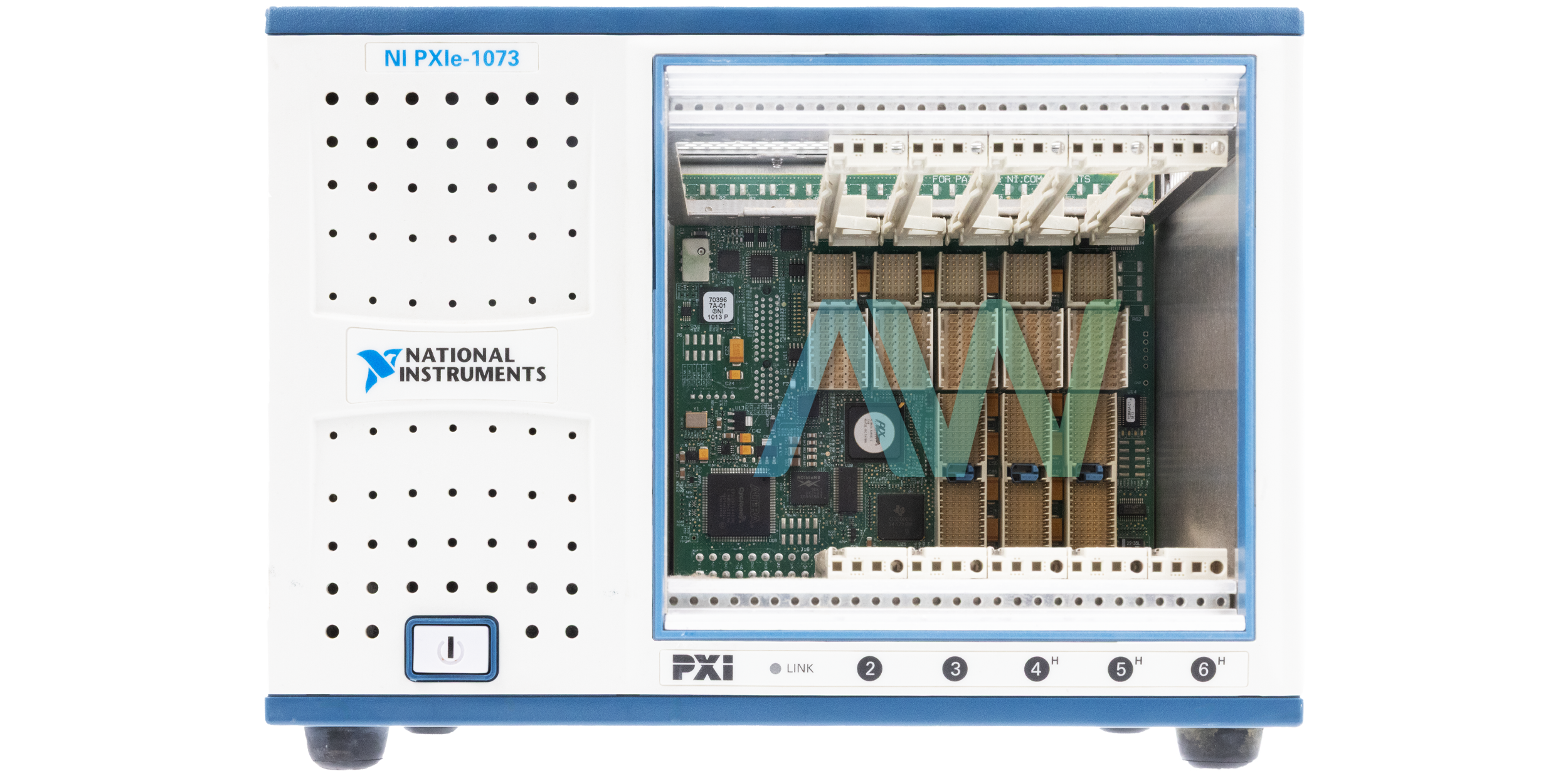

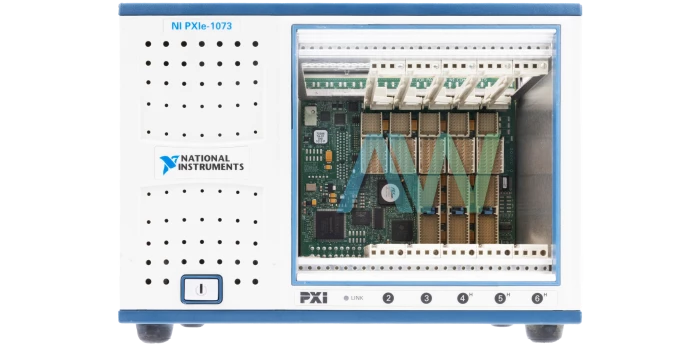

The PXIe-1073 (Part Numbers: 781161-01, 781163-01, and 196695B-01) is an AC PXI Chassis, featuring an integrated controller for remote control applications. This model has a compact and durable design and features five peripheral slots for I/O modules. There are two PXIe slots and three hybrid slots. The NI PXIe-1073 Chassis sustains quiet operation, making it suitable for portable, desktop, and industrial control applications.

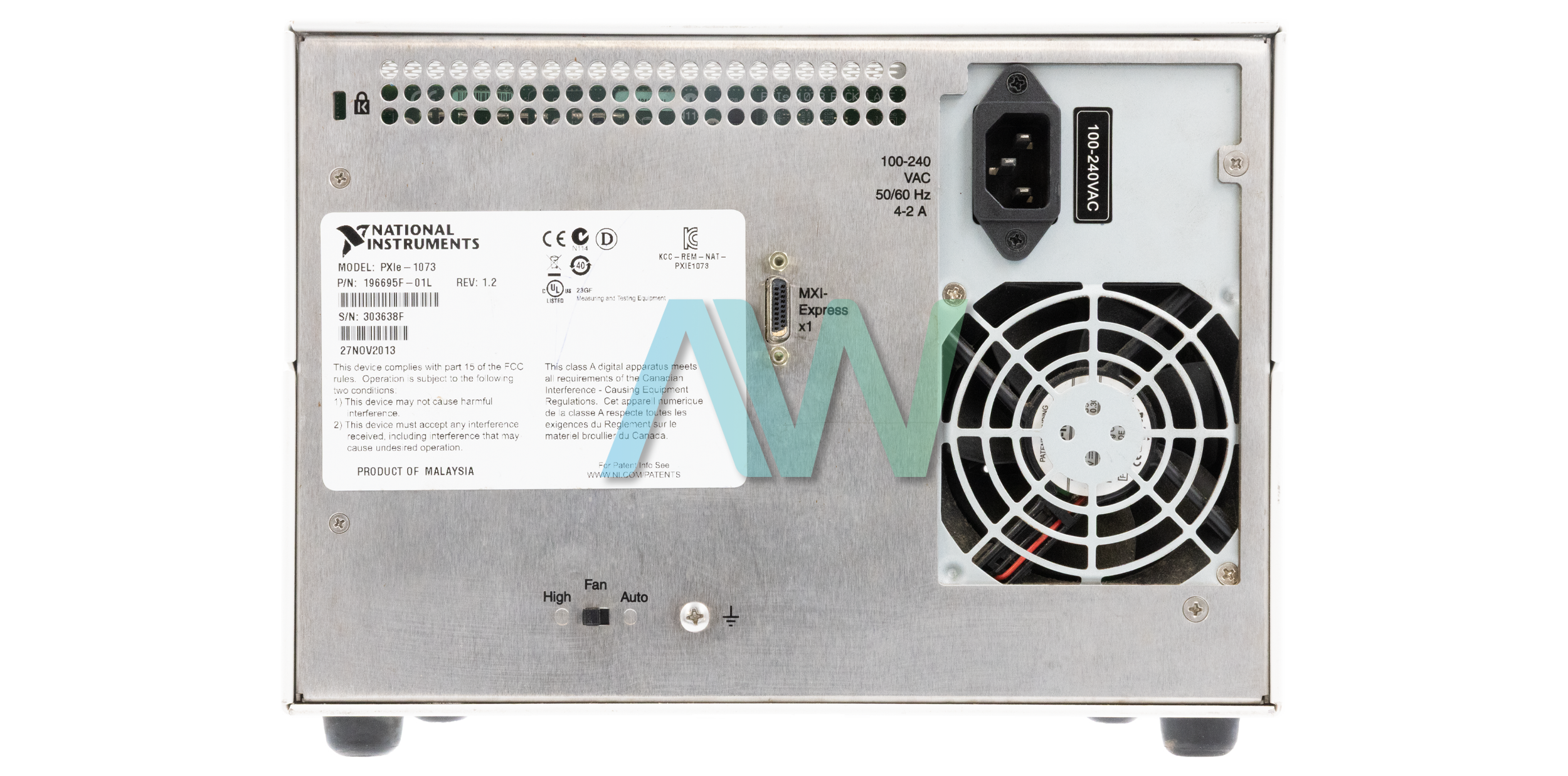

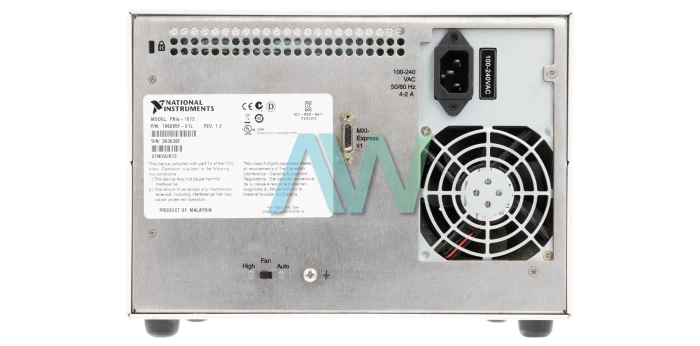

This PXI Chassis comes with an x1 MXI-Express interface which can be accessed via the MXI-Express chassis controller connector on the rear of the chassis. The MXIe interface can be cabled to deliver control of the chassis. There is not a slot number 1 on the NI PXIe-1073. Instead, there is the MXIe interface back connector.
The PXIe-1073 NI can help users create the highest-value PXI Express systems on the market today. The NI PXIe-1073 features an integrated MXI-Express controller, providing a transparent, remote link with up to 208 MB/s sustained throughput to the host computer. The front panel has an On/Standby momentary power switch for convenience for the user.
The PXIe 1073 backplane is fully compliant with PCI timing and synchronization standards for PXI modules. The Chassis includes a 10 MHz reference clock with an accuracy of ±25 parts per million (ppm), less than 5 ps jitter, and a maximum slot-to-slot skew of 250 ps. This Chassis does not offer a system timing slot, which provides the ability to import/export the 10 MHz clock and PXI triggers.
The NI PXIe-1073 features an AUTO/HIGH fan-speed selector that provides a HIGH fan-speed setting to maximize cooling and an AUTO fan setting to minimize acoustic emissions. The PXIe-1073 NI has up to 250 MB/s per-slot dedicated bandwidth (x1 PCI Express), 250 MB/s total system bandwidth, and acoustic noise as low as 43.3 dBA.
Associated Part Numbers: 196695-01, 196695-01L, 196695B-01, 196695C-01, 196695D-01, 196695F-01L, 196695G-01L, 196695J-01L, 781161-01, 781161-02, 781162-01, 781162-02, 781163-01, 781700-01
| Model | PXIe-1073 |
|---|---|
| Part Number | 781161-01, 781163-01, and 196695B-01 |
| Manufacturer | National Instruments |
| Type | PXI Chassis |
| Slot Count | 5 |
| Maximum System Bandwidth | 250 MB/s |
| Chassis Power Supply Type | AC |
| Dimensions | 10.12 x 8.38 x 6.97 in. |
| Weight | 11 lb. |
| Warranty | Three Year Warranty |
| PXIe-1073 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
