Name: PXIe-1085
Brand: National Instruments
Price: 150.0 USD
Availability: InStock
Rating: 4.72 (16 reviews)

PXIe-1085, 18-Slot, 50 Hz/60 Hz, PXI Chassis

4.72/5 | 16 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View our blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Information - Calibration, Expedited Shipping or Other Notes

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Text Your Quote

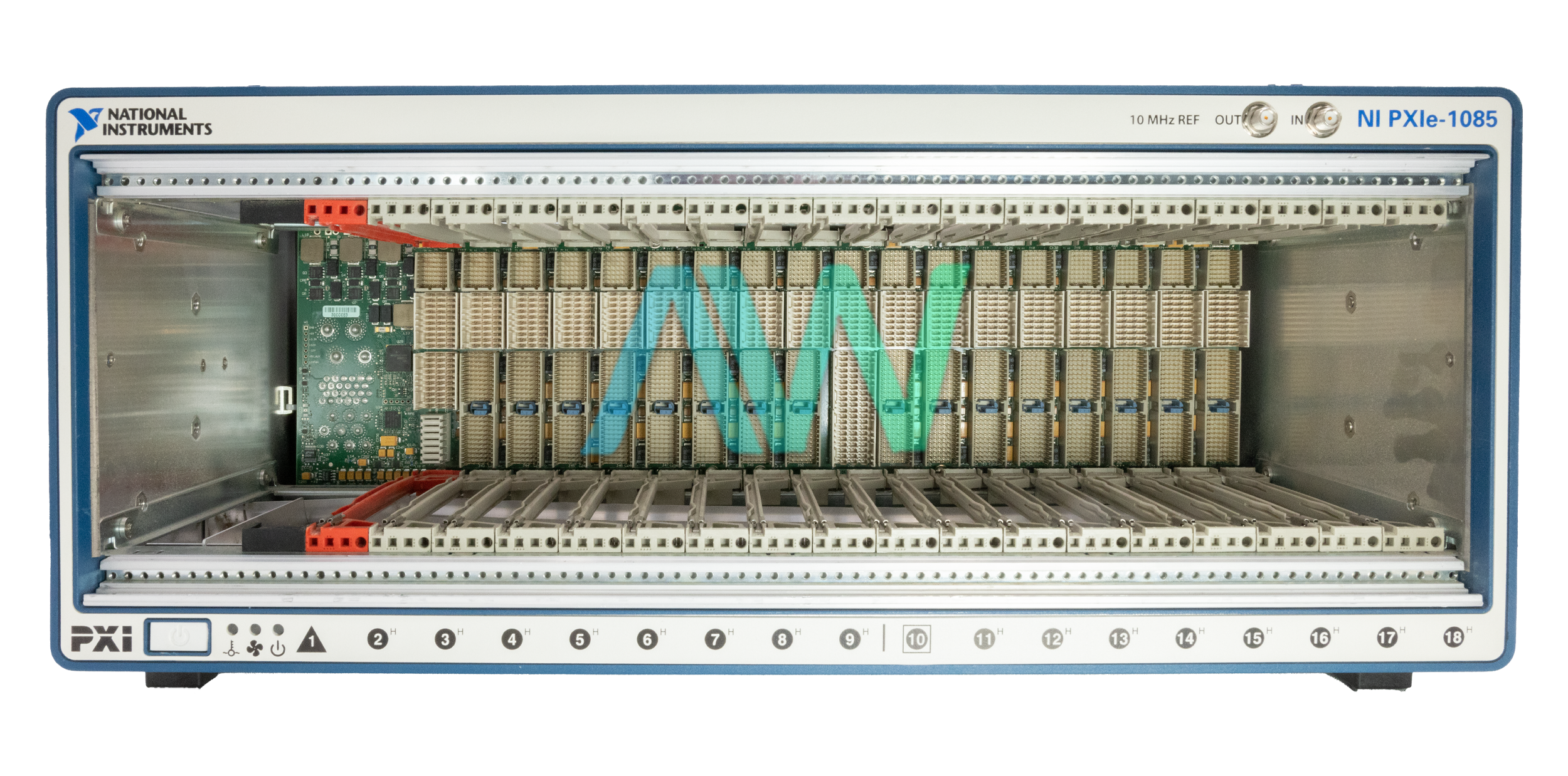

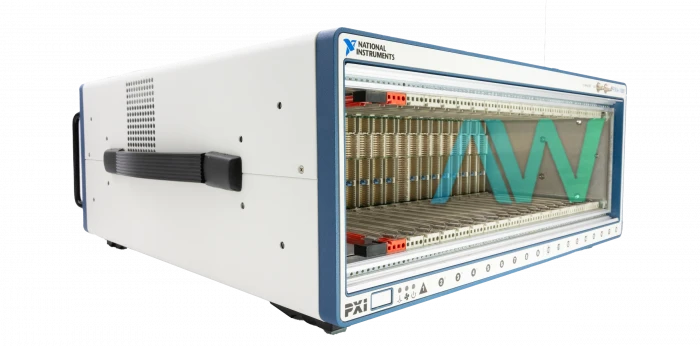

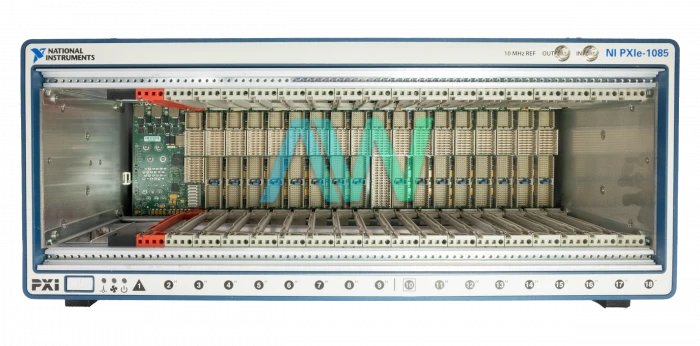

National Instruments PXIe-1085 PXI Chassis

The National Instruments NI PXIe-1085 Chassis (Part Numbers: 781813-01, 783588-01, 153869H-01) features a high-bandwidth, all-hybrid backplane to meet a variety of high-performance test and measurement application needs. There are two versions of the PXIe-1085. The specifications are the same, except the maximum system bandwidth. The max bandwidth for the NI PXIe-1085 Chassis part number 781813-01 is 12 GB/s, while the max bandwidth for the NI PXIe-1085 Chassis part number 783588-01 is the 24 GB/s.

The hybrid connector type in every peripheral slot allows the most flexibility in terms of instrumentation module placement. It also incorporates all the features of the latest PXI specifications, including support for both PXI and PXI Express modules with a built-in 10 MHz reference clock, a PXI trigger bus, and a PXI star trigger for PXI modules. There is also a built-in 100 MHz reference clock, SYNC100, and PXI differential star trigger for PXI Express modules.

The PXIe-1085 Chassis has 16 hybrid slots and 1 PXI Express system timing slot, high performance, up to 4 GB/s per-slot dedicated bandwidth for all slots, 12 GB/s or 24 GB/s maximum system bandwidth, and compatibility with PXI, PXI Express, CompactPCI, and CompactPCI Express modules. The device operates on software provided by the PXI Platform Services 3.0 (or higher versions) software media, and can be configured using the Measurement & Automation Explorer (MAX) tool. Also, it is equipped with 2 SMA connectors. The PXI chassis weighs 40.3 lb and has the dimensions: 6.97 x 18.30 x 19.38 inches.

The NI PXIe-1085 Chassis has a remote power-inhibit control and variable speed fan controller to optimize cooling and acoustic emissions. Its 38.25 W per slot cooling meets increased PXIe cooling requirements. The device has a low-jitter internal 10 MHz reference clock for PXI/PXI Express slots with ± 25 ppm stability, and a low-jitter internal 100 MHz reference clock for PXI Express slots with ± 25 ppm stability. The NI PXIe-1085 is AC powered and its power, temperature, and fan monitoring features are highly reliable, as the device is HALT tested for increased reliability. This model additionally has quiet operation for 0 to 30 °C at 51.2 dBA.

Model	PXIe-1085
Part Numbers	781813-01, 783588-01, 153869H-01
HTS Code	8473305100
Manufacturer	National Instruments
Type	PXI Chassis
Slot Count	18
Maximum System Bandwidth	12 GB/s or 24 GB/s
Chassis Power Supply Type	AC
Dimensions	6.97 x 18.30 x 19.38 in.
Weight	40.3 lb.
Warranty	Three Year Warranty
PXIe-1085 Manual	User Manual and Maintenance Manual Available for Download
Price	Contact a sales representative for a quote.

Associated part numbers for the PXIe-1085:

143232A-01L, 143232A-02L, 143232B-01L, 147408A-01, 151217A-01L, 151217B-01L, 151637A-01L, 151637B-01L, 151637C-01L, 151637D-01L, 151637E-01L, 151637F-01L, 151637G-01L, 151637G-11L, 151637H-01L, 151934A-01L, 152008A-01L, 152008B-01L, 152179A-01L, 152179B-01L, 152201A-01L, 152224A-01L, 152224B-11L, 152224C-01L, 152224C-11L, 152404A-01L, 152404B-01L, 152404C-01L, 152404C-11L, 152686F-01, 152687A-01, 152794D-01, 152880A-01L, 152880B-01L, 153057D-01, 153663B-01, 153663C-01, 153663D-01, 153869A-01L, 153869A-02L, 153869B-01L, 153869C-01L, 153869D-01L, 153869E-01L, 153869F-01L, 153869G-01L, 153869H-01L, 153869H-31L, 153869J-01L, 153869J-31L, 153869K-01L, 153869L-01L, 154090A-01L, 154104A-01L, 154104B-01L, 154104C-01L, 154104D-01L, 154104E-01L, 154104E-11L, 154107A-01L, 154107B-01L, 154107C-01L, 154107D-01L, 154107E-01L, 154107E-11L, 154113A-01, 154113A-02, 154163A-01L, 154168B-01, 154326A-01, 155623A-01L, 155623A-02L, 155623B-01L, 155623C-01L, 155623D-01L, 155623D-11L, 155623E-01L, 155623E-11L, 155623F-01L, 155623F-11L, 155623F-21L, 155623G-01L, 155623G-11L, 155623G-12L, 155623G-21L, 155623H-01L, 155623J-01L, 155623J-21L, 157656A-01, 157656A-01L, 158565A-01, 158565B-01, 168100D-01L, 168100D-02L, 168120B-02L, 194295C-12L, 195581A-01L, 195581A-02L, 195581B-01L, 195581B-02L, 195581C-01L, 195581C-02L, 195581D-01L, 195581D-02L, 195581D-03L, 195581E-01L, 195581E-03L, 195581F-01L, 195581F-03L, 195581G-01L, 195581G-03L, 195581G-11L, 195581H-01L, 195581H-03L, 195581H-11L, 195581J-01L, 195581J-03L, 195581K-01L, 195581K-03L, 200013A-01, 200039A-01, 200039B-01, 200047A-01, 200106A-01, 200256A-01, 200285A-01, 200292A-01, 200487A-01, 200860A-01, 781813-01, 783588-01, 784426-01, 786962-01, 788306-01

Associated NSNs for the PXIe-1085:

5975-01-622-2423 (5975016222423), 5975-01-680-0534 (5975016800534), 75016222423, 5975-01-622-2423 (5975016222423)

National Instruments PXIe-1085 Frequently Asked Questions

Question: What is the difference between the two part numbers for the PXIe-1085 Chassis?

Answer: The difference between the part numbers is the maximum system bandwidth. Part number 781813-01 has 12 GB/s maximum bandwidth and part number 783588-01 has 24 GB/s maximum bandwidth.

Question: What communication speeds does the Ethernet port on the National Instruments NI PXIe-1085 support?

Answer: The National Instruments NI PXIe-1085 supports communication speeds of 10 Mbps and 100 Mbps.

Question: What is the input voltage range of the NI PXIe-1085?

Answer: The input voltage range is 100 VAC to 240 VAC for the NI PXIe-1085.

Question: What is the over-current protection of the PXIe-1085?

Answer: The PXIe-1085 has a 15 A circuit breaker for over-current protection.

PXIe-1085 PDF Manuals
