National Instruments 787807-01 PXI Express Control Module

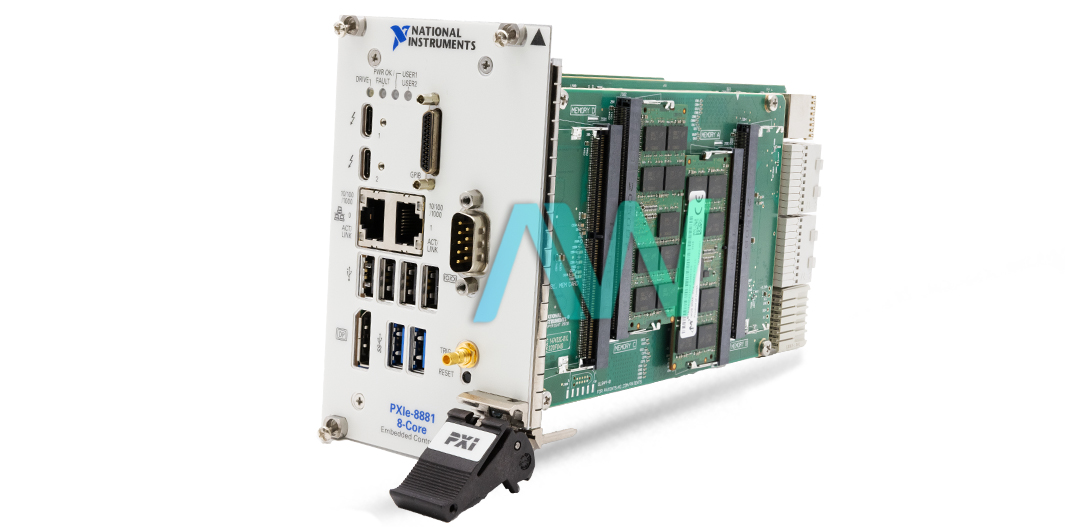

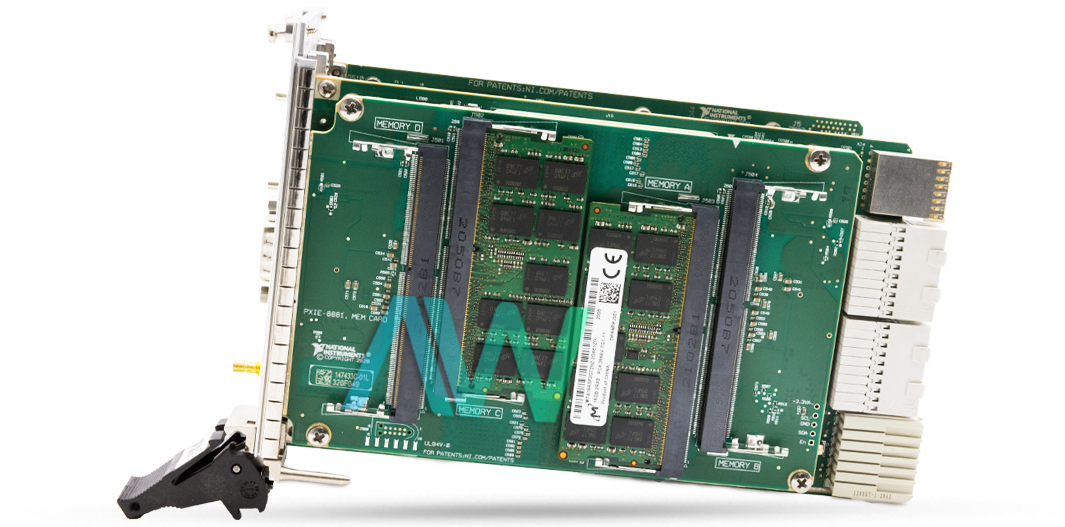

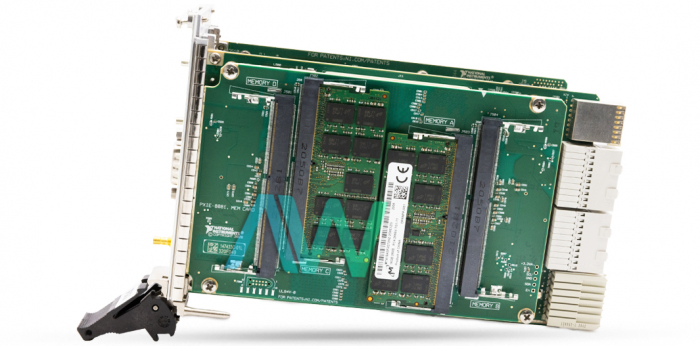

The part number 787807-01 from National Instruments is the identifying part number for the PXIe-8881 PXI Express Control Module. This instrument comes in different Intel Xeon W CPU configurations ranging from 2225, 2245 and 2295 processors. These processors offer up to 18 cores with a frequency of 3 GHz up to 4.6 GHz for turbo frequencies. This controller features 4 channel DDR4-2666 memory ranging from 16 GB up to 64 GB.

The 787807-01 PXI Express Control Module has 500 GB SSD storage with M.2 NVMe support and can be expanded based on the need. The SSD provides high-speed data transfers and access while also ensuring reliable data handling. The module comes with 2 i219 and i210 ports with a speed ranging from 10 to 1000 Mbps and wake on LAN functionality. The module also features 4 high-speed USB 2.0 Type A USB ports and 2 Type A USB 3.2 Generation 1 ports. This module also features Thunderbolt ports for high-speed communication and data transfer between peripherals.

The 787807-01 PXI Express Control Module supports multiple PXI Express link configurations, including x4, x8, and x16, ensuring high data throughput and compatibility with a wide range of PXI Express modules. The controller occupies one system slot plus three controller expansion slots when mounted in the supported chassis.

The 787807-01 PXI Express Control Module is designed to operate in environments, with a maximum operating temperature range of 0 degrees Celsius to 55 degrees Celsius and storage temperatures ranging from -40 degrees Celsius to 71 degrees Celsius. It meets IEC-60068-2-1 and IEC-60068-2-2 standards for temperature testing and MIL-PRF-28800F standards for shock and vibration. The controller weighs approximately 1.6 kg (3.5 lbs) and requires a chassis with an 82 W per slot cooling capacity. The module should be kept away from dust and moisture for optimum performance. The 787807-01 PXI Express Control Module is compatible with both Windows 10 IoT Enterprise and Linux Real-Time operating systems. It is also compatible with the NI’s suite of software tools, including LabVIEW, for developing and deploying custom test and measurement solutions.
