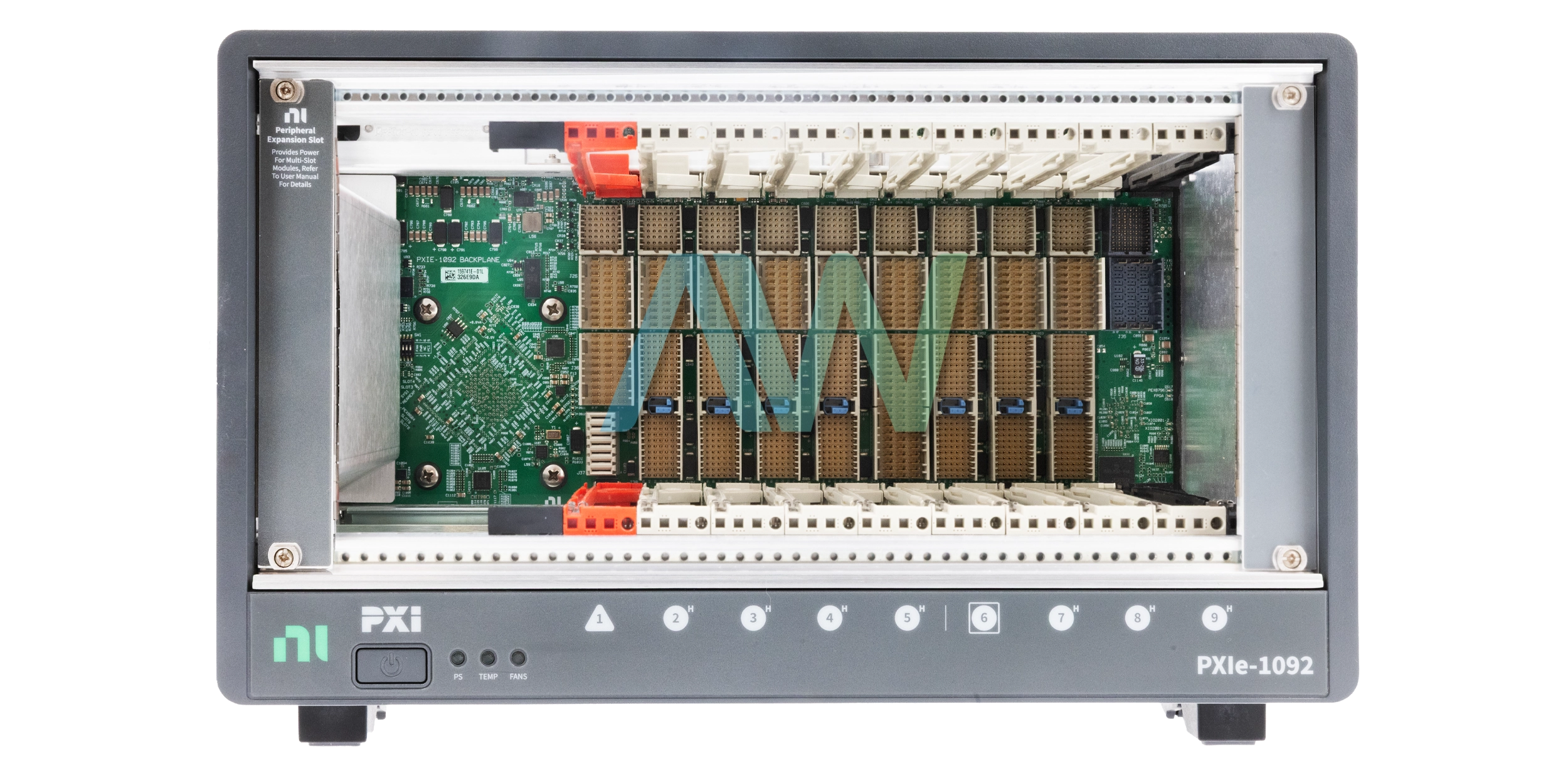

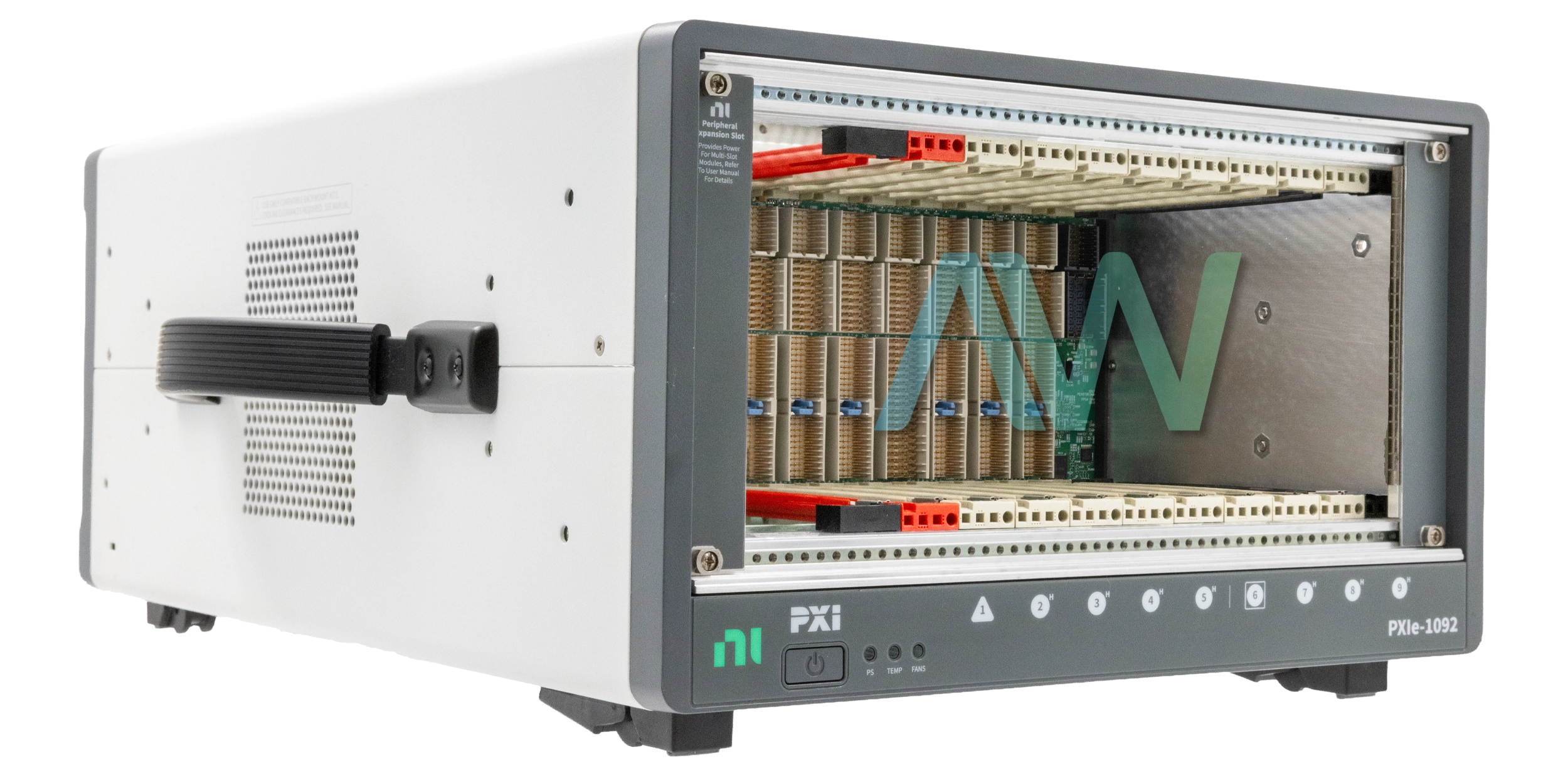

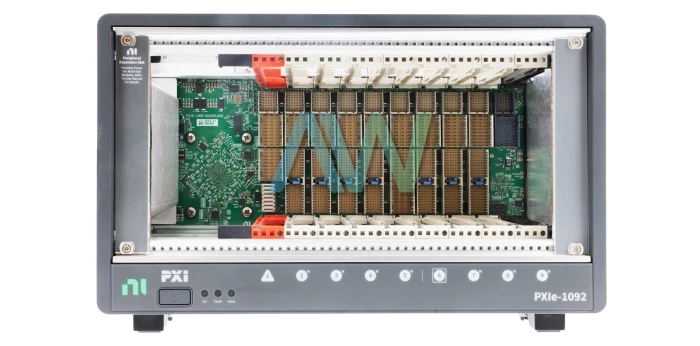

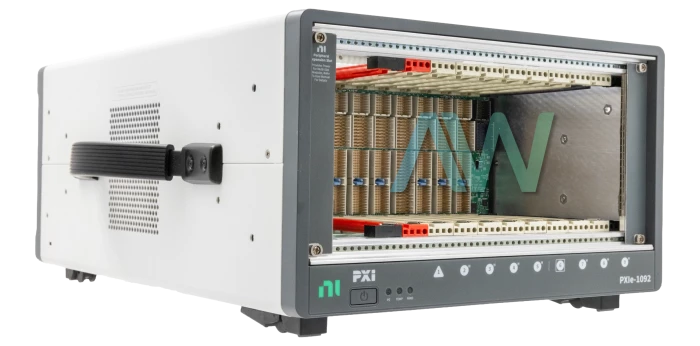

National Instruments PXIe-1092 PXI Chassis

Featured with 1 PXIe System Timing Slot and 7 Hybrid Slots, the National Instruments PXIe-1092 (Part Numbers: 784781-01 and 786991-01) is a PXI Chassis. This chassis offers a unique combination of a 10-slot PXIe backplane, a structural design, and a high-output power supply. The availability of up to 24 GB/s maximum system bandwidth and 82 watts slot cooling capacity makes this chassis ideal for various control and measurement applications. The NI PXIe 1092 is designed to comply with PXI Express Hardware Specifications. Thus, the chassis offers advanced synchronization and timing features as well.

The universal AC power supply incorporated in this model can be operated over a broad input voltage range of 100 V to 240 VAC. An internal inline fuse is deployed to safeguard the chassis from overcurrent. The NI PXIe 1092 Chassis requires a power cord. There are a variety of power options available to comply with different country’s requirements.

As required by the PXI and CompactPCI Express specifications, the Slot #1 of the PXIe 1092 is a 2-Link configuration system slot. This chassis comes with 3 system controller expansion slots also. The additional system controller expansion slots are provided for the deployment of modules that require more than one slot. Seven hybrid peripheral slots available on this chassis can accept several types of peripheral modules, such as CompactPCI Express and PXI Express modules. The slot # 6 of the National Instruments PXIe-1092 is the system timing slot that accepts PXI Express System Timing modules, PXI Express peripherals, and Type-2 CompactPCI Peripherals.

ModelPXIe-1092
ManufacturerNational Instruments
Part Numbers784781-01 and 786991-01
TypePXI Chassis
Slot Count10
Maximum System Bandwidth24 GB/s
Power Supply TypeAC
Redundant HWNo
Operating Frequency Range47 to 440 Hz
Slot Cooling Capacity82 W
Over-voltage Protection+12 V, +5 V, and +3.3 V clamped at 20 to 30%
above nominal output voltage
Over-current ProtectionAll outputs protected from short circuit and
overload with automatic recovery
Maximum Total Available Power988 W
System Timing SlotYes
Backplane Size3U
Dimensions6.97 in. (H) x 11.94 in. (W) x 18.25 in. (D)
Weight27.1 lb.
WarrantyOne Year Warranty
PXIe-1092 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-1092 Frequently Asked Questions



Question: Why does the PXIe 1092 have two different part numbers?



Answer: Part number 784781-01 for the PXIe 1092 does not have external clocking, has a VCXO onboard clock, and does not have external trigger access. However, part number 786991-01 has an OCXO onboard clock, external clocking, and external trigger access.



Question: What is the power supply MTTR of the PXIe-1092?



Answer: The power supply MTTR of the PXIe-1092 is replacement in under 1 minute.



Question: Does the NI PXIe-1092 have any PXI slots?



Answer: No, the NI PXIe-1092 does not have any PXI slots.



Question: What are the power cord options for the NI PXIe 1092?



Answer: The power cord options for the NI PXIe 1092 are AC, U.S., 125VAC, 15A (Part Number: 763830-01), 240V, 10A, North American (Part Number: 763068-01), 250V, 10A, China (Part Number: 784686-01), 125V, 15A, Japan (Part Number: 763634-01), 240V, 10A, Korea, Right Angle (Part Number: 784685-01), 240V, 10A, U.K. (Part Number: 763064-01), 220V, 10A, Swiss (Part Number: 763065-01), 240V, 10A, Australia (Part Number: 763066-01), 240V, 10A, Euro, Right Angle (Part Number: 763067-01), and 250V, 10A, Brazil (Part Number: 785626-01).
