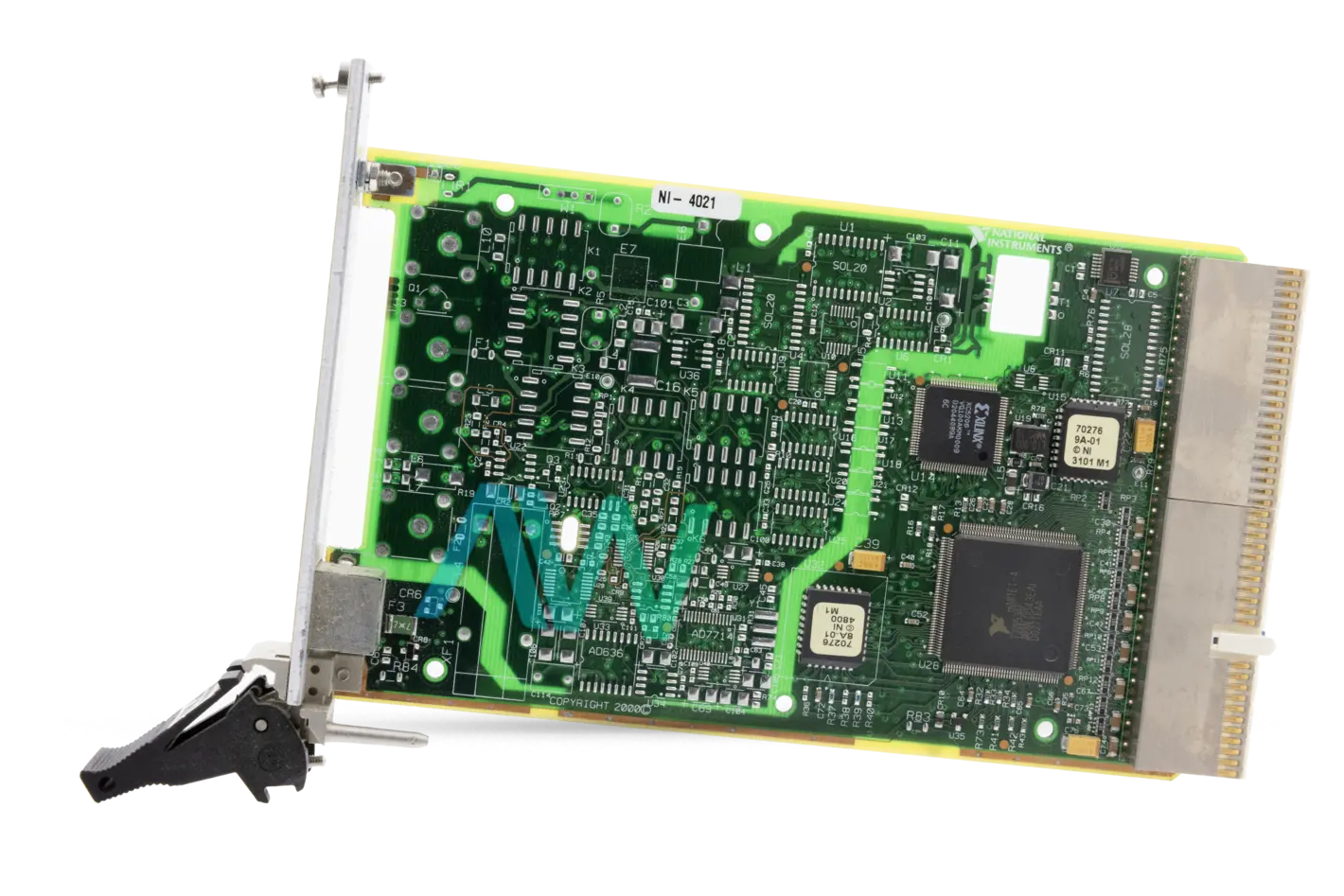

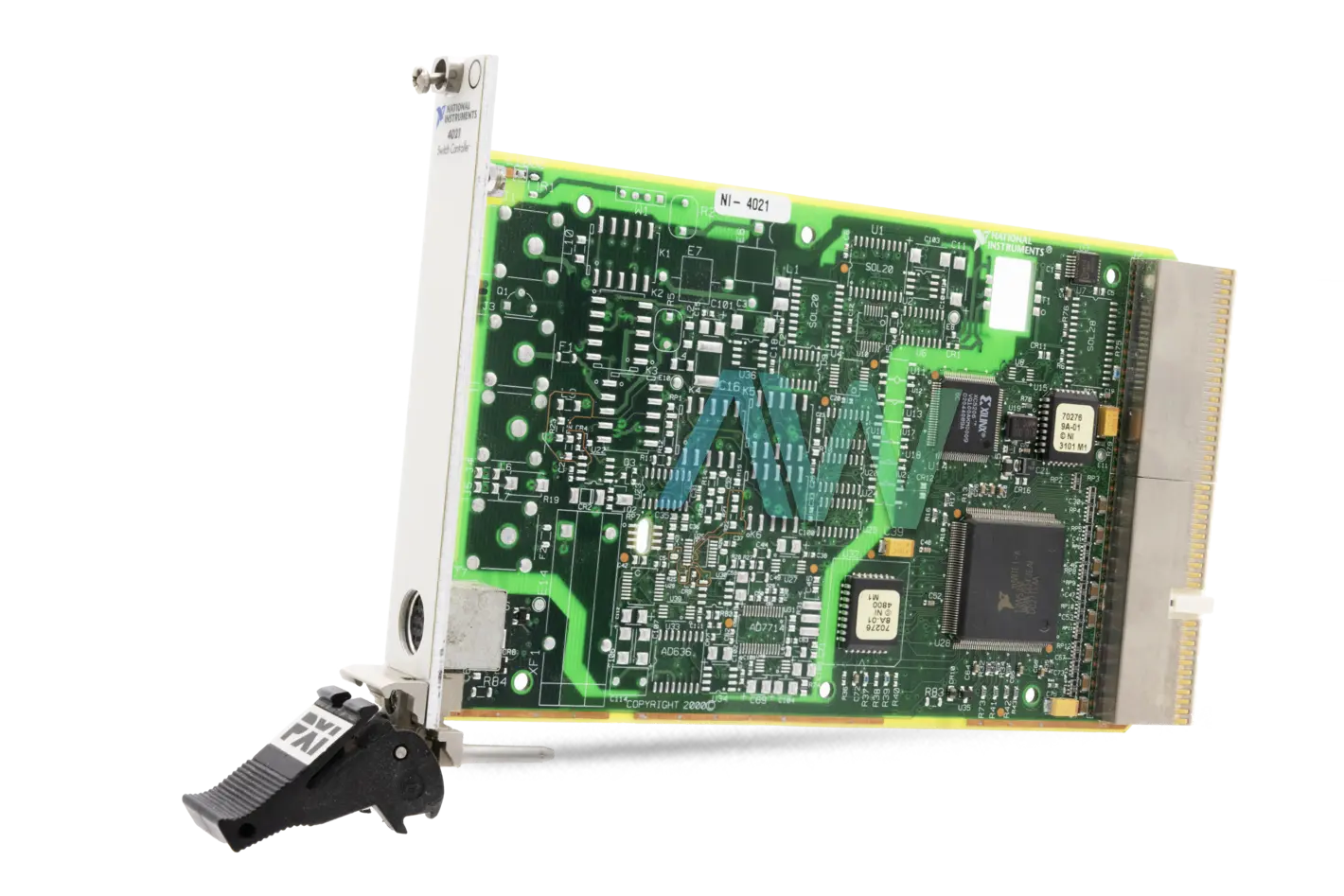

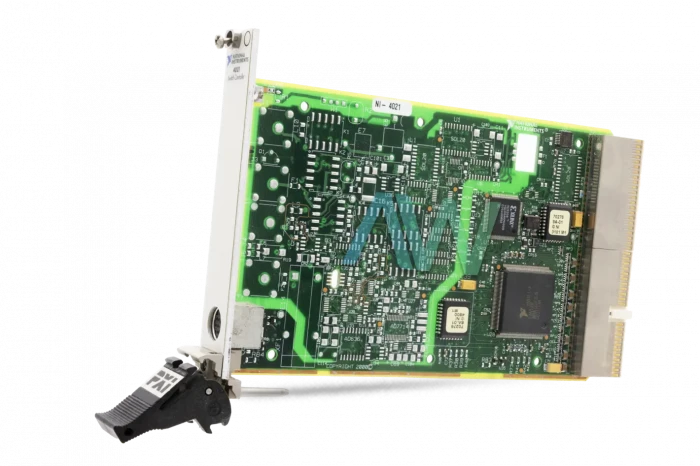

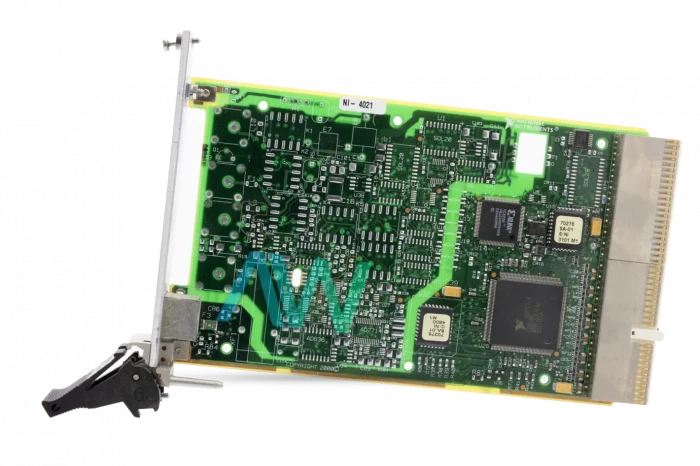

PXI-4021 National Instruments PXI Controller | Apex Waves | Image PXI-4021 National Instruments PXI Controller | Apex Waves | ImagePXI-4021PXI-4021 | Legacy, Refurbished and New Surplus
PXI-4021 National Instruments PXI Controller | Apex Waves | Image
PXI-4021 National Instruments PXI Controller | Apex Waves | Image
PXI-4021 New
PXI-4021 | Legacy, Refurbished and New Surplus

PXI-4021

4.7/5 | 13 ratings

Modular Systems > National Instruments > PXI Controllers

Part Number PXI-4021
Manufacturer/Brand National Instruments
Description: PXI-402 PXI Controller for SCXI Switches
In Stock | Ships 3-5 Days
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PXI-4021 PXI Switch Controller

The National Instruments PXI-4021 (Part Number: 778277-01) switching controllers permit the control of SCXI-based switching frameworks from a PCI or PXI slot. The NI PXI-4021 requires no extra programming other than the NI-SWITCH controller it receives with the National Instruments switches. For a completely plug-and-play solution that does not require a PCI or PXI slot, the user can consider utilizing the USB-1359 communication adapter for USB control of an SCXI switching chassis.

Every single National Instrument PXI and SCXI switch module comes equipped with NI-SWITCH, an IVI-compliant driver offering complete functionality for all switch modules. For extra help with arranging, programming, and overseeing higher-channel-count switching frameworks, NI Switch Executive programming offers a simple-to-use, smart switch management and visual routing environment.

When the PXI-4021 Switch Controller is arranged with software as independent switch banks, the user can control the environment of any relay on the module. This mode can be used for custom applications, where the banks of 16x1 multiplexers can be consolidated to form other multiplexer sizes or work autonomously.

The PXI-4021 can augment throughput in automated test applications by the utilization of scanning. Filtering enhances throughput by downloading a list of up to 32,000 connections to the switch modules and cycling through the list with an event (trigger) with no intrusion from the host processor. This model also incorporates terminal blocks that provide screw terminals, spring terminals, or ribbon cable terminals for simple associations. The user can interface the lines and segments of numerous modules to extend a NI framework and address the issues of high-channel-count frameworks.

ModelPXI-4021 (778277-01)
ManufacturerNational Instruments
TypePXI Switch Controller
SoftwareNI-SWITCH Driver
Compatible ModulesSCXI
WarrantyOne Year Warranty
PXI-4021 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-4021 Frequently Asked Questions



Question: What devices can the PXI-4021 control?



Answer: The PXI-4021 can control SCXI-based switching systems from a PXI or PCI slot.



Question: Which software does the NI PXI-4021 require?



Answer: The NI PXI-4021 only needs the NI-SWITCH driver software which comes with National Instruments switches.



Question: Which backplane adapters is the PXI-4021 compatible with?



Answer: The PXI-4021 is compatible with the following backplane adapters: the SCXI-1357 and SCXI-1358 high-voltage backplane adapters.



Question: What is the price of the PXI-4021?



Answer: Call or email Apex Waves for pricing and availability for the PXI-4021!
