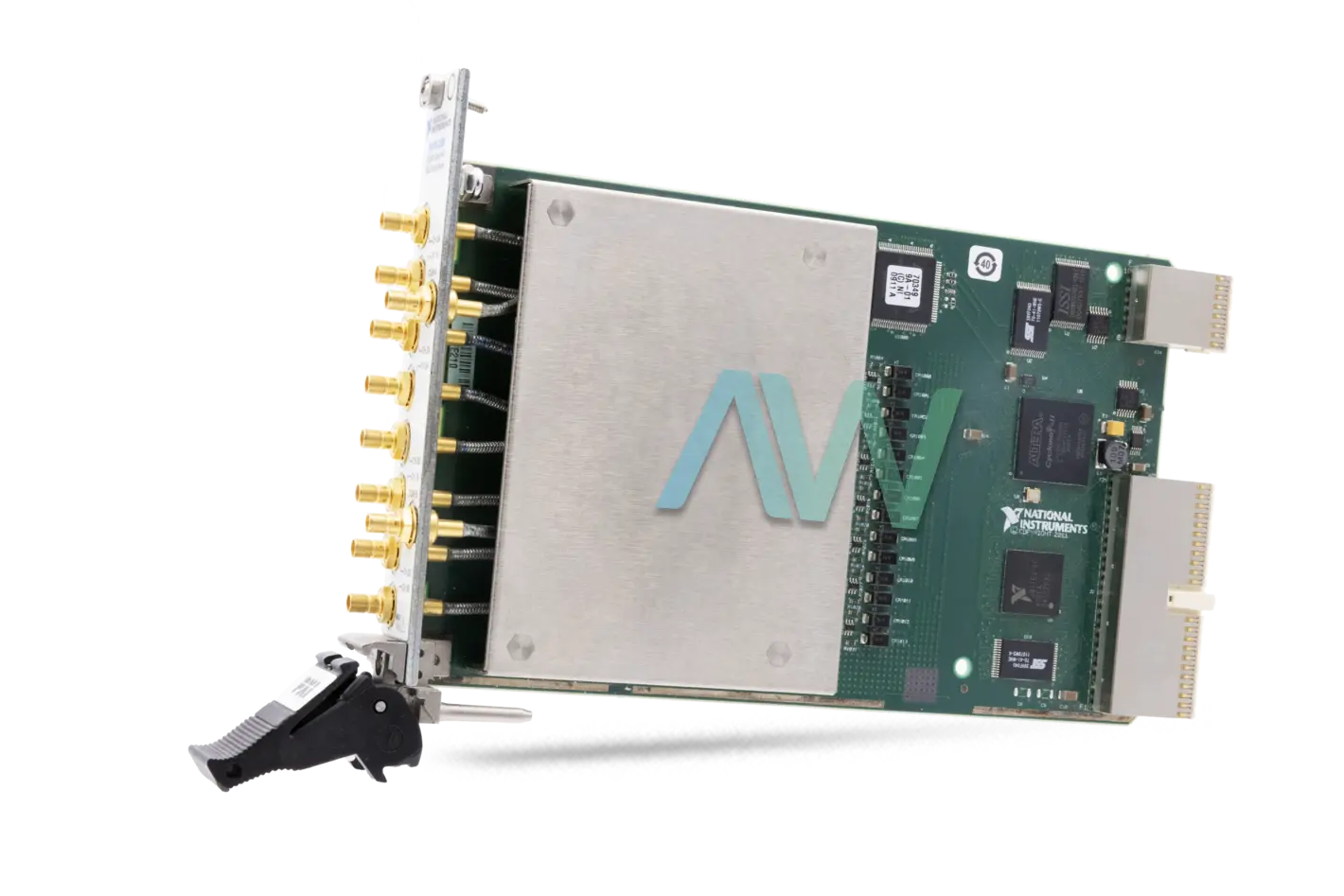

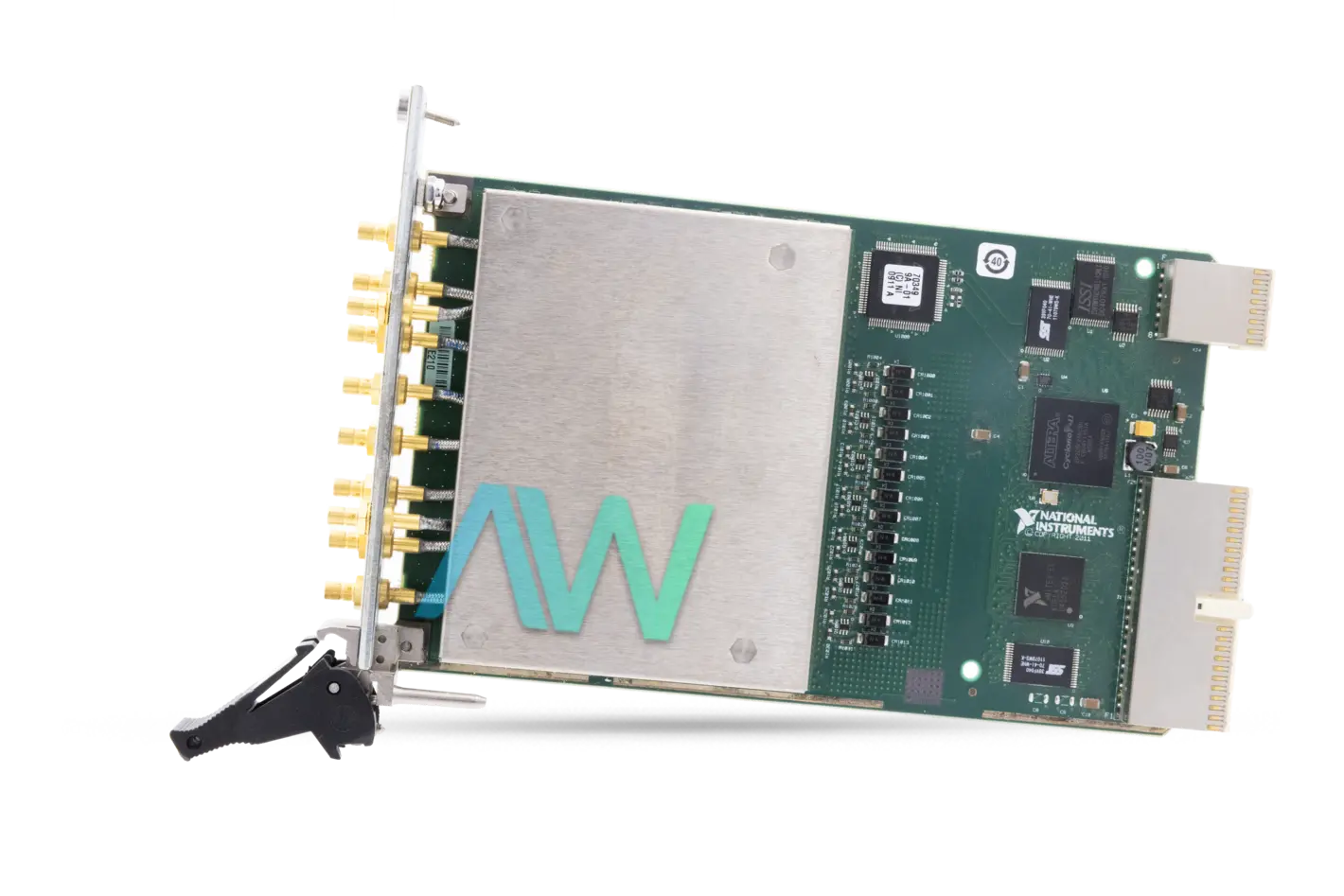

PXI-2556 National Instruments Multiplexer Switch Module | Apex Waves | ImagePXI-2556 National Instruments Multiplexer Switch Module | Apex Waves | ImagePXI-2556 NewPXI-2556 | Legacy, Refurbished and New Surplus

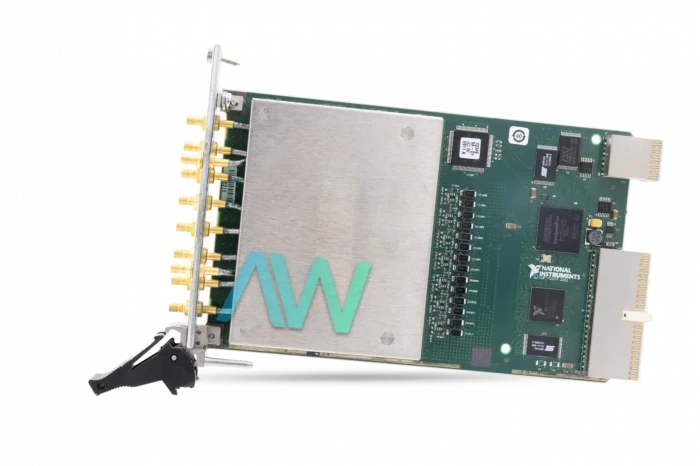

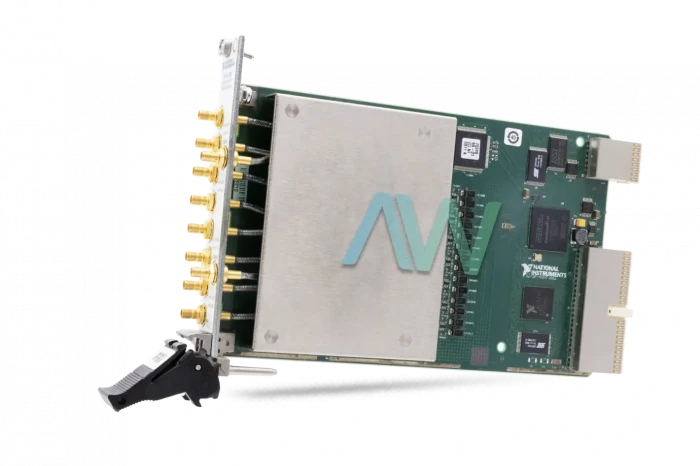

PXI-2556 National Instruments Multiplexer Switch Module | Apex Waves | Image
PXI-2556 National Instruments Multiplexer Switch Module | Apex Waves | Image
PXI-2556 New
PXI-2556 | Legacy, Refurbished and New Surplus

PXI-2556

4.6/5 | 15 ratings

Modular Systems > National Instruments > PXI Multiplexer Modules

Part Number PXI-2556
Manufacturer/Brand National Instruments
Description: PXI-2556, 2.5 GHz, PXI RF Multiplexer Switch Module
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments PXI-2556 PXI RF Multiplexer Switch Module

The National Instruments PXI-2556 Multiplexer Switch Module (Part Number: 778572-56) allows the user to program the switches by utilizing the NI-SWITCH driver software which is compatible with IVI, complete with help documentation, sample programs and a soft front board application for intuitive switch control. For intelligent management of complex switching framework, NI Switch Executive gives extra software tools to help the user design, fabricate, and deploy their switching framework.

The PXI-2556 PXI RF Multiplexer Switch Module is perfect for high channel count applications that need to associate estimating or signal generation instruments to a few test focuses in devices or units under test (DUT or UUT). This PXI RF Multiplexer Switch Module utilizes electromechanical relays. When the user employs the NI PXI-2556 to start a scan, ensure the estimation gadget is armed (waiting for trigger) before empowering scanning on the switch card. Empowering scanning causes the first switch in the scan list to close and generate a scanner advanced trigger after the relay switches have settled or debounced.

When using the estimation gadget to start a scan, ensure filtering is empowered on the NI PXI-2556 before the estimation gadget begins to take estimations. This guarantees the switch module has the right signal routed and that the switch module is waiting for an outside trigger from the estimation gadget. This module has 2 banks, 4 channels, 2.5 GHz switch bandwidth, and 75 Ohm characteristic impedance.



ModelPXI-2556 (778572-56)
ManufacturerNational Instruments
TypePXI RF Multiplexer Switch Module
Banks2
Channels4
Switch Bandwidth2.5 GHz
Dimensions8.5 x 0.8 x 5.1 in.
Weight8.0 oz.
Warranty2-3 Year Warranty
PXI-2556 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-2556:

19622.2, 196222A-01, 196222B-01, 196222C-01, 196222D-01, 196222F-01, 196222G-01, 196222H-01L, 196222J-01, 196222J-01L, 778572-02, 778572-56

National Instruments PXI-2556 Frequently Asked Questions



Question: What type of relays does the PXI-2556 utilize?



Answer: The PXI-2556 utilizes electromechanical relays.



Question: What is the maximum carry current AC for the NI PXI-2556?



Answer: The maximum carry current AC for the NI PXI-2556 is 0.5 A.



Question: What type of I/O connectors are on the PXI-2556?



Answer: The PXI-2556 has 10 mini-75 Ohm SMB jacks gold-plated.



Question: What is the PXI power requirement for the PXI-2556?



Answer: The PXI power requirement for the PXI-2556 is 3.7 W at 5 V and 0.3 W at 3.3 V.
