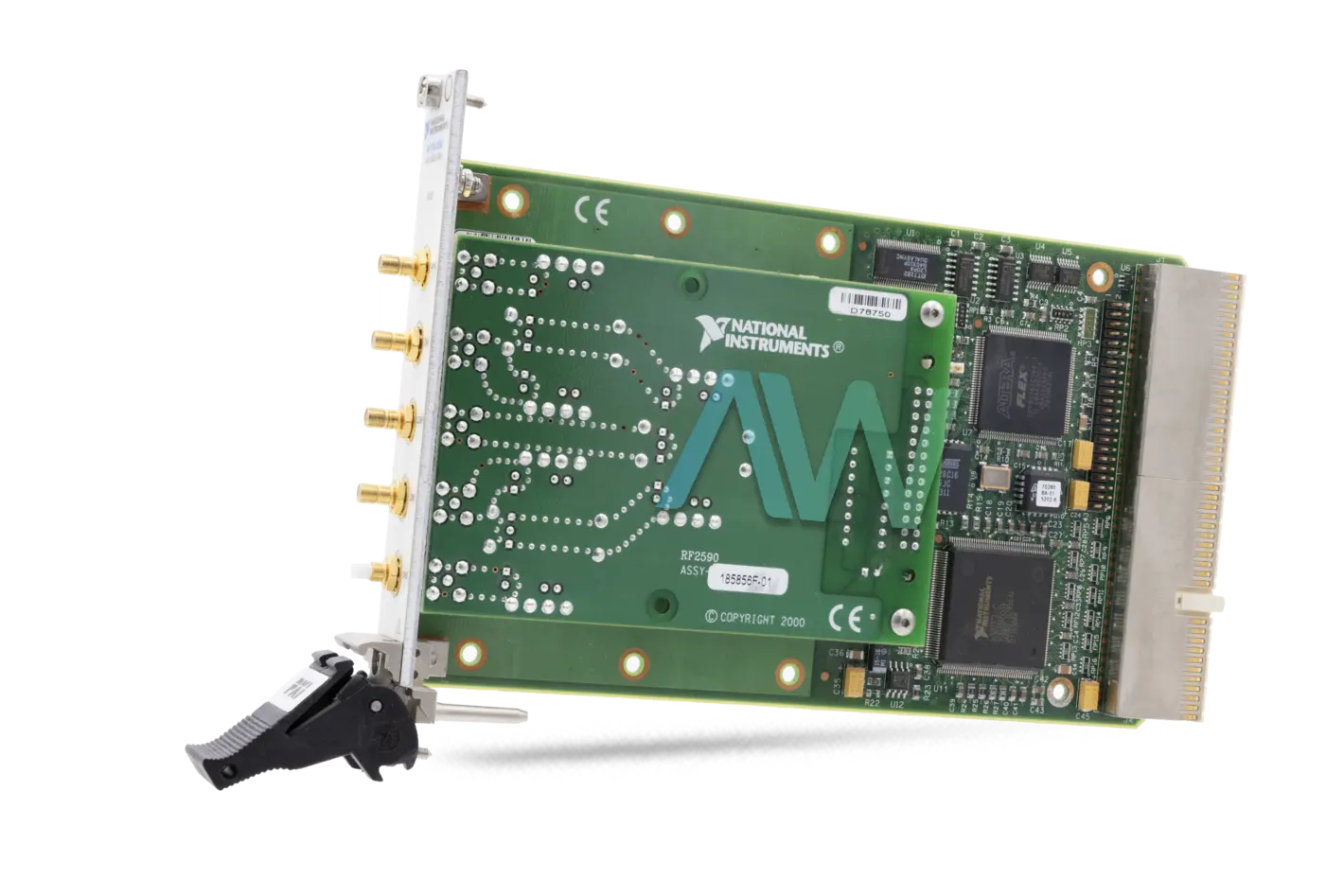

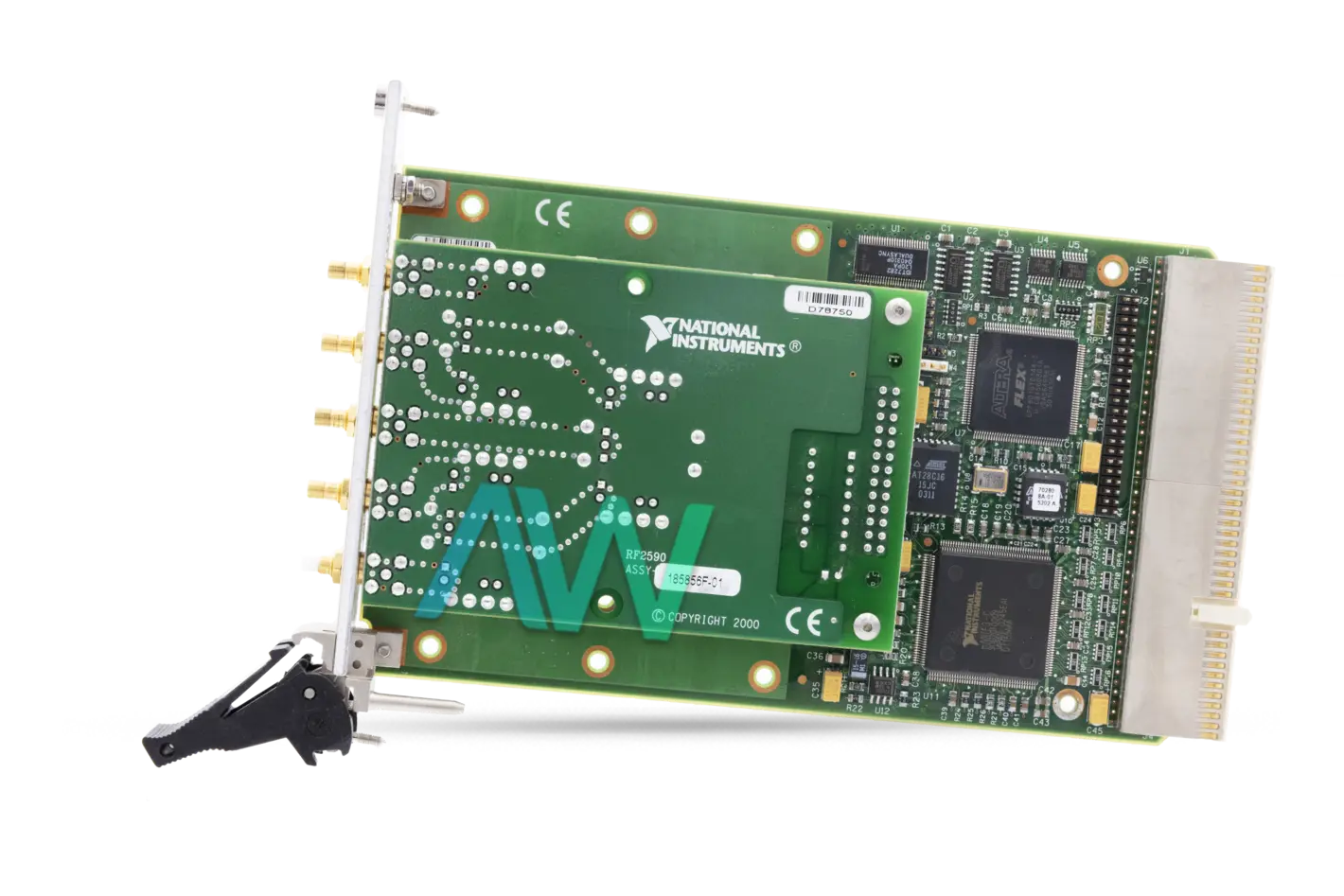

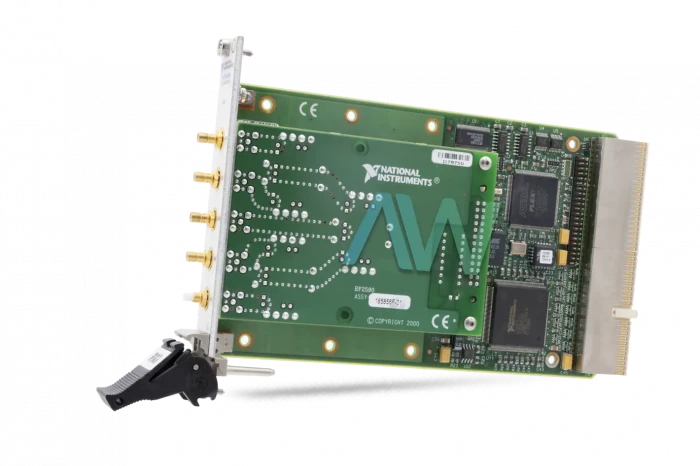

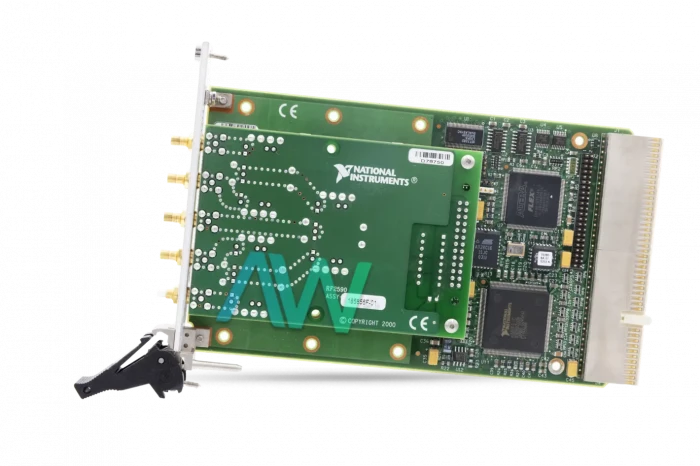

PXI-2590 National Instruments RF Multiplexer Switch Module | Apex Waves | ImagePXI-2590 National Instruments RF Multiplexer Switch Module | Apex Waves | ImagePXI-2590 NewPXI-2590 | Legacy, Refurbished and New Surplus
PXI-2590 National Instruments RF Multiplexer Switch Module | Apex Waves | Image
PXI-2590 National Instruments RF Multiplexer Switch Module | Apex Waves | Image
PXI-2590 New
PXI-2590 | Legacy, Refurbished and New Surplus

PXI-2590

4.8/5 | 16 ratings

Modular Systems > National Instruments > PXI Multiplexer Modules

Part Number PXI-2590
Manufacturer/Brand National Instruments
Description: PXI-2590, 50 Ω Nominal Characteristic Impedance, RF Multiplexer Switch Module
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments PXI-2590 Multiplexer Switch Module

Featured with non-terminated, high-bandwidth relays, the National Instruments NI PXI-2590 (Part Number: 777987-01) is a 4-Channel, 1.3 GHz bandwidth Multiplexer Switch Module for use in automated measurements. This switch module is designed to switch signals from DC to 1.3 GHz, with a characteristic impedance of 50 Ω. The relays utilized in the construction of this module are the electromechanical, non-latching type, featuring 15 ms typical operating and release time. The contact material of the relays is Gold-clad silver. The relays are designed to last 5,000,000 mechanical and 100,000 electrical cycles.

The NI PXI-2590 offers 24 V maximum switching voltage (channel-to-ground and channel-to-channel), 1 A maximum switching current, 1 A maximum carry current, and 24 Watts maximum switching power. In the initial phase of the relay’s life, the DC path resistance remains <0.1 Ω. It rises gradually and a maximum of >1 Ω could be expected at the end of the relay’s life.

This Multiplexer Switch Module tends to receive trigger signals through PXI trigger lines 0-7 and STAR at 70 ns minimum pulse width. It can output trigger signals at 1 µs through PXI trigger lines 0 - 7. The National Instruments NI PXI-2590 features 5 x SMB jacks as I/O connectors. As far as its physical characteristics are concerned, this product weighs around 245 g and has physical dimensions of 3 cm × 10 cm × 16 cm. This general-purpose switch module has a maximum rated voltage and maximum rated current of 24 VDC and 1 ADC respectively.

The PXI-2590 is run using the NI-SWITCH driver software which is compatible with application development environments (ADEs) such as LabVIEW, LabVIEW Real-Time Module, or LabWIndows/CVI.

The device has a recommended operating temperature range of 0 °C to 50 °C, a storage temperature range of –20 °C to 70 °C, a non-condensing relative humidity range of 5% to 85%. The module is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 3111-1, UL 61010B-1, and CAN/CSA C22.2 No. 1010.1.

PXI-2590 Obsolete Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

ModelPXI-2590 (777987-01)
ManufacturerNational Instruments
TypePXI Multiplexer Switch Module
Banks1
Channels4
Characteristic Impedance50 Ohm
Dimensions3.9 x 6.3 x 1.6 in.
Relay Operating Time15 ms
WarrantyThree Year Warranty
PXI-2590 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-2590:

185.856, 18585.6, 185856-01, 185856A-01, 185856D-01, 185856F-01, 185856G-01, 777987-01

National Instruments PXI-2590 Frequently Asked Questions



Question: What is the channel-to-earth input voltage for the PXI-2590?



Answer: The channel-to-earth input voltage for the PXI-2590 is 24 VDC.



Question: How many I/O connectors are on the PXI-2590?



Answer: There are 5 SMB female I/O connectors on the PXI-2590.



Question: What is the maximum switching power per channel on the PXI-2590?



Answer: The maximum switching power per channel on the PXI-2590 is 24 W.



Question: How many channels are on the PXI-2590?



Answer: The PXI-2590 has four channels.
