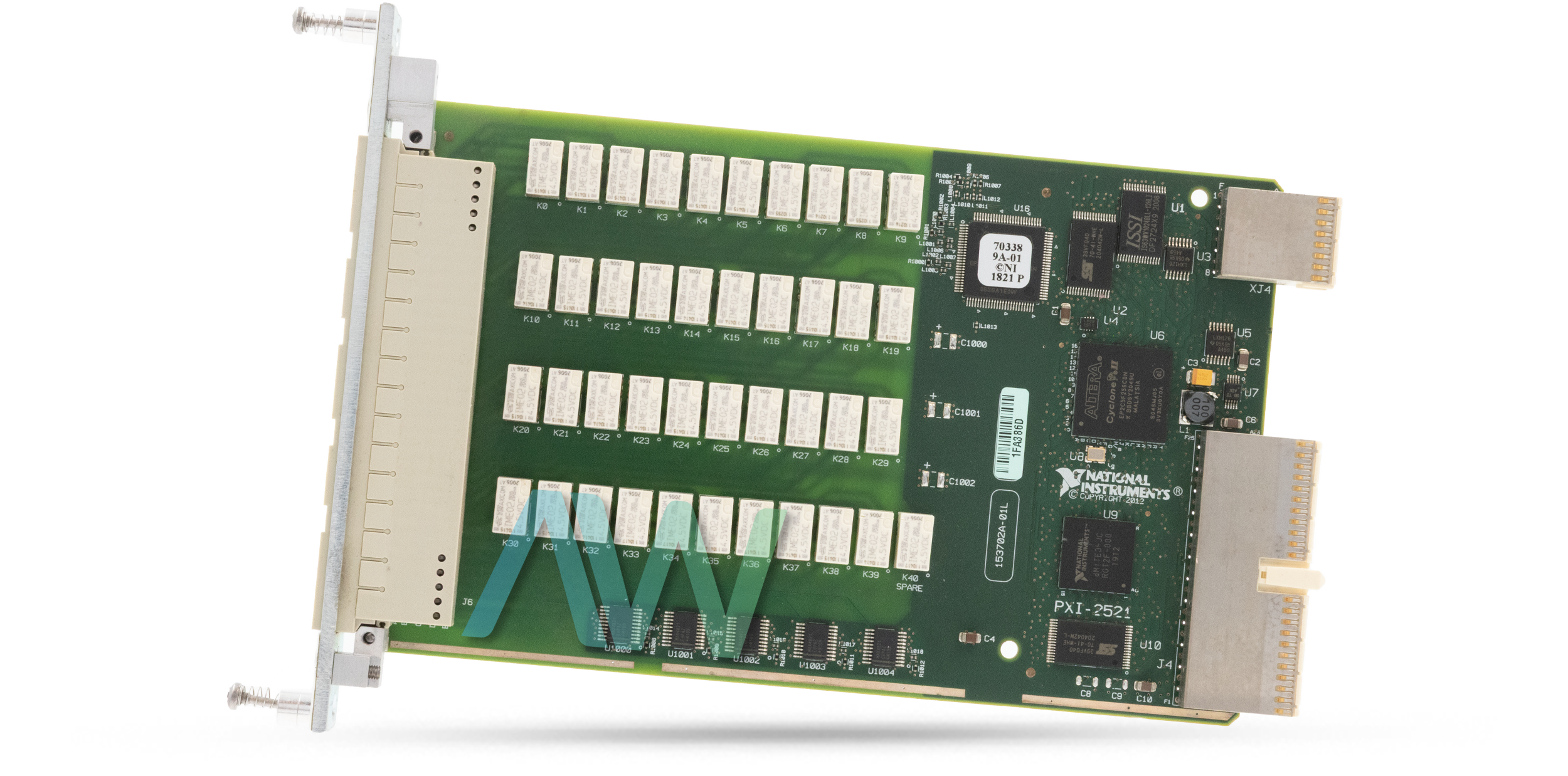

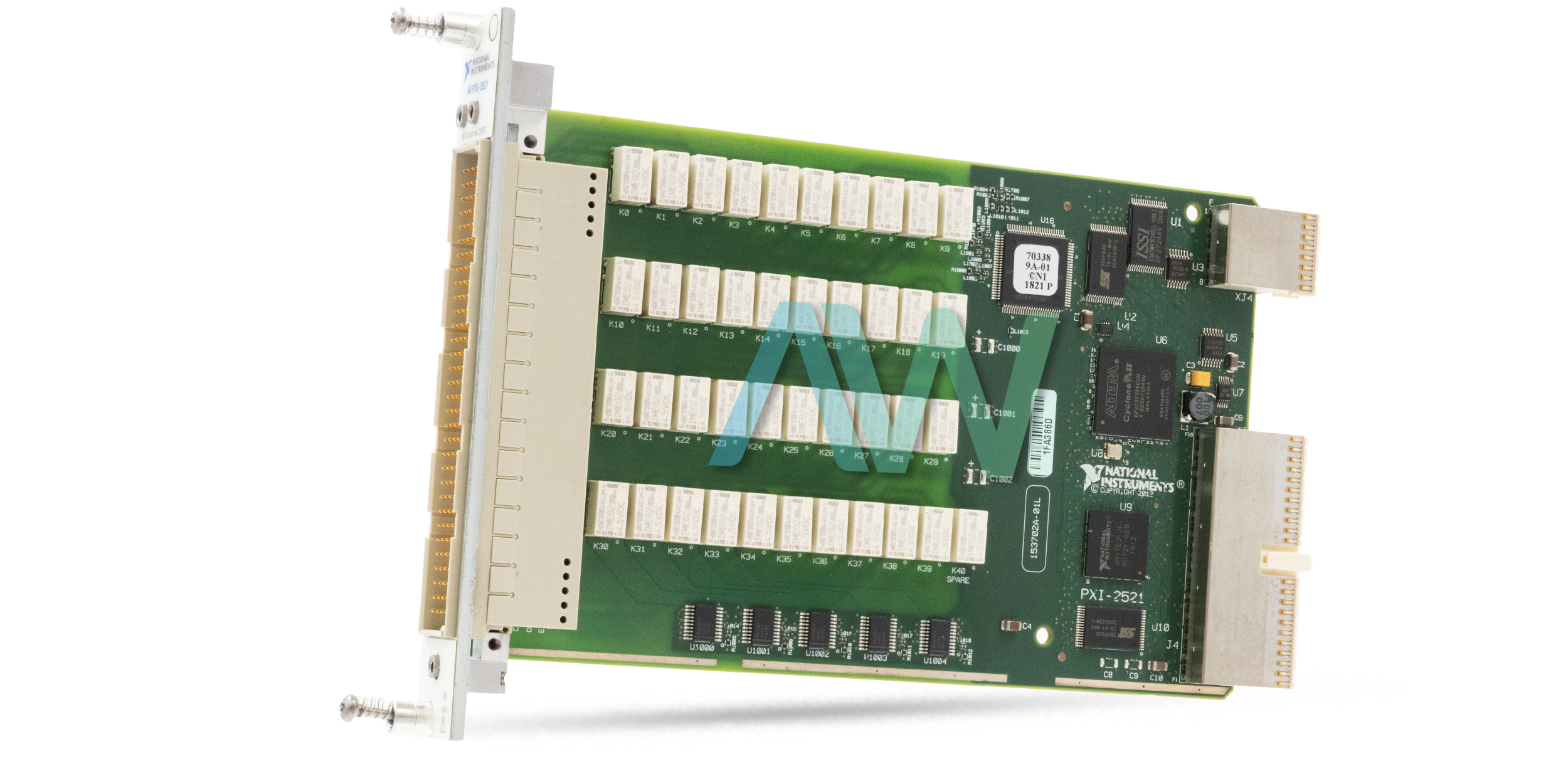

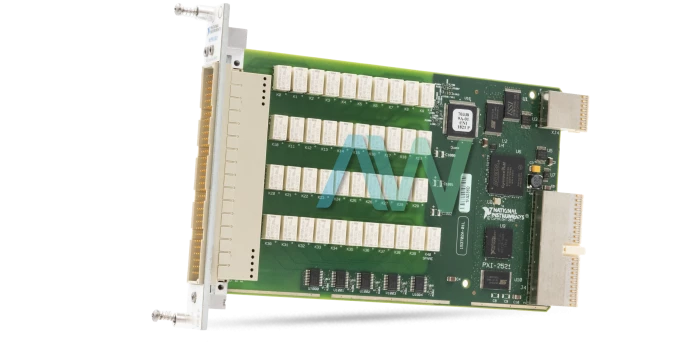

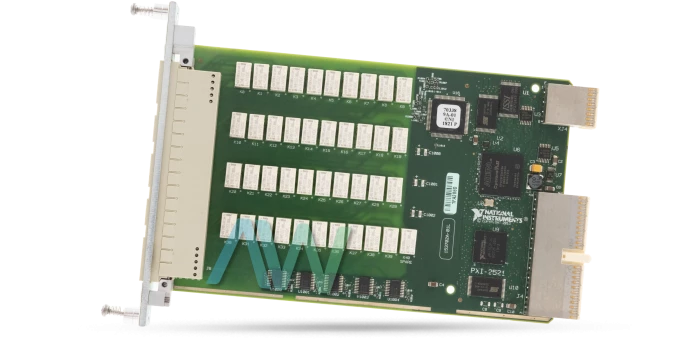

National Instruments PXI-2521 PXI Relay Module

The NI PXI-2521 PXI Relay Module (Part Number: 778572-21) has over-temperature conditions that are made when exorbitant power dissipates in channel routes, such as while changing expansive impulses created by switching in capacitive or inductive loads or when a signal is changed at a quicker rate than the module dissipates the heat produced. The PXI-2521 Switch Module offers 40 independent DPST relays, 2 A switching / A carry, 150 V of maximum voltage and it is fully software programmable.

The NI Switch Health Center is incorporated in the PXI-2521; this is a free application that installs with the NI-SWITCH driver that can be utilized to screen individual relay health, guide relay replacement, and produce client reports. The NI Switch Health Center checks the state of each bus by sending a signal through a mix of routes and cautioning clients if a relay has failed stuck open or shut. Furthermore, huge changes in contact resistance after some time can demonstrate that a relay is approaching or has achieved end of life. The NI Switch Health Center tests for changes in resistance utilizing the incorporated relay resistance test, enabling the user to see the resistance change crosswise over individual relays and decide if the relay is nearing the finish of its usable life. A substantial change in resistance from the baseline shows that the user will soon need to supplant the relay.

If you are interested in this model and you want to learn more about its options, special features, and specifications, you can read its manual, which is available on the ApexWaves.com website.

ModelPXI-2521 (778572-21)
ManufacturerNational Instruments
TypePXI Relay Module
Relays40
Switch Bandwidth25 MHz
Scan Rate145 cycles/s
Dimensions8.5 x 0.8 x 5.1 in.
Weight6.4 oz.
WarrantyOne Year Warranty
PXI-2521 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

 National Instruments PXI-2521 Frequently Asked Questions



Question: What is the PXI power requirement for the PXI-2521?



Answer: The PXI-2521 has a PXI power requirement of 7 W at 5 V, 2.5 W at 3.3 V.



Question: Does the NI PXI-2521 have any accessories available?



Answer: The NI PXI-2521 has several accessories available: the DIN160 to 50 Pin DSUB switch cable, 1 m (Part number: 782417-03), the DIN160 to DIN160 switch cable, 1 m (Part number: 782417-02), the DIN160 to bare wire switch cable, 1 m (Part number: 782417-01), and a relay replacement kit (Part number: 782461-10).



Question: What is the maximum switching voltage DC and maximum switching current DC for the PXI-2521?



Answer: The maximum switching voltage DC is 150 V and the maximum switching current DC is 2 A for the PXI-2521.



Question: What types of I/O connector does the NI PXI-2521 have?



Answer: The NI PXI-2521 has a 160 DIN 41612, 160 positions, male I/O connector.
