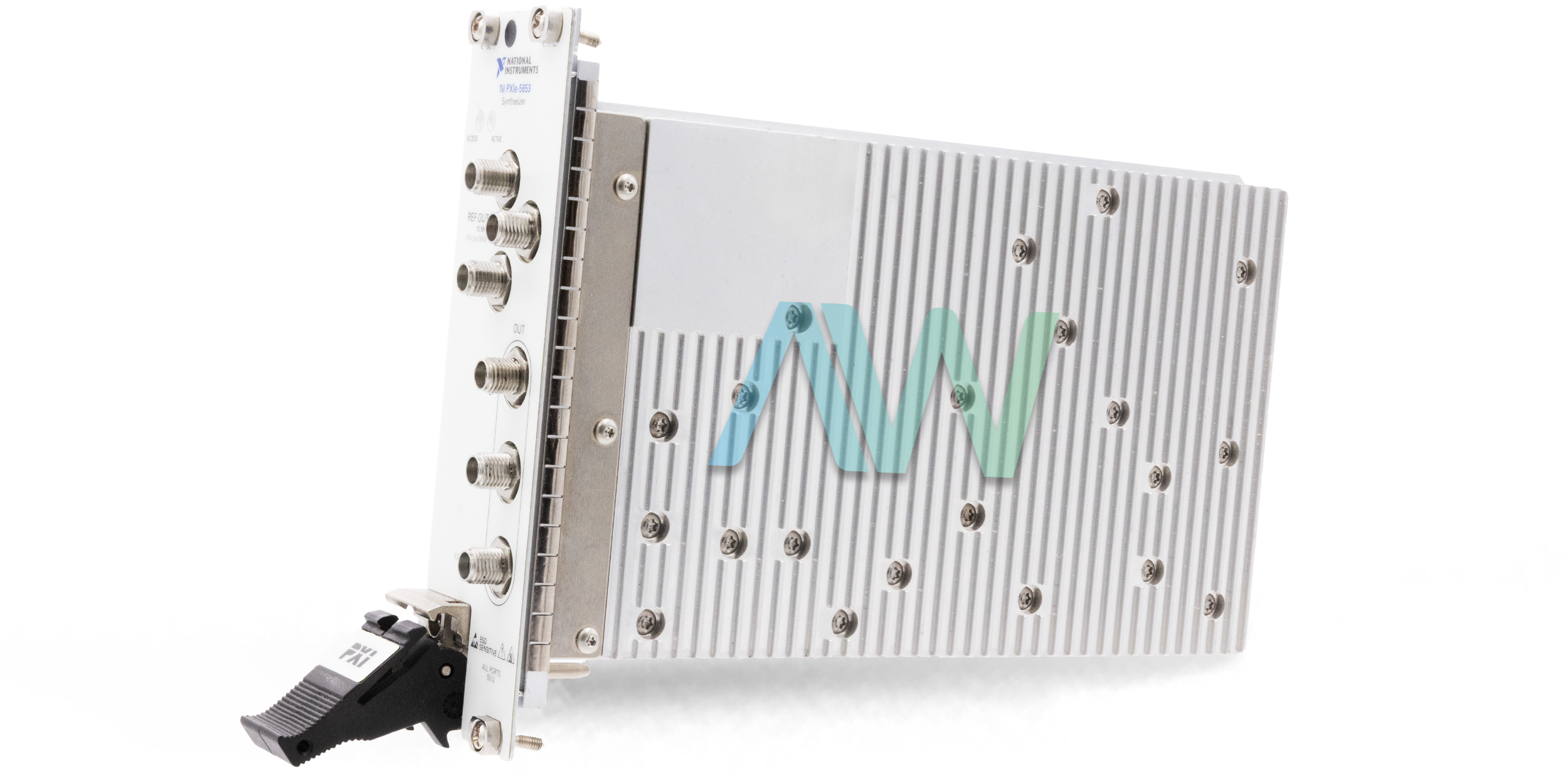

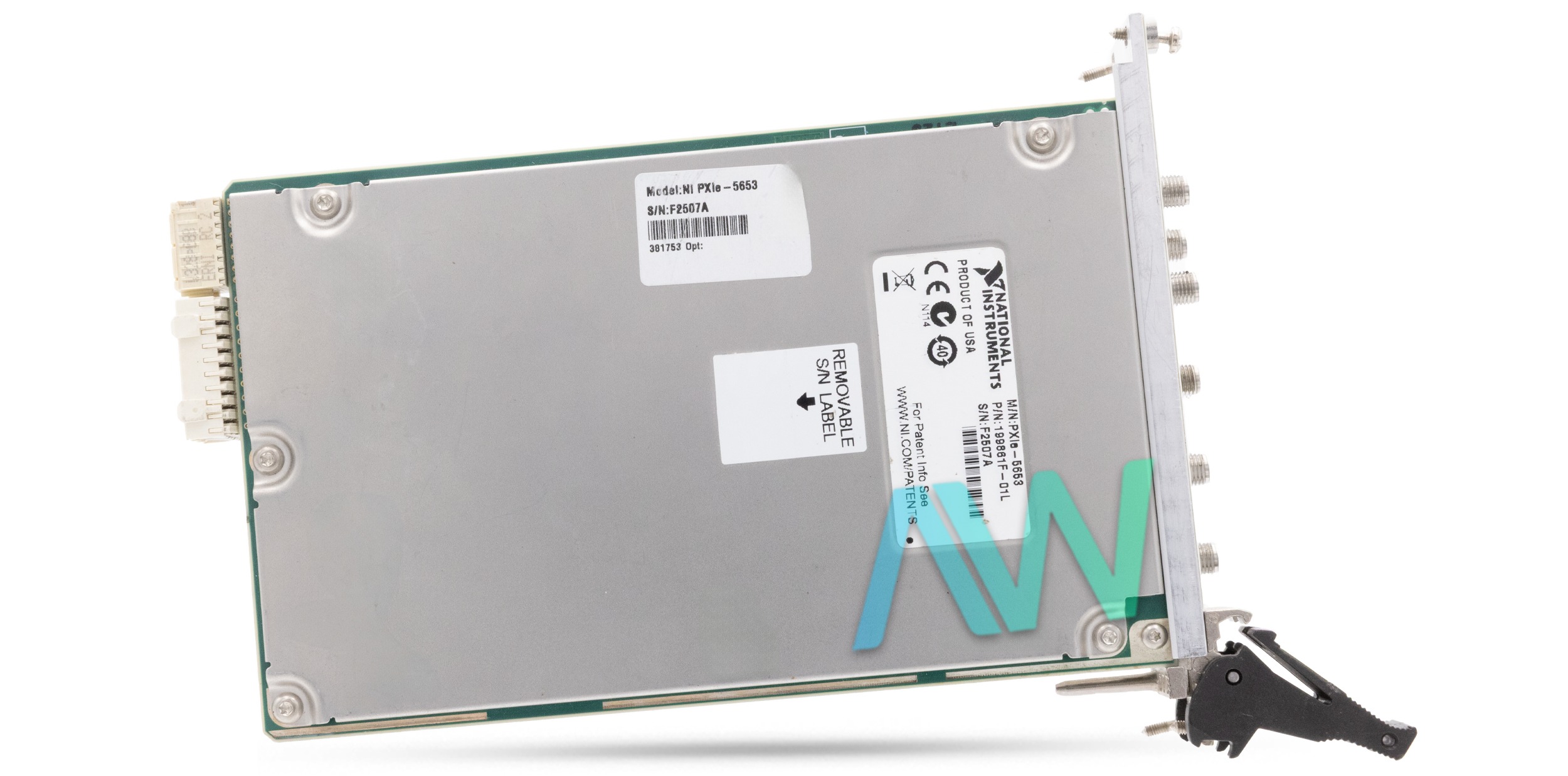

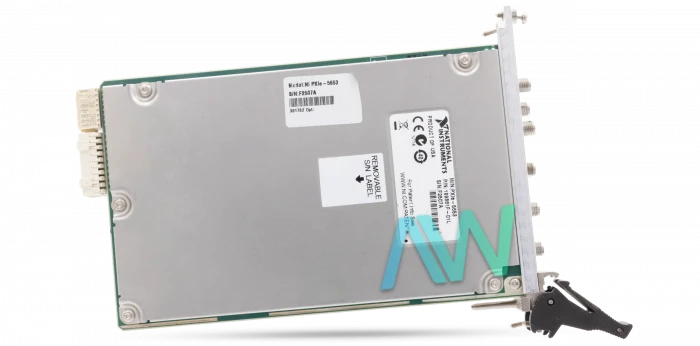

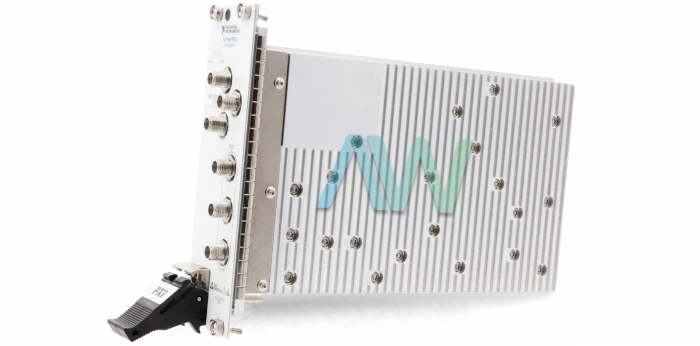

National Instruments 784776-01 RF Analog Signal Generator
Part number 784776-01 from National Instruments is the descriptive part number for the version of the PXIe-5654 RF Analog Signal Generator that has 10 GHz of frequency and is equipped with the PXIe-5696 Amplitude Extender. The 784776-01 features a incredibly quick frequency tuning time, and it is designed to withstand the demanding conditions of versatile applications such as radar and satellite testing. In addition, the amplitude extender capabilities of the device are facilitated through a connection with the PXIe-5696 from NI. Connecting with this amplitude extender raises the amplitude range to up to 27 dBm. The fast switch capabilities of this device are represented by the part number 784776-02. With this feature, the module is capable of tuning to and from any frequency in 100 µs or 150 µs. As a result, the 784776-02 is an incredibly flexible frequency synthesizer.
Designed for indoor use only, the 784776-01 is built to handle a wide range of environmental factors. During operation, the device can withstand an operating shock peak of 30 g. In addition, it can tolerate random vibrations ranging from 5 Hz to 500 Hz both during operation and when not in use. The 784776-01 should be used only within an operating temperature range of 0 °C to 55 °C, with a noncondensing relative humidity range of 10% to 90%. When not in use, the device should be stored within temperatures ranging from -40 °C to 71 °C, with a noncondensing relative humidity range of 5% to 95%. The 3 slot PXI Express module size of the 784776-01 measures 6.1 cm x 13.0 cm x 21.4 cm (2.4 in. x 5.1 in. x 8.4 in.) and weighs 1,328 g (46.8 oz).
| Part Number(s) | 784776-01, 784776-02 |
|---|---|
| Model Name | PXIe-5654 |
| Part Type | RF Analog Signal Generator |
| Frequency | 10 GHz |
| Extended Amplitude? | Yes |
| Operating Temp Range | 0 °C to 55 °C |
| Storage Temp Range | -40 °C to 71 °C |
| Dimensions | 6.1 cm x 13.0 cm x 21.4 cm (2.4 in. x 5.1 in. x 8.4 in.) |
| Weight | 1,328 g (46.8 oz) |
| Manufacturer | National Instruments |
