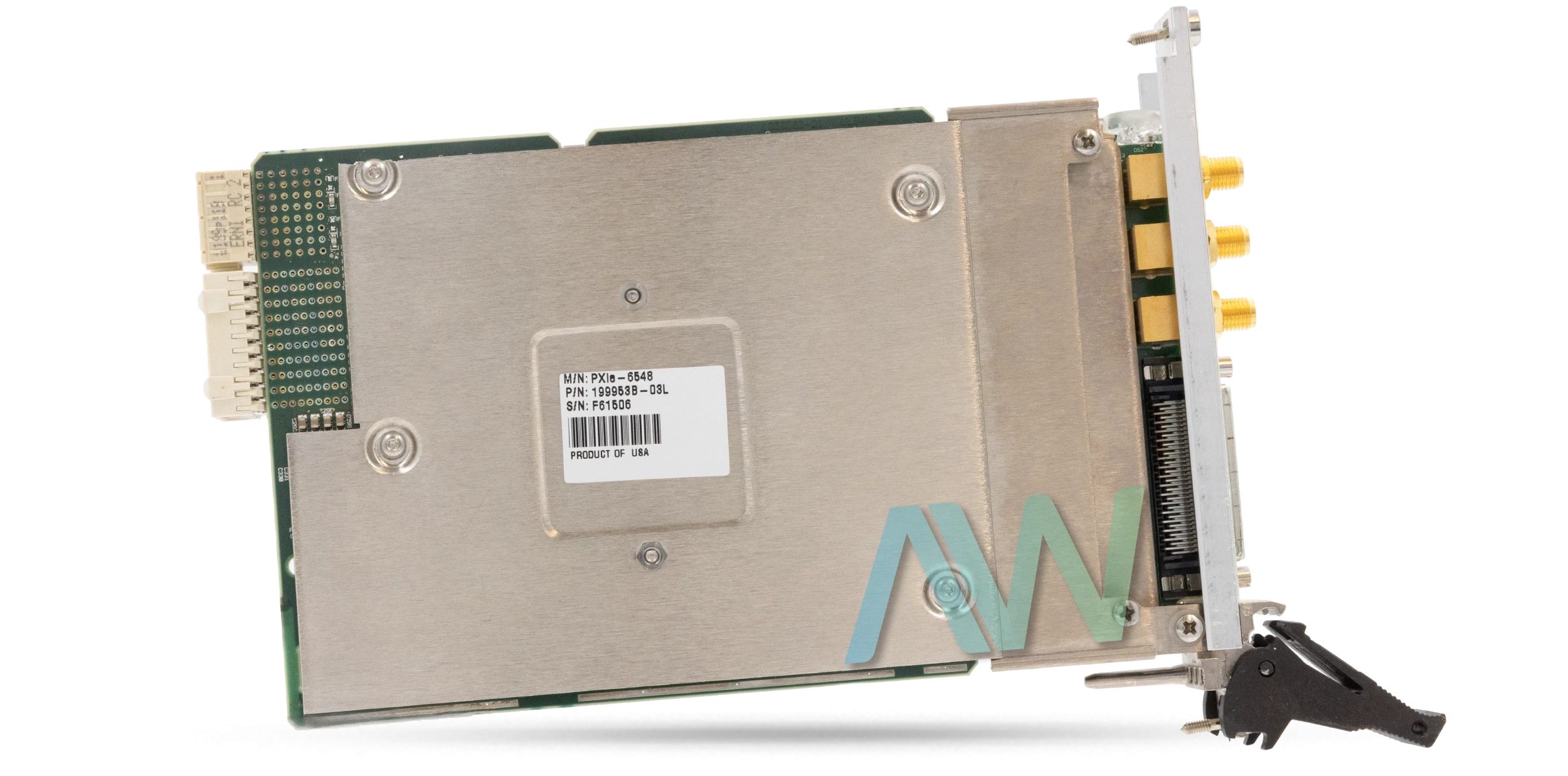

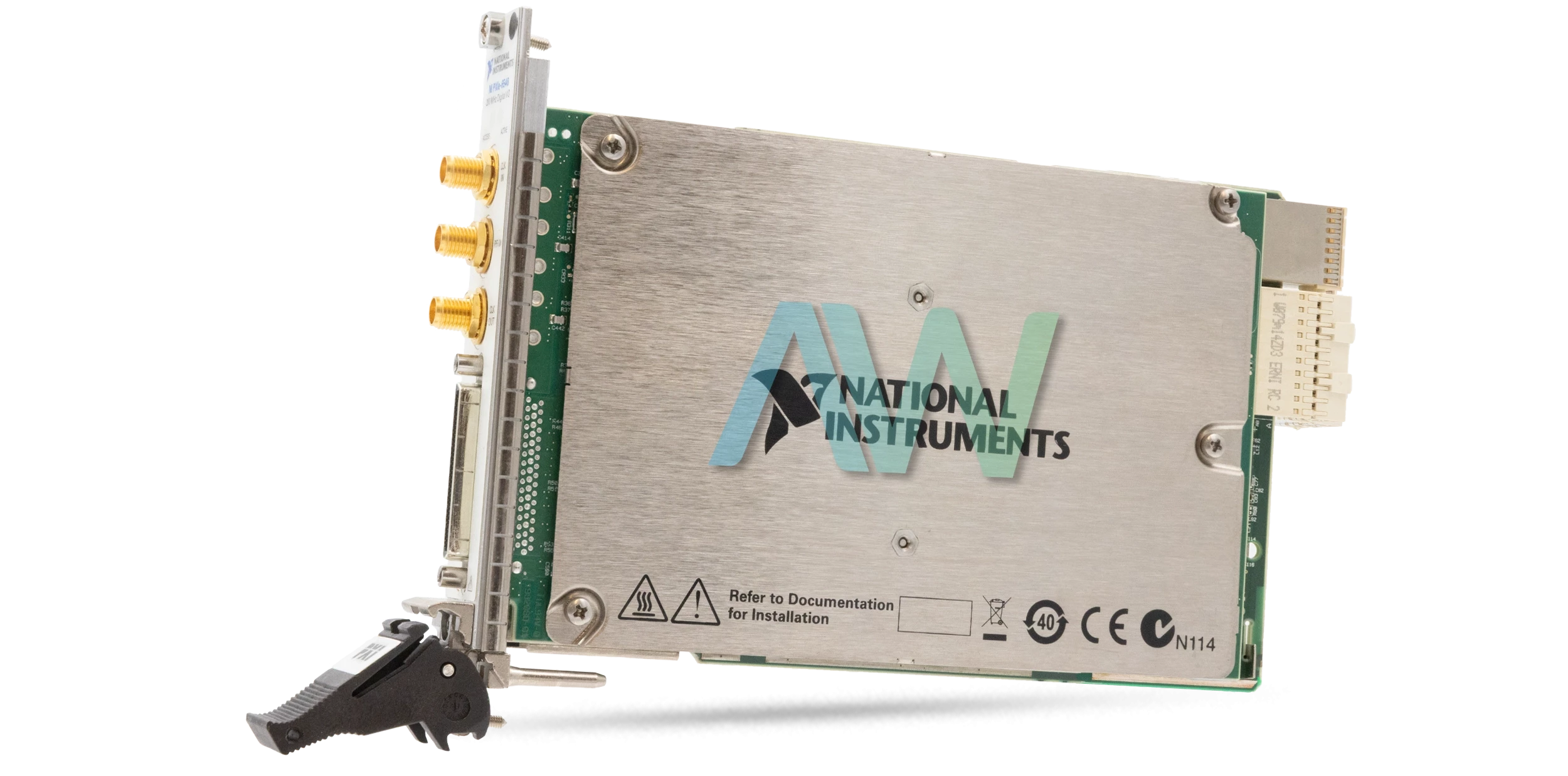

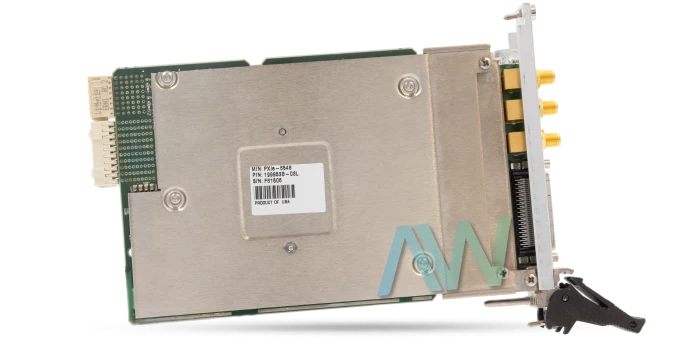

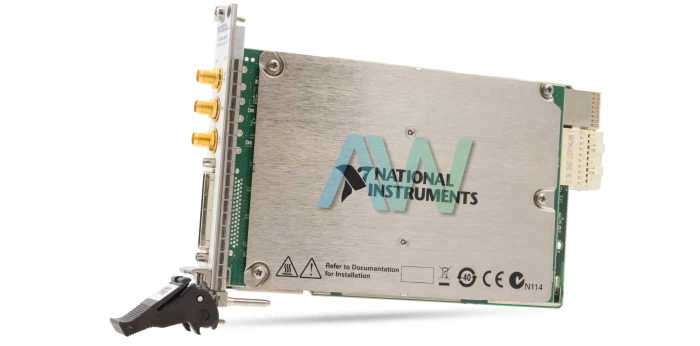

National Instruments 781012-03 PXI Digital Waveform Instrument
The 781012-03 from National Instruments is the identifying part number for the version of the PXIe-6548 PXI Digital Waveform Instrument that has 64 Mbit of onboard memory per channel. Equipped to handle some of the most demanding requirements of test and measurement applications, the high-performance 781012-03 has a maximum sample rate of 200 MHz. The instrument boasts a comprehensive set of features for waveform generation and application, offering unparalleled flexibility.
Test system integration is a breeze with the 781012-03, which features SMA jack, VHDCI, and PXI_TRIG connectors on the I/O panel. The SMA jack connectors provide excellent connectivity with external sample and reference clocks, events and triggers, and external and reference clocks. The 68-pin VHDCI connector is the best choice for applications including digital data channels, exported sample clocks, and triggers.
One of the standout features of the 781012-03 is it’s enhanced memory and scripting capabilities- which allow the user to create and execute even complex waveform sequences with incredible ease. These capabilities are perfectly paired with software integration of the device, which easily pairs with software suites such as LabVIEW, Microsoft Visual C/C++, .NET, and more.
Designed for robust operation, the 781012-03 operates best within a temperature range of 0 °C to 55 °C. In addition, it can be safely stored within a temperature range of -20 °C to 70 °C. The The 781012-03 has dimensions that measure 21.6 cm × 2.0 cm × 13.0 cm, and it weighs an easily manageable 519 g (18.3 oz).
| Model | 781012-03 |
|---|---|
| Model Name | PXIe-6548 |
| Part Type | PXI Digital Waveform Instrument |
| Onboard Memory | 64 Mbit / Channel |
| # Channels | 16 Acquisition, 16 Generation |
| Operating Temp Range | 0 °C to 55 °C |
| Storage Temp Range | -20 °C to 70 °C |
| Dimensions | 21.6 cm × 2.0 cm × 13.0 cm |
| Weight | 519 g (18.3 oz) |
| Manufacturer | National Instruments |
