PXIe-5413, 20 MHz, 1 or 2 Channel, PXI Waveform Generator

Rated 4.8/5 | 10 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

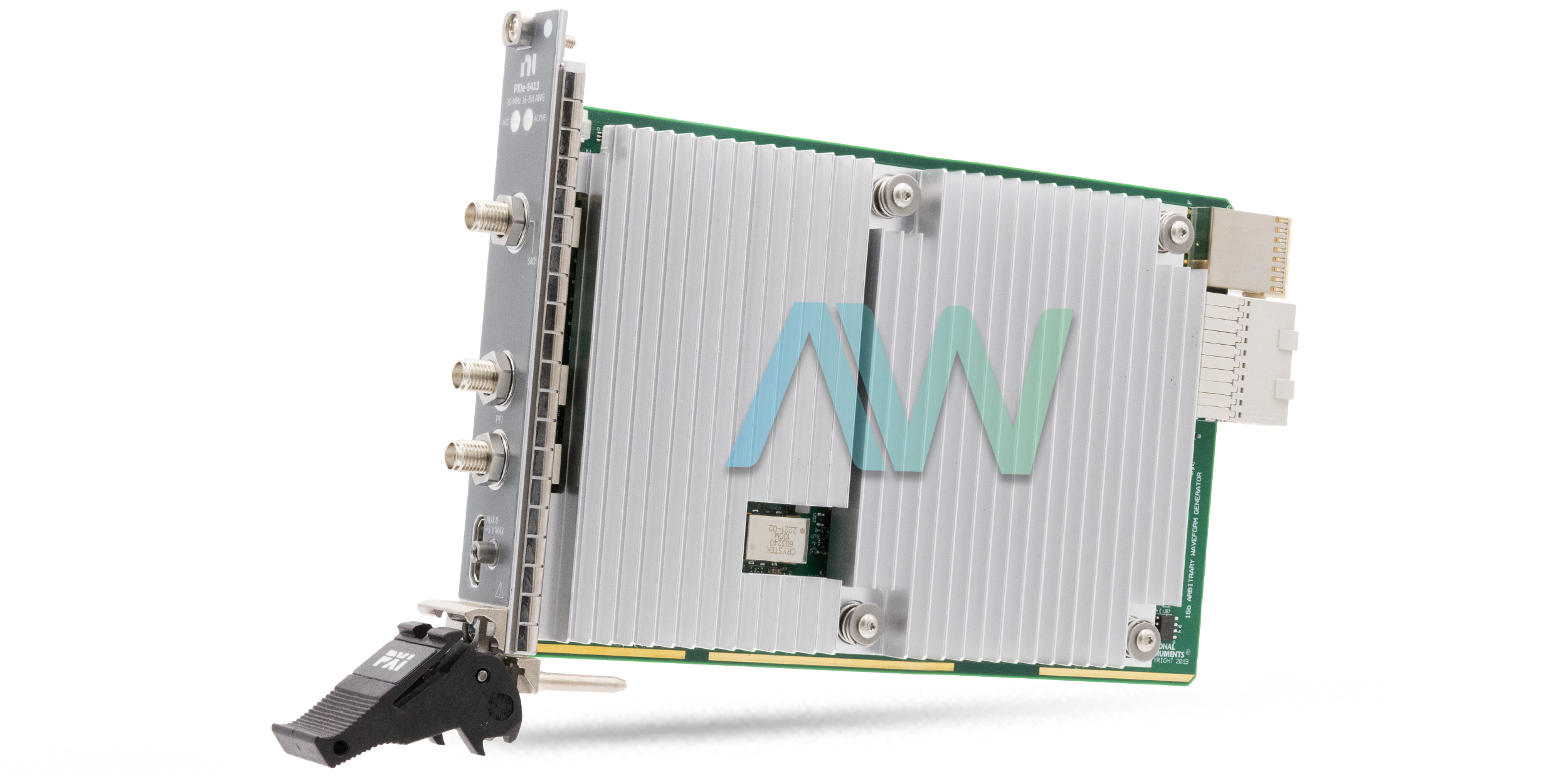

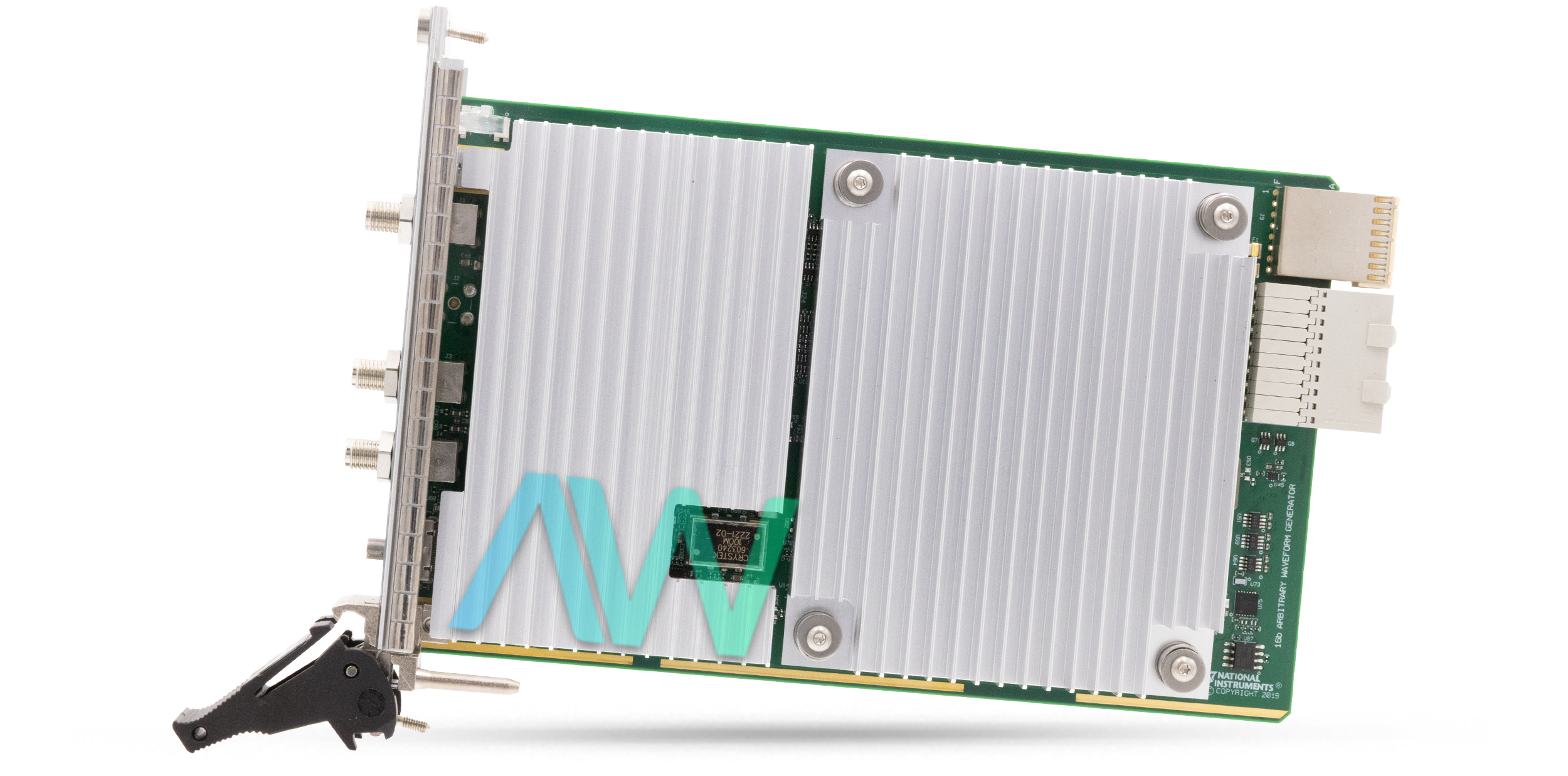

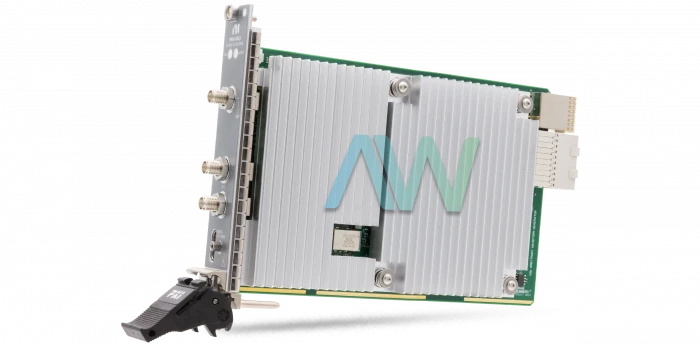

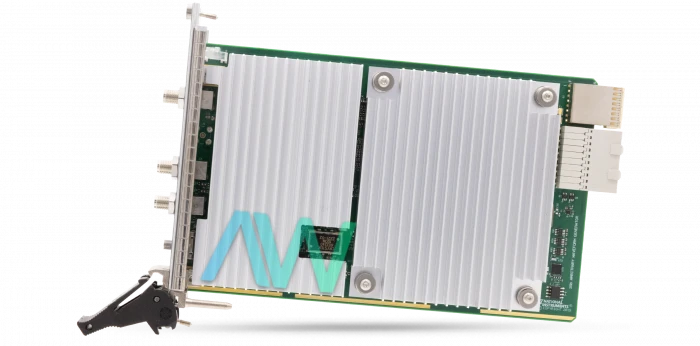

National Instruments PXIe-5413 PXI Waveform Generator

With the PXIe-5413 (Part Numbers: 784181-01 and 785114-01) Waveform Generator, users can generate arbitrary waveforms that are user-defined. With the fractional re-sampling method, the NI PXIe-5413 can accurately create waveforms by using data sequences or by carrying out continuous streaming from a host-to-peer or peer-to-peer instrument within the PXI system. This Waveform Generator has advanced synchronization options, which makes it ideal in the testing of semiconductor devices, consumer electronics, automotive, and aerospace/defense.

The NI PXIe 5413 supports frequencies up to 20 MHz. The step response rise time is measured at 14.8 ns. This PXI Waveform Generator features a clock, PFI I/O, triggers, and markers. The arbitrary waveform size is from 2 samples to 64,000,000 samples. The user sample rate when digital filter is enabled and disabled are 5.6 µS/s to 200 MS/s and 3.125 MS/s to 200 MS/s respectively. The NI PXIe-5413’s frequency step size is 2.84 µHz and it has 8,192 waveform points.

The reference clock frequency for the PXIe 5413 PXI Waveform Generator is 100 MHz (<±25 ppm) and the sample clock rate is 800 MHz. This model has a PFI I/O frequency range from 0 MHz to 25 MHz and a maximum input voltage of +5 V. The operating shock for the NI PXIe-5413 is 30 g peak, half-sine, 11 ms pulse. The random vibration while operating is 5 Hz to 500 Hz and 0.3 grms. However, the random vibration while not operating is 5 Hz to 500 Hz, and 2.4 grms.

ModelPXIe-5413
Part Numbers784181-01 and 785114-01
ManufacturerNational Instruments
TypePXI Waveform Generator
Maximum Bandwidth20 MHz
Maximum Update Rate800 MS/s
Analog Output Resolution16 bits
Dimensions8.5 x 0.8 x 5.1 in.
WeightOne Channel: 13.0 oz; Two Channels: 13.3 oz.
Warranty2-3 Year Warranty
PXIe-5413 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-5413:

National Instruments PXIe-5413 Frequently Asked Questions



Question: Why does the PXIe-5413 have two part numbers?



Answer: The PXIe-5413 has two memory and channel options: part number 784181-01 with 128 MB onboard memory size and 1 channel and part number 785114-01 with 256 MB onboard memory size and 2 channels. The other difference is that the one channel model weighs 13 oz. and the 2 channel model weighs 13.3 oz.



Question: What type of analog outputs are on the NI PXIe-5413?



Answer: The NI PXIe-5413 has referenced single-ended analog outputs.



Question: What is the arbitrary waveform size for the PXIe-5413?



Answer: The PXIe-5413 arbitrary waveform size is 2 samples to 64,000,000 samples.



Question: What type of calibration is available for the NI PXIe-5413?



Answer: The NI PXIe-5413 can be self-calibrated and externally calibrated.
